Description

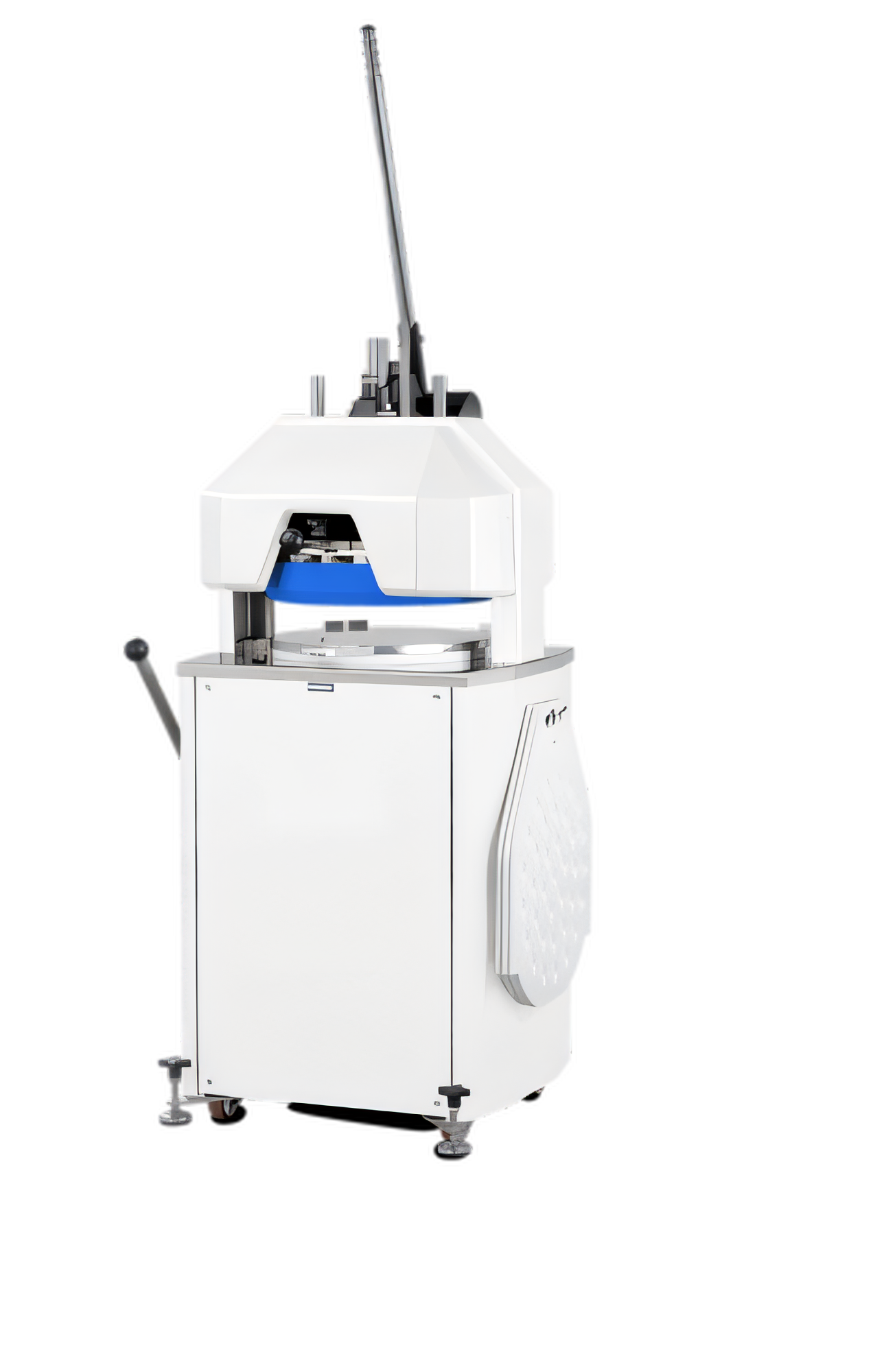

Doyon DSA4422 Dough Divider/Rounder
22 portions • 4 kg dough capacity • 2 – 7 oz per pieceSlash labor time and deliver perfectly uniform dough balls at the push of a lever. The Doyon DSA4422 combines semi-automatic dividing and rounding with heavy-duty, bakery-ready construction—so every batch is consistent, quick and gentle on the dough.
Why Bakers Choose the DSA4422

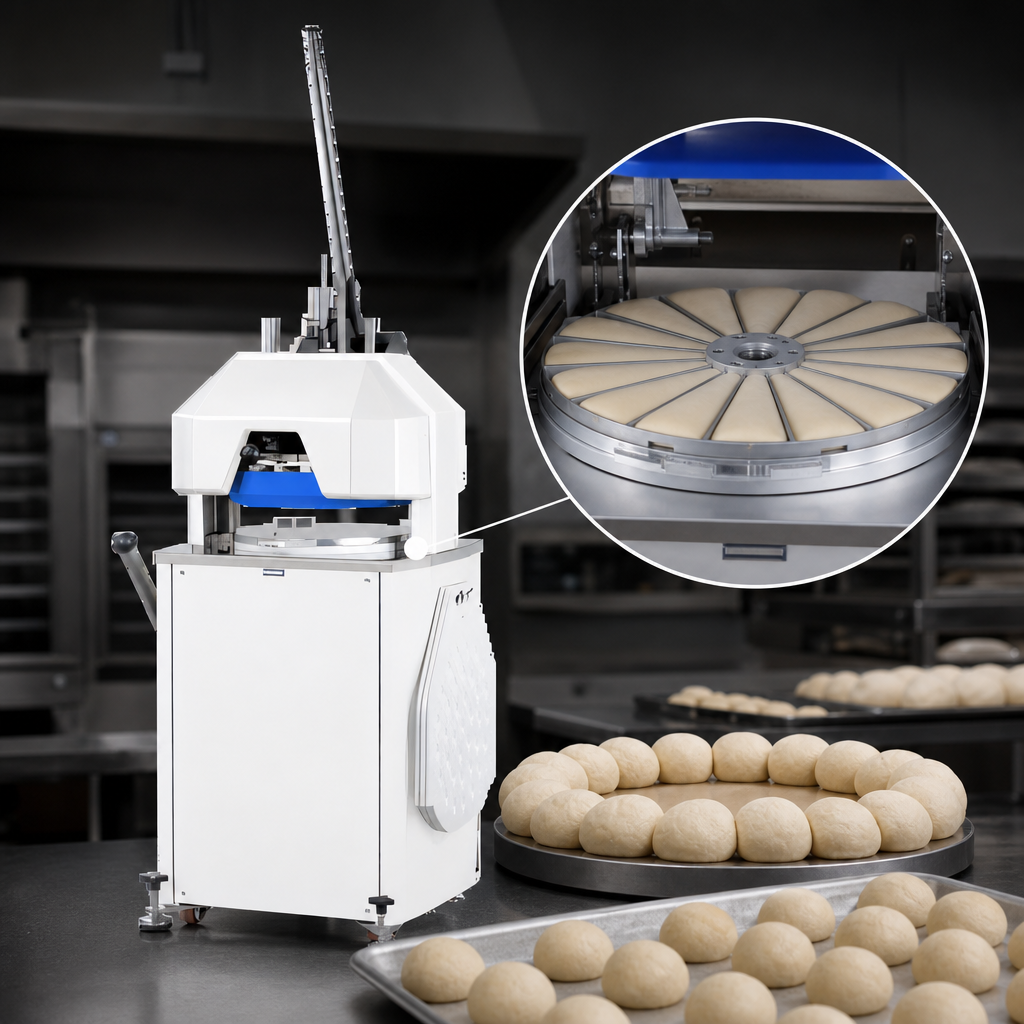

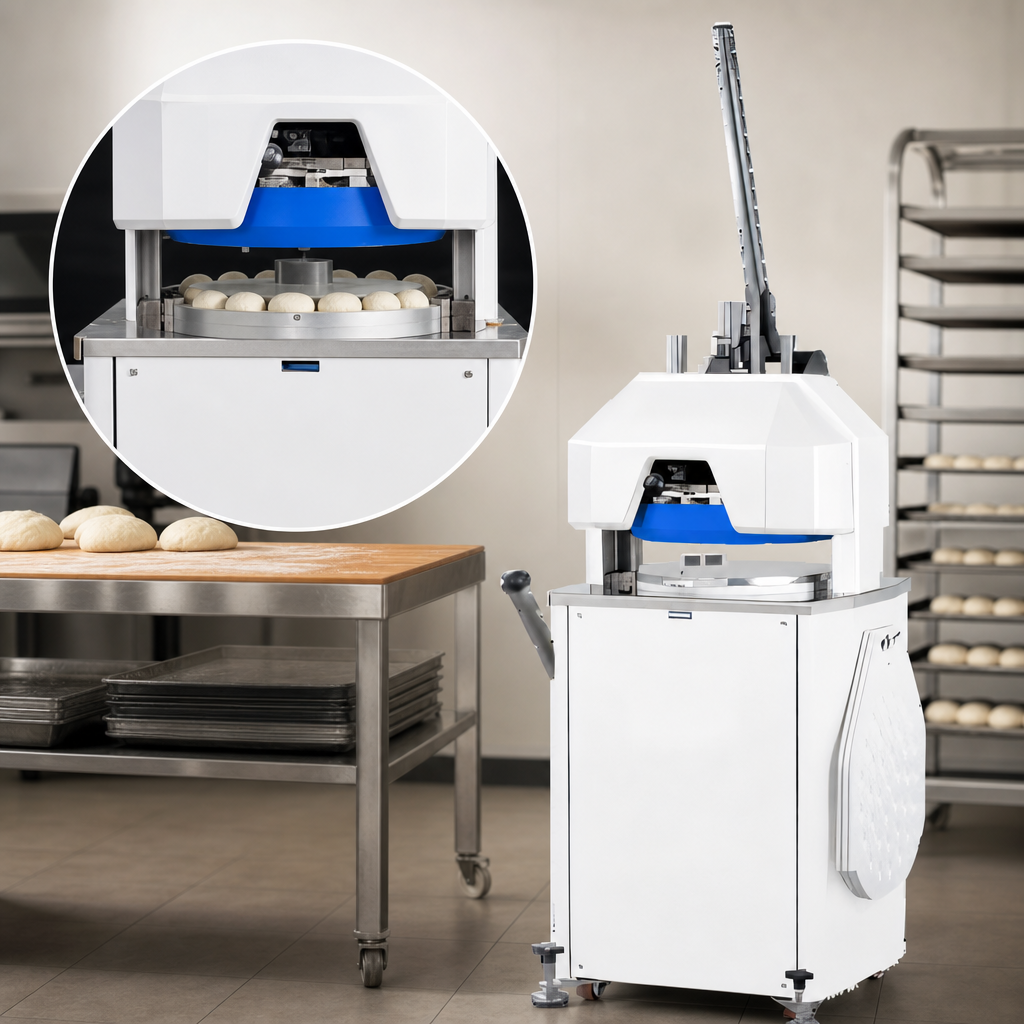

- Semi-automatic cycle divides & rounds 22 pieces in seconds.
- Interchangeable, snap-on dough head for fast cleaning and change-overs.
- AISI 304 stainless steel cutting knives for long-lasting precision cuts.
- (3) food-grade plastic rounding plates included—ready to work right out of the box.
- Quiet, anti-vibration system and floor-raised design on locking casters.
- Handles dough with optimal 55-65 % hydration without degassing.
- Free spare-parts kit (springs & damper) keeps downtime to a minimum.
In the Box
- DSA4422 semi-automatic divider/rounder with 22-division head (Ø 410 mm)
- (3) sanitary plastic rounding plates (Ø 410 mm)
- Stainless steel cutting knife assembly
- Spare parts kit: springs & damper
- 6 ft power cord with NEMA 5-15P plug
Technical Specifications
| Divisions / Cycle | 22 |
|---|---|
| Portion Weight Range | 2 – 7 oz (60 – 200 g*) |
| Total Dough Capacity | Up to 4 kg (8.8 lb) |
| Operation | Semi-automatic, lever-actuated press & round |
| Construction | Painted carbon-steel body, AISI 304 stainless knives, POM dough press & ring |
| Mobility | 4 locking casters with stainless anti-vibration system |
| Electrical | 120 V / 60 Hz / 1-ph, 0.55 kW, 8 A, NEMA 5-15P |
| Certifications | cETLus & ETL-Sanitation |
| Dimensions (HxWxD) | 63 in × 29 5/16 in × 28 3/4 in (without handle) 77 3/16 in × 29 5/16 in × 28 3/4 in (with handle) |
| Net / Shipping Weight | 665 lb (302 kg) / 783 lb (355 kg) |
*Portion weights vary with dough formulation, fermentation and operator technique.
Popular Options & Accessories
- Stainless steel body & frame (suffix “-I”)
- Additional interchangeable heads: 15, 30 or 36 divisions
- Extra Ø 410 mm rounding plates or collars
- 220 V electrical configuration (suffix “-220”)
Warranty
Backed by Doyon’s 2-year parts / 1-year labor limited warranty and a nationwide network of authorized service agencies.
Specifications and design are subject to change without notice.
