Doyon Baking Equipment (Middleby) DSA4330 Dough Dividers & Rounders
Doyon Baking Equipment (Middleby) DSA4330 Dough Dividers & Rounders is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Doyon Baking Equipment (Middleby) DSA4330 Dough Dividers & Roun...
Description

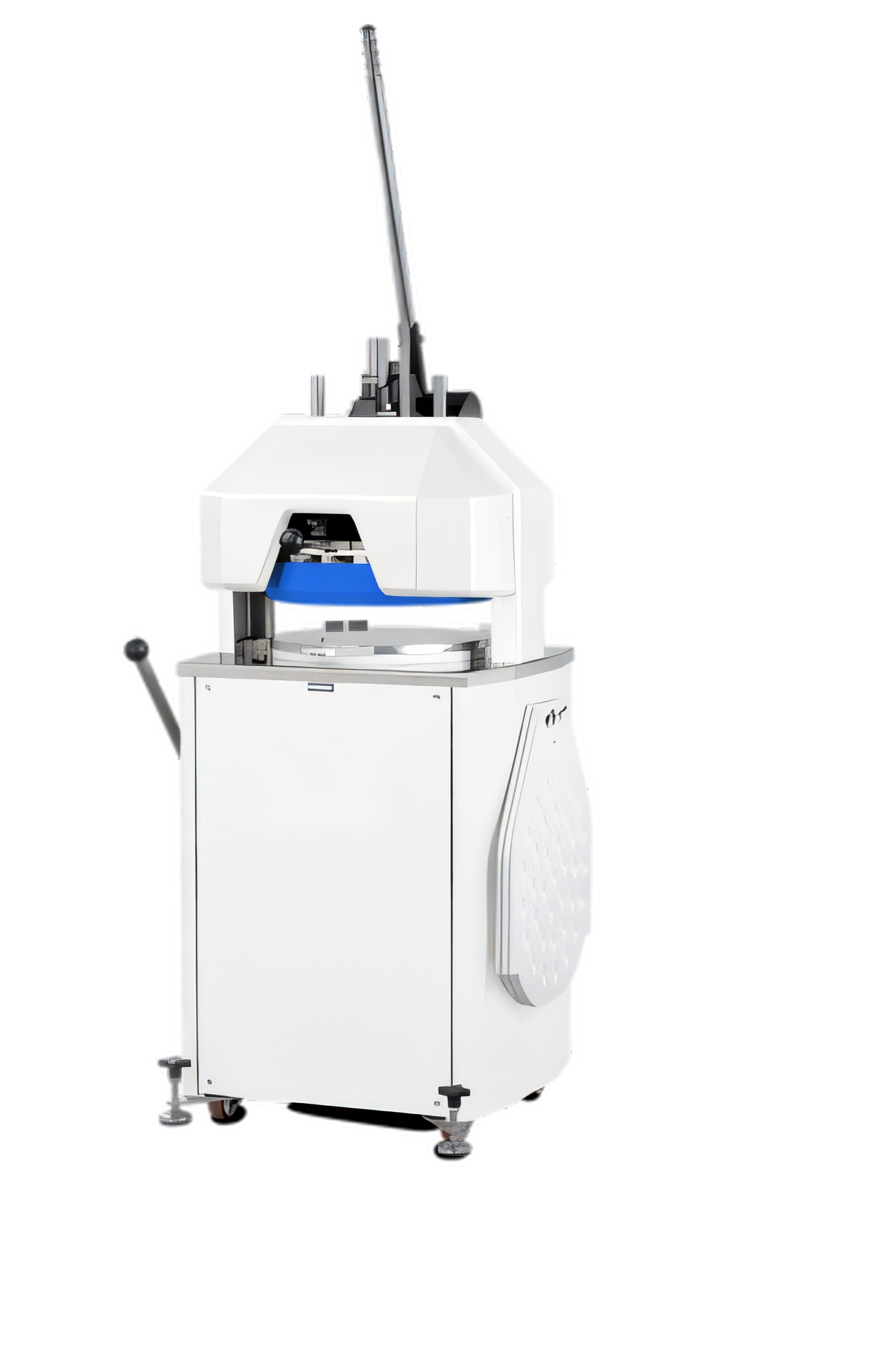

Doyon DSA4330 Semi-Automatic Dough Divider / Rounder – 30 Portions

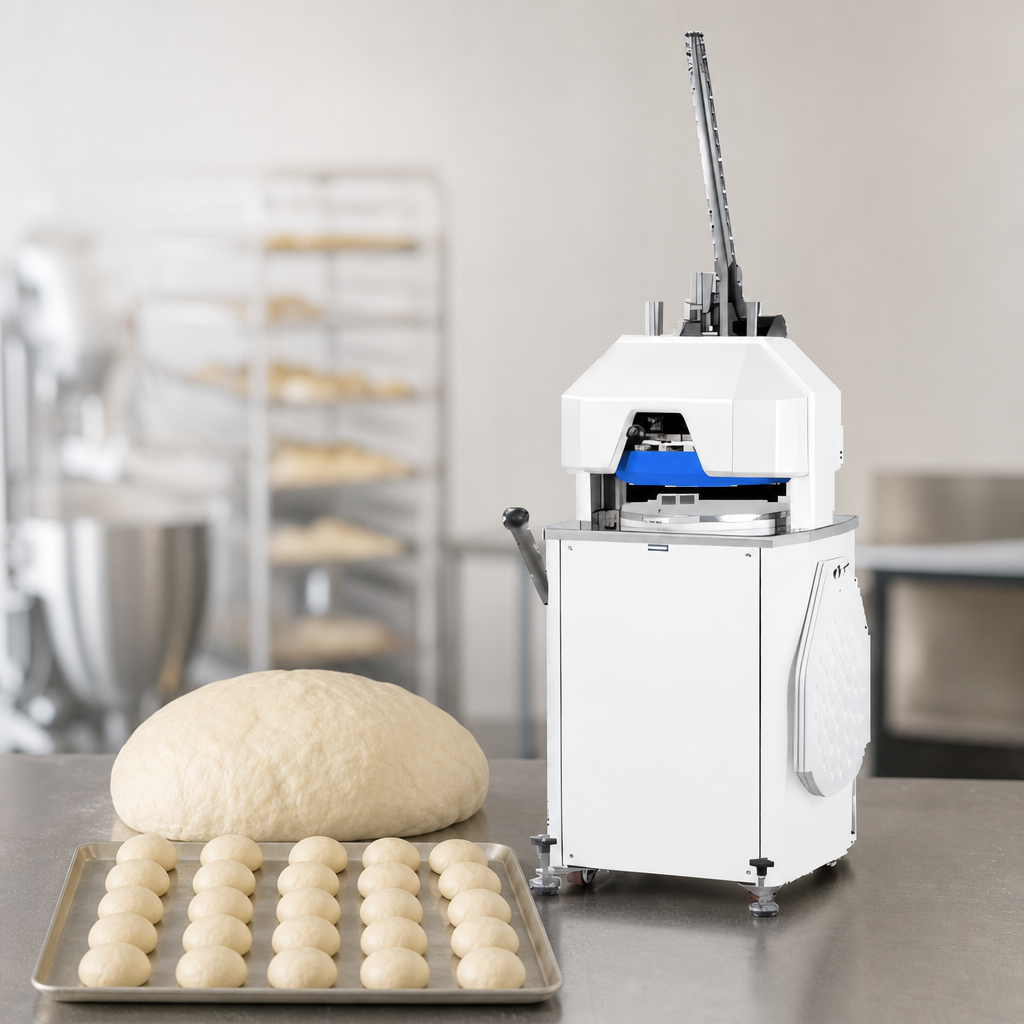

3 kg batch capacity • 1 – 3.5 oz portions • 120 V single-phaseTake the guess-work and hand-fatigue out of roll production. The Doyon DSA4330 turns up to 3 kg of dough into thirty perfectly rounded pieces in a single, fast cycle—ideal for burger buns, dinner rolls, pizza dough balls and more. Built for busy commissaries and in-store bakeries, this wheel-mounted workhorse delivers consistent weights and shapes, batch after batch.
Why You’ll Love It
- Semi-automatic dividing & rounding slashes labor time and improves uniformity.
- Interchangeable 30-division head with 1–3.5 oz (30–100 g) portion range.
- Three sanitary plastic rounding plates included for immediate production.
- AISI 304 stainless-steel knives for clean, precise cuts and long service life.
- Anti-vibration stainless system and quiet gearbox keep noise down on the sales floor.
- Snap-on / snap-off head cover makes daily sanitation quick and tool-free.
- Heavy-duty casters provide mobility; front brakes lock the unit during operation.
- Handles medium-hydration doughs (55–65 %) with ease—no sticking or smearing.
- Ships with a free spare-parts kit (springs & damper) to minimize downtime.
Built for the Long Haul
- Robust, white painted carbon-steel frame (stainless frame available by special order).
- AISI 304 stainless head support and cutting blades resist corrosion.
- Dough press & ring fabricated in food-safe DIN POM-C polymer.
- 6-ft (1.8 m) power cord with grounded 5-15P plug included.
What’s in the Box
- Doyon DSA4330 divider / rounder with 30-portion dough head
- (3) Ø 410 mm sanitary plastic rounding plates
- Spare-parts kit: springs & damper
- Factory-installed locking casters
- Owner’s / installation manual
Technical Specifications
| Portions per cycle | 30 |
|---|---|
| Portion weight range | 1 oz – 3.5 oz (30 g – 100 g) |
| Maximum dough capacity | 3 kg (6.6 lb) |

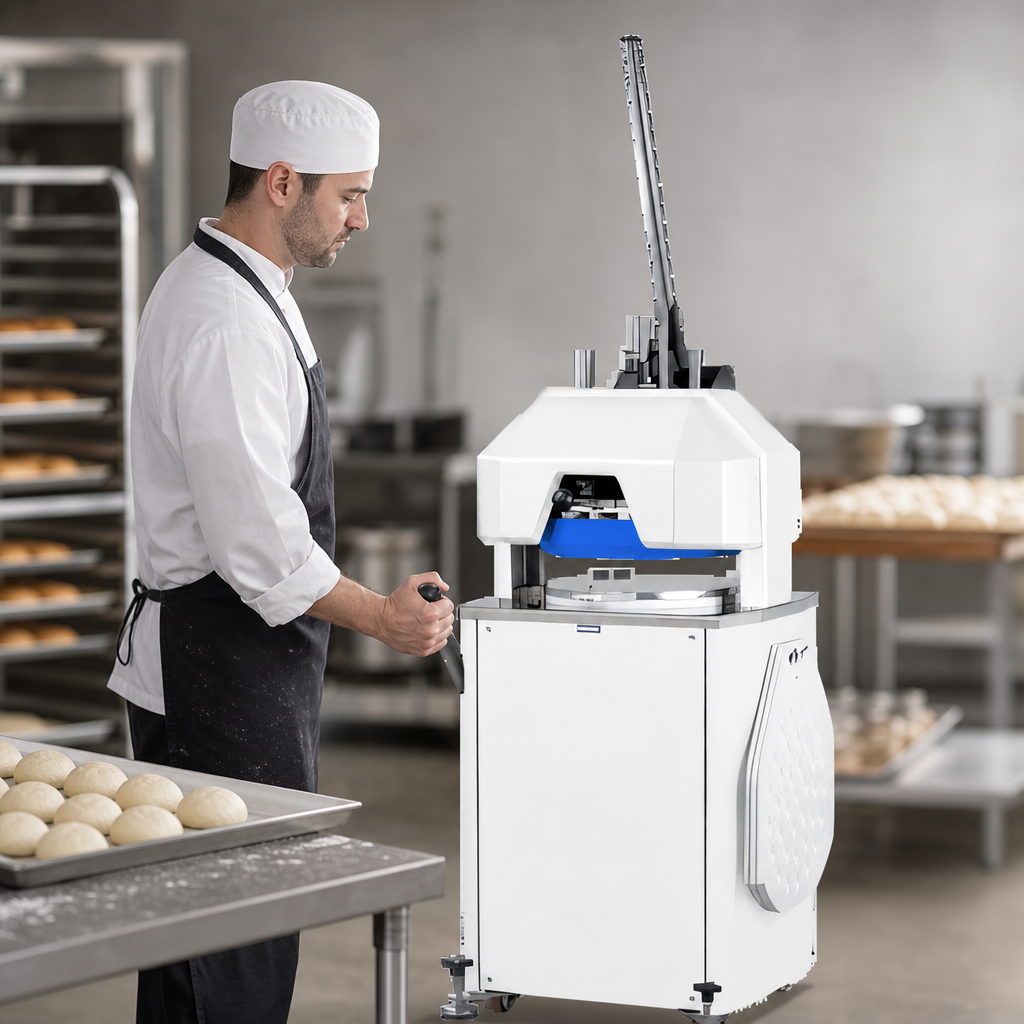

| Operation | Semi-automatic divide & round |
| Overall dimensions* (w/ handle) | 77 ⅜″ H × 29 5⁄16″ W × 28 ¾″ D (1960 mm × 760 mm × 730 mm) |
| Overall dimensions* (w/o handle) | 63″ H × 29 5⁄16″ W × 28 ¾″ D (1600 mm × 760 mm × 730 mm) |
| Net weight | 665 lb (302 kg) |
| Electrical | 120 V / 60 Hz / 1-ph, 0.55 kW, 8 A, NEMA 5-15P |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2 yr parts / 1 yr labor (USA & Canada) |
*Allow minimum clearances of 18″ sides & back, 36″ front, 80″ top for safe operation and servicing.
Portion yields may vary according to dough formulation, fermentation and operator technique. Specifications are subject to change without notice.
