Doyon Baking Equipment (Middleby) DRIP1 Dough Proofers & Retarders
Description

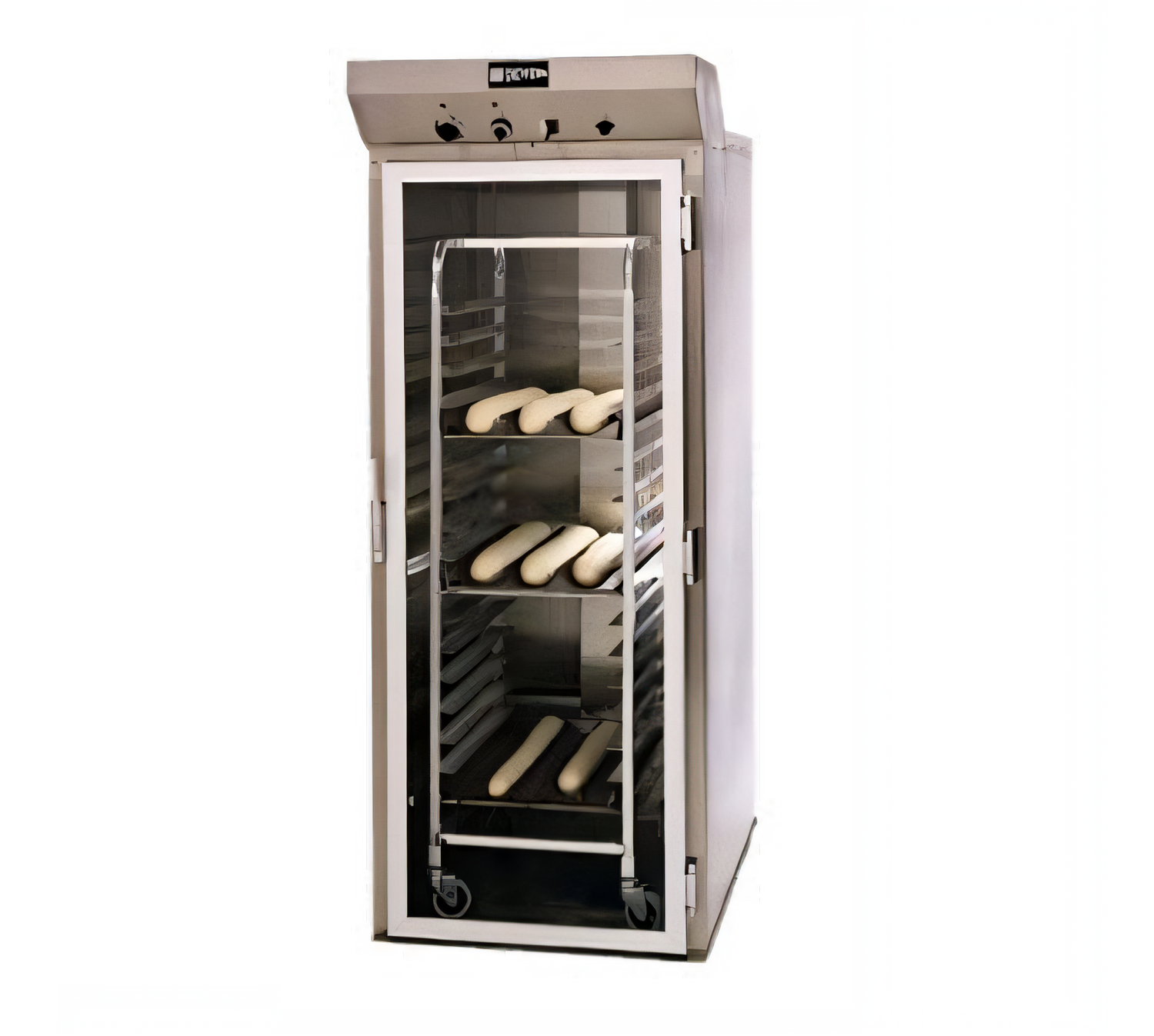

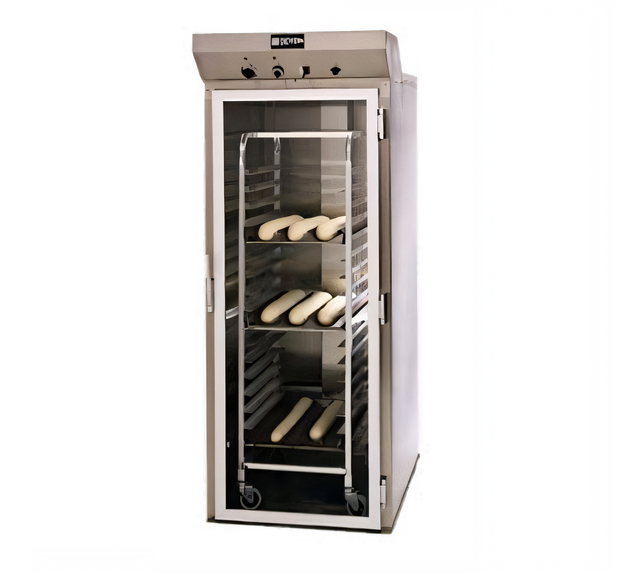

Doyon DRIP1 Roll-In Proofer Cabinet
Single-rack, full-view glass door | NSF & cETLus | Made in USATake the guesswork out of proofing and keep production moving smoothly. The Doyon DRIP1 accommodates one full roll-in rack (or 36 full-size 18" × 26" pans on 2 ½" centers) and delivers the precise heat and humidity your dough needs for consistent, high-quality rises—batch after batch.
Performance Highlights
- Even-airflow heating system for uniform temperature & humidity throughout the cavity
- Proofs from room temperature up to 110 °F (43 °C) with humidity up to 95 %
- Automatic water fill—no more messy water pans
- Independent solid-state controls for heat, humidity, and timer
- Full-view glass door for quick product checks without heat loss
- Durable stainless steel interior & exterior with an easy-to-clean aluminum flush floor
Key Specifications
| Model | DRIP1 |
|---|---|

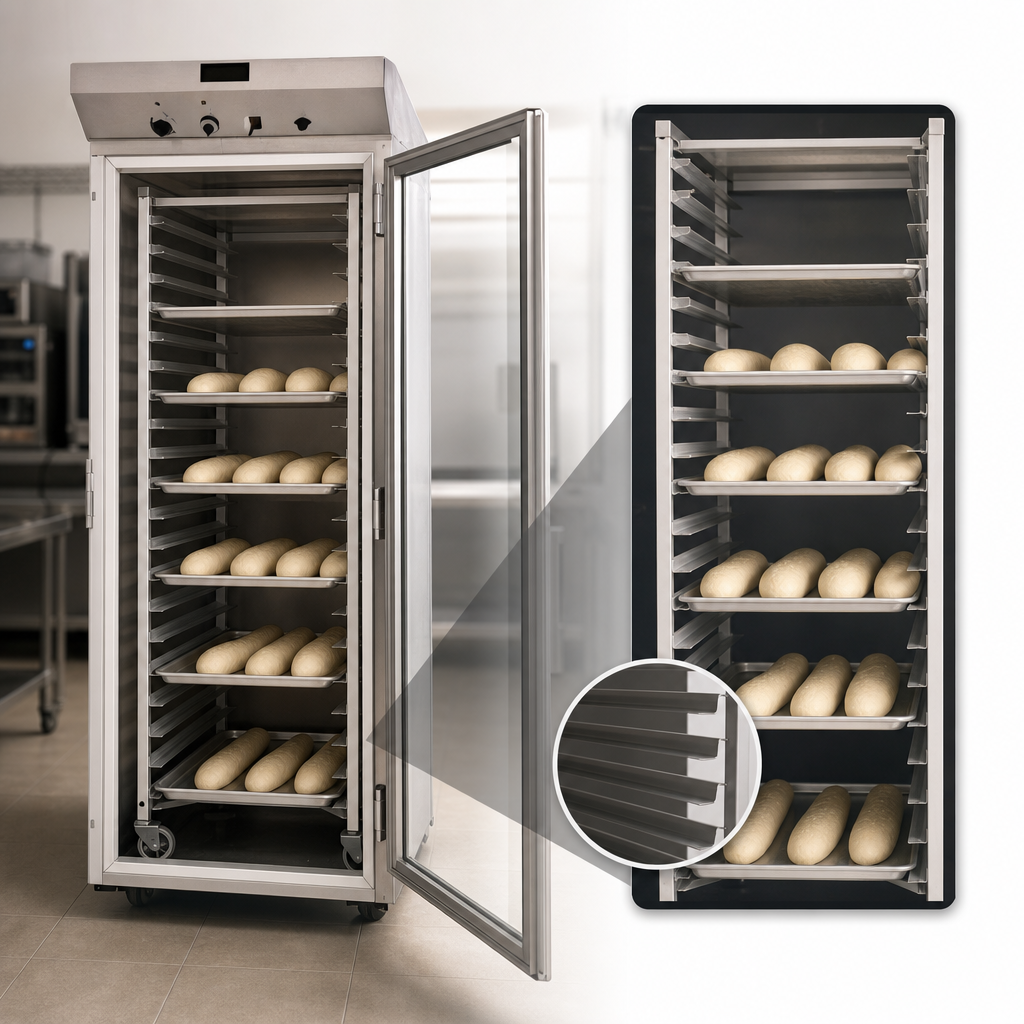

| Capacity | 1 roll-in rack (not included) or 36 full-size sheet pans (18" × 26") |
| Exterior Dimensions | 32-13/16" W × 46-1/2" D × 85-11/16" H (833 × 1181 × 2176 mm) |
| Door Opening | 25" W × 73-7/8" H (635 × 1876 mm) |
| Interior Depth | 32-5/8" (829 mm) |
| Crated Weight | 400 lb (182 kg) |
| Electrical (1 ɸ) |
120 V / 39 A / 4.7 kW 120/208 V / 28 A / 5.7 kW 120/240 V / 24 A / 5.7 kW |
| Water Connection | 1/4" NPT cold-water inlet (automatic fill) |
| Certifications | NSF, cETLus |
Built for Busy Bakeries

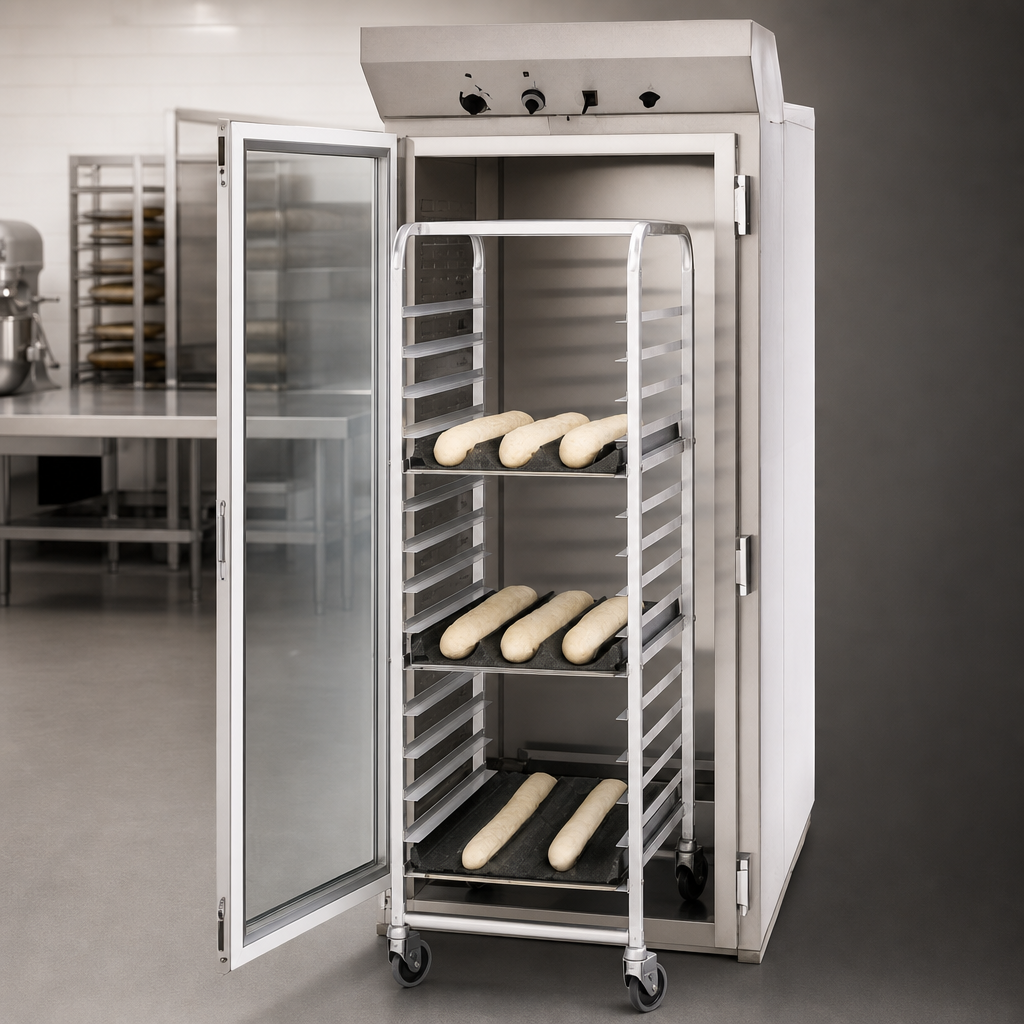

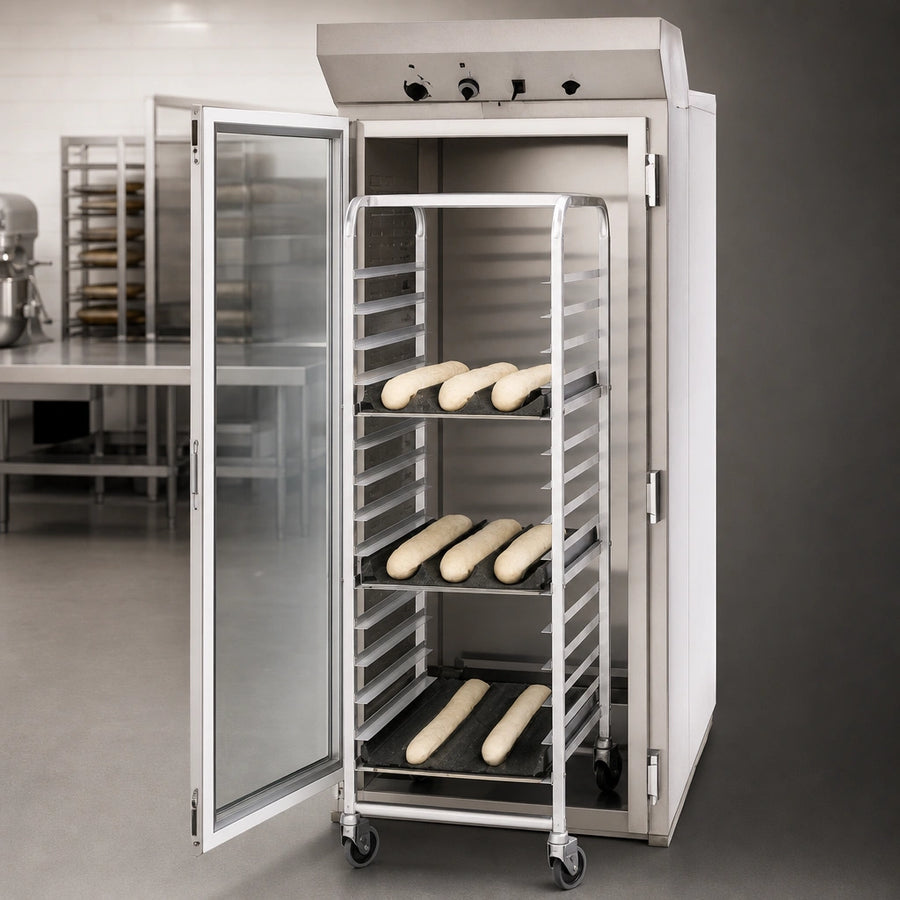

- Roll-in design speeds workflow—simply wheel the rack from mixer to proofer
- Field-reversible hinge option (left or right) fits any production layout
- Ships fully assembled to minimize installation time
- Made in Menominee, Michigan and backed by a 2-year parts / 1-year labor warranty
Factory Options & Accessories
- Stainless steel door (suffix SD)
- Door bumpers for added protection (suffix DB)
- Prison package security upgrades (suffix PPE)
- PLF240 water filter kit (recommended for optimal element life)
Maintain minimum clearances of 4" (sides & back) and 24" (top).
Warranty Coverage
Two-year parts and one-year labor limited warranty (USA & Canada).
Specifications subject to change without notice.
