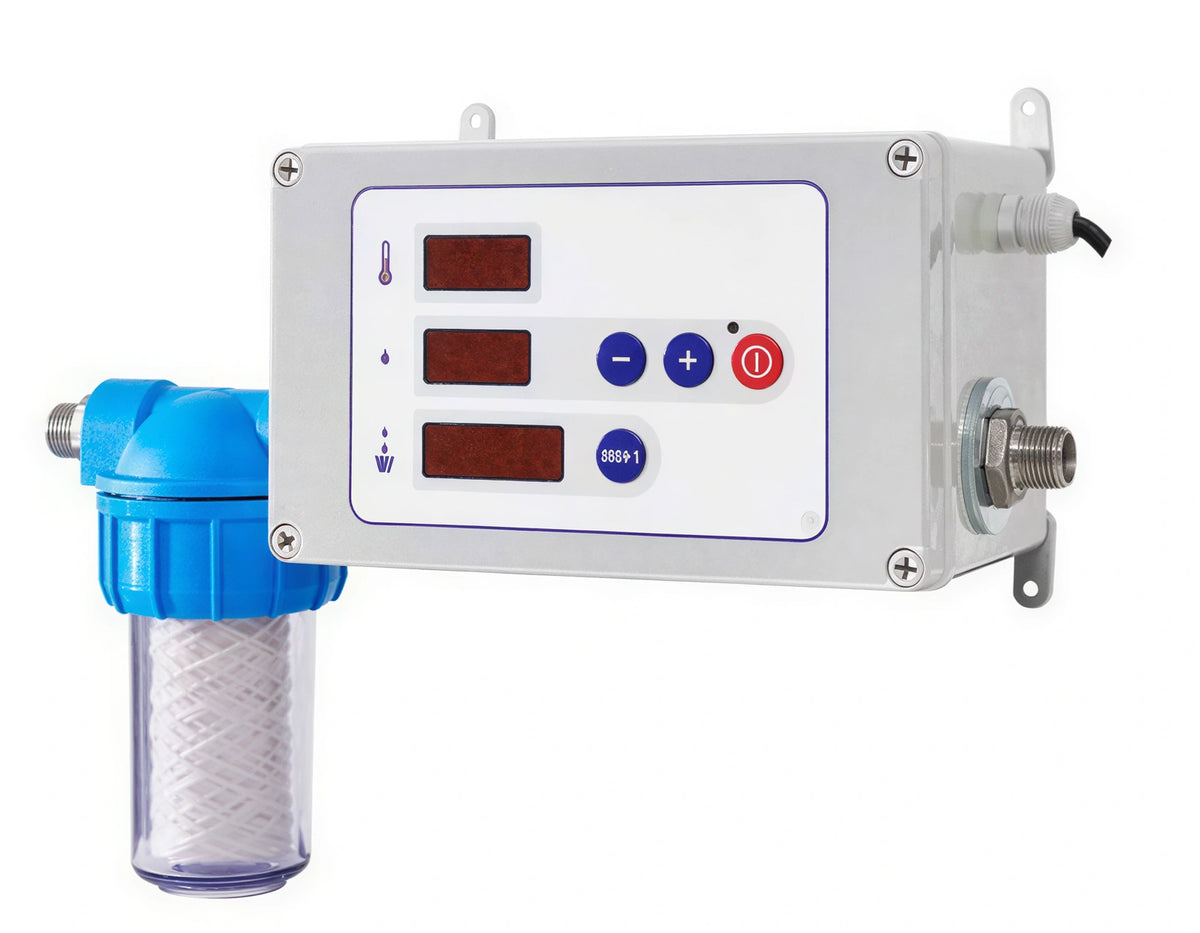

Doyon DAF001 Digital Water Meter with Integrated Water Filtration System, 120V/60Hz, 1-Phase
$3,535.00
/each
Ships in 16–19 business days
- Electrical system
- 120 V, 60 Hz, 1 phase
- Electrical plug
- NEMA 5-15P
- Water inlet
- 1/2 NPT
- Water pressure
- 3.6–72.6 psi (0.25–5 bar)
- Bursting pressure
- Approximately 2,900 psi (200 bar)
- Water flow rate
- 2–45 L/min
Specifications
Electrical system
120 V, 60 Hz, 1 phase
Electrical plug
NEMA 5-15P
Water inlet
1/2 NPT
Water pressure
3.6–72.6 psi (0.25–5 bar)
Bursting pressure
Approximately 2,900 psi (200 bar)
Water flow rate
2–45 L/min
Quantity settings
Liter, US gallon, Canadian gallon
Water temperature reading
32–120°F (0–49°C); does not mix water temperature
Integrated water filtration system
Yes
Included items
Water hose and hook
Description
The Doyon DAF001 is a digital water meter with an integrated water filtration system and a 120 V, 60 Hz, single-phase electrical system.
- Measures water flow from 2 to 45 L/min.
- Sets quantities in liters, US gallons, or Canadian gallons.
- Reads water temperature from 32°F to 120°F (0°C to 49°C) without mixing water temperature.
- Includes a water hose and hook.
Overall Dimensions:
9.25"W x 5.0"D x 12.5"HProduct Weight:
15.0 lbDigital water metering
Provides digital measurement of water flow.
Integrated water filtration system
The water meter includes an integrated water filtration system.
Adjustable quantity settings
Quantity can be set by liter, US gallon, or Canadian gallon.
Water flow range
Supports water flow rates from 2 to 45 L/min.
Water pressure range
Specified for water pressure from 3.6 to 72.6 psi (0.25 to 5 bar).
Water temperature reading
Reads water temperature from 32°F to 120°F (0°C to 49°C) and does not mix water temperature.
Included hose and hook
A water hose and hook are included.
Documentation
Frequently Asked Questions
The DAF001 uses 120 V, 60 Hz, single-phase power and has a NEMA 5-15P plug.
The specified water flow rate is 2 to 45 L/min.
Quantity can be set in liters, US gallons, or Canadian gallons.
The specified water pressure range is 3.6 to 72.6 psi (0.25 to 5 bar).
Yes. It reads water temperature from 32°F to 120°F (0°C to 49°C) and does not mix water temperature.
A water hose and hook are included.
The DAF001 has a two-year parts and one-year labor Doyon limited warranty in the United States and Canada, subject to the warranty terms.
