Doyon Baking Equipment (Middleby) CA6X CAX Series Convection Ovens
Description

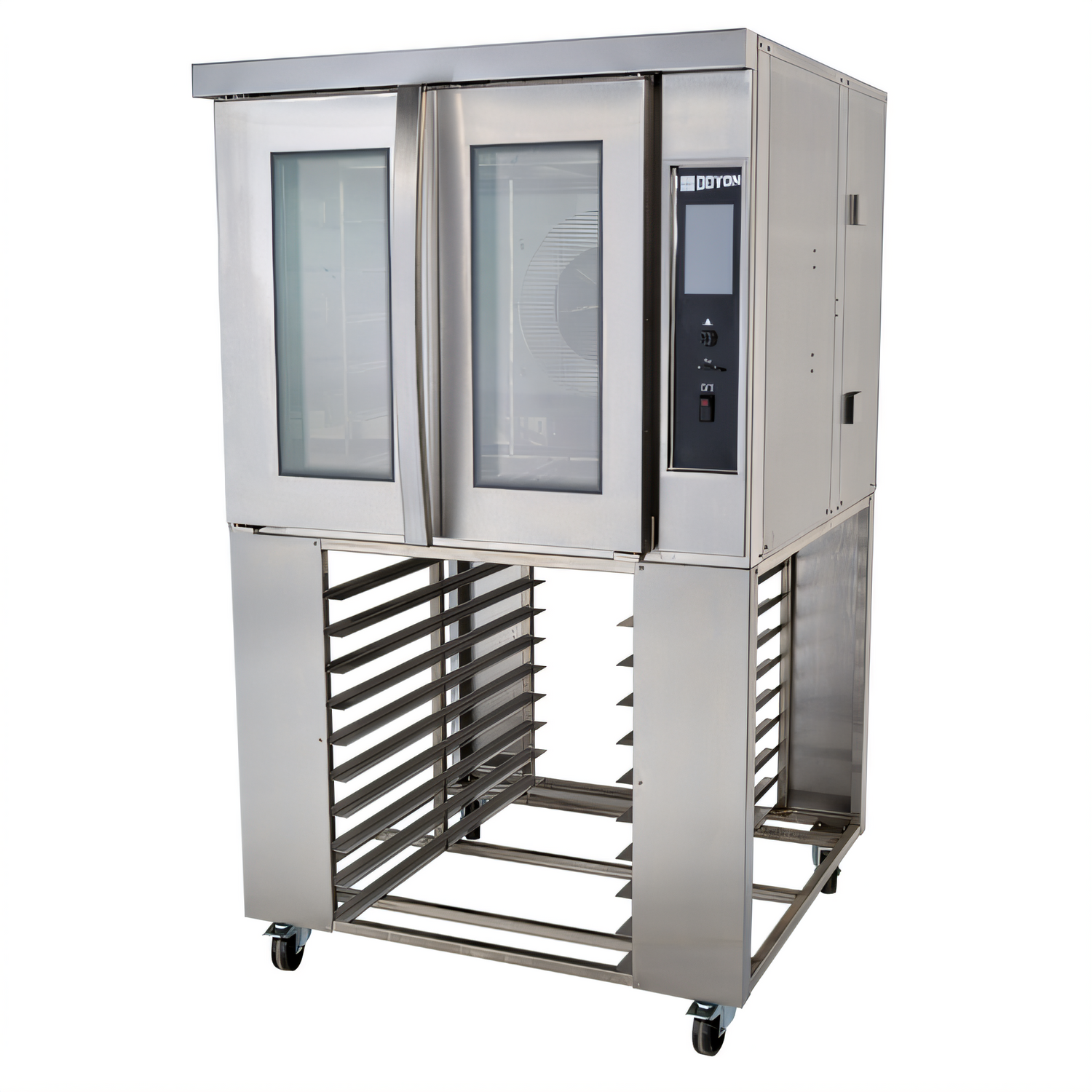

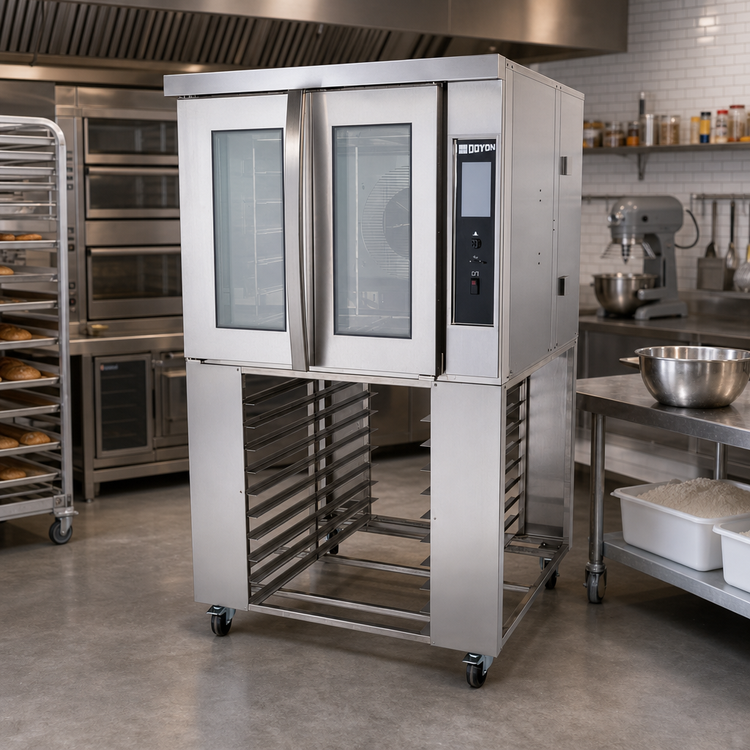

Doyon CAX Series Circle Air™ Rotating Rack Oven
Model CA6X • Electric • 6-Pan Single Rack • Made in USAEngineered for artisan results at commercial volumes, the CAX Series brings Doyon’s patented Circle Air™ reversing-fan technology to a compact 6-pan format. A rotating rack, programmable touchscreen and on-demand steam work together to deliver perfectly even color, rise and texture—from baguettes and bagels to cookies, cakes and more.
Key Features & Benefits
- Intuitive 7" touchscreen stores 32 programmable recipes with up to 8 stages each.

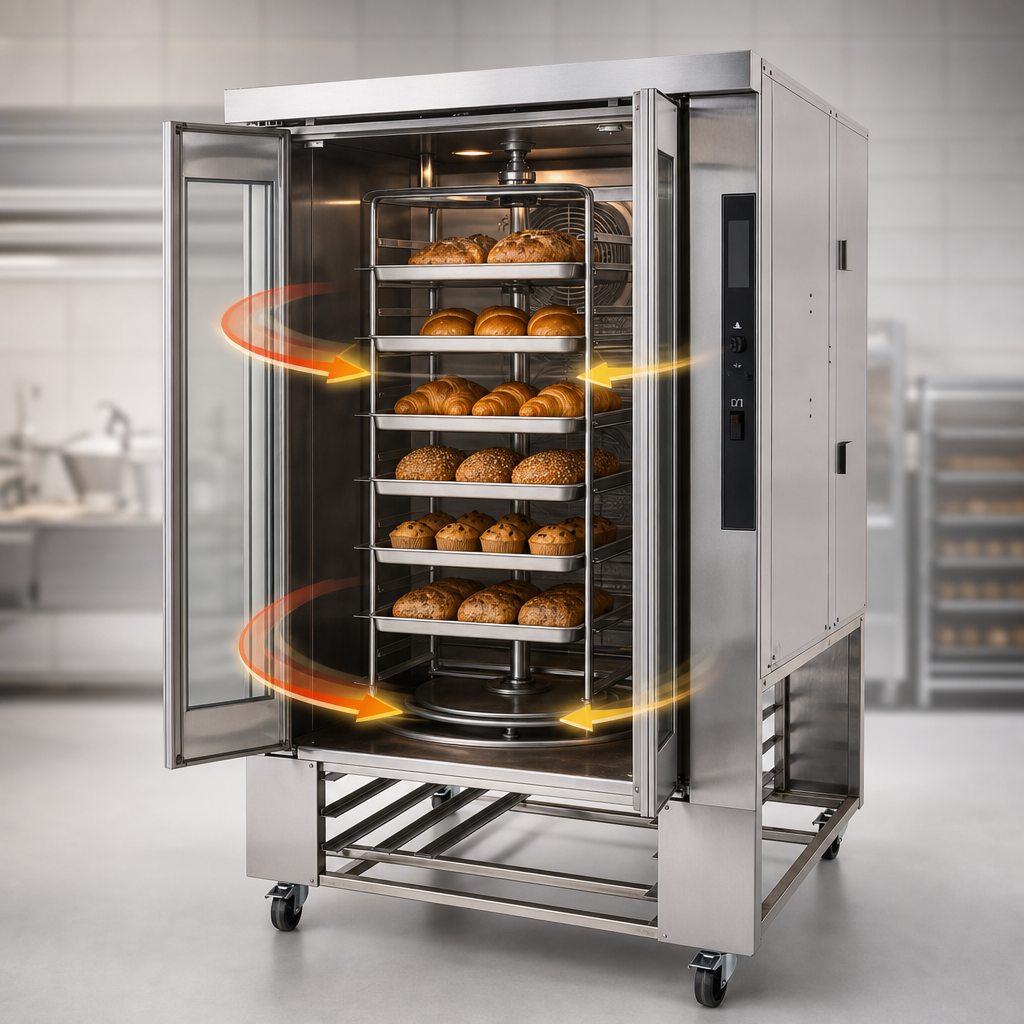

- Circle Air™ patented reversing fan surrounds every product with consistent heat for uniform baking and reduced bake times.
- Removable rotating rack guarantees even coloration and eliminates pan rotation labor.
- Shot & pulse steam injection plus an advanced moisture-evacuation system for optimal crust development.
- Digital temperature control to 500 °F (260 °C) with door-switch blower cut-off to prevent heat loss.
- Cool-touch, dependent glass doors allow single-hand operation and full-view monitoring.
- Durable 304 stainless-steel interior & exterior—easy to clean and built for years of daily production.
- Compact footprint with only 1" side/back clearance; optional stand, proofer base or stacking kit available.
Typical One-Batch Yields
- 384 bagels or dinner rolls
- 108 × 9" cakes
- 648 cookies (18 per pan)
- 90 French baguettes
- 360 croissants or danish
- 48 strapped bread loaves
Actual results depend on recipe, loading and proofing conditions.
Technical Specifications

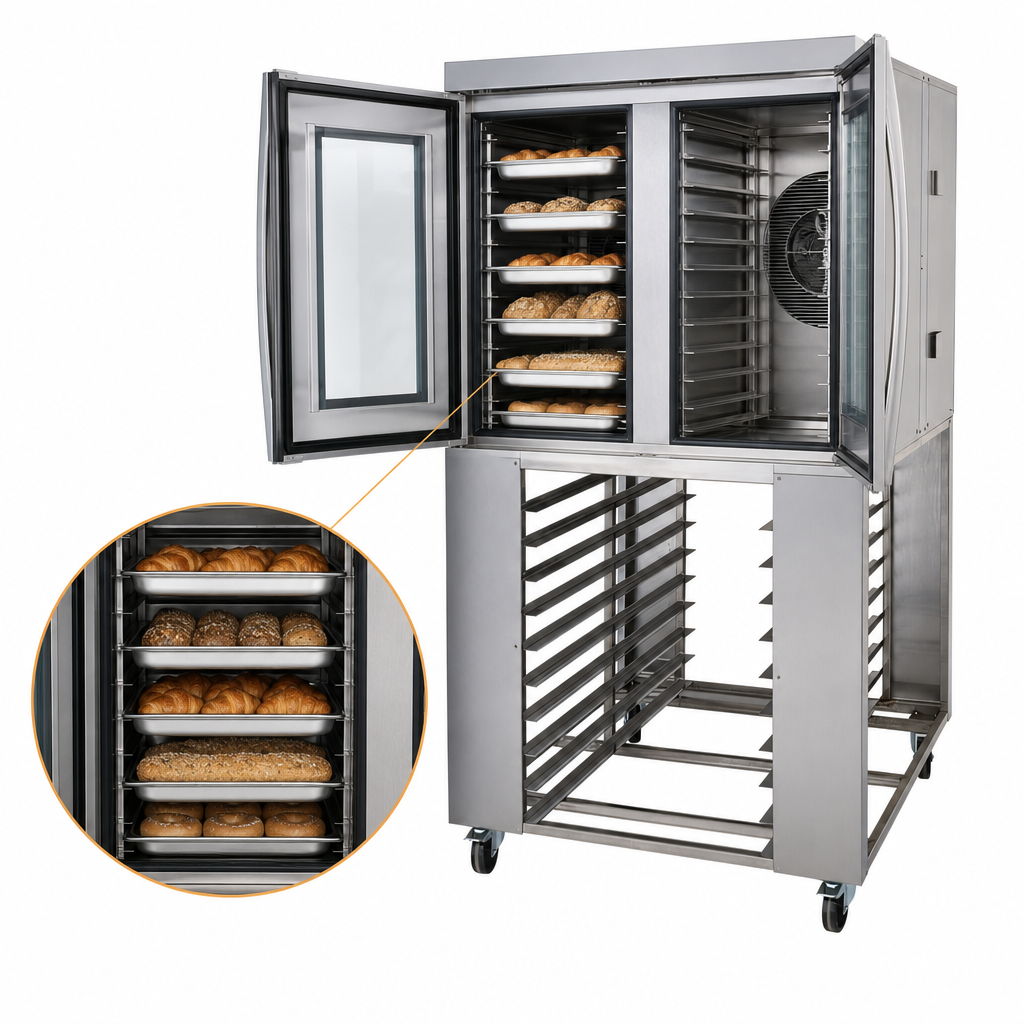

| Pan Capacity | 6 full-size sheet pans (18" × 26") |
|---|---|
| Shelf Spacing | 4" (102 mm) |
| Exterior Dimensions (W × D × H) | 43 5/8" × 53 3/8" × 36 3/4" (1108 × 1356 × 985 mm) |
| Interior Dimensions (W × D × H) | 27" × 33 1/2" × 28 1/2" (686 × 851 × 724 mm) |
| Crated Weight | 825 lb (375 kg) |
| Electrical (50/60 Hz) |
208-240 V / 1 ph / 63 A / 13 kW 208-240 V / 3 ph / 37 A / 13 kW 480 V / 3 ph / 16 A / 13 kW |
| Water Connection | ¼" NPT cold water for steam |
| Clearances | 1" sides & back, 4" bottom, 12" top |
| Certifications | cETLus, NSF |
Specifications subject to change without notice.
Popular Options & Accessories
- Water filter kit (PLF240)
- CA6B mobile oven stand
- Proofer base (CA6PX)
- Nickel-plated pizza shelves & wire grids
- Stacking kit for double-stack configuration
- Factory 480 V configuration
Peace-of-Mind Warranty
- Two-year parts / One-year labor coverage
- Backed by Doyon’s nationwide service network
