Description

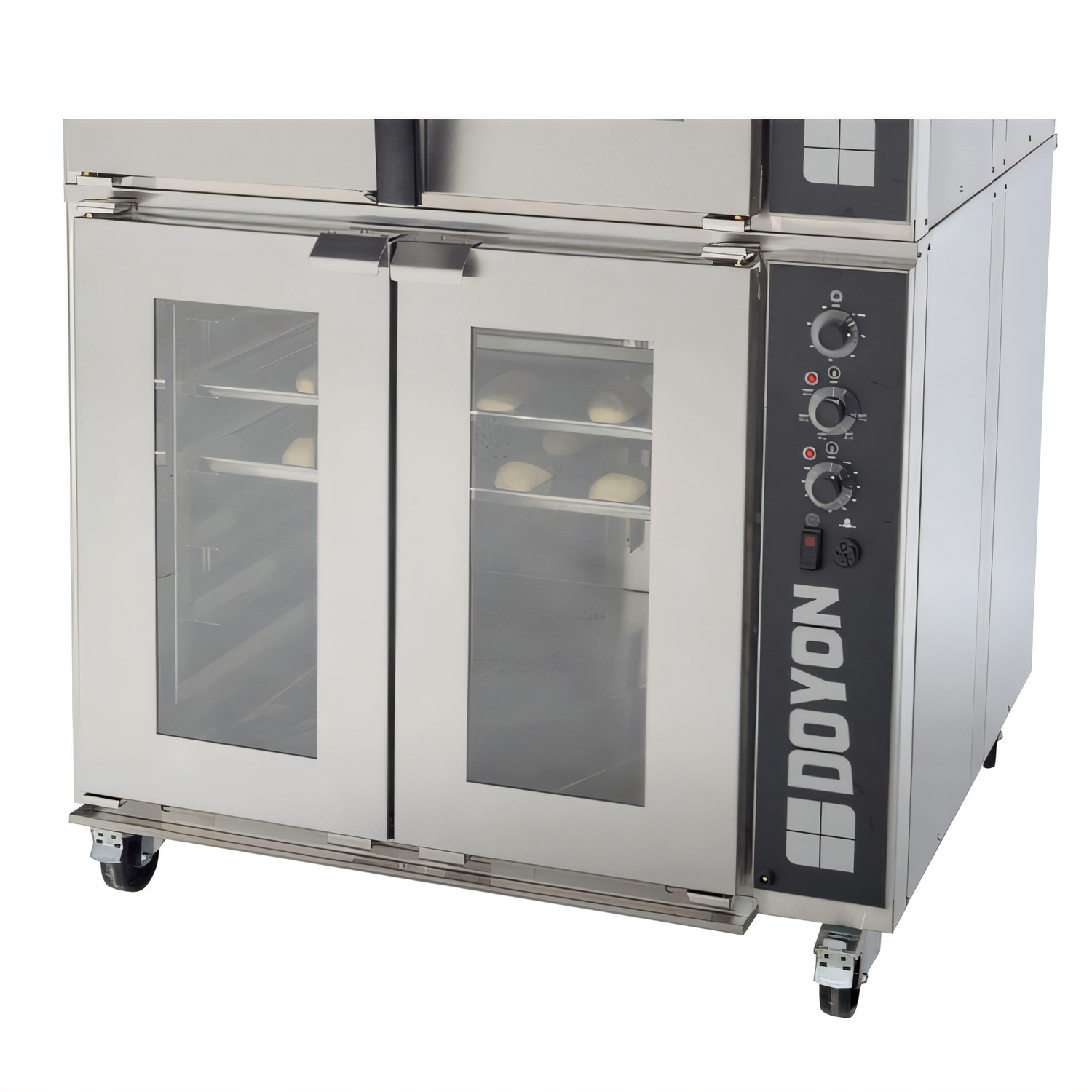

Doyon CA Series Circle Air Proofer Base – 12 Pan, Electric
Model CA6X | 120 V / 1 Ph / NEMA 5-15PGive every batch the perfect rise while saving valuable floor space. The Doyon CA Series Circle Air Proofer Base fits neatly beneath your CA Series 6-pan oven, delivering precise heat and humidity for up to twelve full-size sheet pans. Stainless steel construction, automatic water feed and easy-to-use mechanical controls make it the reliable, low-maintenance choice for bakeries, cafés and commissaries alike.
Key Features

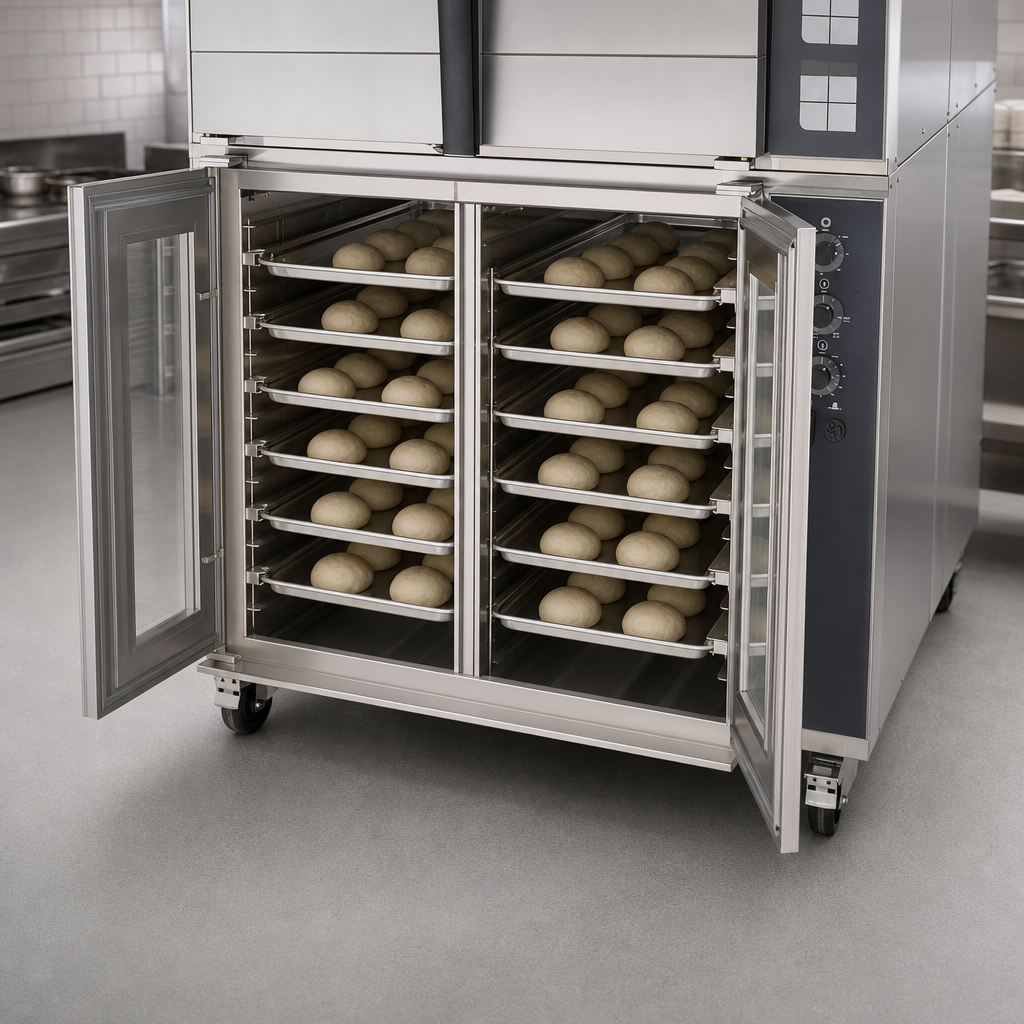

- Holds (12) 18" x 26" pans • 4" (101 mm) shelf spacing

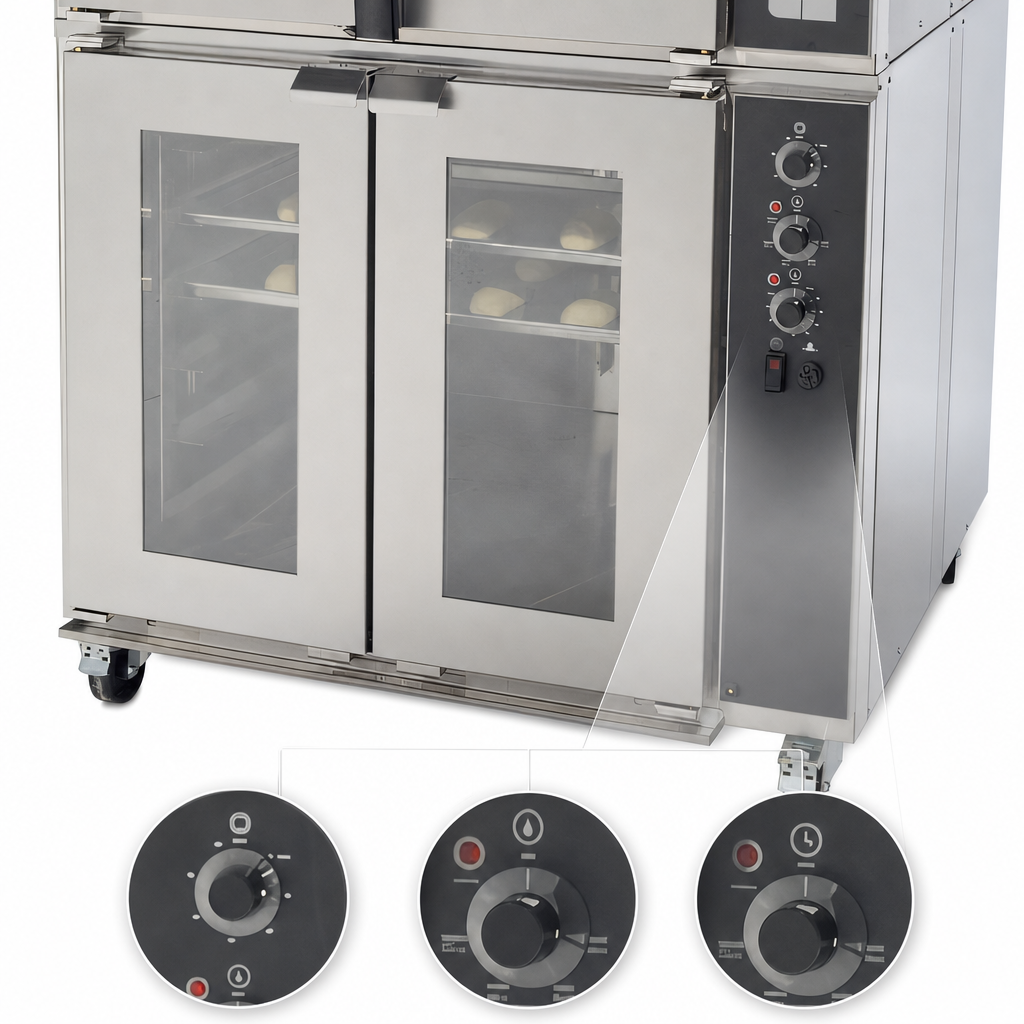

- Independent mechanical thermostats for heat & humidity (90 – 110 °F / up to 95 % RH)
- 60-minute countdown timer for repeatable results
- Automatic 1/4" NPT water fill – no floor drain required (catch pan included)
- Full-view glass doors with independent upper/lower access
- All-stainless steel cabinet on heavy-duty casters (2 locking)
- ETLus, cETLus & NSF sanitation listed for commercial kitchens
At-a-Glance Specifications
| Pan Capacity | (12) full-size 18" x 26" pans |
|---|---|
| Temperature Range | 90 – 110 °F (32 – 43 °C) |
| Relative Humidity | Up to 95 % |
| Controls | Mechanical heat & humidity thermostats, 60-min timer |
| Water Connection | Automatic fill, 1/4" NPT • No drain required |
| Electrical | 120 V / 60 Hz / 1 Ph • 10 A • 1.2 kW • NEMA 5-15P |
| Dimensions (W × D × H) | 43 3/4" × 44 1/8" × 38 1/8" (1111 × 1130 × 968 mm) |
| Clearance | 5" (127 mm) around sides & back |
| Shipping Weight | Approx. 400 lb (181 kg) |
| Warranty | 2 year parts / 1 year labor |
Included & Optional Accessories
- Removable drain catch pan (included)
- Heavy-duty rack slides (included)
- Water Filter PLF240 (recommended, sold separately)
- Stacking hardware for Doyon CA6X / CA6XG ovens (sold separately)
