DoughXpress

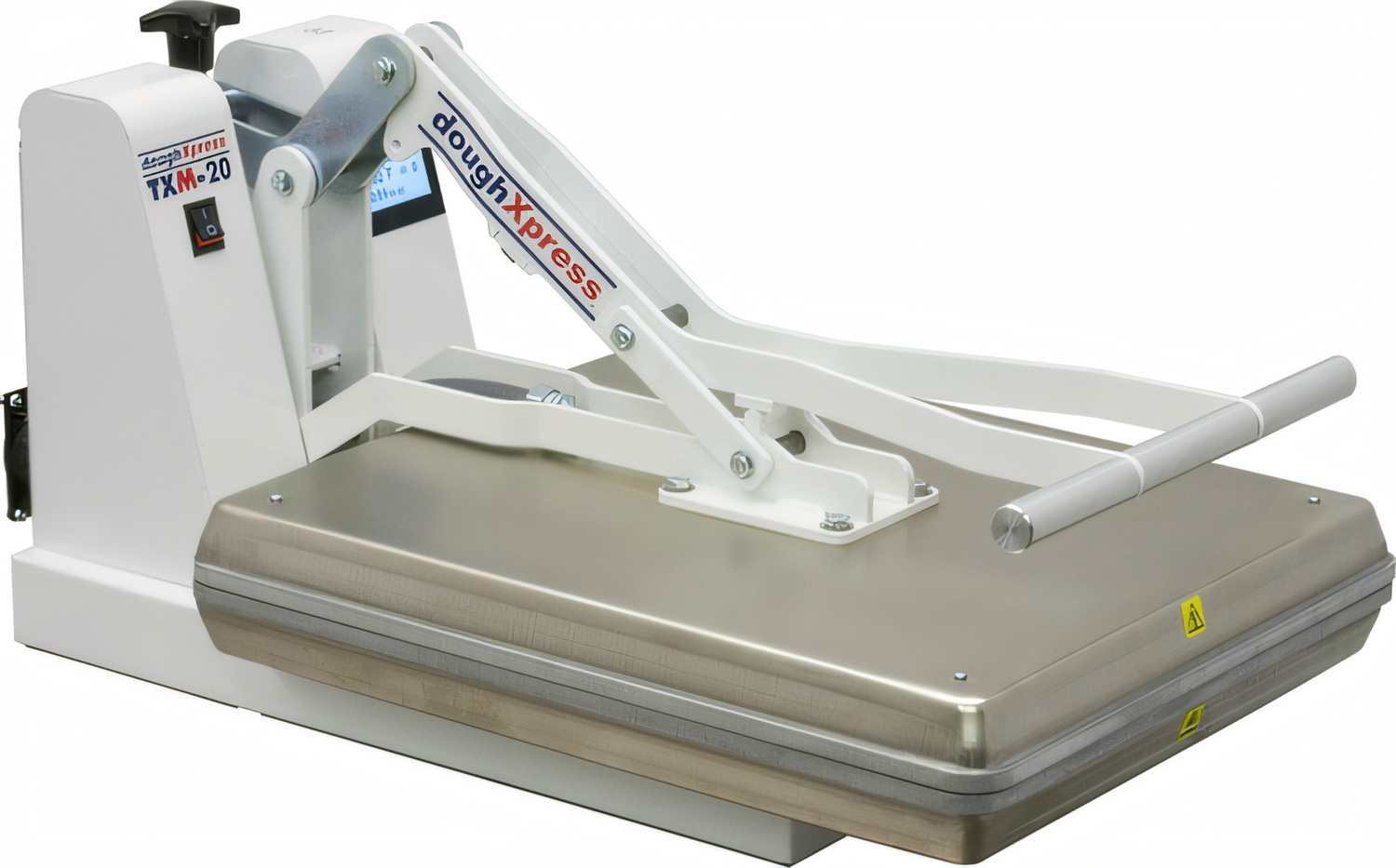

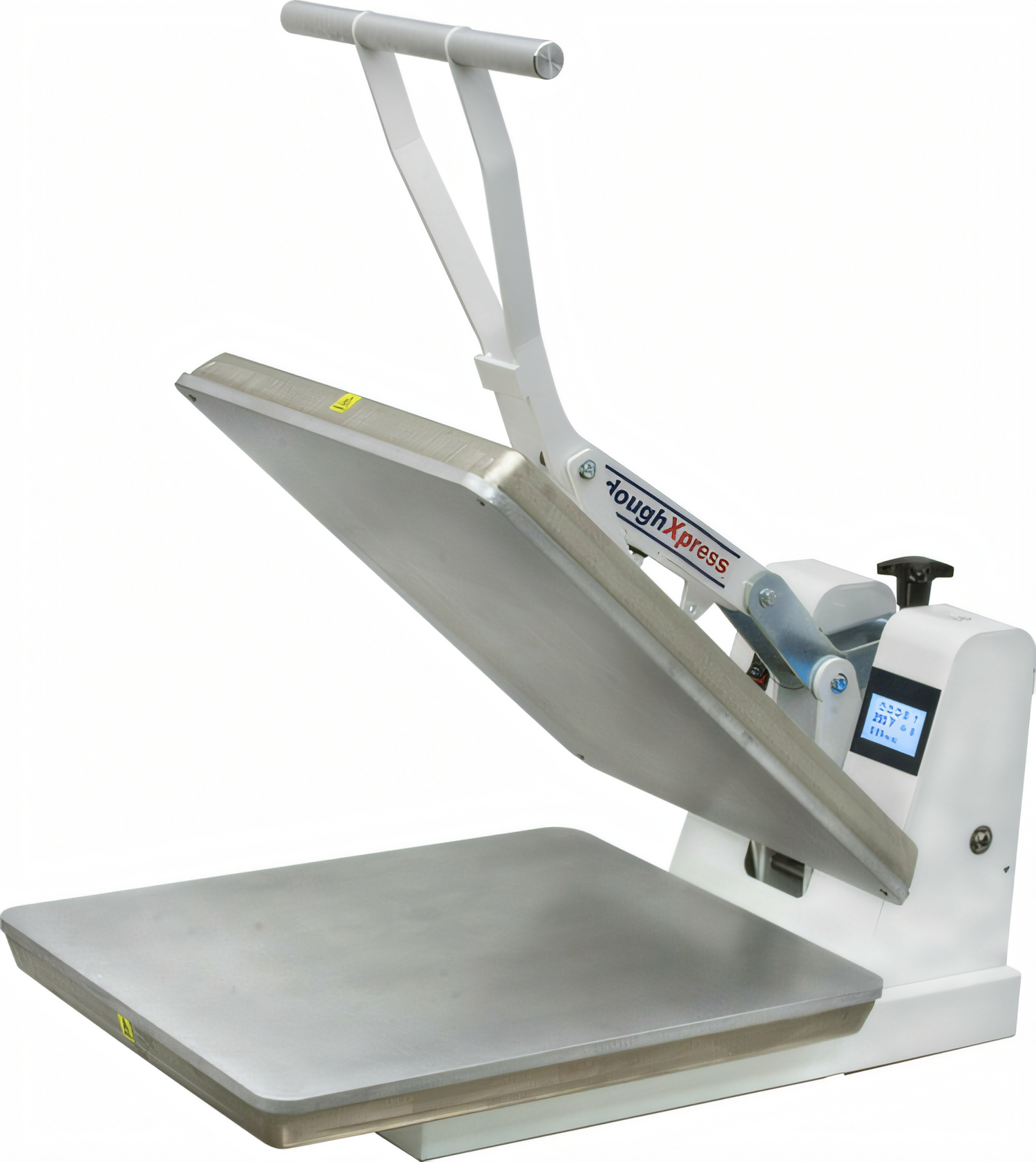

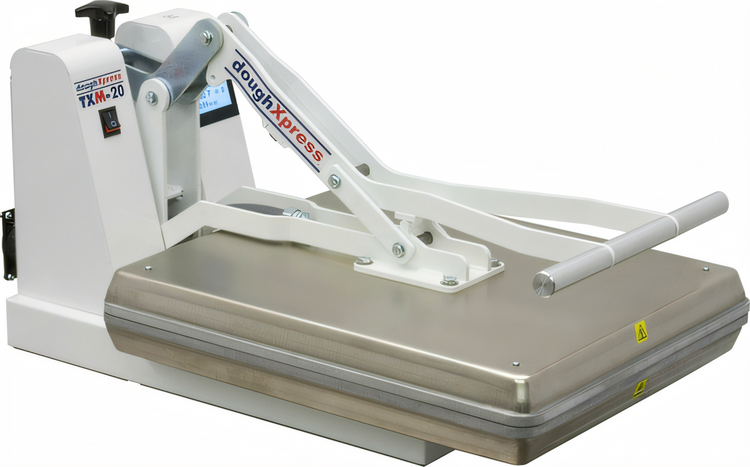

Manual Clamshell Tortilla Dough Press with 16 x 20 Inch Dual Heated Platens

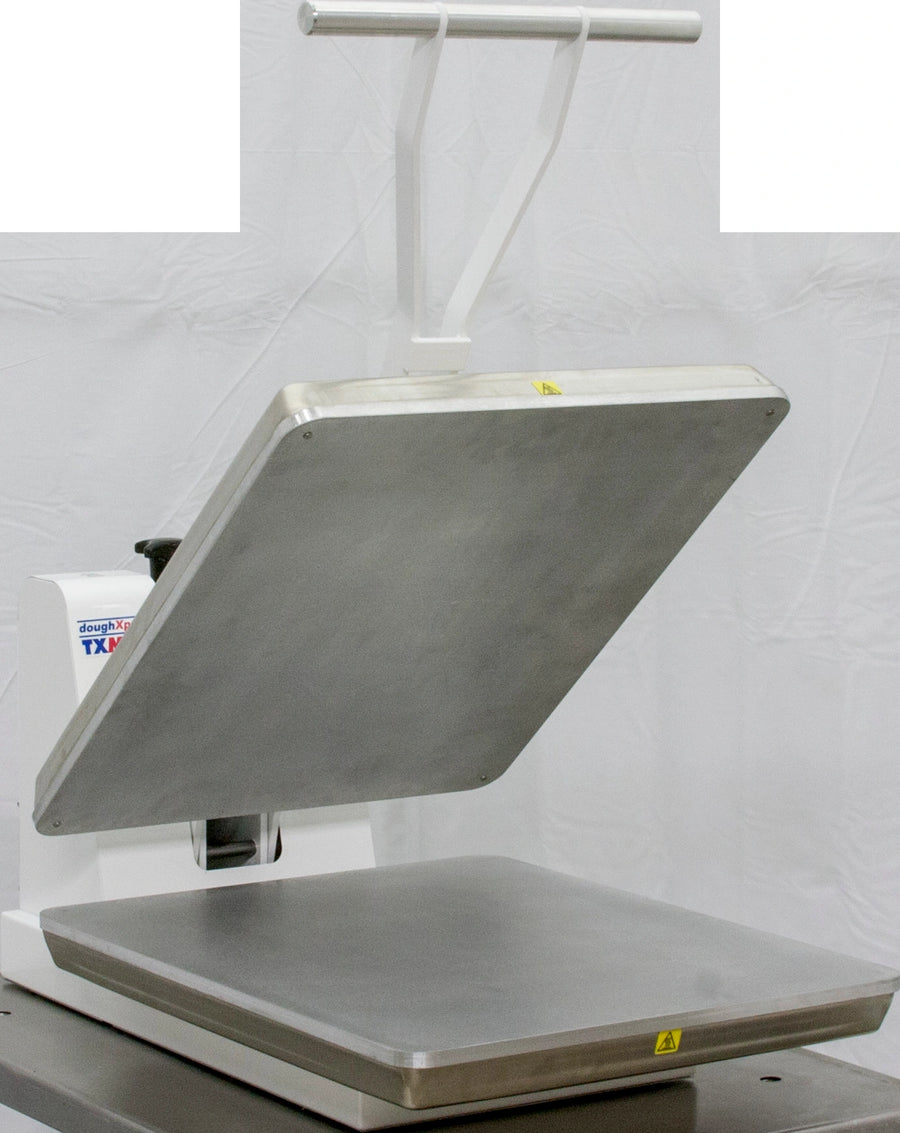

SKU: TXM-20
$3,631.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dough Preparation Equipment Dough Preparation Equipment DoughXpress Food Prep Equipment Food Preparation Equipment New Arrivals Restaurant Equipment Specialty Cooking Equipment Tortilla Presses Tortilla Presses

Manual Clamshell Tortilla Dough Press with 16 x 20 Inch Dual Heated Platens

220V, Digital Timer and Temperature Controls, White Finish

A manual clamshell tortilla press with dual heated platens and digital controls for consistent, low- to medium-volume production.

  • Manual clamshell operation keeps tortilla pressing simple, safe, and mess free without requiring skilled labor.
  • Dual heated 16 x 20 inch aluminum platens help speed pressing and improve dough flow for consistent results.
  • Digital timer and temperature controls, plus illuminated power and heat indicator lights, make operation easy.
  • Supports flour or corn tortillas and flatbreads, with production rates up to 300-400 tortillas per hour on smaller sizes.
  • Powder-coated white finish with optional non-stick PTFE coated platens available.

Overall Dimensions:

16.0"W x 31.0"D x 15.0"H

Product Weight:

113.0 lb

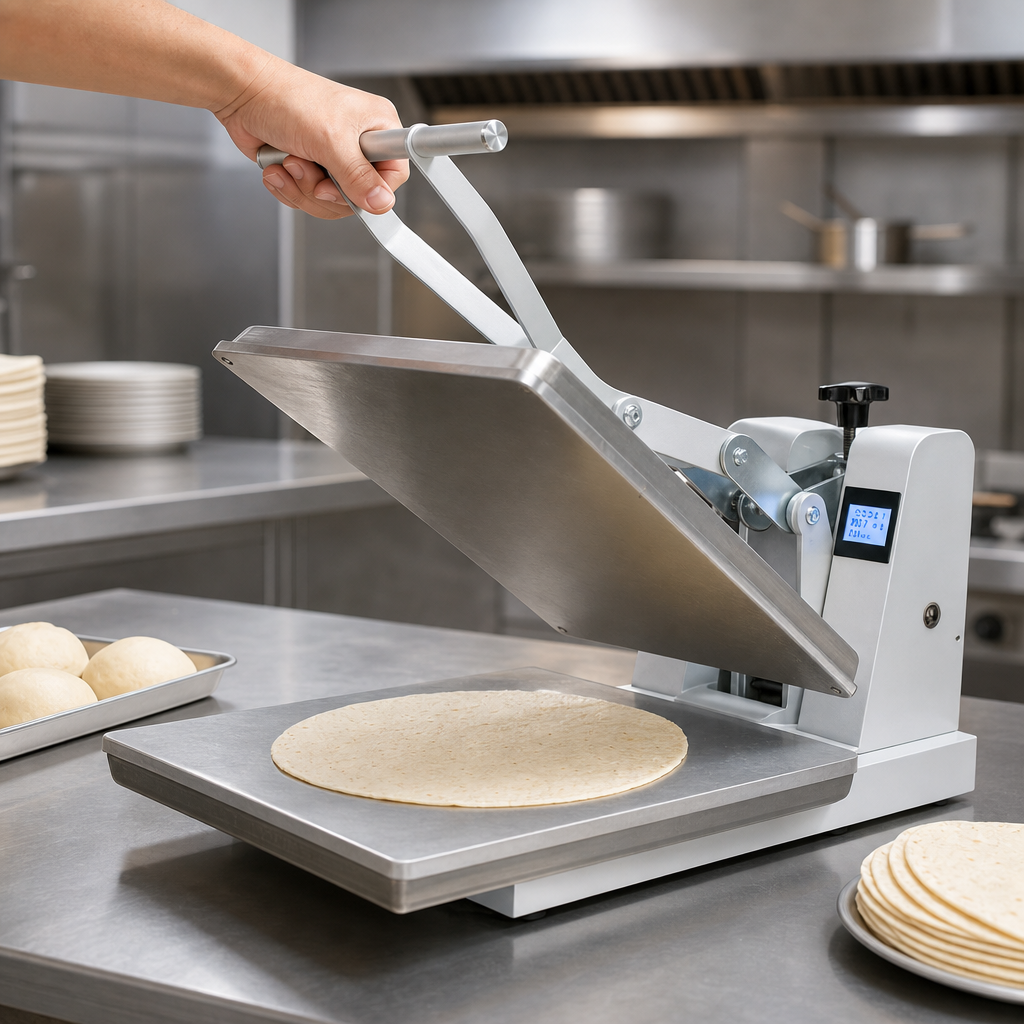

Manual Clamshell Design

Open-and-close handle design makes loading and unloading dough quick and straightforward.

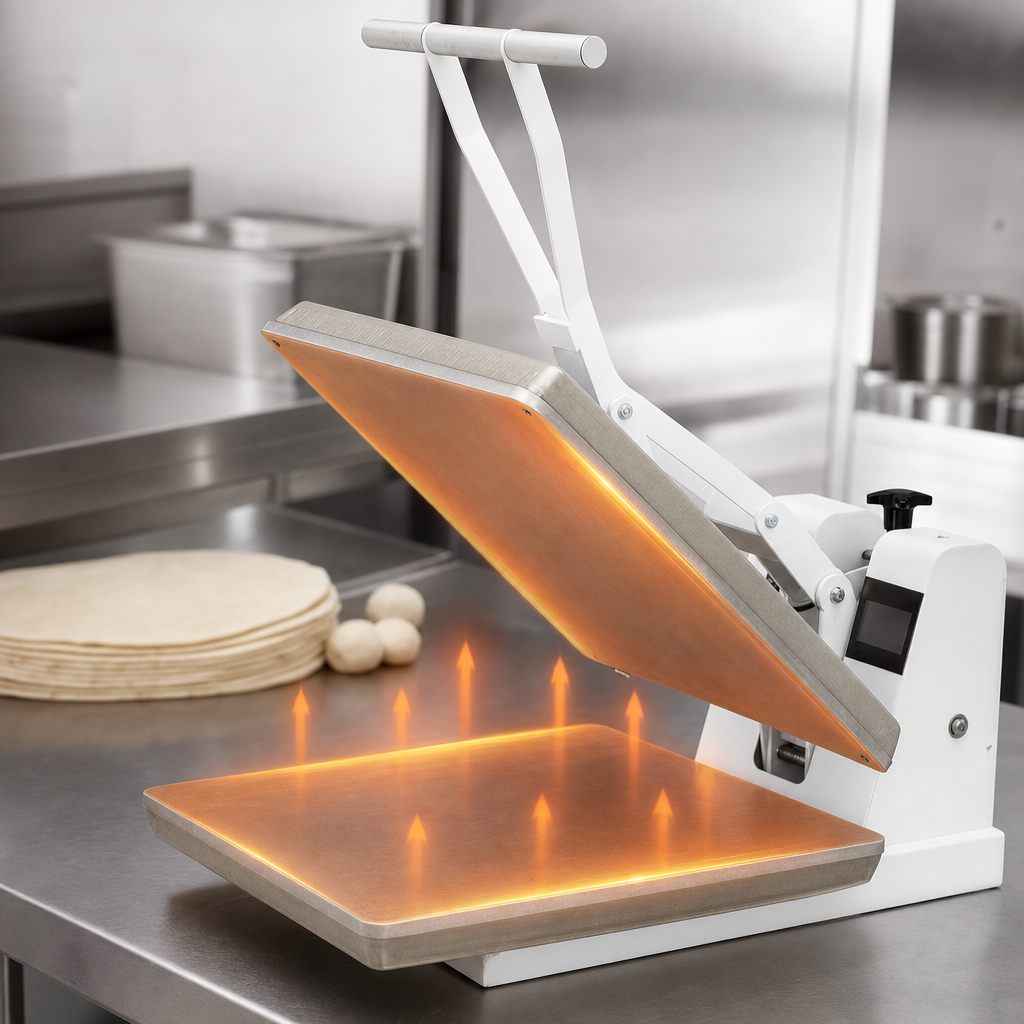

Dual Heated Platens

Upper and lower heated platens speed production, help dough flow, and support thinner pressing.

Digital Temperature Control

Displays the current temperature reading for more consistent operation.

Digital Timer

Countdown begins automatically when the platen lowers and resets when it raises.

Illuminated Power Switch and Heat Indicator

Lighted on/off switch and heat light provide clear operating status.

16 x 20 Inch Platen Size

Large platen supports tortillas up to 16 inches in diameter and can make up to 6 tortillas at once.

High Production Output

Documented output ranges from 75-100 tortillas per hour for 9-16 inch sizes up to 300-400 per hour for 6 inch and smaller tortillas.

Optional Non-Stick PTFE Platens

Optional upper and lower PTFE-coated platens are available for easier release and cleanup.

Type Tortilla Dough Press
Style Manual
Installation Type Countertop
Controls Digital
Capacity 6 Tortillas at Once
Cooking Surface Width 16 Inches
Cooking Surface Depth 20 Inches
Voltage 220 Volts
Amps 15 Amps
Watts 3.1 kW
Hertz 50/60 Hz
Phase 1-Phase
Plug Type NEMA 6-20P
Temperature Range Off to 450°F (232°C)
Material Aluminum
Color White
Finish Powder Coated
Country of Origin USA
Shipping Width 16 Inches
Shipping Depth 31 Inches
Shipping Height 15 Inches
Shipping Weight 113 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

It is a manual clamshell press with electric heat and digital controls.
The 16 x 20 inch platen can make tortillas up to 16 inches in diameter, and it can make up to 6 tortillas at once.
It uses 220 Volts, 50/60 Hz, 1-Phase power, 15 Amps, and a NEMA 6-20P plug.
Yes, it is designed for flour or corn tortillas and flatbreads.
Yes, the press has upper and lower heated platens.
Yes, optional non-stick PTFE coated upper and lower platens are available.
