DoughXpress

BakeryXpress DXP-FRS03 Floor Model Reversible Dough Sheeter, 25" x 95" Conveyor, 220V

SKU: DXP-FRS03
$24,937.50
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dough Preparation Equipment Dough Preparation Equipment Dough Sheeters Dough Sheeters & Rollers DoughXpress Food Prep Equipment Food Preparation Equipment New Arrivals Restaurant Equipment

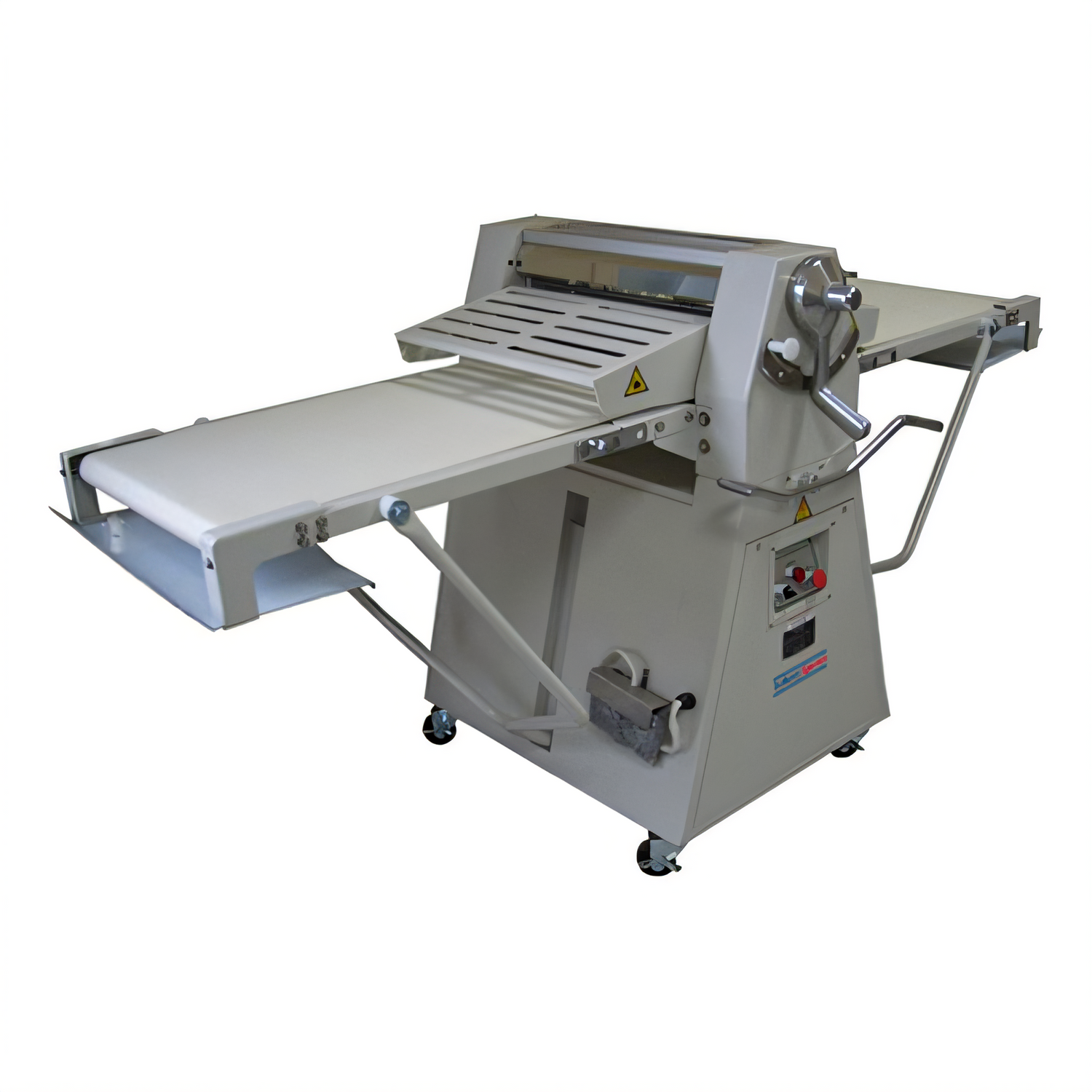

BakeryXpress DXP-FRS03 Floor Model Reversible Dough Sheeter, 25" x 95" Conveyor, 220V

25" x 95" Belt, Adjustable 1/8" to 2" Thickness, 2-Speed In Feed

Built for high-volume bakeries and kitchens, this reversible floor sheeter delivers a large working surface, adjustable thickness, and safety-focused operation for consistent dough handling.

  • Floor model reversible dough sheeter for bakeries, pastry shops, restaurants, hotels, and more.
  • Large 25" x 95" conveyor size supports a wide range of dough and pastry applications.
  • Adjustable thickness from 1/8" to 2" helps handle delicate to thicker doughs.
  • Safety guards on both sides automatically shut off power when lifted.
  • Synchronized 2-speed in feed helps reduce dough tearing during operation.
  • Fold-up sides help save room when the machine is not in use.
  • Heavy-duty construction with stainless steel rollers and catch pans on each end.
  • 220V, 1-phase power with NEMA 6-15P plug for installation planning.

Overall Dimensions:

99.0"W x 40.0"D x 44.0"H

Product Weight:

557.0 lb

Reversible Operation

Forward and reverse control supports efficient sheeting and stretching.

Adjustable Thickness Control

Thickness can be set from 1/8 inch to 2 inches for a variety of dough types.

Large Conveyor Surface

The 25 inch x 95 inch belt provides ample working space for larger batches.

Safety Guards with Auto Shutoff

Safety guards on both sides of the rollers automatically shut off power when lifted.

Synchronized 2-Speed In Feed

Helps prevent tearing and promotes smoother dough feeding.

Fold-Up Sides

Sides fold up to save space when the unit is not in use.

Heavy-Duty Steel Construction

Built for durability with stainless steel rollers and an aluminum alloy head housing.

Automatic Overload Protection

Protects the motor from damage during operation.

Catch Pans

Catch pans on each end help collect dough and simplify cleanup.

1-Year Limited Warranty

Documentation states a limited 1-year warranty.

Type Dough Sheeter
Style Reversible
Installation Type Floor Model
Controls Manual Lever
Material Steel
Horsepower 1 HP
Voltage 220 Volts
Amps 7.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Belt Size 25 Inches W x 95 Inches L
Roller Size 3.5 Inches x 25.6 Inches
Thickness Range 1/8 Inch to 2 Inches
Shipping Width 42 Inches
Shipping Depth 32 Inches
Shipping Height 82 Inches
Shipping Weight 557 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

1-year limited warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is suitable for puff pastry, Danish bread, fondant, donut dough, croissants, pie crusts, cookie dough, strudel, marzipan, and pizza dough.
The thickness is adjustable from 1/8 inch to 2 inches.
The unit offers forward and reverse control for sheeting and stretching dough.
It requires 220V, 60 Hz, 1-phase power and uses a NEMA 6-15P plug.
Yes. Safety guards on both sides automatically shut off power when lifted, and the unit also includes automatic overload protection.
Yes. The documentation states a limited 1-year warranty.
