BakeryXpress DXP-FRS02 Floor Model Reversible Dough Sheeter, 20.5" x 79" Conveyor, 220V

SKU: DXP-FRS02
$20,937.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dough Preparation Equipment Dough Preparation Equipment Dough Sheeters Dough Sheeters & Rollers DoughXpress Food Prep Equipment Food Preparation Equipment New Arrivals Restaurant Equipment

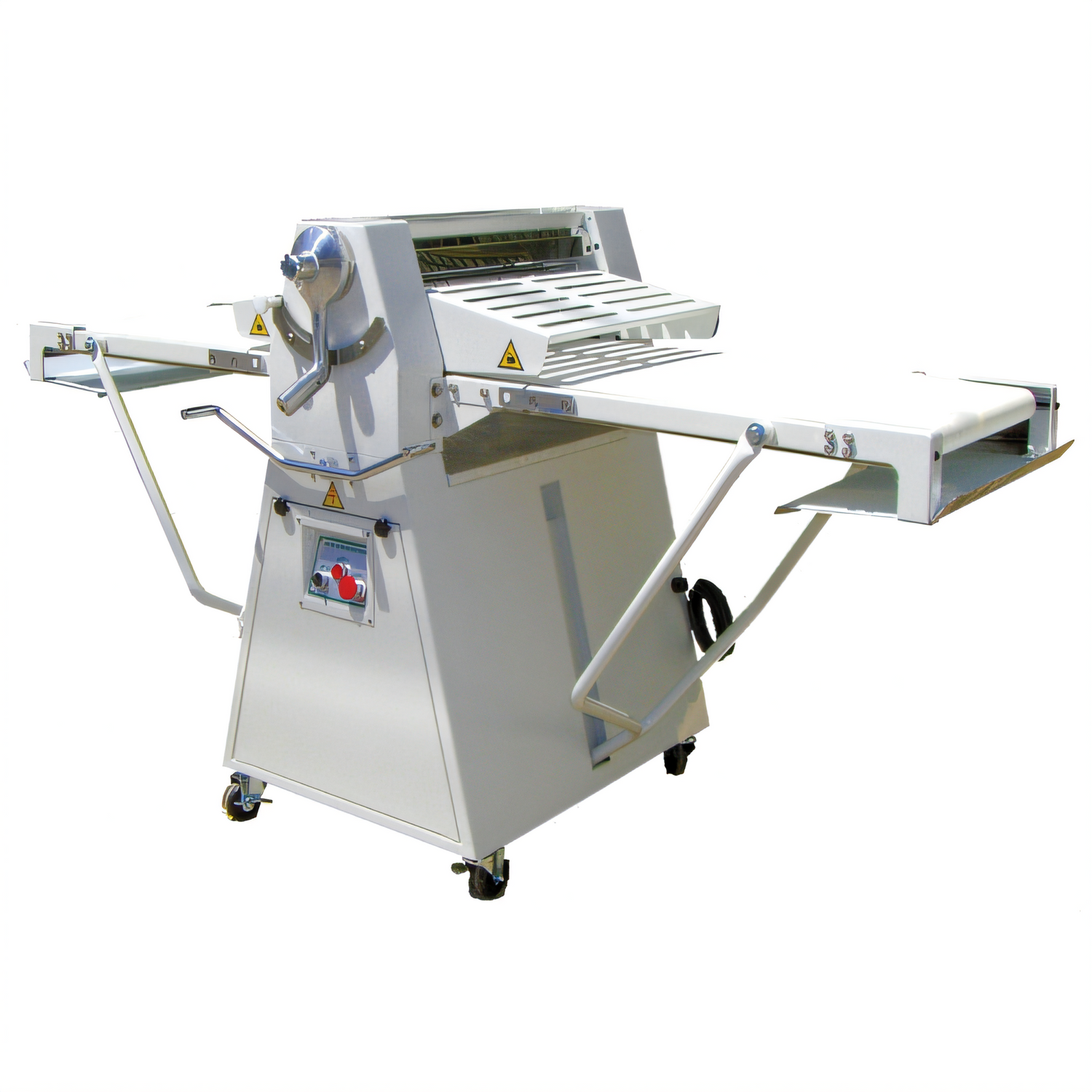

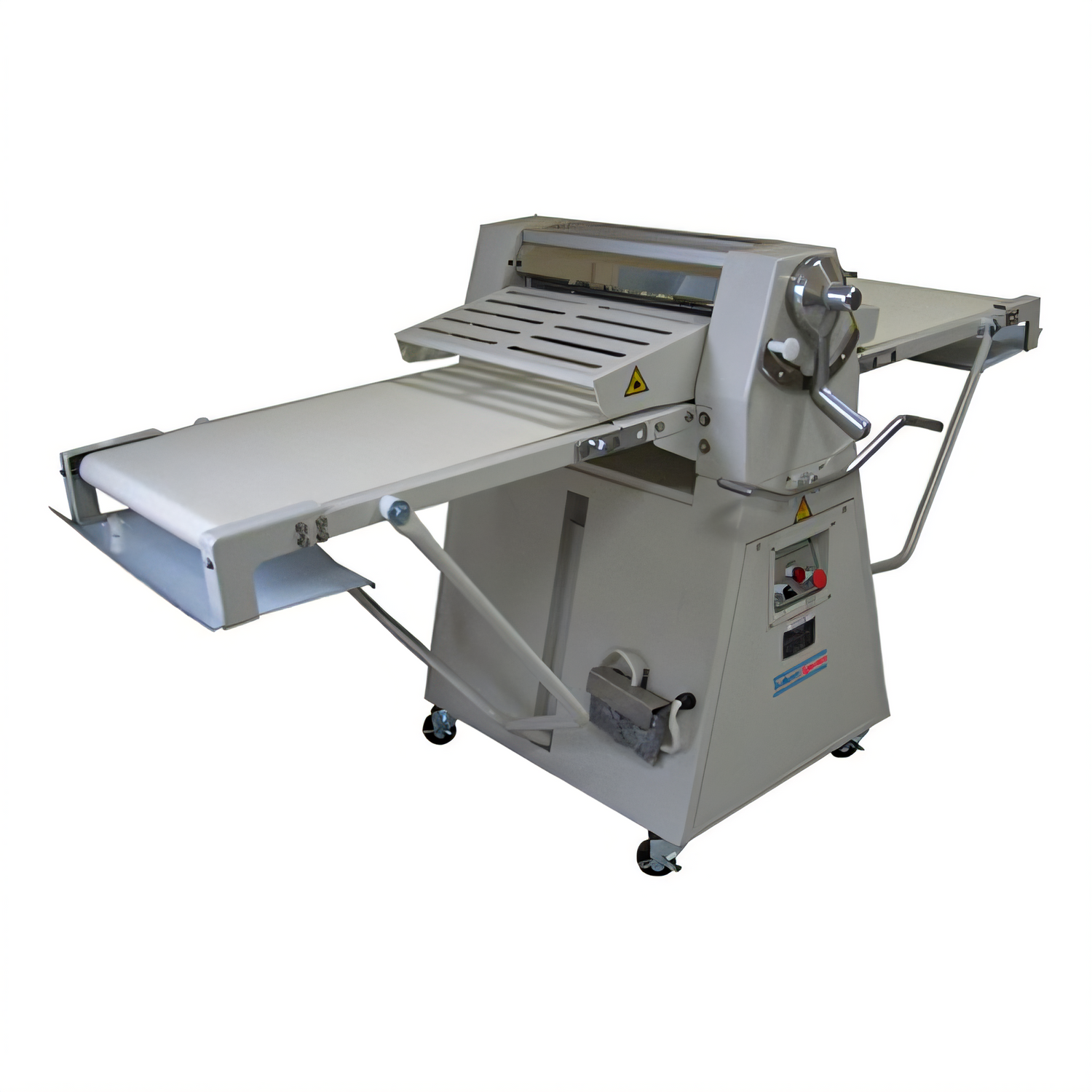

BakeryXpress DXP-FRS02 Floor Model Reversible Dough Sheeter, 20.5" x 79" Conveyor, 220V

Push Button Control, 2-Speed In Feed, Stainless Steel Rollers

Built for bakeries, pastry shops, hotels, and restaurants, this reversible floor sheeter delivers precise dough control and safer operation in a space-saving design.

  • Floor model reversible sheeter for consistent dough handling in high-volume prep environments.
  • 20.5" x 79" belt with adjustable thickness from 1/8" to 2".
  • Stainless steel rollers and safety guards on both sides help improve operator safety.
  • Synchronized 2-speed in feed helps reduce tearing of delicate dough.
  • Fold-up sides, catch pans, and non-stick scrapers help save space and simplify cleanup.
  • 220V, 1-phase operation with a NEMA 6-15P plug and cord set.

Overall Dimensions:

36.0"W x 83.0"D x 44.0"H

Product Weight:

476.0 lb

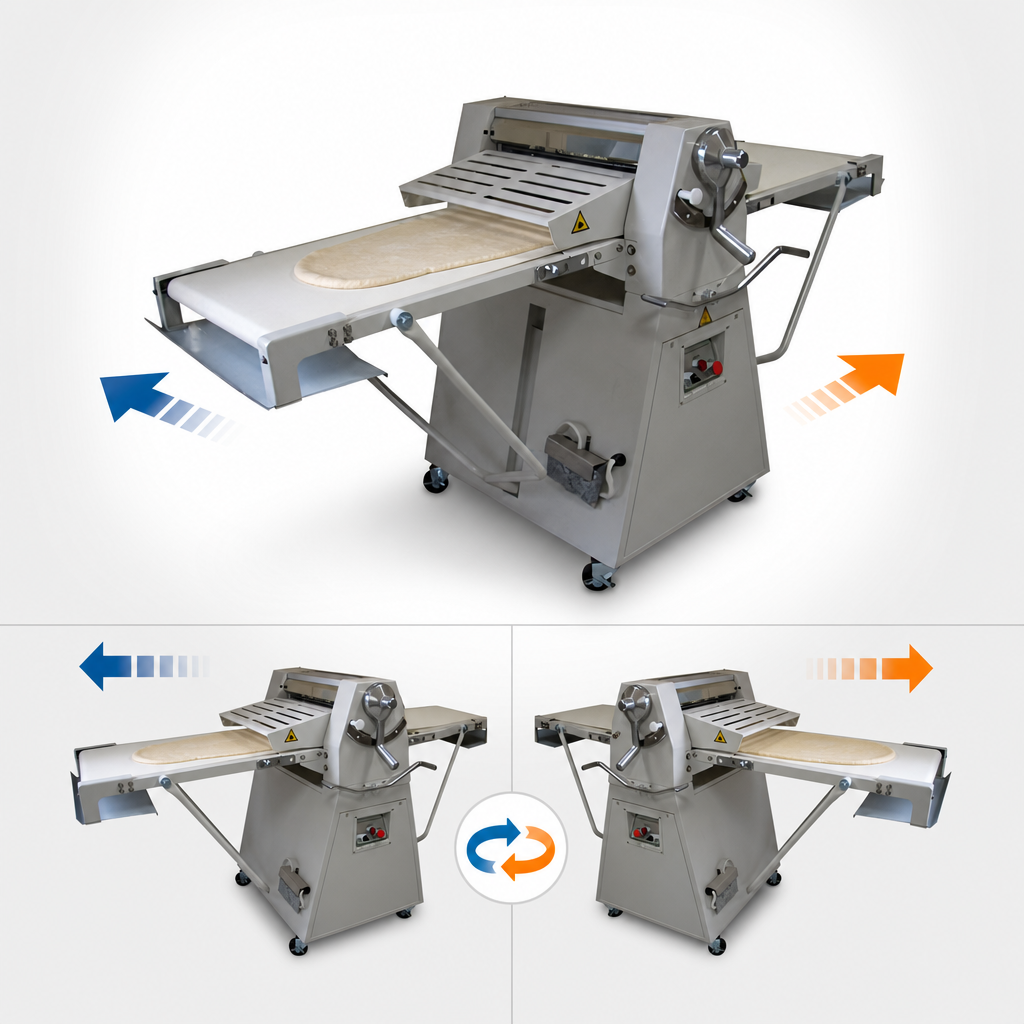

Reversible Operation

Forward and reverse operation makes it easier to sheet and stretch a wide variety of doughs.

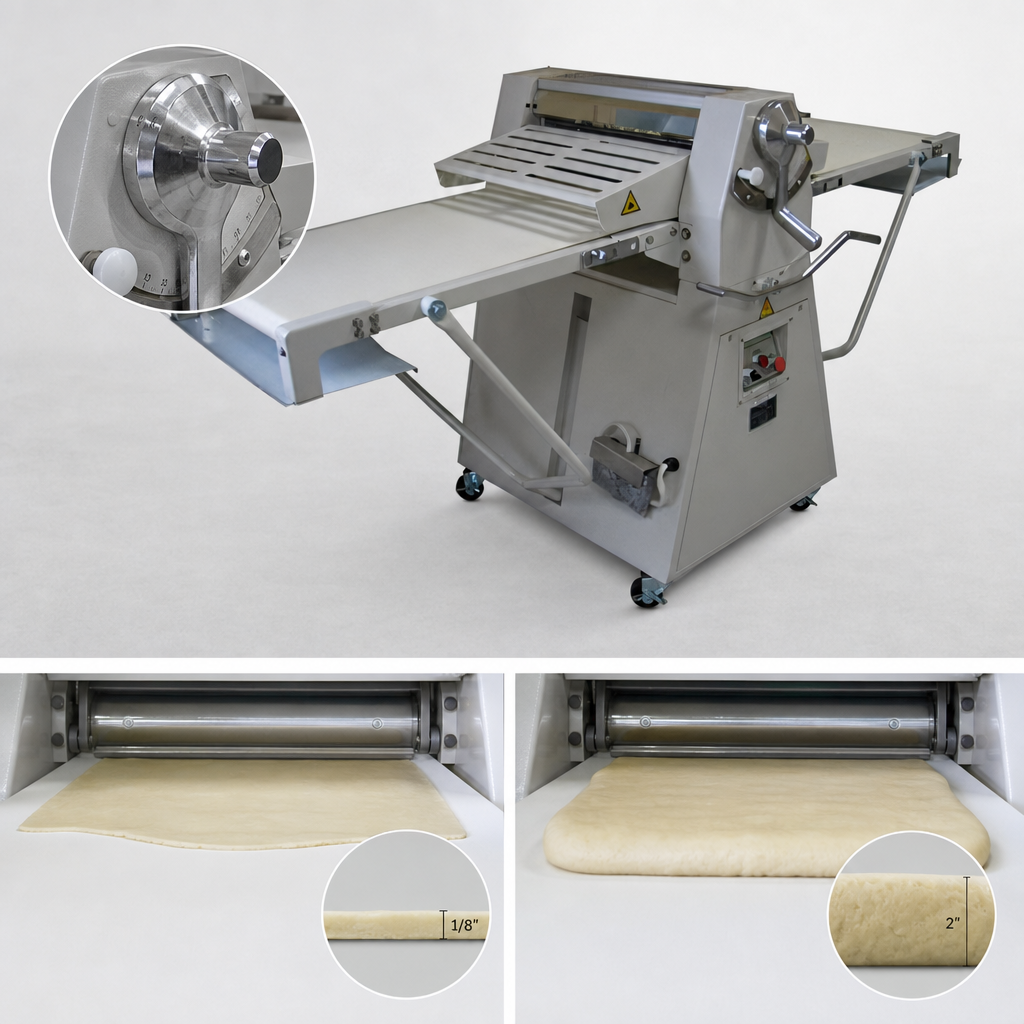

Adjustable Thickness Control

Thickness adjusts from 1/8" to 2" for flexible production of thin or thick dough.

Stainless Steel Rollers

Durable rollers support smooth dough handling and easier cleaning.

Safety Guards

Guards on both sides of the rollers automatically shut off power when lifted.

Push Button Control

Simple push-button operation makes forward and reverse control easy to use.

2-Speed In Feed

Synchronized in feed helps reduce tearing when working with delicate dough.

Fold-Up Sides

Sides fold up to save room when the unit is not in use.

Catch Pans

Catch pans are located on each end of the sheeter to help manage dough handling.

Automatic Overload Protection

Built-in overload protection helps prevent motor damage during demanding use.

Type Dough Sheeter
Style Reversible
Installation Type Floor Model
Material Stainless Steel
Controls Push Button
Thickness Range 1/8 Inch to 2 Inches
Belt Width 20.5 Inches
Belt Length 79 Inches
Roller Size 3.5 Inches x 20.5 Inches
Feed Speed 2-Speed
Horsepower 1 HP
Voltage 220 Volts
Amps 7.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Selling Unit Each
Units Per Case 1
Shipping Width 42 Inches
Shipping Depth 32 Inches
Shipping Height 75 Inches
Shipping Weight 476 lb.

Certifications & Compliance

Warranty & Protection

Limited 1-year warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The document lists puff pastry, Danish bread, fondant, donut dough, croissants, pie crusts, cookie dough, strudel, marzipan, and pizza dough.
It operates on 220V, 60 Hz, 1-phase power, draws 7.8 amps, and uses a NEMA 6-15P plug.
Safety guards on both sides of the rollers automatically shut off power when they are lifted up.
Yes. The sides easily fold up to help save room when the machine is not in use.
The sheeter adjusts from 1/8 inch to 2 inches.
