DoughXpress

BakeryXpress DXP-FRS01 Floor Model Reversible Dough Sheeter with 17-Inch x 79-Inch Conveyor, 220V

SKU: DXP-FRS01
$18,894.75
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dough Preparation Equipment Dough Preparation Equipment Dough Sheeters Dough Sheeters & Rollers DoughXpress Food Prep Equipment Food Preparation Equipment New Arrivals Restaurant Equipment

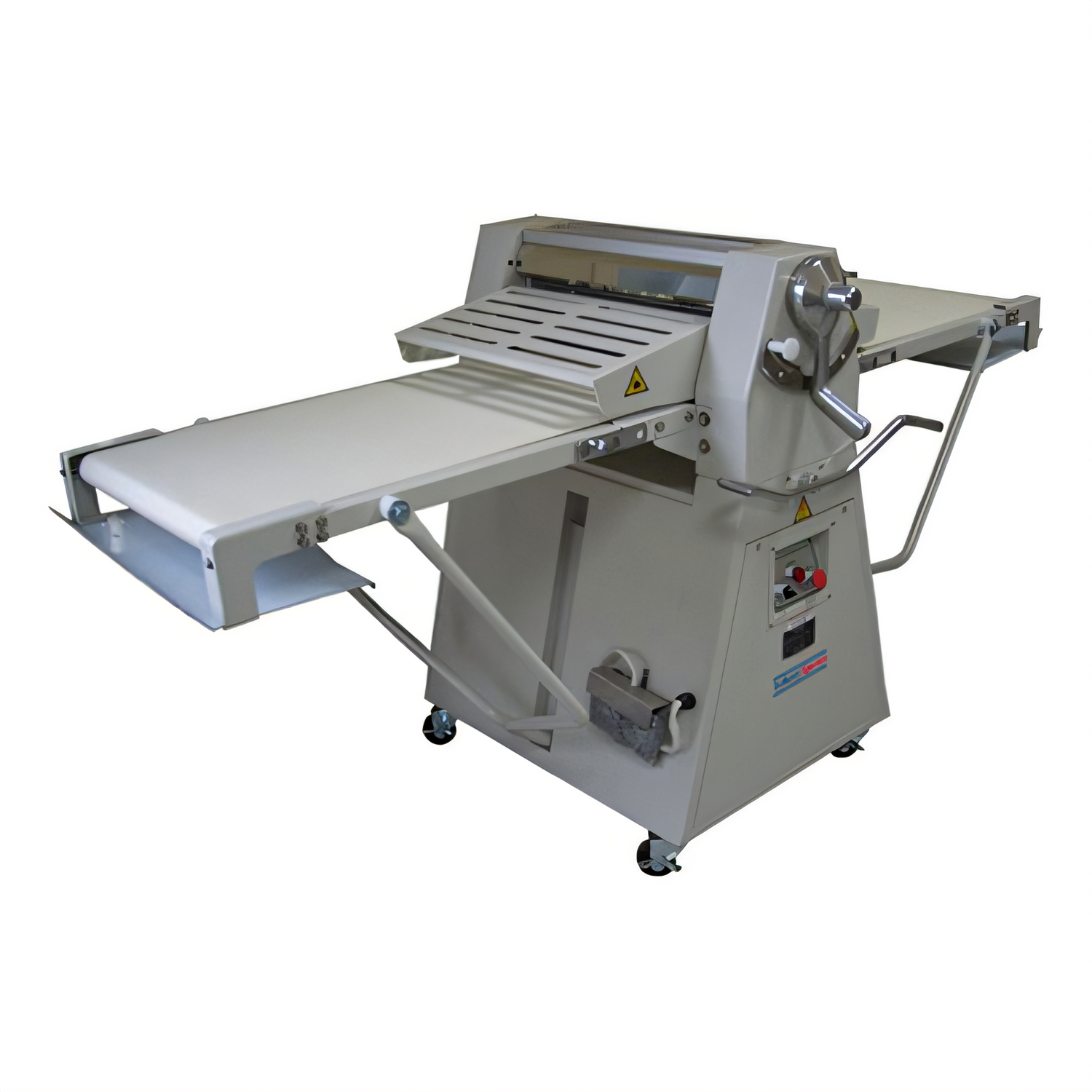

BakeryXpress DXP-FRS01 Floor Model Reversible Dough Sheeter with 17-Inch x 79-Inch Conveyor, 220V

Push Button Control, 2-Speed In Feed, Stainless Steel Construction

A durable floor-model reversible sheeter that helps bakeries and pastry kitchens handle delicate dough with precise thickness control, safety shutoff guards, and space-saving fold-up sides.

  • Floor model reversible sheeter for bakeries, restaurants, hotels, and pastry shops.
  • 17-inch x 79-inch conveyor size for sheeting and stretching dough.
  • Adjustable thickness from 1/8 inch to 2 inches.
  • Safety guards on both sides automatically shut off power when lifted.
  • Synchronized 2-speed in feed helps prevent tearing of dough.
  • Folds up to save room when not in use.
  • 220V, 1-phase, 1 HP motor with NEMA 6-15P cord.

Overall Dimensions:

32.0"W x 83.0"D x 44.0"H

Product Weight:

455.0 lb

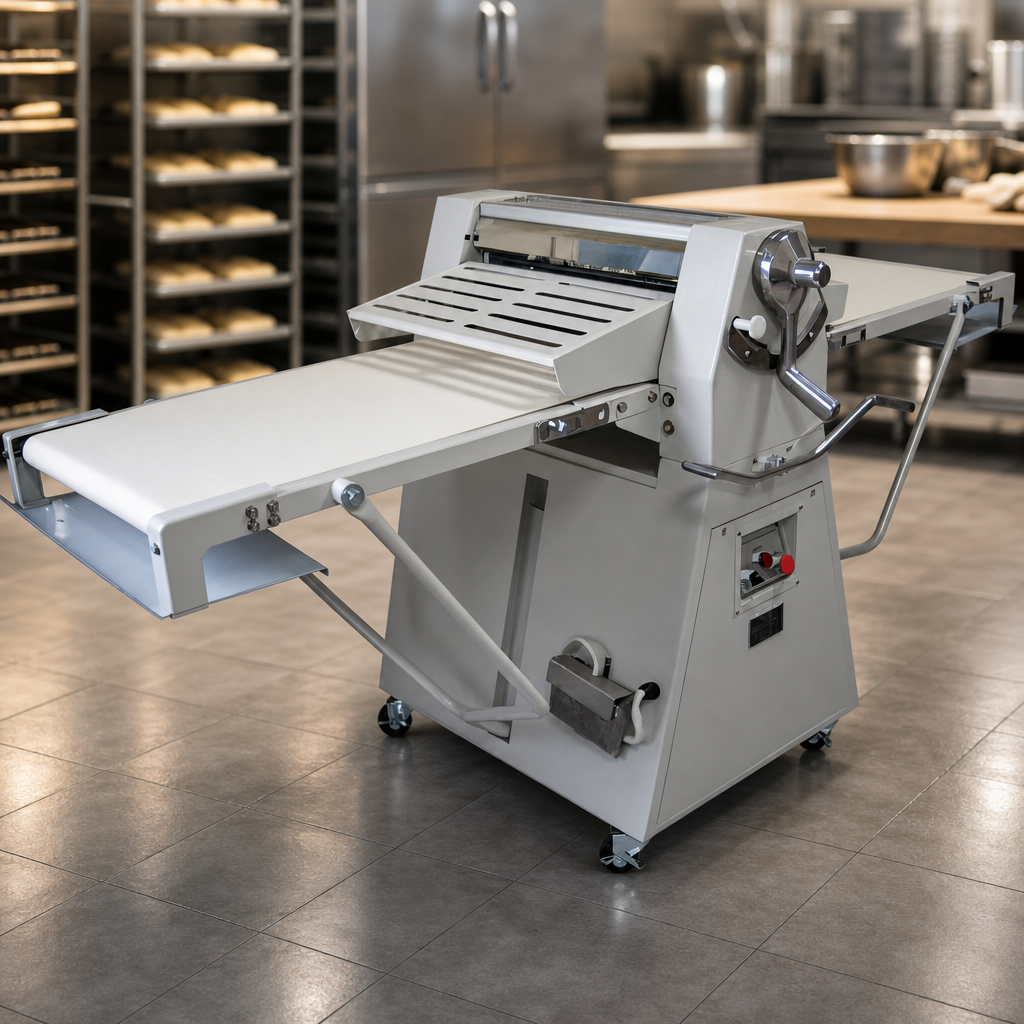

Heavy-Duty Steel Construction

Built for durability and long service life in busy bakeries and kitchens.

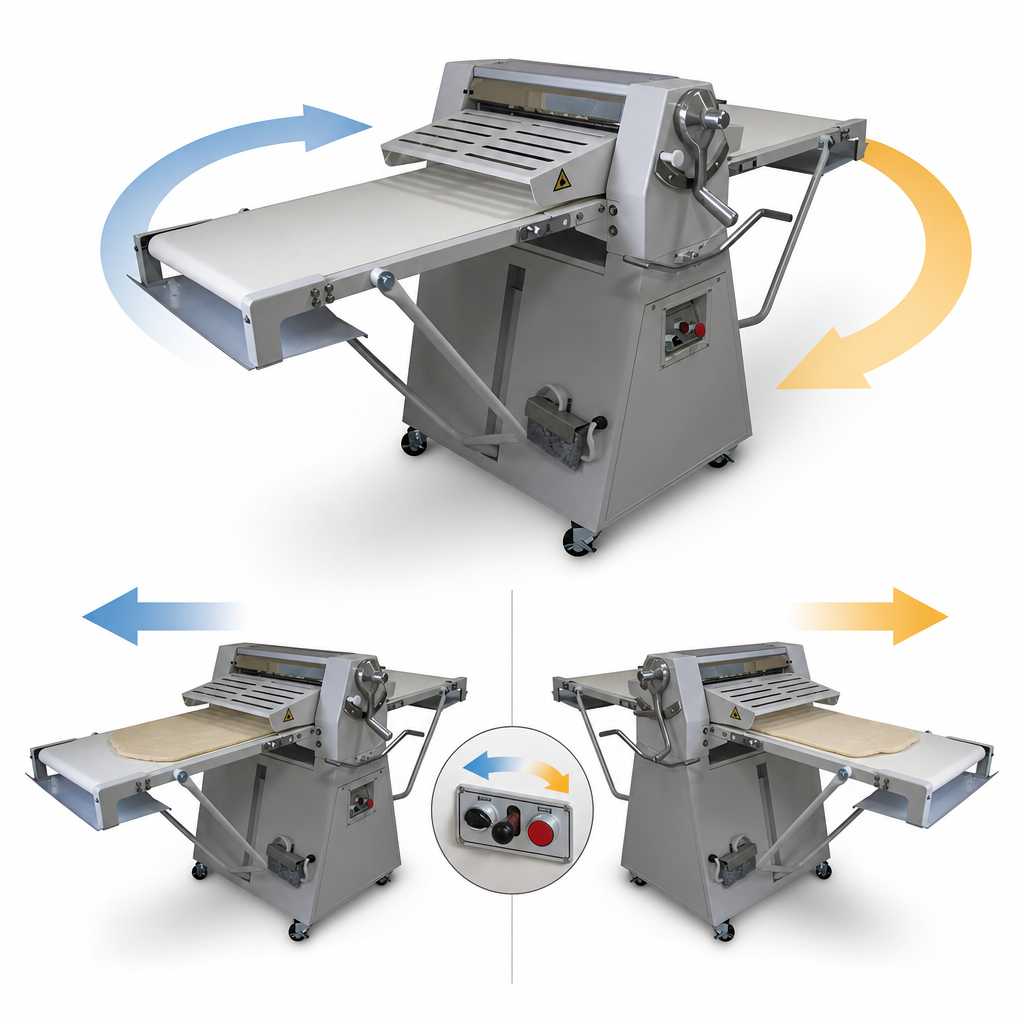

Reversible Operation

Forward and reverse control makes dough handling and sheeting easier.

17-Inch x 79-Inch Conveyor

Large conveyor size supports efficient dough sheeting and stretching.

Adjustable Thickness Control

Thickness can be set from 1/8 inch to 2 inches for different dough applications.

Safety Guard Auto Shutoff

Safety guards on both sides stop the unit automatically when lifted.

Synchronized 2-Speed In Feed

Helps reduce tearing and improve control with delicate dough.

Stainless Steel Rollers

Durable rollers provide smooth dough handling and consistent operation.

Fold-Up Sides

Sides fold up to save space when the machine is not in use.

Automatic Overload Protection

Helps protect the motor from damage during operation.

Catch Pans on Both Ends

Catch pans help collect dough at each end of the sheeter.

Type Dough Sheeter
Style Reversible
Installation Type Floor Model
Controls Push Button
Material Stainless Steel
Horsepower 1 HP
Voltage 220 Volts
Amps 7.8 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 6-15P
Shipping Width 42 Inches
Shipping Depth 32 Inches
Shipping Height 75 Inches
Shipping Weight 455 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Warranty & Protection

1-year limited warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The DXP-FRS01 has a 17-inch x 79-inch conveyor size.
Yes. It is a reversible floor model with forward and reverse control.
The thickness is adjustable from 1/8 inch to 2 inches.
It operates on 220V, 1-phase, 60 Hz power and draws 7.8 amps.
Yes. Safety guards on both sides automatically shut off the unit when lifted, and the motor has overload protection.
