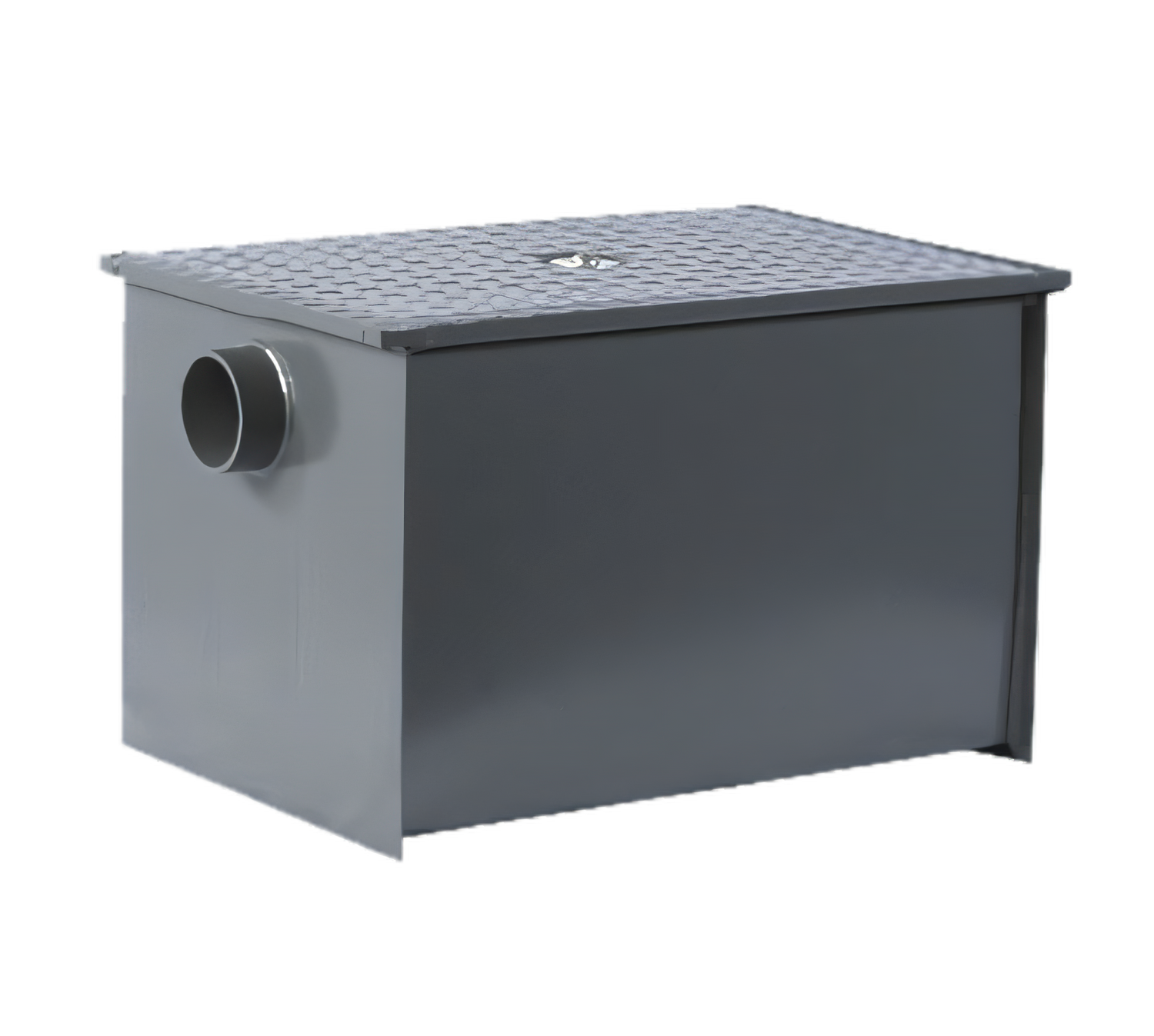

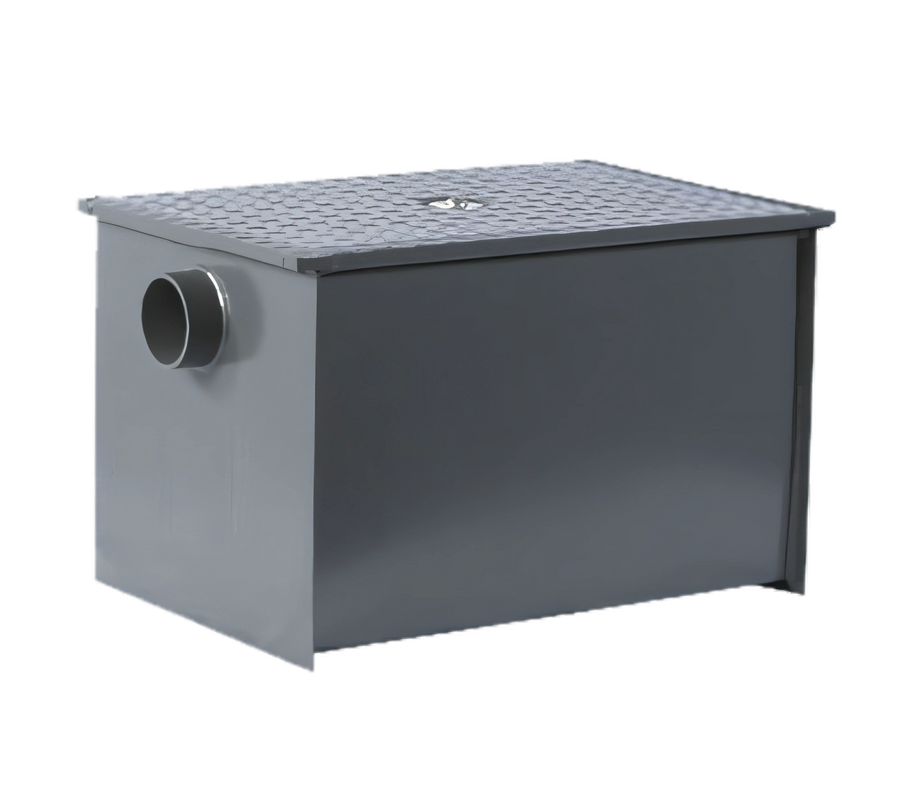

Dormont WD-7 Recessed/Floor Mount Epoxy-Coated Steel Grease Interceptor, 7 GPM, 14 lb Capacity

SKU: WD-7
$492.29
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Dishwashers Dish Room Equipment Dormont Manufacturing Grease Traps Grease Traps New Arrivals Restaurant Equipment Sanitizers & Cleaning

Dormont WD-7 Recessed/Floor Mount Epoxy-Coated Steel Grease Interceptor, 7 GPM, 14 lb Capacity

No-Hub Connections Standard; Threaded Available

A compact grease interceptor with a 7 GPM flow rate, 14 lb grease capacity, and durable epoxy-coated steel construction for dependable commercial kitchen drainage.

  • 7 GPM flow rate and 14 lb grease capacity for commercial sink and dish room applications.
  • Recessed or floor mounted epoxy-coated steel construction with a gasketted solid steel cover.
  • 2-inch inlet and outlet connections with no-hub connections standard; threaded option available by THD suffix.
  • Removable baffle assembly, deep seal trap, and cleanout plug help simplify maintenance.
  • External cast iron flow control fitting is standard on WD Series units.
  • PDI certified for grease interception performance.

Product Weight:

51.0 lb

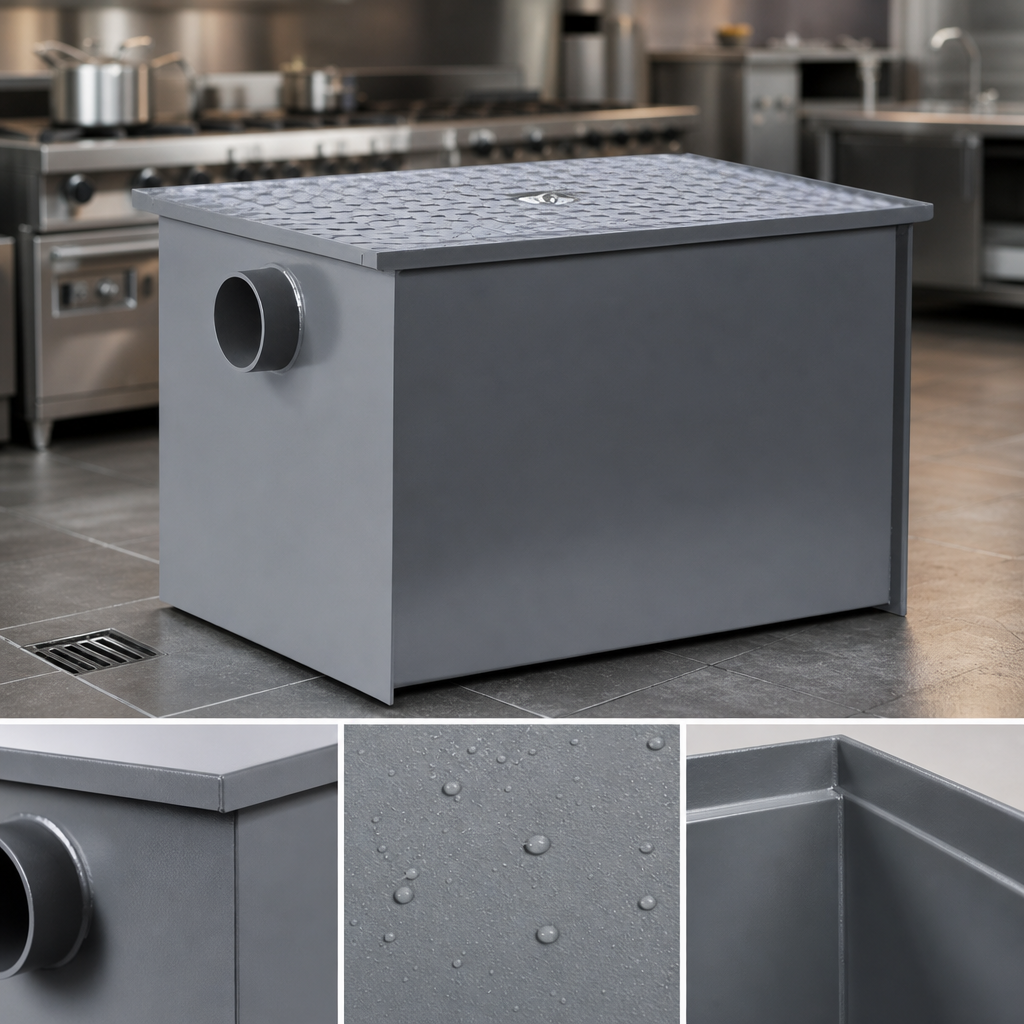

Epoxy-Coated Steel Body

11-gauge cold rolled steel body with oven-cured, acid-resistant baked gray epoxy coating inside and out.

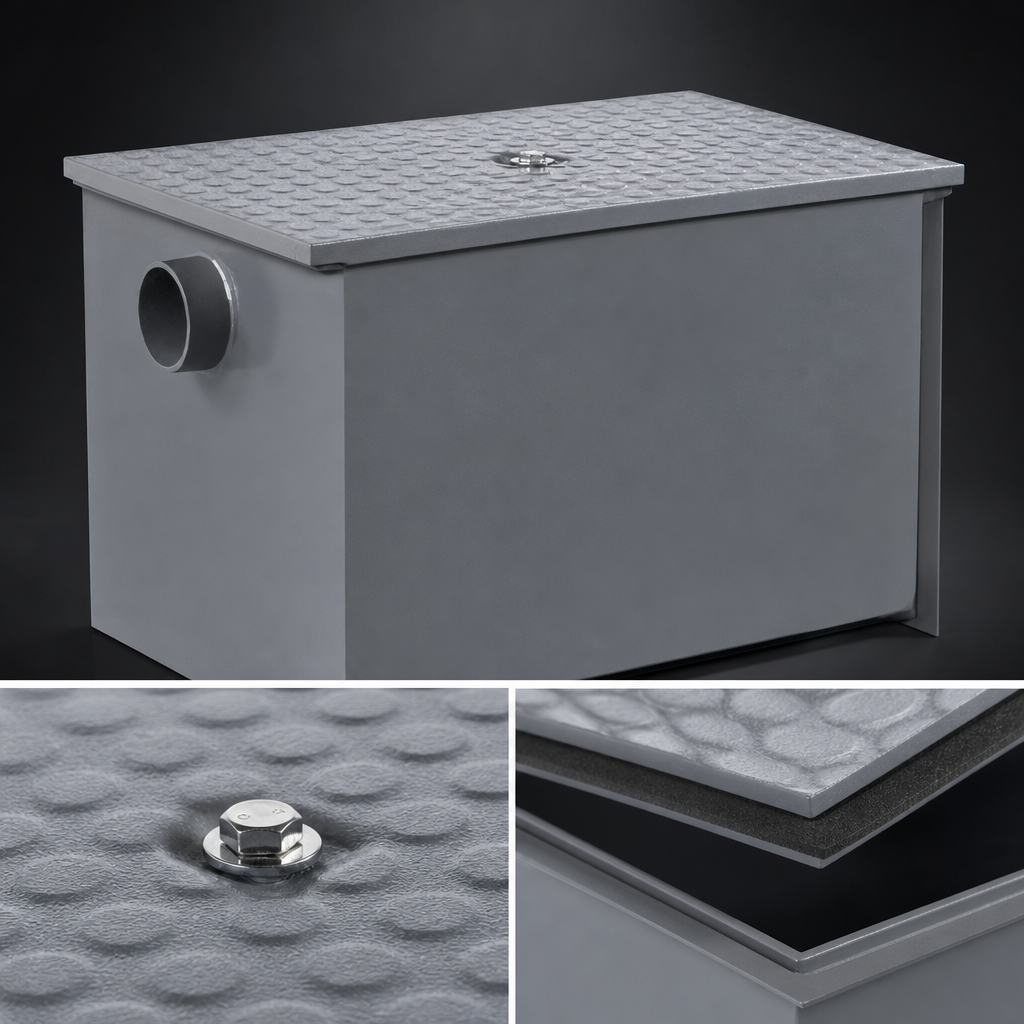

Gasketted Solid Steel Cover

Skid-proof checker plate steel lid is secured with hex head center bolt(s) for a tight seal.

Removable Baffle Assembly

Designed to help separate grease from wastewater and make routine cleaning easier.

Deep Seal Trap With Cleanout

Integral trap includes a cleanout plug to support maintenance and service access.

External Cast Iron Flow Control Fitting

Standard WD Series flow restrictor helps regulate inlet flow through the interceptor.

No-Hub Standard, Threaded Option Available

No-hub inlet and outlet connections are standard; threaded connections can be ordered by adding THD to the part number at no additional charge.

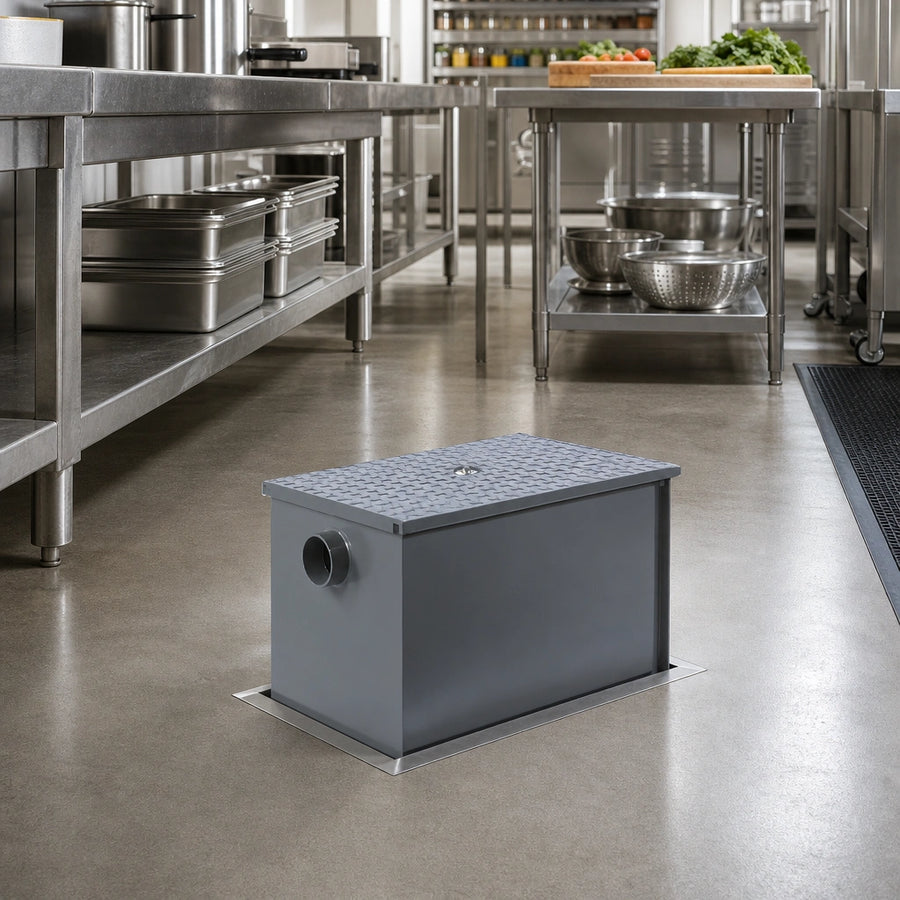

Recessed Or Floor Mounted

Flexible installation options for a variety of dish room and kitchen layouts.

PDI Certified

Certified to Plumbing and Drainage Institute standards for grease interceptor applications.

Type Grease Interceptor
Style Recessed/Floor Mounted
Installation Type Floor Model
Material Steel
Color Gray
Finish Epoxy Coated
Flow Rate 7 GPM
Capacity 14 lb
Inlet/Outlet Size 2 Inches
Connection Type No-Hub
Draw-Off Without
Shipping Weight 51 lb
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The WD-7 is rated at 7 GPM with a 14 lb grease capacity.
This model uses 2-inch inlet and outlet connections.
Yes. No-hub connections are standard, and threaded inlet and outlet connections are available by adding 'THD' to the end of the part number at no extra charge.
It includes a gasketted solid steel cover, hex head center bolt(s), removable baffle assembly, deep seal trap with cleanout, and an external cast iron flow control fitting.
Yes, the WD Series is PDI certified.
No. The WD-7 is the standard WD Series model without draw-off.
