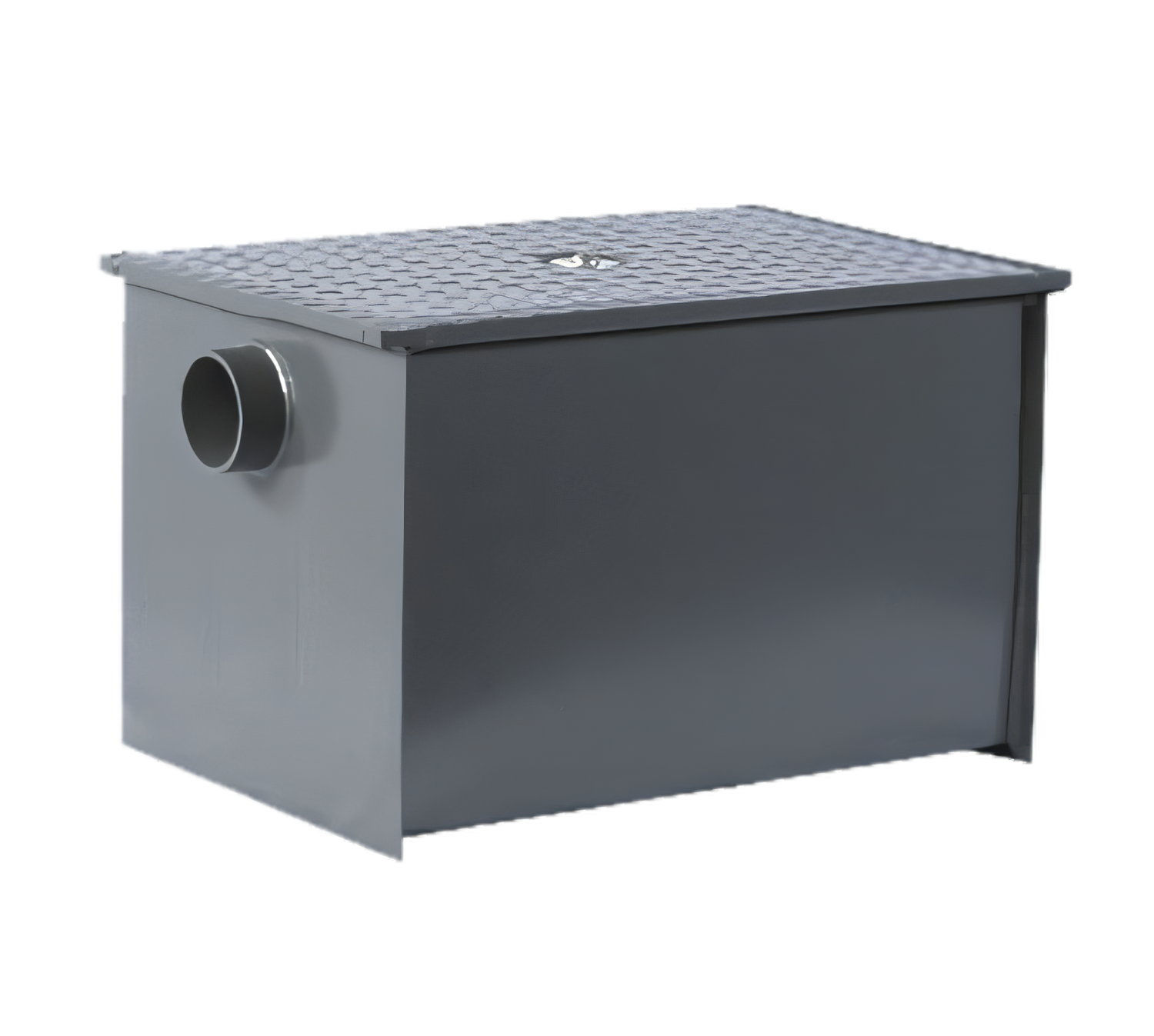

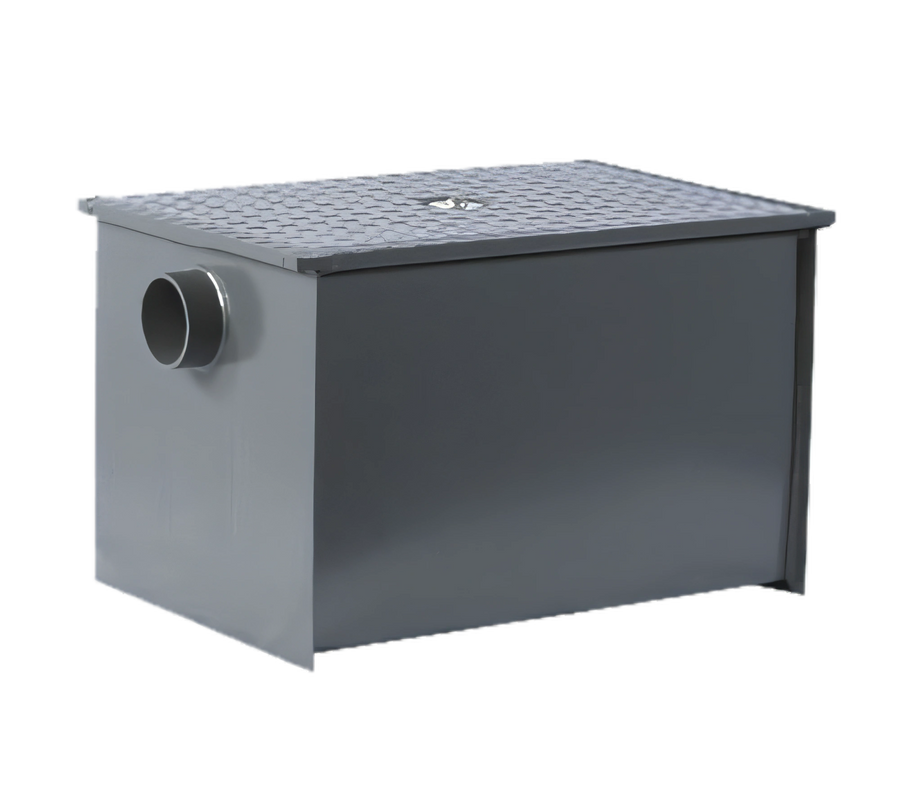

Dormont WD-50 Grease Interceptor – 50 GPM / 100 lb Capacity

PDI Certified | Epoxy-Coated Steel | 4" No-Hub Connections

Stop fats, oils and grease before they wreak havoc on your plumbing with the Dormont WD-50 grease interceptor. Engineered to meet the heavy-duty demands of commercial kitchens, this 50 GPM unit traps up to 100 lbs of grease while allowing wastewater to flow freely into your drainage system.

Key Benefits

  • Industry-leading 90 % separation efficiency – PDI-G101 certified.
  • Rugged 11-ga cold-rolled steel body with baked gray epoxy coating (inside & out) for superior corrosion resistance.
  • ¼" skid-proof solid steel cover with neoprene gasket and hex-head center bolt(s) locks in odors and prevents tampering.
  • External cast-iron flow control fitting optimizes inlet velocity for maximum grease capture.
  • Removable one-piece baffle assembly and deep-seal trap with clean-out plug make servicing fast and mess-free.
  • Standard 4" no-hub inlet & outlet; specify “THD” suffix for 4" threaded ends at no additional cost.
  • Versatile floor-mount or recessed installation—ideal for pot sinks, prep sinks, sculleries and dish machines.

Technical Specifications

Parameter Value
Model WD-50
Flow Rate 50 gallons per minute (GPM)
Grease Capacity 100 lbs
Inlet / Outlet Size 4" (no-hub standard)
Body Material Epoxy-coated 11-ga steel
Cover ¼" solid steel, skid-proof, gasketed
Fastening Hex-head center bolt(s)
Internal Components Removable baffle assembly, deep-seal trap with clean-out plug
Flow Control External cast-iron fitting
Certifications PDI-G101, UPC / IAPMO listed
Optional Ends 4" FNPT threaded inlet & outlet (add “THD” suffix)

Need help sizing? Use our GPM sizing chart or chat with our team for a quick recommendation.

Installation note: Grease interceptors must be installed in accordance with local plumbing codes and cleaned regularly to maintain rated performance.

Features & Specs

Manufacturer

Dormont Manufacturing

Brand_name

Watts Grease Interceptors

Shipping Weight

149.0lbs

Flow Rate

50 GPM

Draw-off

without

Grease Capacity

40 - 149 lb

Specifications

Watts Grease Interceptor, 50 gallons per minute flow rate, 100 lb grease capacity, 4" inlet & outlet, no hub connections, solid steel cover with gasket, hex head center bolt(s), removable baffle assembly, deep seal trap with cleanout, external cast iron flow control fitting, epoxy coated steel, available with threaded inlet and outlet, by adding "THD" to end of part number, no additional charge, PDI certified
