Dormont Manufacturing WD-50-A Watts Grease Interceptors Grease Traps
Description

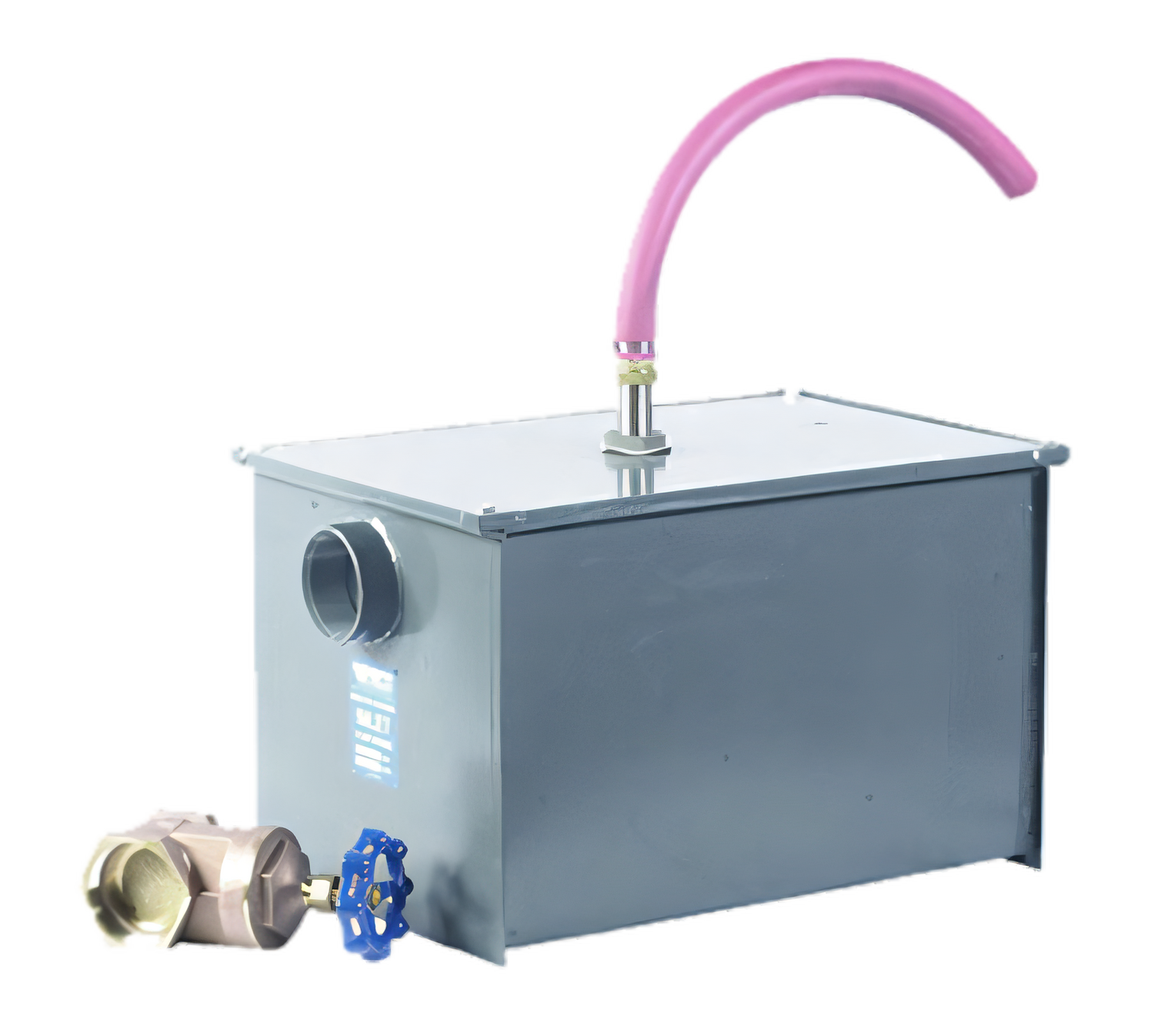

Dormont WD-50-A Semi-Automatic Draw-Off Grease Interceptor

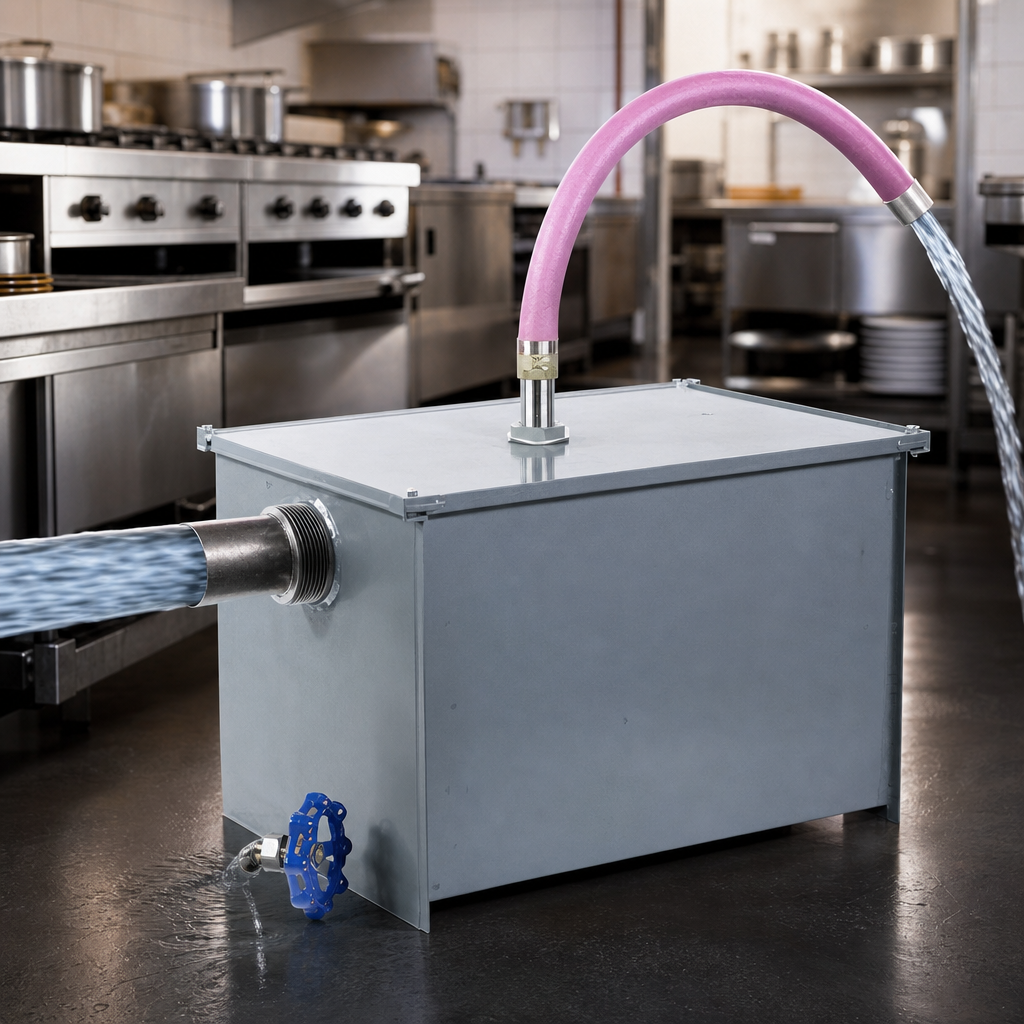

50 GPM • 100 lb grease capacity • 4" threaded inlet & outletStop clogs before they start. The Dormont WD-50-A intercepts up to 100 lb of fats, oils & grease (FOG) at a continuous flow rate of 50 gallons per minute, keeping high-volume commercial kitchens code-compliant and operating smoothly. Its semi-automatic draw-off system lets staff empty accumulated grease through a flexible hose—no heavy lifting, no messy pump-outs, and minimal downtime.
Built-in Advantages

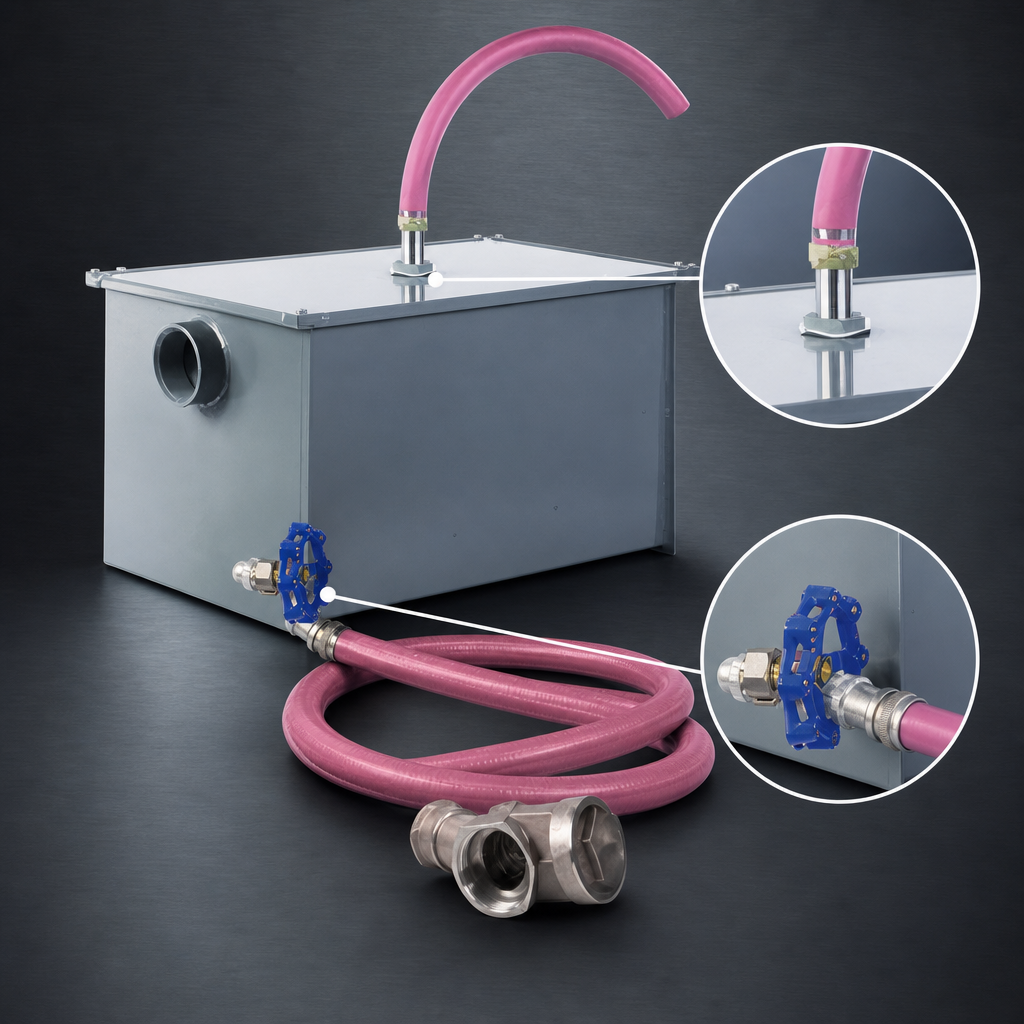

- Semi-automatic draw-off hose & shut-off valve for quick, controlled grease disposal
- 4" FNPT threaded inlet & outlet simplify new installs or retrofits
- Heavy-duty 1⁄4" checker-plate steel cover with neoprene gasket—secured by hex-head perimeter bolts
- Removable grease-accumulating cover and internal baffle assembly for tool-free cleaning
- Integral stainless steel flow-control plate maintains optimal separation efficiency
- 11-ga cold-rolled steel body, baked gray epoxy-coated inside & out for corrosion resistance
- Deep-seal trap with external clean-out plug helps block odors & sewer gases
- Versatile—install on-floor or recessed to suit sinks, sculleries, pot & pan washers, or dish machines
Ideal For
- Full-service & quick-service restaurant kitchens
- Hotels, hospitals & institutional cafeterias
- Bakeries, commissaries & food-processing plants
- Multi-fixture hook-ups with combined flows ≤ 50 GPM
Technical Specifications
| Model | Dormont WD-50-A (Watts/Dormont WD-A Series) |
|---|---|
| Flow rate | 50 GPM (189 L/min) |
| Grease retention | 100 lb (45 kg) |
| Inlet / outlet size | 4" FNPT threaded (standard) |
| Overall dimensions | 32" L × 22" W × 21-1/2" H (813 × 559 × 546 mm) |
| Cover | ¼" skid-proof steel, gasketed, hex-bolt secured |
| Body material | 11-ga cold-rolled steel, oven-cured epoxy coating (inside & out) |
| Flow control | Internal stainless steel plate |
| Clean-out | External plug on deep-seal trap |
| Draw-off system | Flexible hose with manual shut-off valve |
| Installation | Floor-standing or recessed (field selectable) |
Sizing and installation must comply with local plumbing codes. Always verify interceptor flow-rate requirements before ordering.
