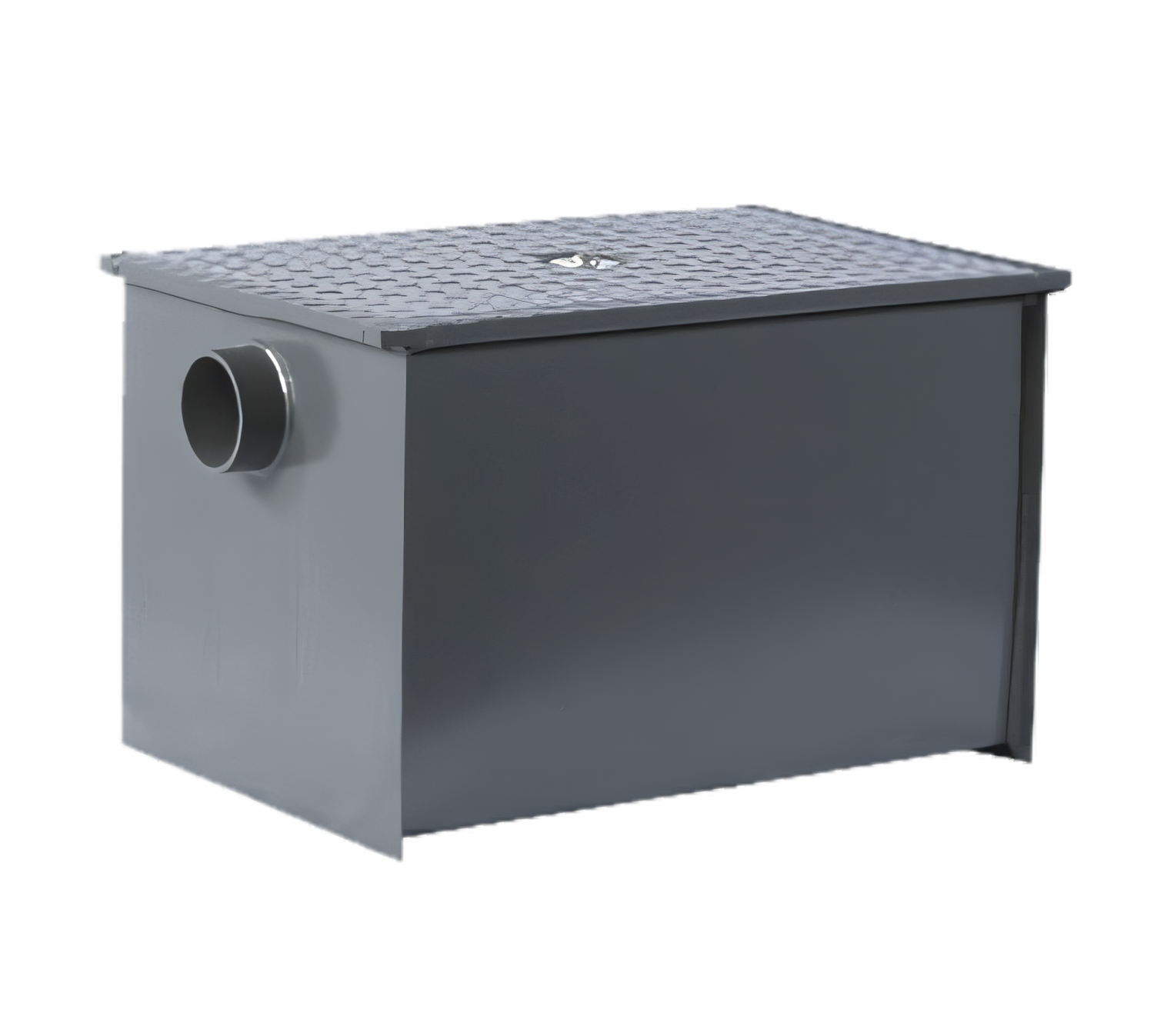

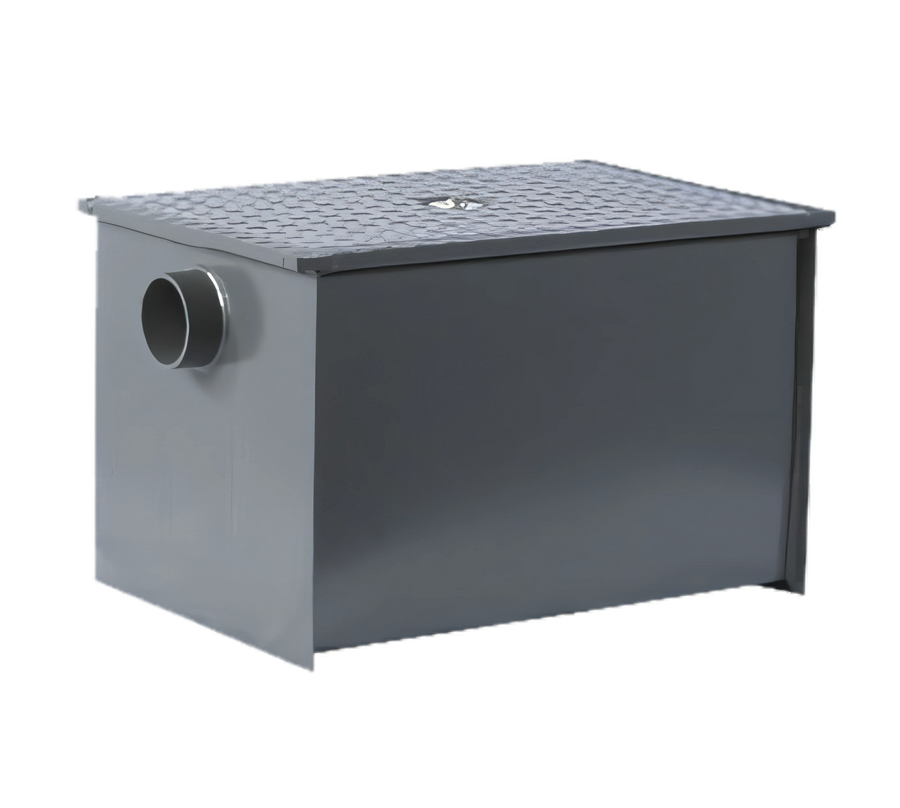

Dormont WD-4 Recessed/Floor-Mount Grease Interceptor, 4 GPM, 8 lb Capacity, 2 Inch No-Hub Connections

SKU: WD-4
$433.37
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Dishwashers Dish Room Equipment Dormont Manufacturing Grease Traps Grease Traps New Arrivals Restaurant Equipment Sanitizers & Cleaning

Dormont WD-4 Recessed/Floor-Mount Grease Interceptor, 4 GPM, 8 lb Capacity, 2 Inch No-Hub Connections

Epoxy Coated Steel, Threaded Option Available, PDI Certified

Compact, PDI-certified grease interceptor designed to protect dish room and sink drainage with a 4 GPM rating and 8 lb grease capacity.

  • 4 GPM flow rate with 8 lb grease capacity for smaller commercial sink and dishwasher applications.
  • Standard 2-inch no-hub inlet and outlet; threaded connections are available by adding THD to the part number at no additional charge.
  • Gasketed solid steel cover with hex head center bolts helps secure the top and support maintenance access.
  • Removable baffle assembly and deep seal trap with cleanout simplify service and cleaning.
  • External cast iron flow control fitting helps regulate incoming waste flow.
  • Epoxy coated steel construction is built for foodservice duty and is PDI certified.

Product Weight:

38.0 lb

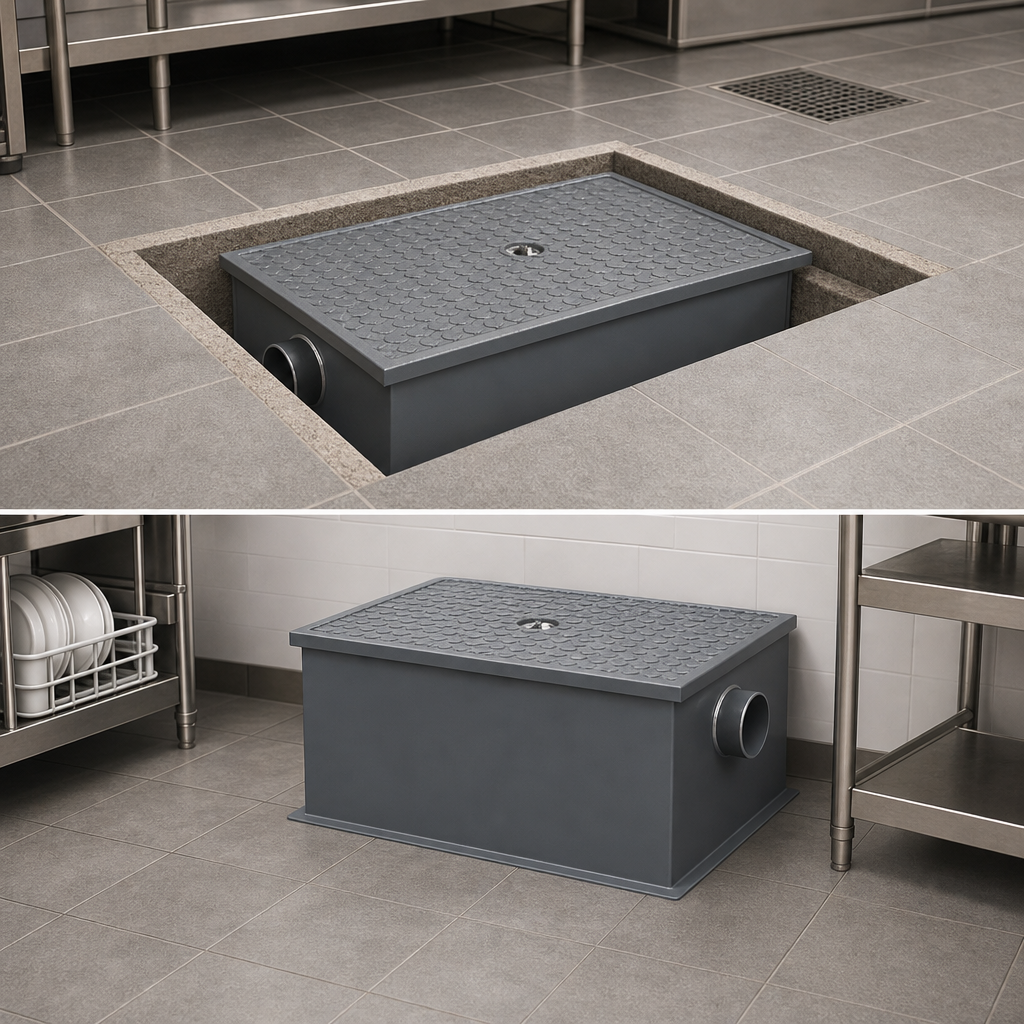

Recessed or Floor Mounted

Designed for recessed or floor-mounted installation in commercial kitchen dish and prep areas.

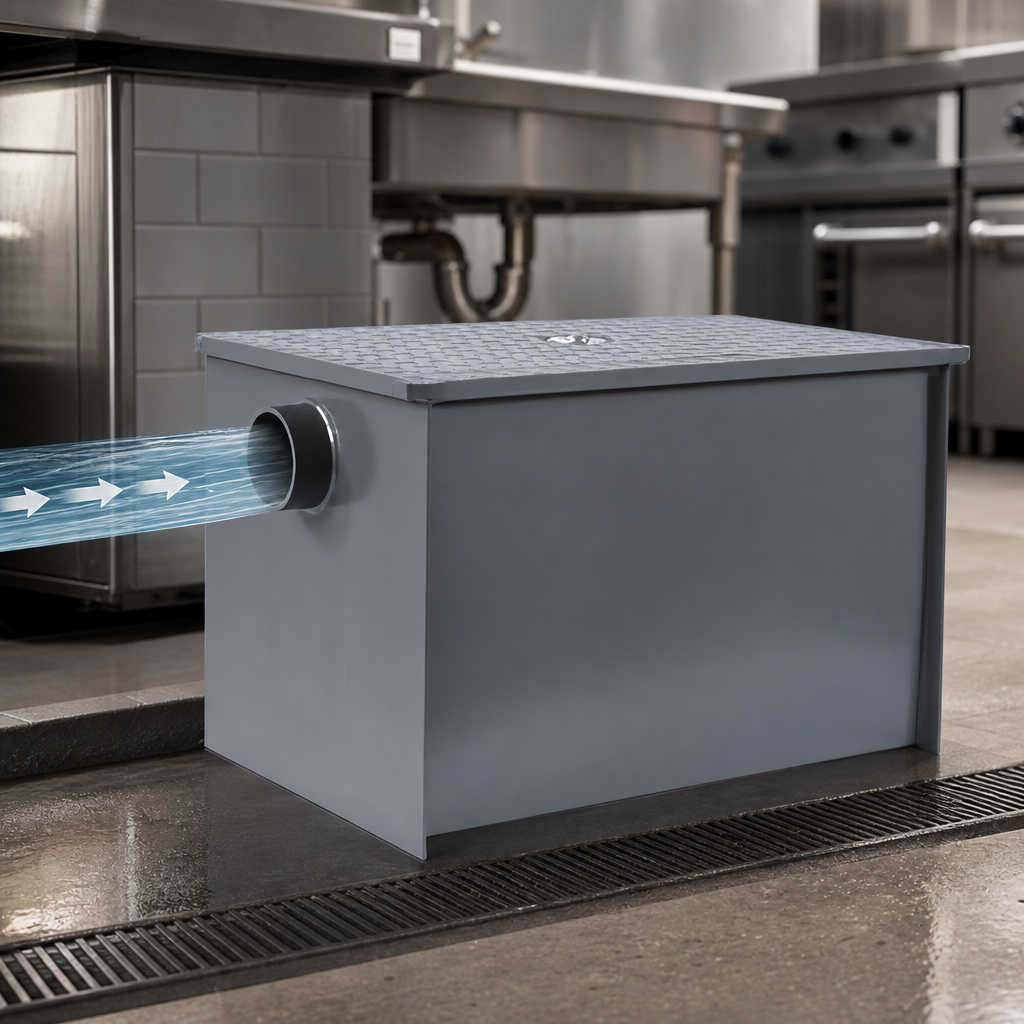

4 GPM Flow Rate

Rated for 4 gallons per minute.

8 lb Grease Capacity

Provides 8 lb of grease retention capacity.

2 Inch No-Hub Connections

Standard inlet and outlet connection size and type.

Optional Threaded Connections

Threaded inlet and outlet can be specified by adding THD to the end of the part number.

Solid Steel Cover with Gasket

Gasketed cover secured with hex head center bolt(s) for a tight, serviceable closure.

Removable Baffle Assembly

Removable baffle helps separate and collect grease and supports cleaning.

Deep Seal Trap with Cleanout

Includes a deep seal trap with cleanout access for maintenance.

External Cast Iron Flow Control Fitting

External flow restrictor helps manage incoming flow.

Epoxy Coated Steel Construction

Body is epoxy coated steel with a baked gray epoxy finish inside and out.

Type Grease Interceptor
Style WD Series
Installation Type Floor Model
Material Steel
Finish Epoxy Coated
Flow Rate 4 GPM
Grease Capacity 8 lb.
Inlet & Outlet Size 2 Inches
Connection Type No-Hub
Draw-Off No
Selling Unit Each
Units Per Case 1
Shipping Weight 38 lb.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The WD-4 is rated for 4 GPM.
It has an 8 lb grease capacity.
The inlet and outlet are 2 inches.
Yes. Threaded inlet and outlet connections are available by adding THD to the part number at no additional charge.
It includes a removable baffle assembly, deep seal trap with cleanout, and a solid steel cover secured with hex head center bolts.
Yes, the WD-4 is PDI certified.
