Dormont WD-35 Grease Interceptor, 35 GPM, 70 lb. Capacity, 3-Inch Inlet & Outlet

SKU: WD-35
$1,471.97
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Dishwashers Dish Room Equipment Dormont Manufacturing Grease Traps Grease Traps New Arrivals Restaurant Equipment Sanitizers & Cleaning

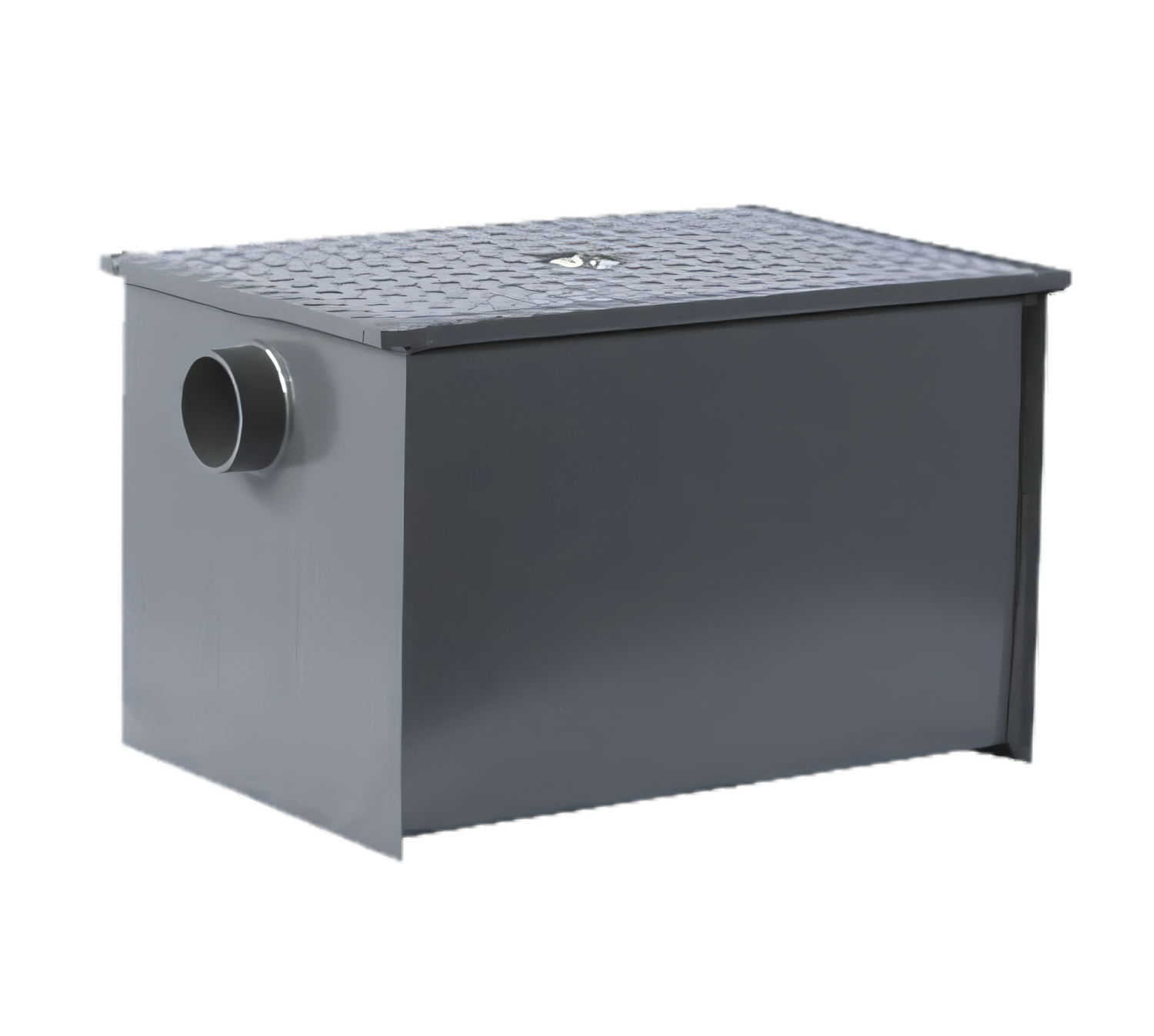

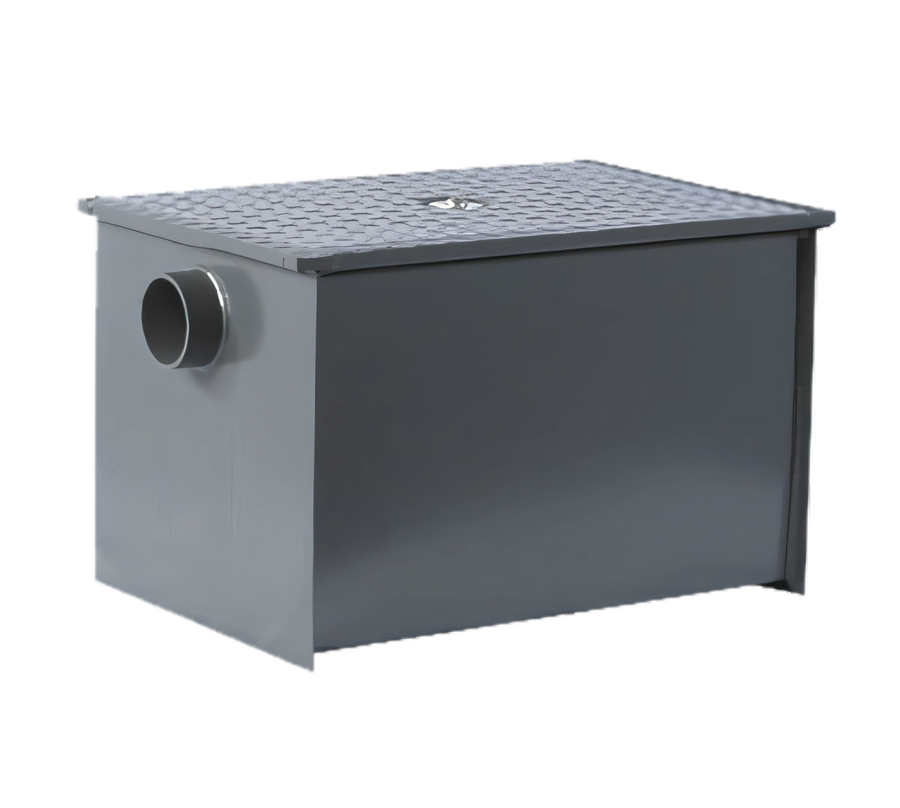

Dormont WD-35 Grease Interceptor, 35 GPM, 70 lb. Capacity, 3-Inch Inlet & Outlet

Recessed or Floor Mounted, Epoxy-Coated Steel, No-Hub Standard

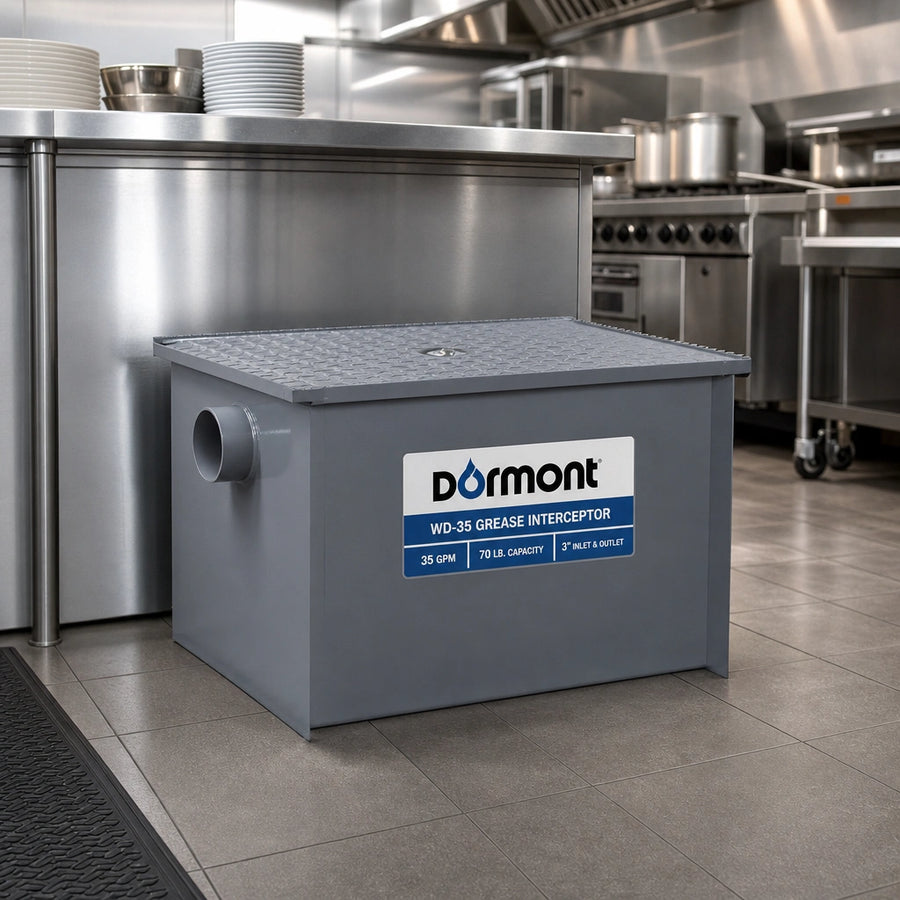

Built for busy dish rooms and prep areas, this grease interceptor helps keep grease out of your drainage system with a rugged epoxy-coated steel body and easy-service internals.

  • 35 GPM flow rate with 70 lb. grease capacity for commercial kitchen drainage.
  • Standard 3-inch no-hub inlet and outlet connections.
  • Solid steel cover with gasket and hex head center bolts for a secure seal.
  • Removable baffle assembly and deep seal trap with cleanout simplify service.
  • External cast iron flow control fitting and epoxy-coated steel construction for durability.
  • PDI certified design.

Product Weight:

113.0 lb

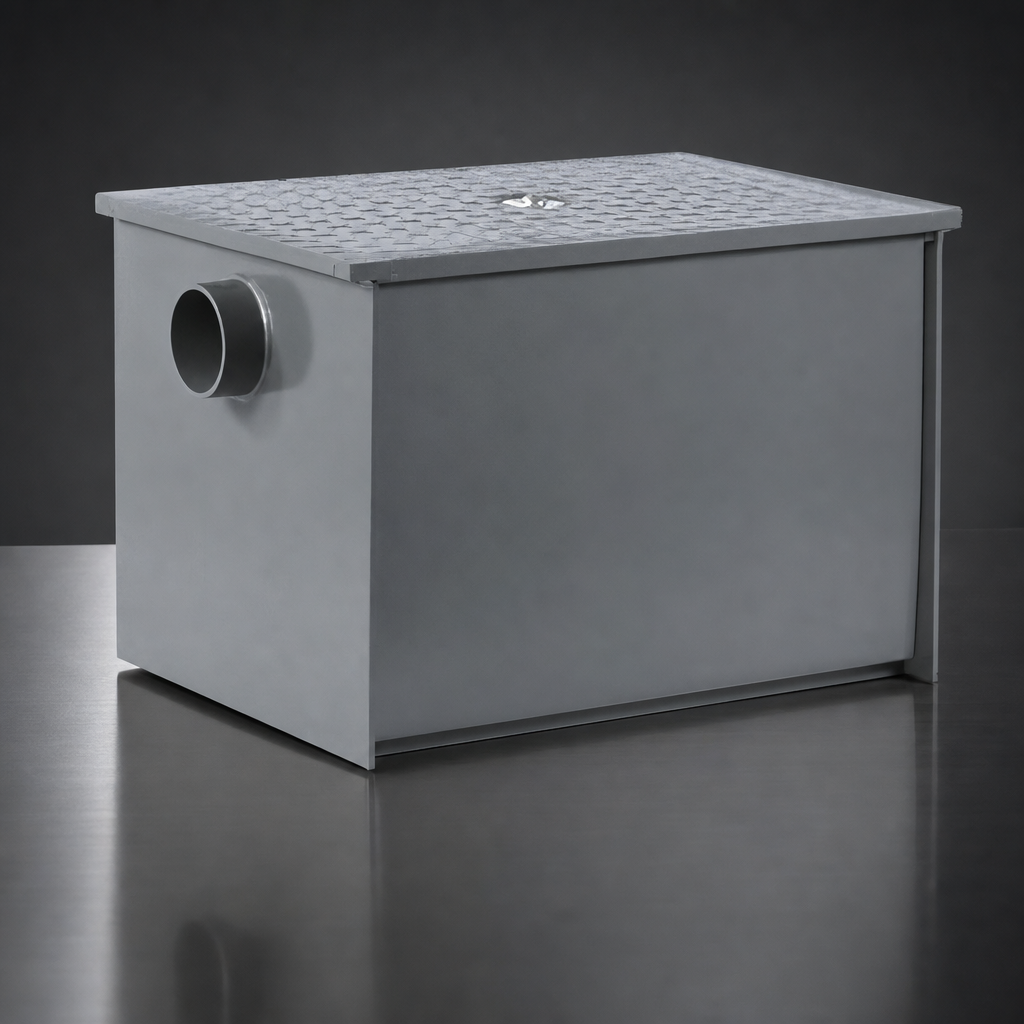

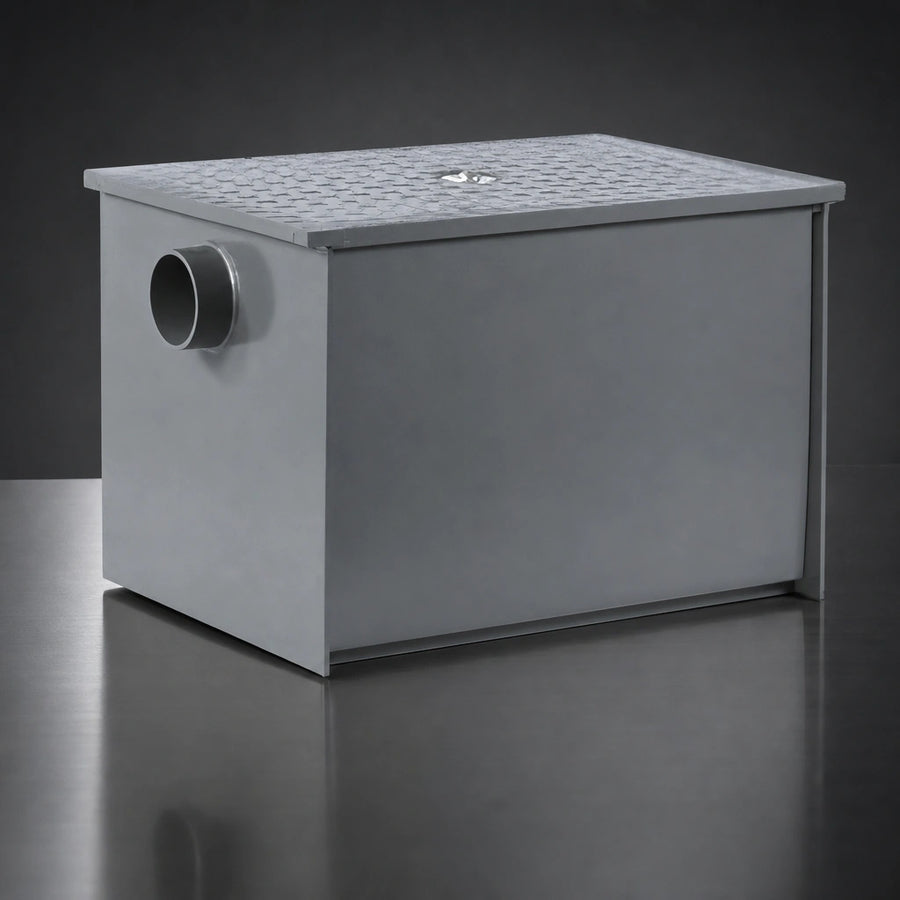

Epoxy-Coated Steel Body

11-gauge cold rolled steel construction with an oven-cured, acid-resistant baked gray epoxy coating inside and out.

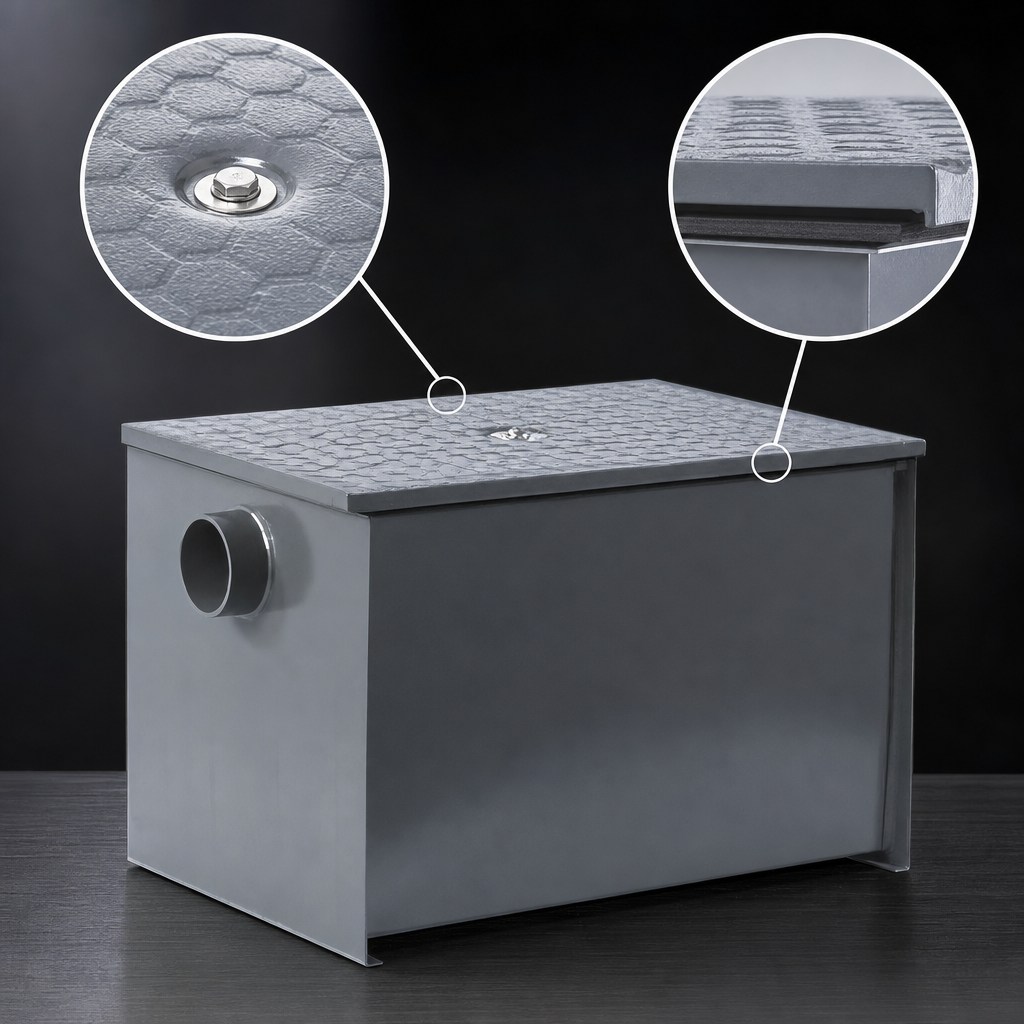

Gasketed Solid Steel Cover

Solid steel lid with gasket and hex head center bolt(s) helps secure the interceptor and maintain a tight seal.

Removable Baffle Assembly

One-piece removable baffle assembly makes cleaning and maintenance easier.

Deep Seal Trap with Cleanout

Integral deep seal trap includes cleanout access to support routine servicing.

External Cast Iron Flow Control

Standard external cast iron flow control fitting helps regulate incoming flow.

No-Hub Connections Standard

Supplied with no-hub inlet and outlet connections; threaded inlet and outlet are available by adding THD to the part number at no additional charge.

Recessed or Floor Mounted

Designed for recessed or floor-mounted installation in commercial dish room applications.

PDI Certified

Designed and rated to Plumbing & Drainage Institute standards for grease interceptor performance.

Type Grease Interceptor
Installation Type Floor Model
Material Steel
Finish Epoxy Coated
Flow Rate 35 GPM
Grease Capacity 70 lb.
Connection Size 3 Inches
Connection Type No Hub
Shipping Weight 113 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The WD-35 has a 35 GPM flow rate.
This model has a 70 lb. grease capacity.
The inlet and outlet connections are 3 inches.
Yes. No-hub connections are standard.
Yes. Threaded inlet and outlet are available by adding THD to the end of the part number at no additional charge.
It includes a removable baffle assembly, deep seal trap with cleanout, and a gasketed solid steel cover.
