Dormont Manufacturing WD-35-A Watts Grease Interceptors Grease Traps
Description

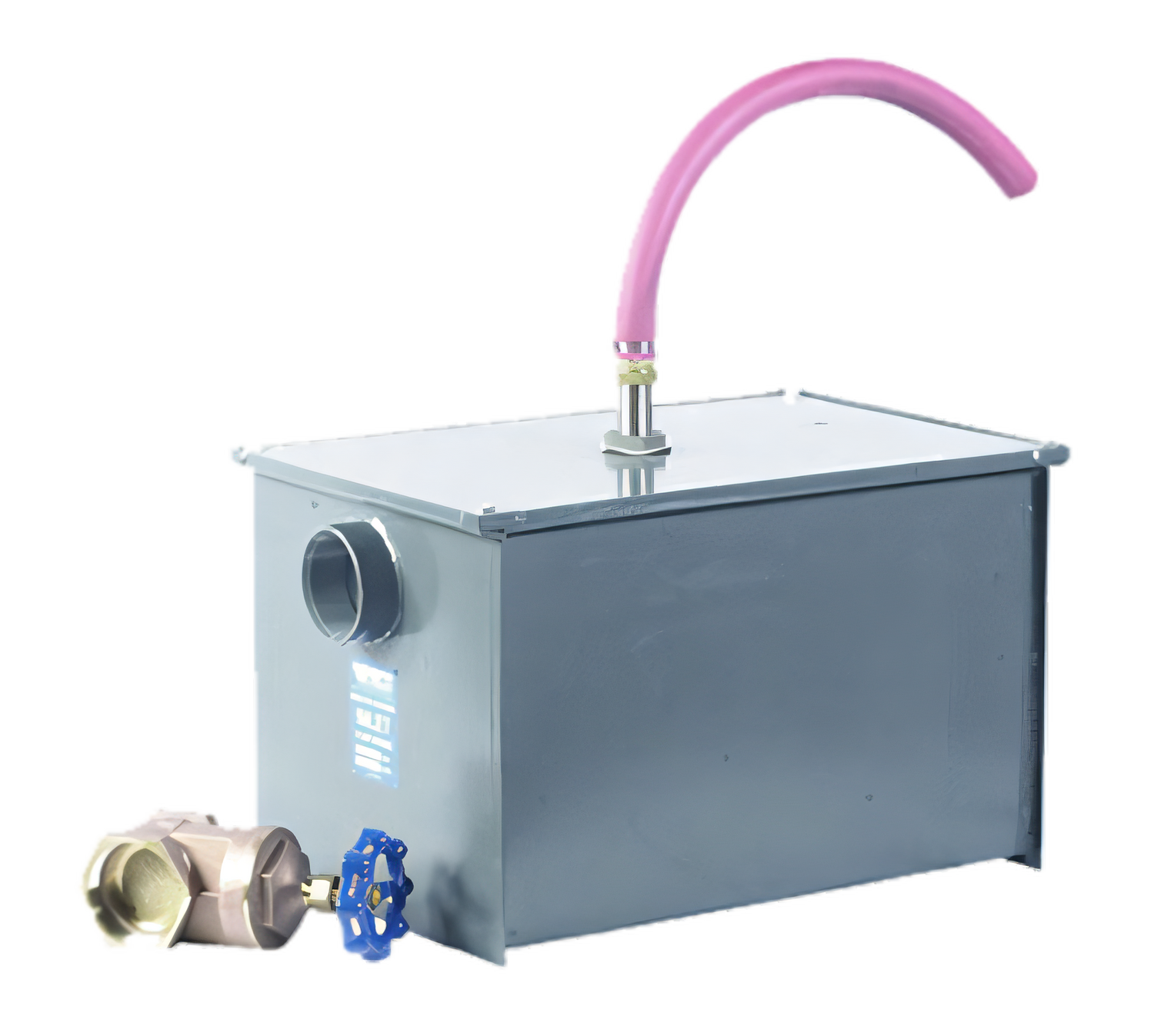

Dormont WD-35-A Semi-Automatic Grease Interceptor – 35 GPM / 70 lb
Quick draw-off maintenance for mid-volume commercial kitchensKeep fats, oils and grease out of your plumbing with the Dormont WD-35-A semi-automatic grease interceptor. Engineered for 35 GPM flow and a hefty 70 lb grease capacity, this unit delivers reliable separation while allowing staff to remove accumulated grease in seconds through a built-in draw-off hose—no lid removal or vacuum truck required.
Why you’ll love it
- 35 GPM rating easily handles pot & scullery sinks, 2- to 3-compartment prep sinks and compact dishmachines
- 70 lb grease storage minimizes pump-out frequency and service costs

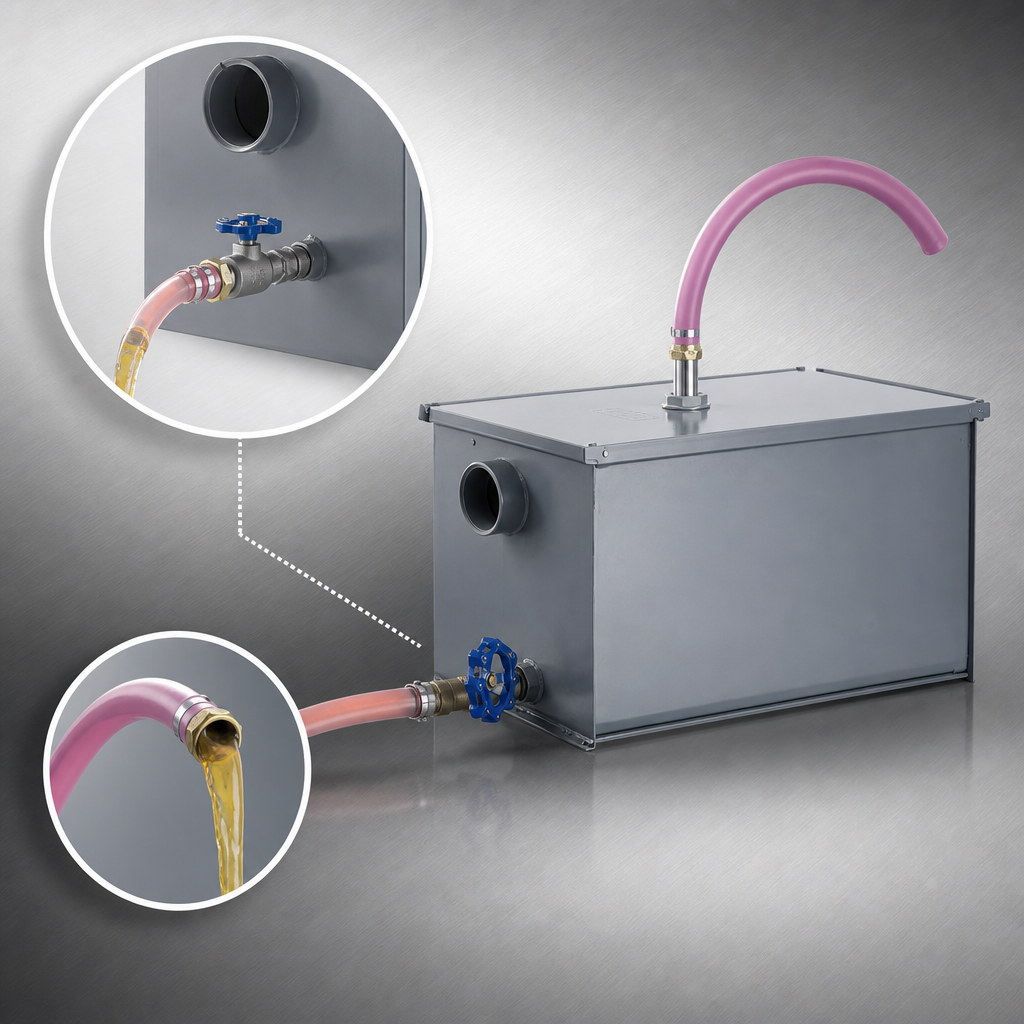

- Semi-automatic draw-off hose with shut-off valve makes grease removal fast, safe and mess-free
- Epoxy-coated 11 ga. steel body resists acids and corrosion inside & out

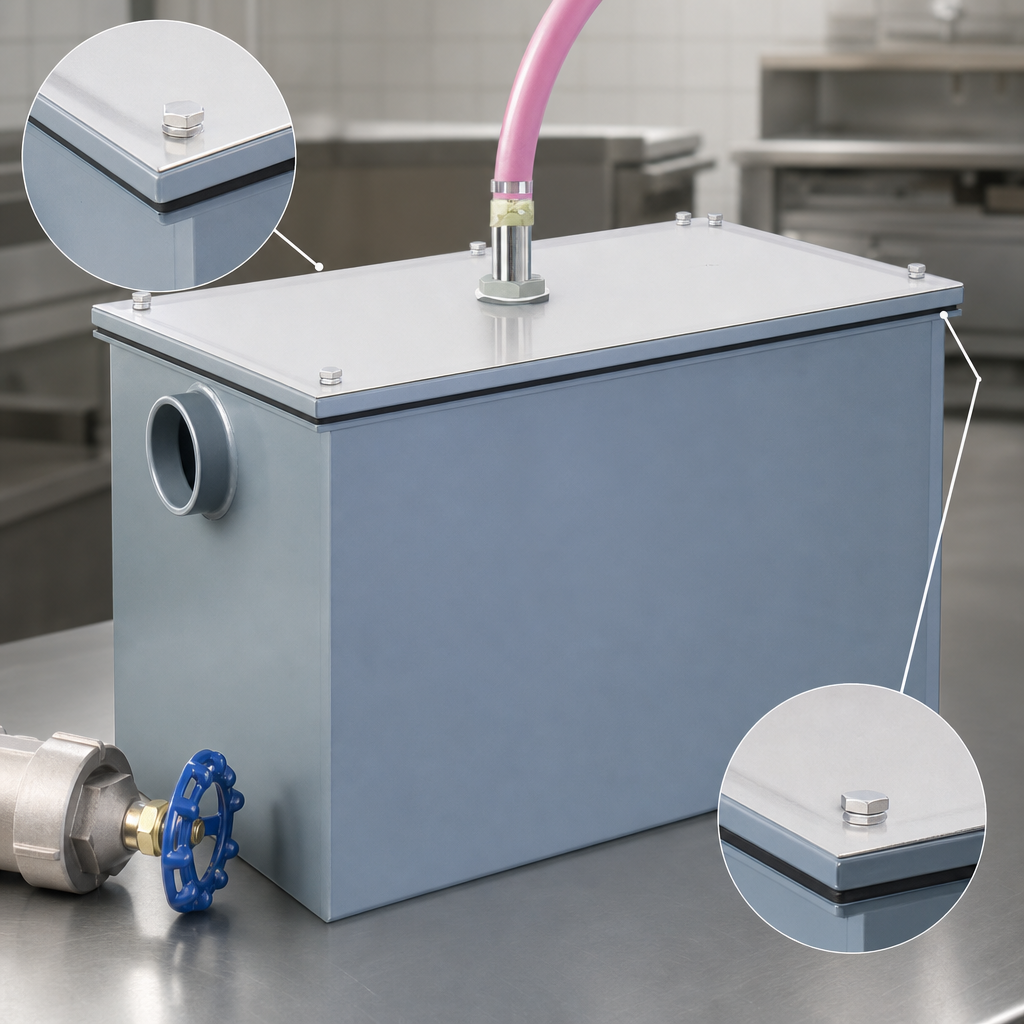

- ¼" checker-plate steel cover with full perimeter gasket and hex-head bolts locks out odors
- Internal stainless-steel flow-control plate maintains optimal separation efficiency
- Removable baffle assembly and deep-seal trap with clean-out plug simplify periodic cleaning
- 3" FNPT threaded inlet & outlet integrate with standard threaded piping—no adapters needed
Ideal for
- Independent restaurants & cafés
- Food trucks, ghost kitchens and commissaries
- School, university & hospital foodservice
- Hotel banquet and catering prep areas
Technical specifications
| Model | WD-35-A |
|---|---|
| Flow rate | 35 gallons per minute (GPM) |
| Grease capacity | 70 lb (31.8 kg) |
| Inlet / outlet size | 3" FNPT threaded |
| Body construction | 11 ga. cold-rolled steel, oven-cured gray epoxy coat |
| Cover | ¼" skid-proof steel, full gasket, hex-head perimeter bolts |
| Flow control | Internal stainless-steel plate |
| Grease draw-off | Flexible hose with manual shut-off valve |
| Trap | Integral deep-seal trap with clean-out plug |
| Mounting | Floor mounted or recessed installation |
| Separation efficiency | ≥ 90 % when installed per code |
| Warranty | 1-year limited manufacturer’s warranty |
Looking for a different size? Dormont WD-A models are available from 7 GPM to 75 GPM—ask us for details.
