Dormont Manufacturing

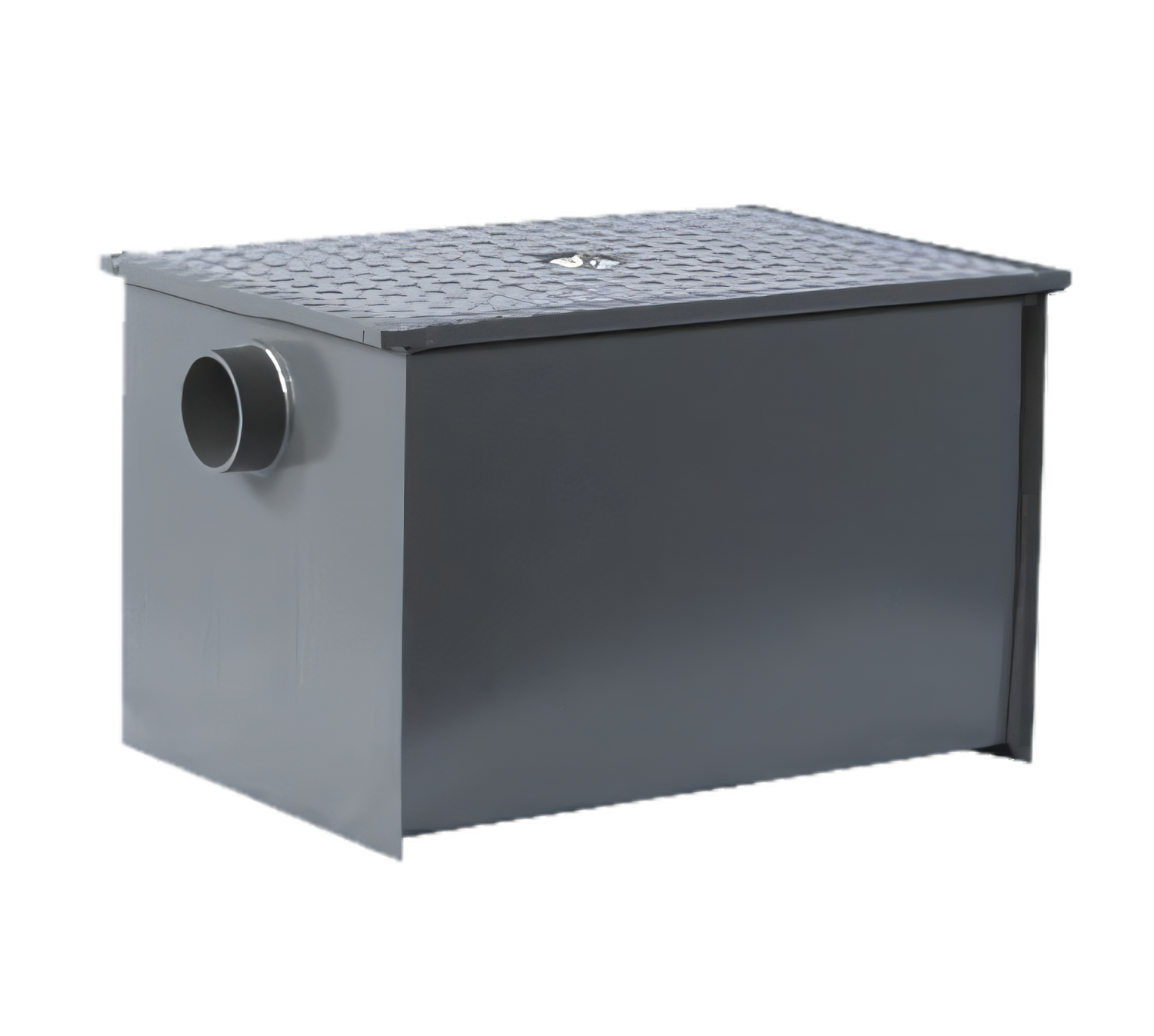

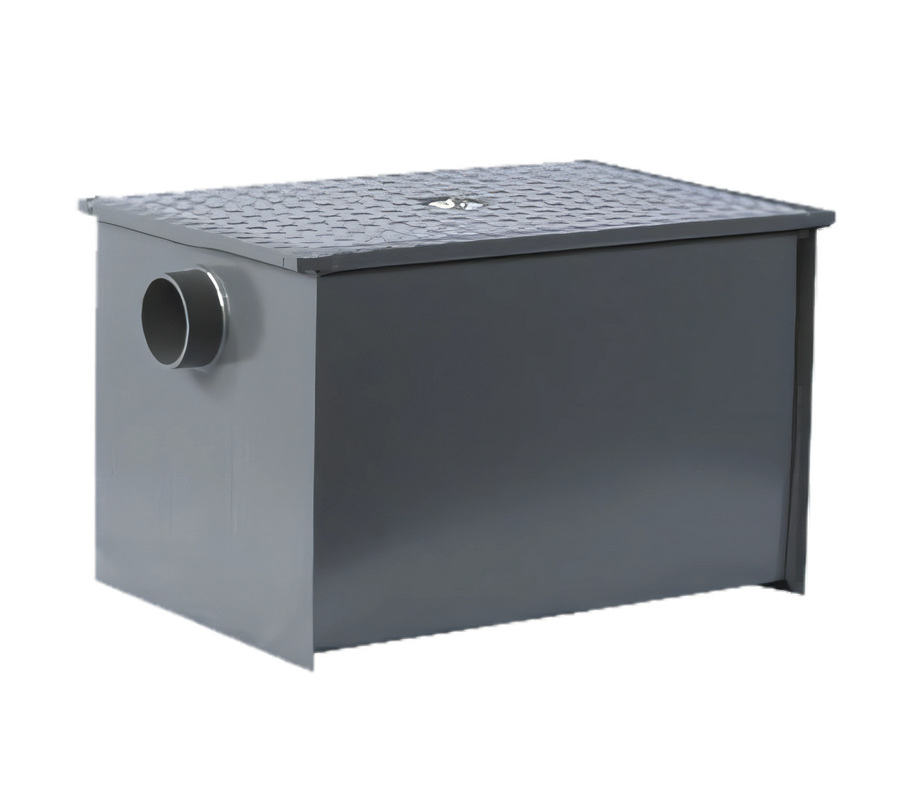

Dormont WD-25 PDI-Certified Grease Interceptor, Recessed or Floor Mounted, 25 GPM, 50 lb Capacity, 3-Inch Inlet/Outlet

SKU: WD-25
$1,130.66
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Dishwashers Dish Room Equipment Dormont Manufacturing Grease Traps Grease Traps New Arrivals Restaurant Equipment Sanitizers & Cleaning

Dormont WD-25 PDI-Certified Grease Interceptor, Recessed or Floor Mounted, 25 GPM, 50 lb Capacity, 3-Inch Inlet/Outlet

Epoxy-Coated Steel Construction with Gasketed Solid Cover and Removable Baffle

Built for 25 GPM applications, this grease interceptor combines durable epoxy-coated steel construction with easy-clean service features and standard 3-inch no-hub connections.

  • 25 GPM flow rate with 50 lb grease capacity for commercial kitchen drainage applications.
  • Recessed or floor-mounted design for flexible installation.
  • Epoxy-coated steel body with gasketed solid steel cover for durable service.
  • Removable baffle assembly and deep seal trap with cleanout simplify maintenance.
  • External cast iron flow control fitting is standard.
  • 3-inch no-hub inlet and outlet connections are standard; threaded connections are available with a THD suffix.

Product Weight:

95.0 lb

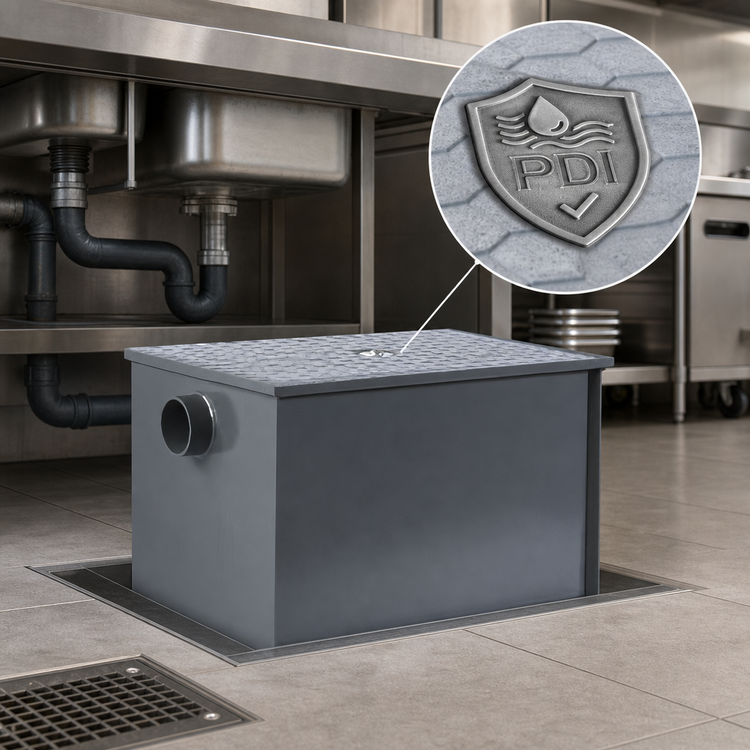

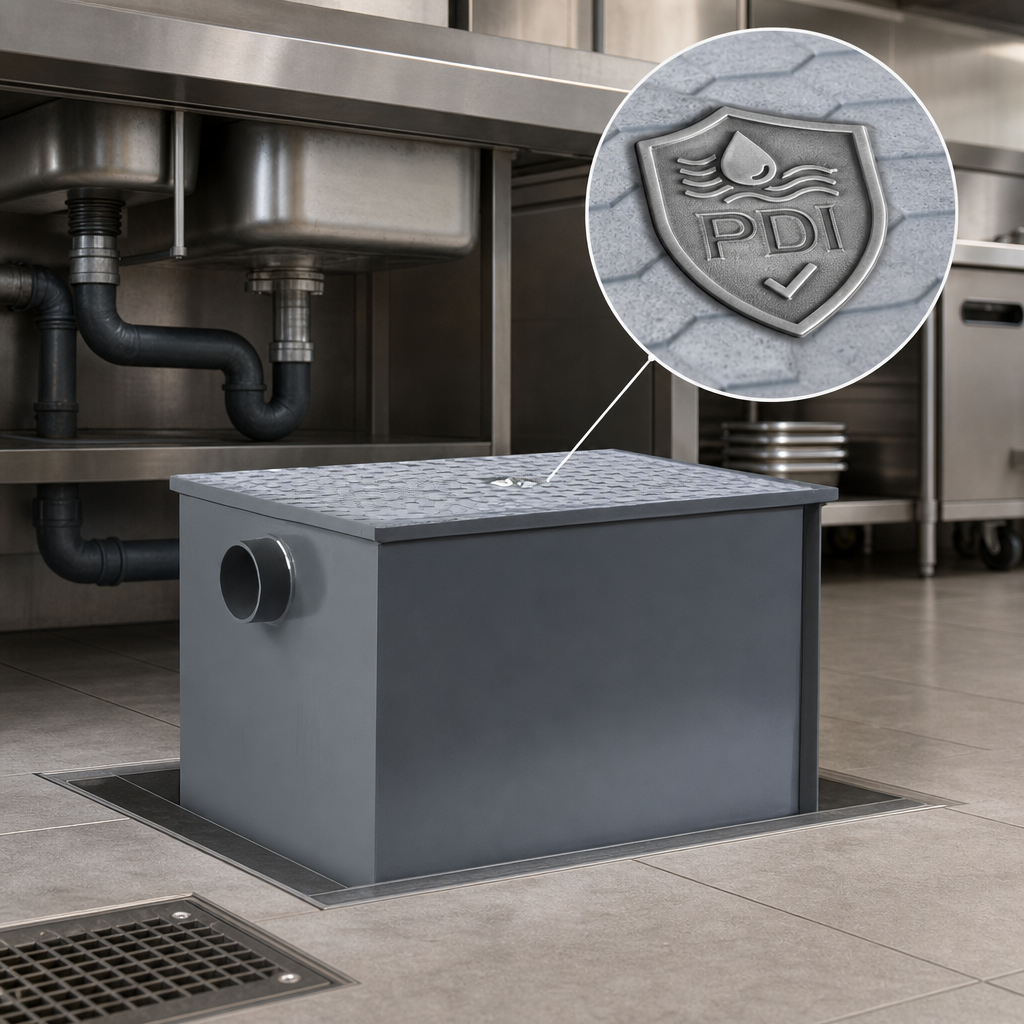

PDI Certified Design

Built to Plumbing & Drainage Institute standards for grease interceptor performance.

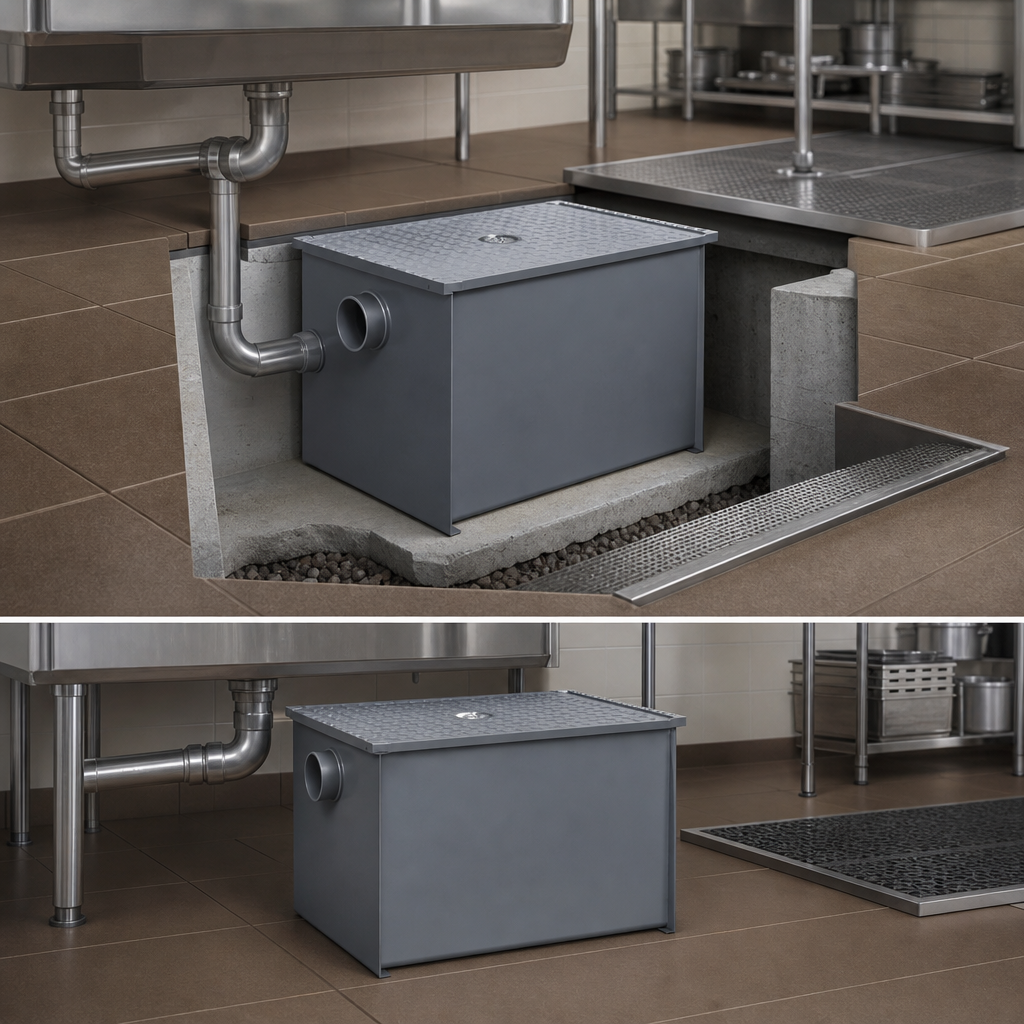

Flexible Installation

Designed for recessed or floor-mounted applications in commercial kitchens and dish rooms.

Epoxy-Coated Steel Construction

Epoxy-coated steel body provides durable, corrosion-resistant service.

Gasketed Solid Steel Cover

Solid steel cover with gasket and hex head center bolts helps provide a secure, non-slip seal.

Removable Baffle Assembly

Removable baffle design simplifies cleaning and routine maintenance.

Deep Seal Trap with Cleanout

Integrated deep seal trap and cleanout support easier servicing and grease handling.

External Cast Iron Flow Control

External cast iron flow control fitting is standard on the WD series.

3-Inch No-Hub Connections

Standard 3-inch inlet and outlet connections; threaded inlet and outlet are available at no additional charge by adding THD to the part number.

Type Grease Interceptor
Installation Type Floor Model
Material Steel
Finish Epoxy Coated
Flow Rate 25 GPM
Capacity 50 lb
Connection Size 3 Inches
Shipping Weight 95 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

This model is rated at 25 GPM with a 50 lb grease capacity.
It has 3-inch inlet and outlet connections with no-hub connections standard.
Yes. Threaded inlet and outlet are available by adding THD to the end of the part number at no additional charge.
Yes, the WD series is PDI certified.
It includes a removable baffle assembly, deep seal trap with cleanout, and a gasketed solid steel cover.
