Dormont Manufacturing  |  Watts Grease Interceptors  |  SKU: WD-25-A

Dormont Manufacturing WD-25-A Watts Grease Interceptors Grease Traps

$3,230.76
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Commercial Dishwashers Dish Room Equipment Grease Traps Grease Traps Restaurant Equipment Sanitizers & Cleaning

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

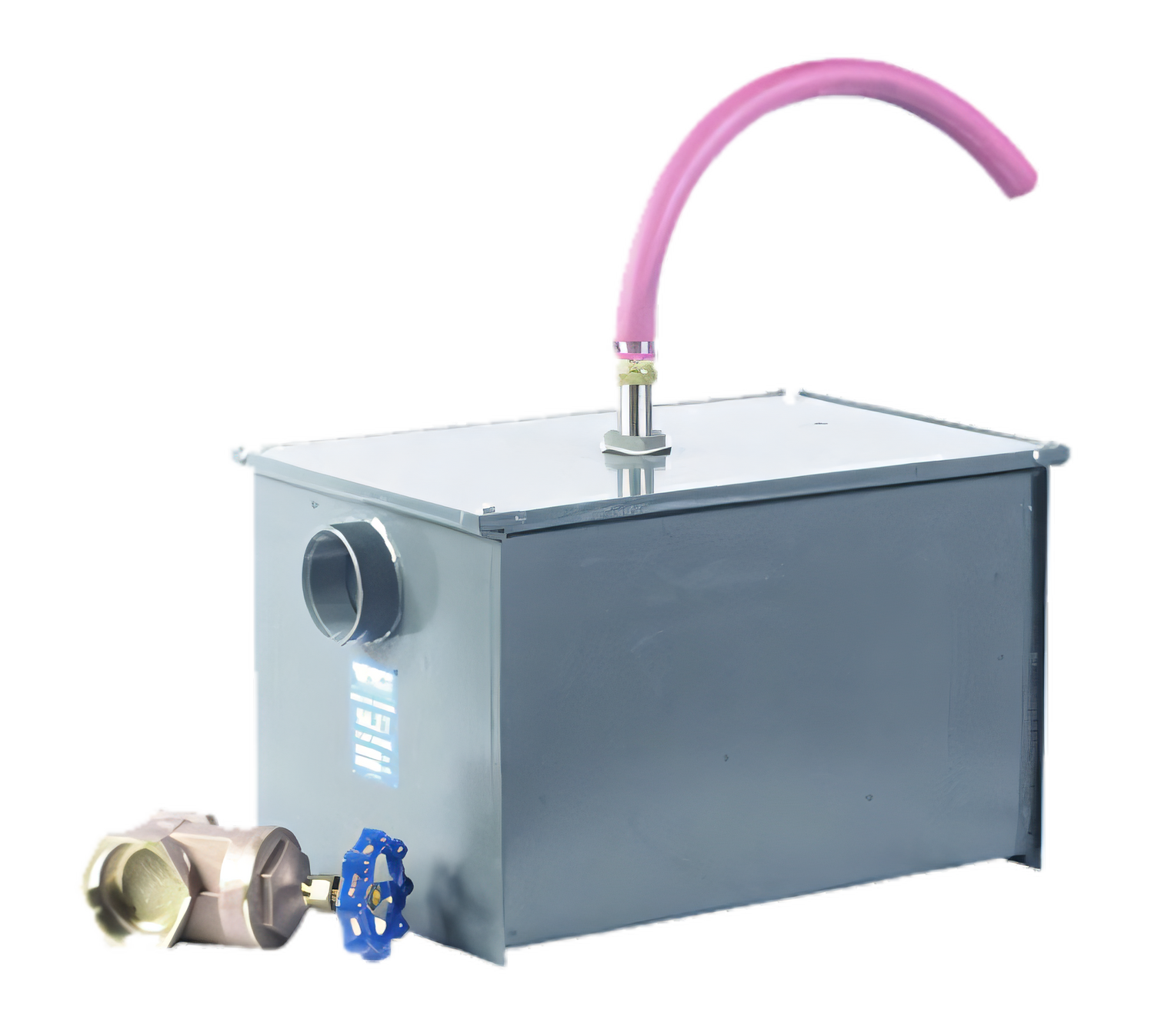

Watts Dormont WD-25-A Semi-Automatic Draw-Off Grease Interceptor

25 GPM • 50 lb capacity • 3" threaded connections

Keep fats, oils and grease out of your drain lines—without the headache of frequent pump-outs. The WD-25-A combines rugged construction with an easy semi-automatic draw-off system so your staff can remove separated grease in seconds and get back to work.

Key benefits

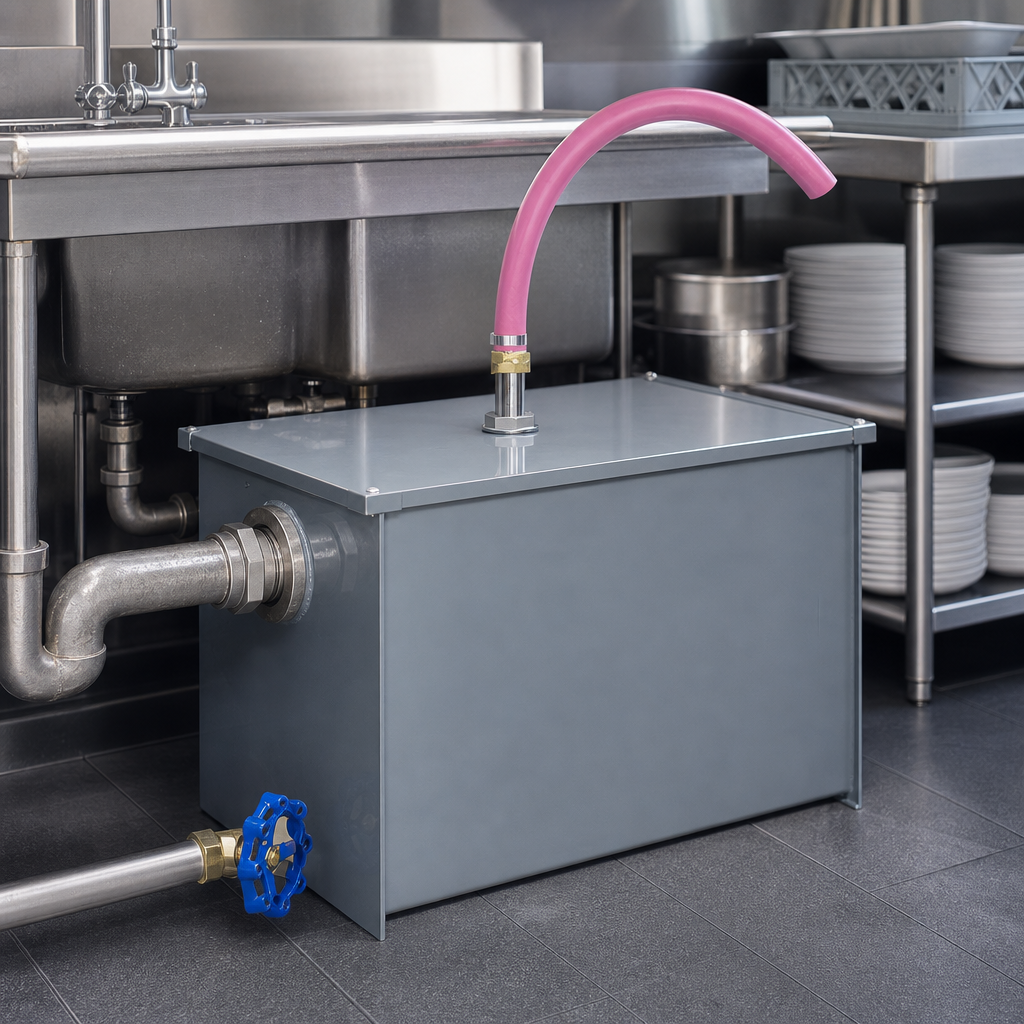

  • 25 gallon-per-minute flow rate sized for three-compartment and pot sinks
  • 50 lb grease storage capacity prolongs maintenance intervals

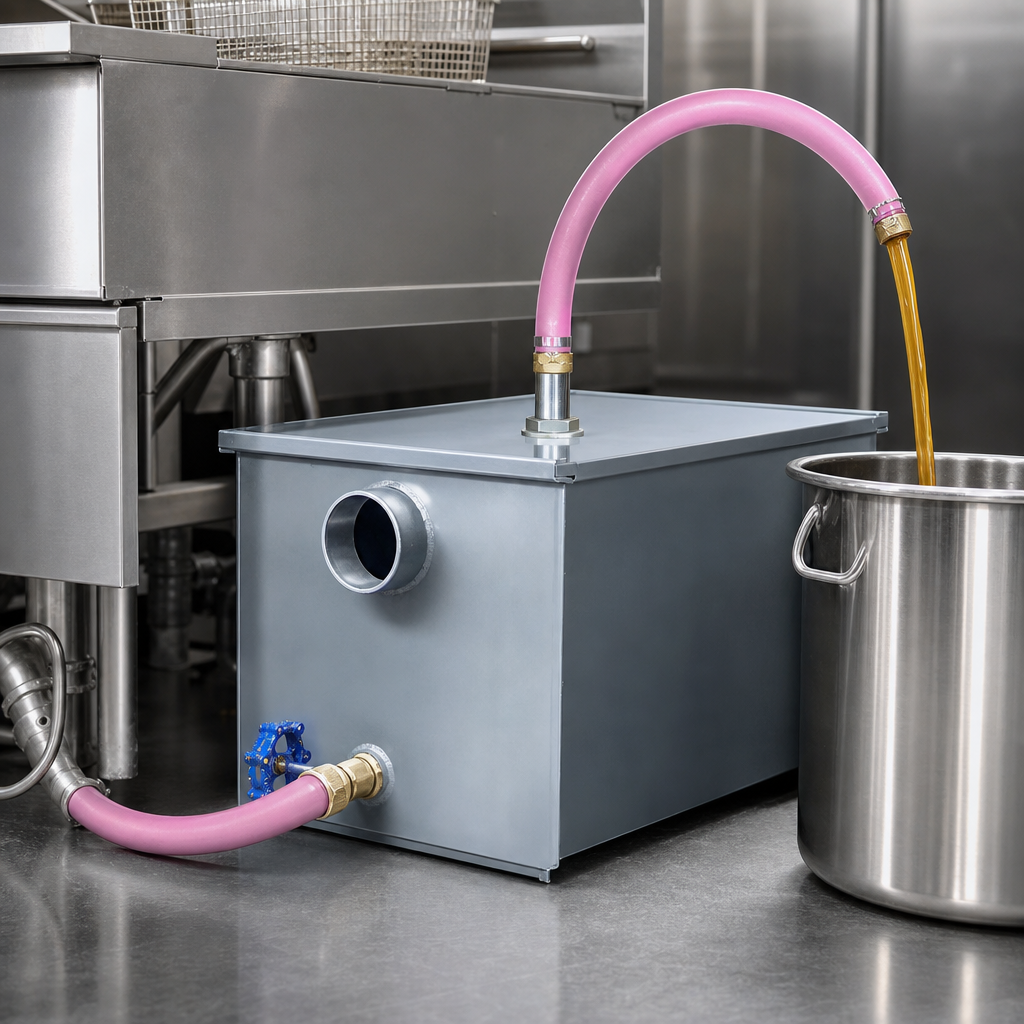

  • Semi-automatic draw-off hose & shut-off valve—no heavy lids or pumps required
  • 11-ga epoxy-coated steel body resists acids, chemicals and corrosion
  • ¼" skid-proof, gasketed cover secures with hex-head perimeter bolts for an odor-tight seal
  • Internal stainless-steel flow-control plate maximizes separation efficiency
  • Removable grease-accumulating cover, baffle assembly and deep-seal trap with clean-out for fast interior cleaning
  • 3" FNPT threaded inlet & outlet for straightforward tie-in to existing plumbing
Ideal applications
  • Restaurant, hotel & resort kitchens
  • Bakeries, cafés & coffee shops
  • School & institutional foodservice
  • Catering commissaries and ghost kitchens
  • Commercial dishwasher / pot-washer discharge lines
Technical specifications
Model WD-25-A
Flow rate 25 GPM
Grease capacity 50 lb
Inlet / outlet size 3" FNPT threaded
Body material 11 ga cold-rolled steel, oven-cured grey epoxy coating (inside & out)
Cover ¼" checker-plate steel, neoprene gasket, hex-head perimeter bolts
Dimensions (L × W × H) 26" × 16.5" × 16.5" (660 × 419 × 419 mm)
Base-to-center (inlet/outlet) 12" (305 mm)
Top-to-center (inlet/outlet) 4.5" (114 mm)
Draw-off assembly ¾" flexible hose with shut-off valve
Clean-out Integral plug on deep-seal trap

Looking for another size? Browse the full WD-A series.

Installation quick tips
  • Set the interceptor level and as close as possible to the fixture it serves.
  • Vent the inlet flow-control tee to atmosphere for optimal separation.
  • Provide clear access above the cover for periodic inspection and cleaning.
Important: Verify interceptor sizing and installation requirements with local plumbing codes. Oversizing can reduce separation efficiency; undersizing may cause blockages and code violations.

Features & Specs

Manufacturer

Dormont Manufacturing

Brand_name

Watts Grease Interceptors

Shipping Weight

110.23lbs

Draw-off

with

Flow Rate

25 GPM

Grease Capacity

40 - 149 lb

Specifications

Watts Grease Interceptor, semi-automatic draw-off, 25 gallon per minute flow rate, 50 lb grease capacity, 3" inlet & outlet, solid steel cover with gasket, hex head perimeter bolt(s), removable grease accumulating cover & baffle assembly, deep seal trap with cleanout, threaded connections, internal stainless steel flow control fitting, flexible draw off hose, line shut off valve, epoxy coated steel
