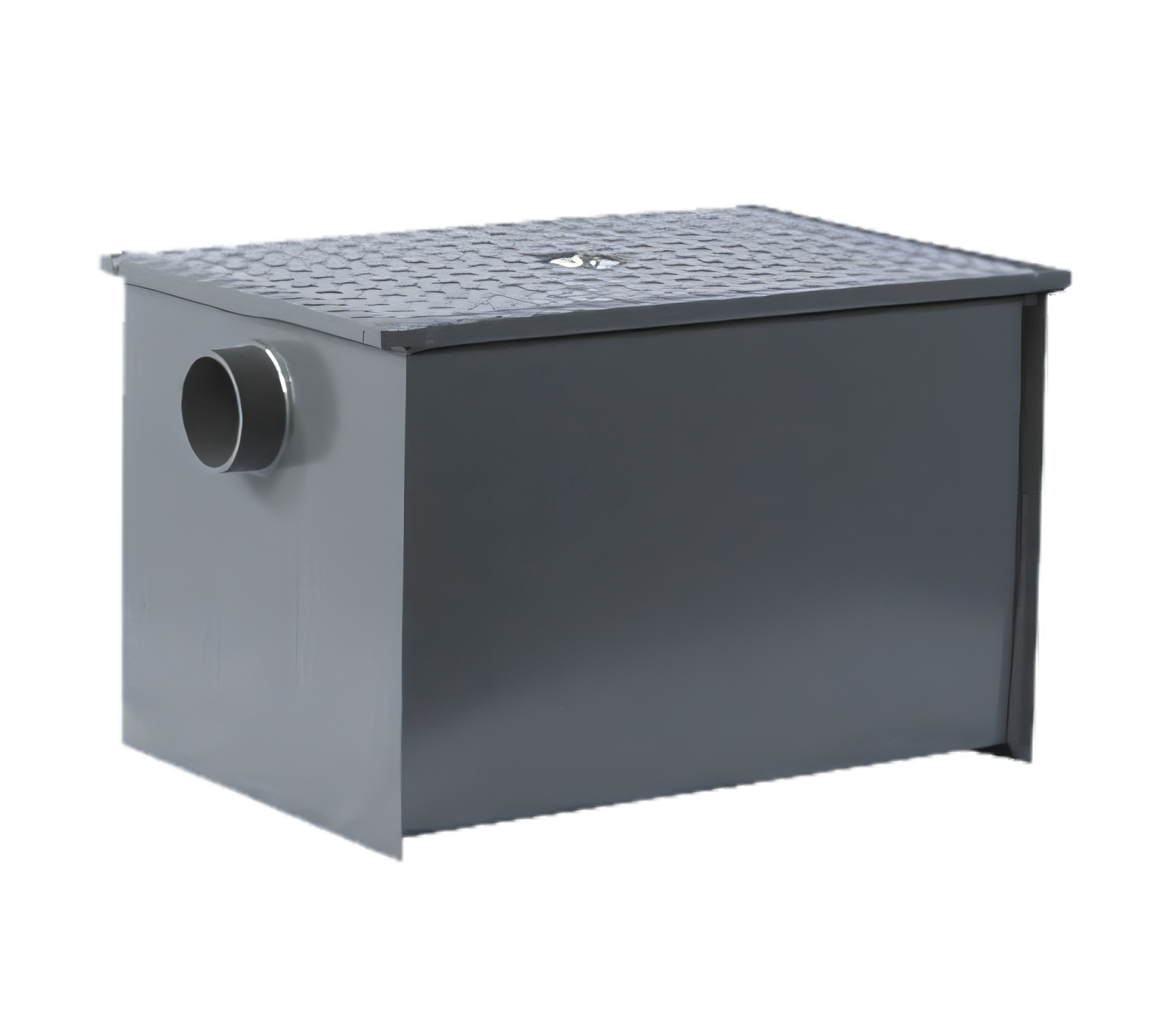

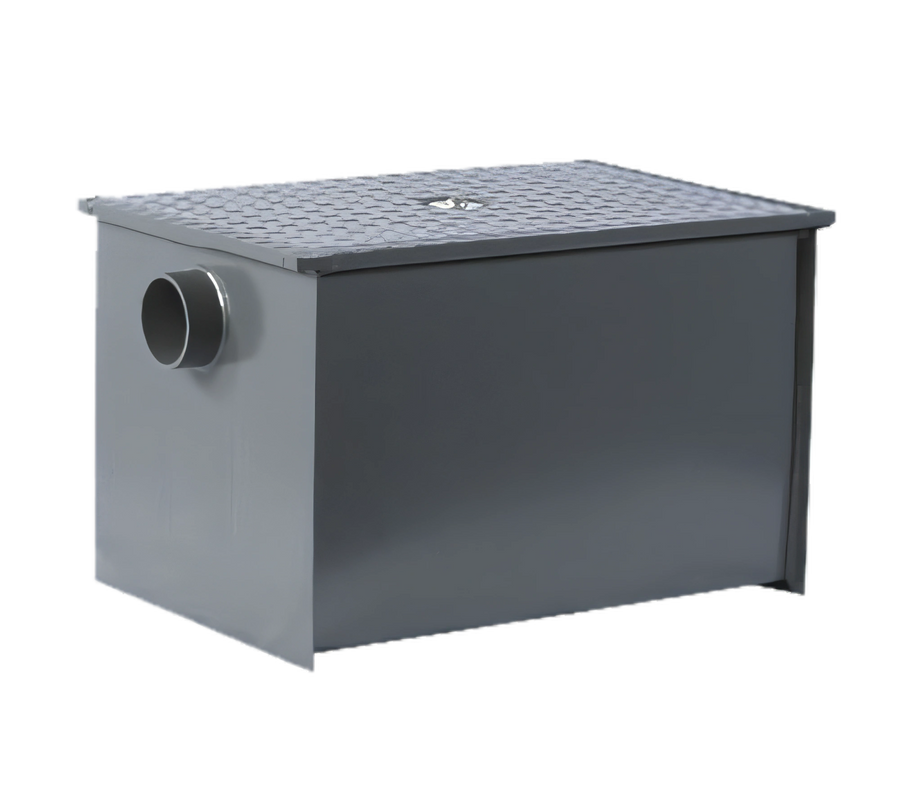

Watts Grease Interceptors WD-20 WD Series 20 GPM Epoxy Coated Steel Grease Interceptor

40 lb capacity, 3" inlet/outlet, no-hub standard

A compact, service-friendly 20 GPM grease interceptor built for sink and dishwasher applications with 40 lb grease capacity, durable epoxy-coated steel construction, and easy-clean maintenance features.

  • 20 GPM flow rate with 40 lb grease capacity for commercial dish room and sink drainage.
  • Epoxy-coated steel body with a gasketed solid steel cover for durability and a tight seal.
  • Removable baffle assembly and deep seal trap with cleanout simplify maintenance.
  • Standard 3-inch inlet and outlet connections with no-hub connections.
  • Threaded inlet and outlet available at no additional charge by adding "THD" to the part number.
  • Recessed or floor-mounted installation supports flexible kitchen layouts.

Product Weight:

81.0 lb

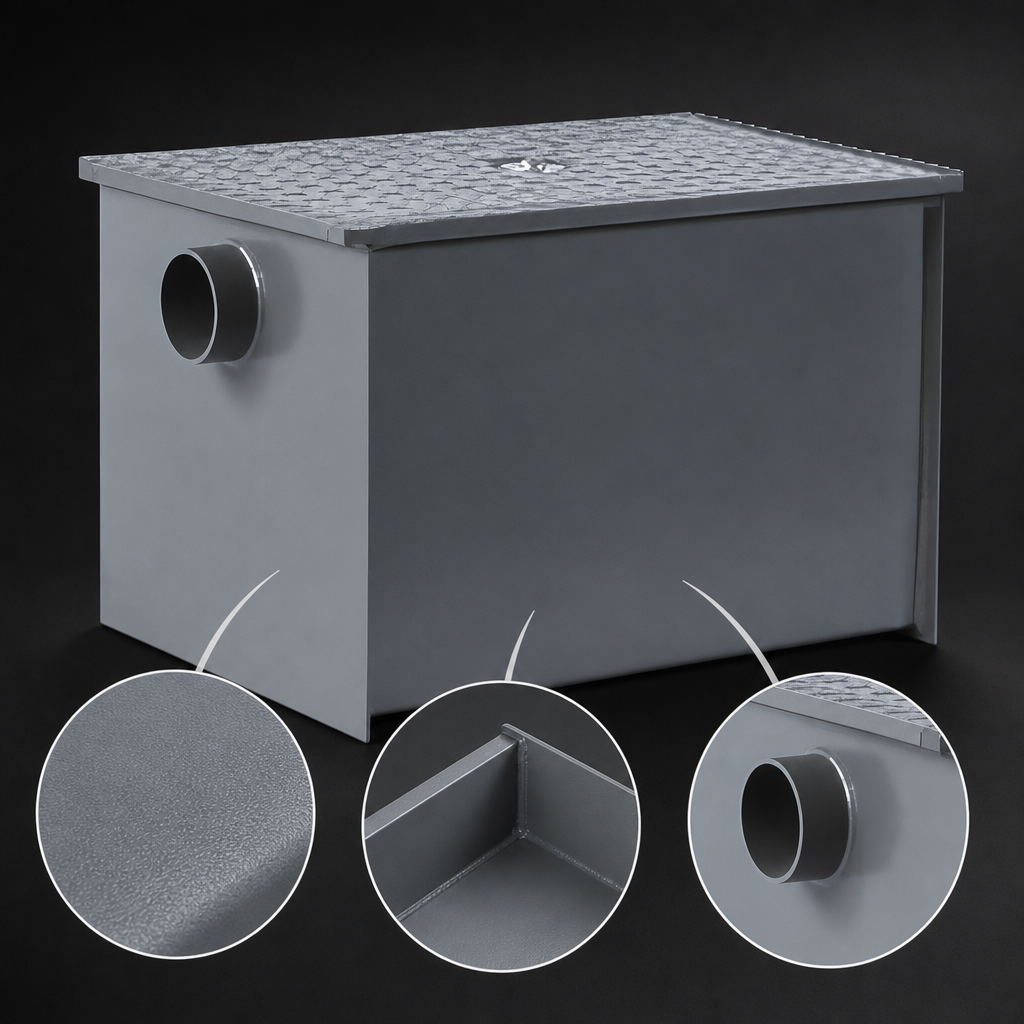

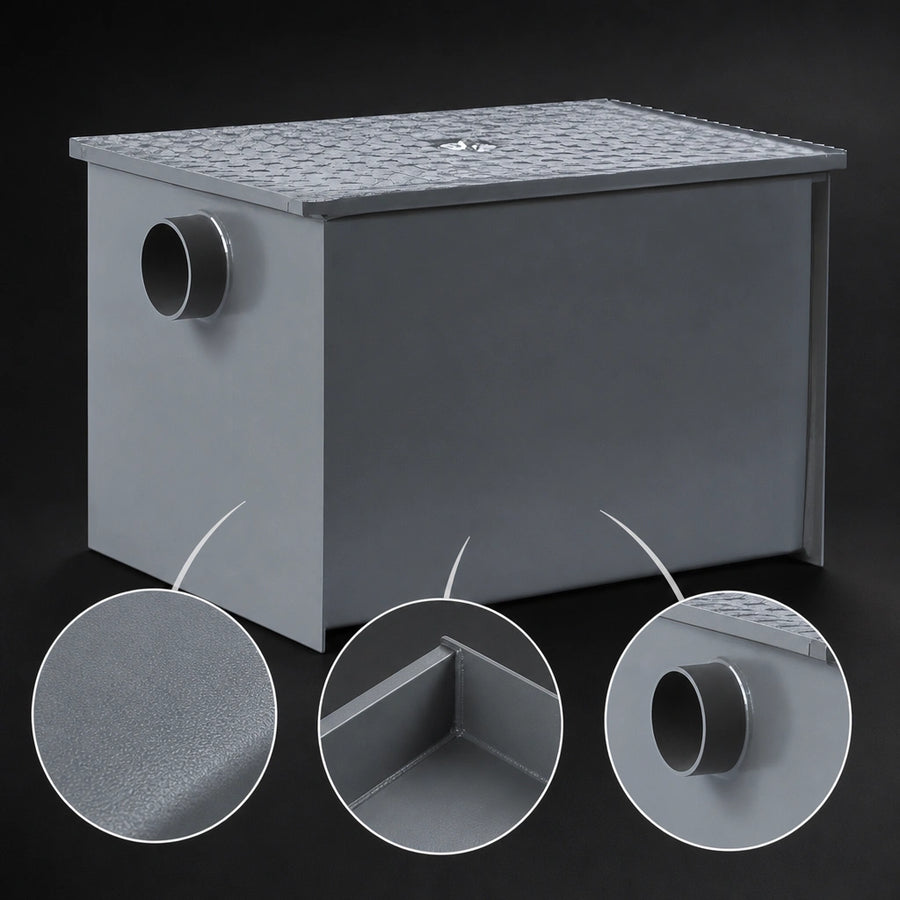

Epoxy Coated Steel Body

11-gauge cold rolled steel construction with acid-resistant baked gray epoxy coating inside and out.

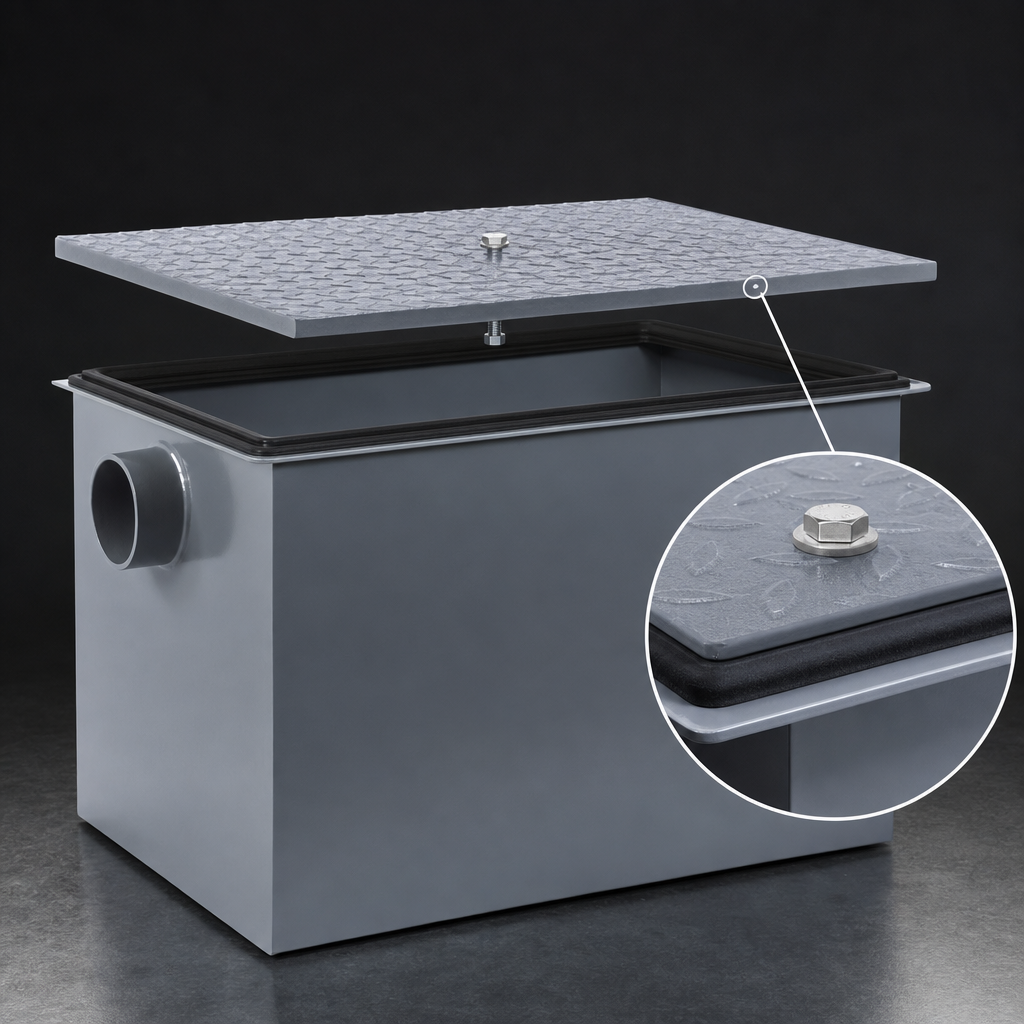

Gasketed Solid Steel Cover

Solid steel cover is gasketed and secured with hex head center bolts for a secure, non-slip closure.

Removable Baffle Assembly

One-piece removable baffle assembly helps make cleaning and servicing easier.

Deep Seal Trap with Cleanout

Built-in deep seal trap includes a cleanout to support maintenance and grease removal.

External Cast Iron Flow Control

WD Series models are supplied with an external cast iron flow control fitting.

No-Hub Standard Connections

Standard no-hub inlet and outlet connections; threaded inlet and outlet are available by adding "THD" to the part number.

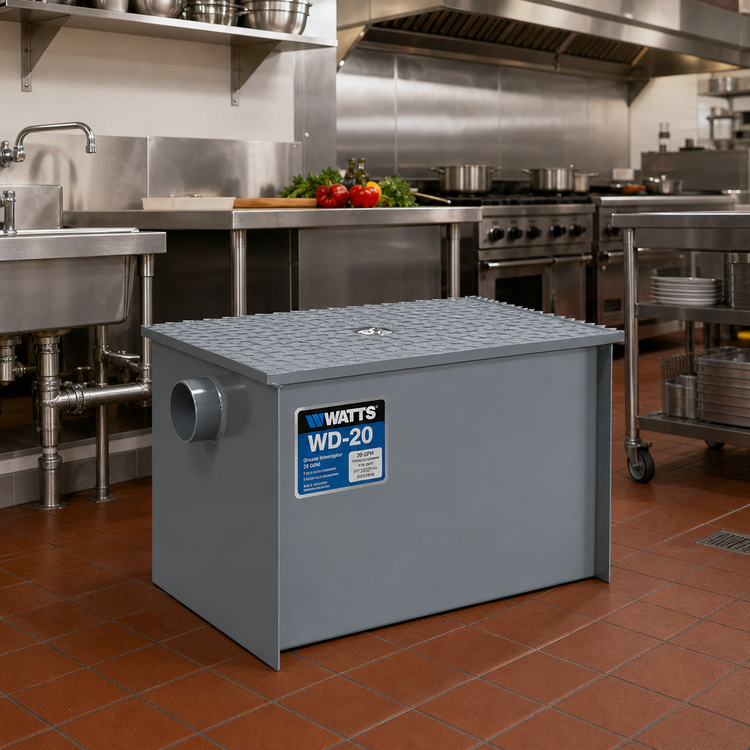

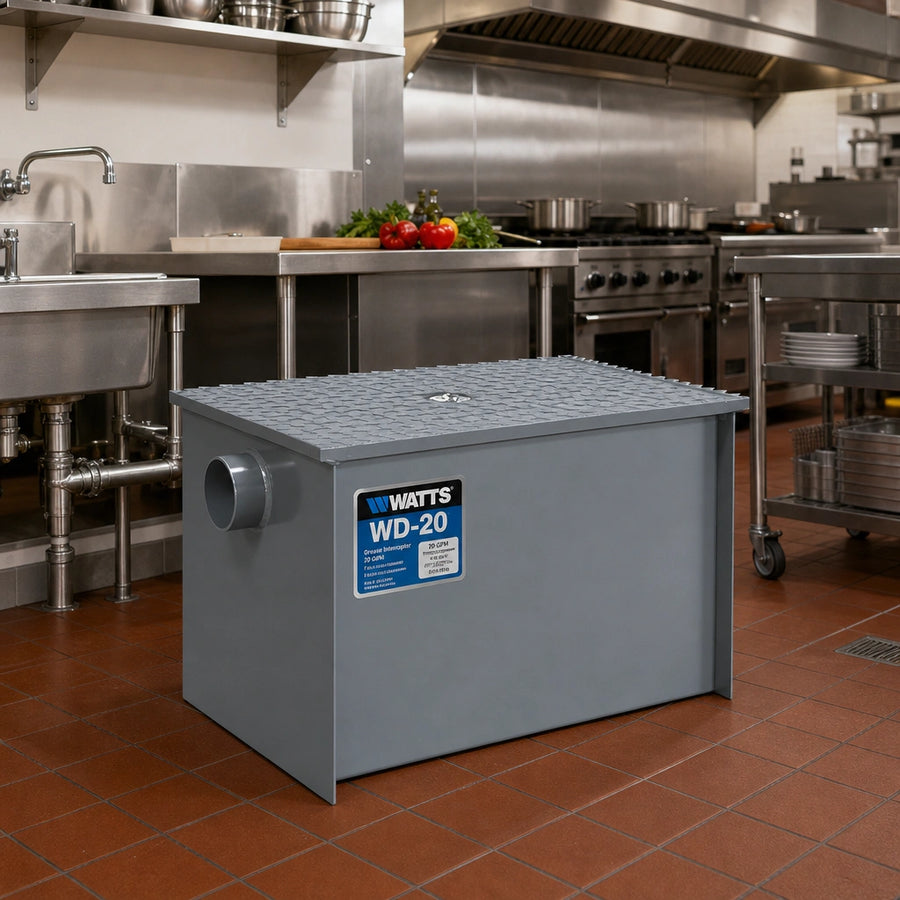

Recessed or Floor Mounted

Configured for recessed or floor-mounted installation in commercial dish room and prep areas.

PDI Certified Design

Designed and rated to PDI standards for grease interceptor applications.

Type Grease Interceptor
Style WD Series
Installation Type Floor Model
Draw-Off Without
Material Steel
Finish Epoxy Coated
Flow Rate 20 GPM
Grease Capacity 40 lb
Connection Size 3 Inches
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The WD-20 has a flow rate of 20 GPM.
This model has a 40 lb grease capacity.
The inlet and outlet connections are 3 inches.
Yes. Add "THD" to the end of the part number for threaded inlet and outlet connections at no additional charge.
It includes a removable baffle assembly, deep seal trap with cleanout, and a gasketed solid steel cover.
It is available for recessed or floor-mounted installation.
