Dormont Manufacturing WD-15-A Watts Grease Interceptors Grease Traps
Description

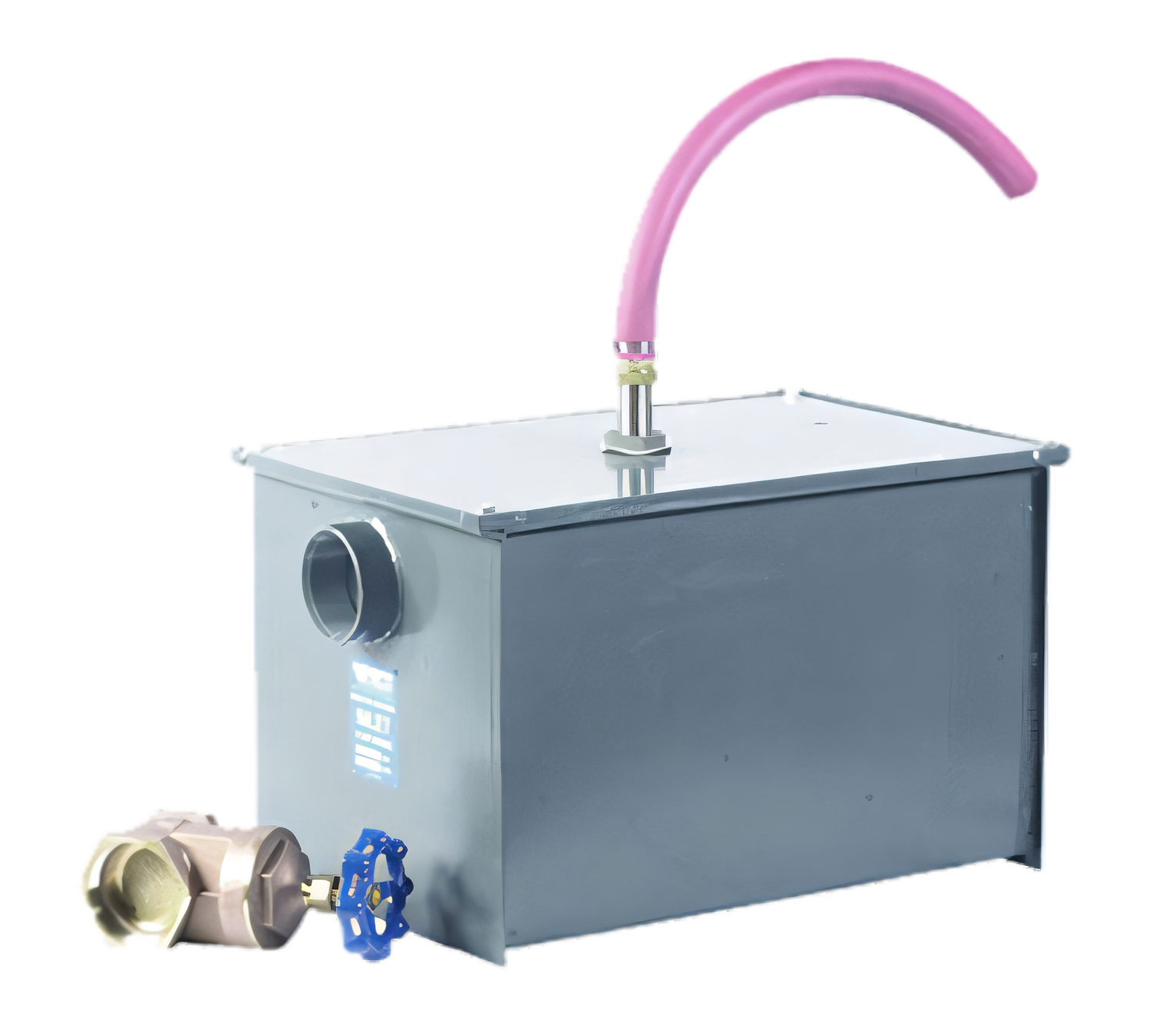

Dormont WD-15-A Semi-Automatic Grease Interceptor
15 GPM • 30 lb Capacity • Threaded 2" ConnectionsKeep fats, oils & grease out of your waste line—without shutting down your kitchen. The Dormont WD-15-A combines proven separation performance with a convenient semi-automatic draw-off system that lets staff drain accumulated grease in seconds.
Why Choose the WD-15-A

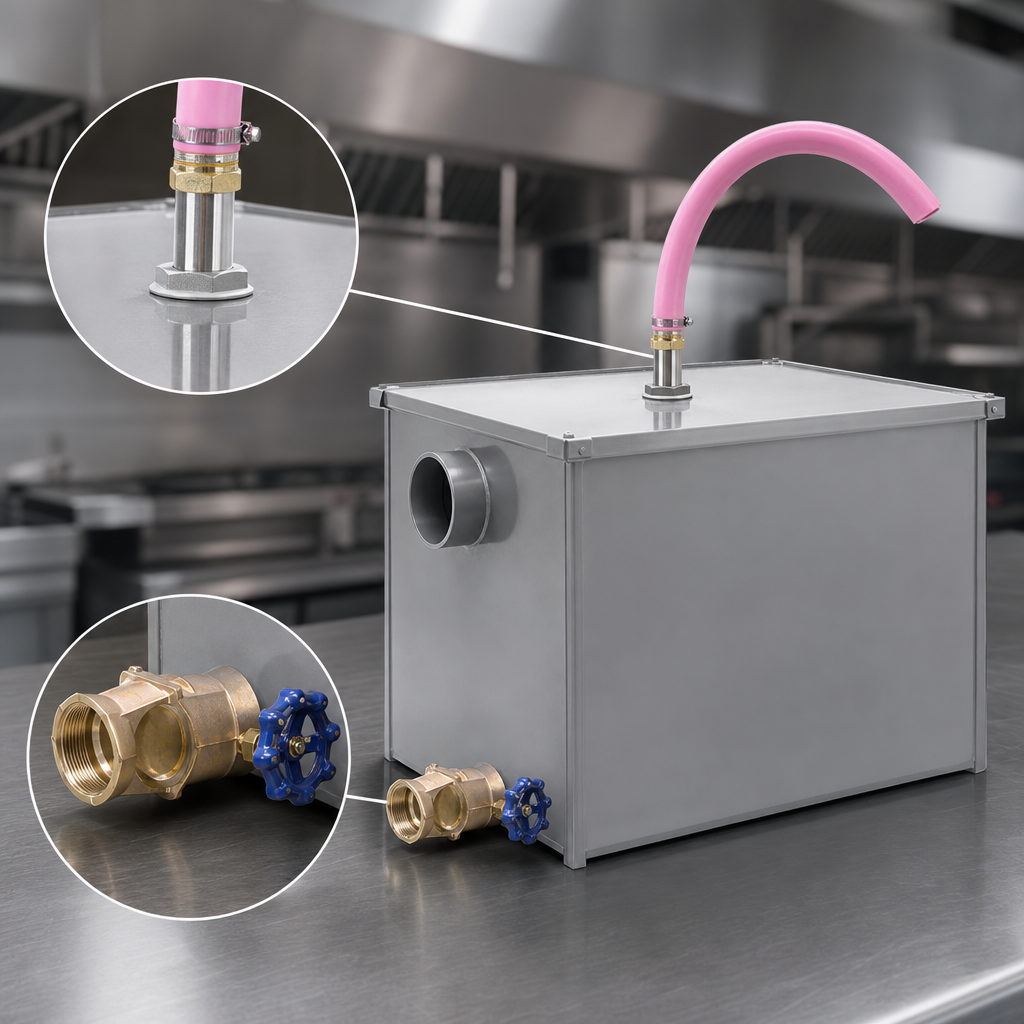

- Semi-automatic grease draw-off with included flexible hose & line shut-off valve for fast, mess-free disposal.

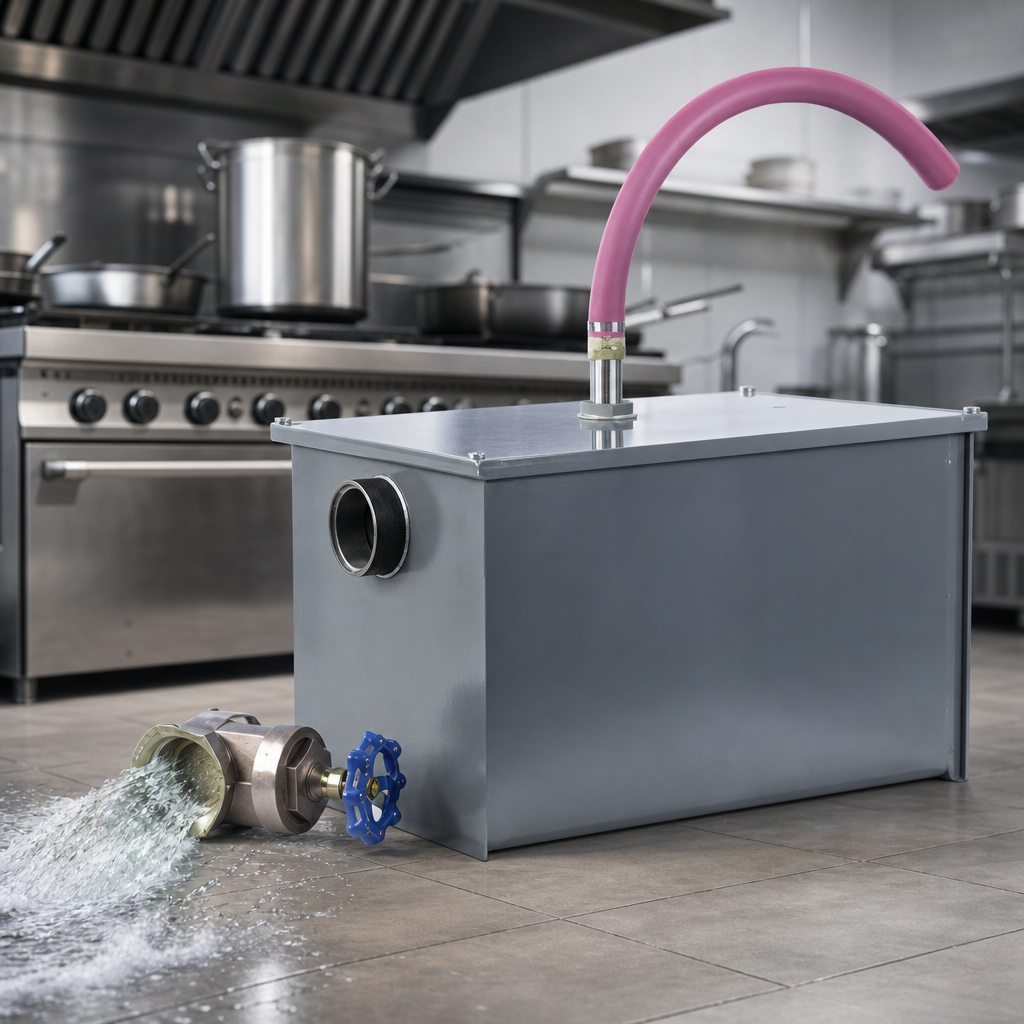

- Rated for 15 gallons per minute and 30 lb grease retention—perfect for prep, pot & scullery sinks or small ware-washing lines.
- Durable 11 ga cold-rolled steel body, inside & out coated with acid-resistant baked epoxy to fight corrosion.
- Solid ¼" checker-plate steel cover with neoprene gasket and hex-head perimeter bolts prevents leaks and odors.
- Internal stainless-steel flow-control plate ensures 90 %+ separation efficiency at the rated flow.
- Removable grease-accumulating cover & baffle assembly plus deep-seal clean-out trap for simple maintenance.
- 2" FNPT threaded inlet & outlet—no extra adaptors required.
- Built to meet Plumbing & Drainage Institute (PDI) sizing guidelines and most local plumbing codes.
Technical Specifications
| Model | WD-15-A |
|---|---|
| Flow rate | 15 GPM (57 L/min) |
| Grease capacity | 30 lb (13.6 kg) |
| Inlet / outlet size | 2" FNPT (51 mm) – threaded |
| Internal flow control | Stainless-steel plate (built-in) |
| Draw-off assembly | ¾" flexible hose with shut-off valve |
| Body material | Epoxy-coated 11 ga steel |
| Cover | ¼" epoxy-coated checker-plate steel, gasketed, bolted |
| Overall dimensions (L × W × H) | 22" × 15" × 14" (559 × 381 × 356 mm) |
| Centerline – inlet/outlet | Base to C/L: 10-1/2" (267 mm) | Top to C/L: 3-1/2" (89 mm) |
| Clean-out | Deep-seal trap with accessible plug |
| Installation | Floor mounted or recessed |
Ideal For
- Two- & three-compartment prep or pot sinks
- Pre-rinse and scullery stations
- Commercial dishwashers with moderate flow

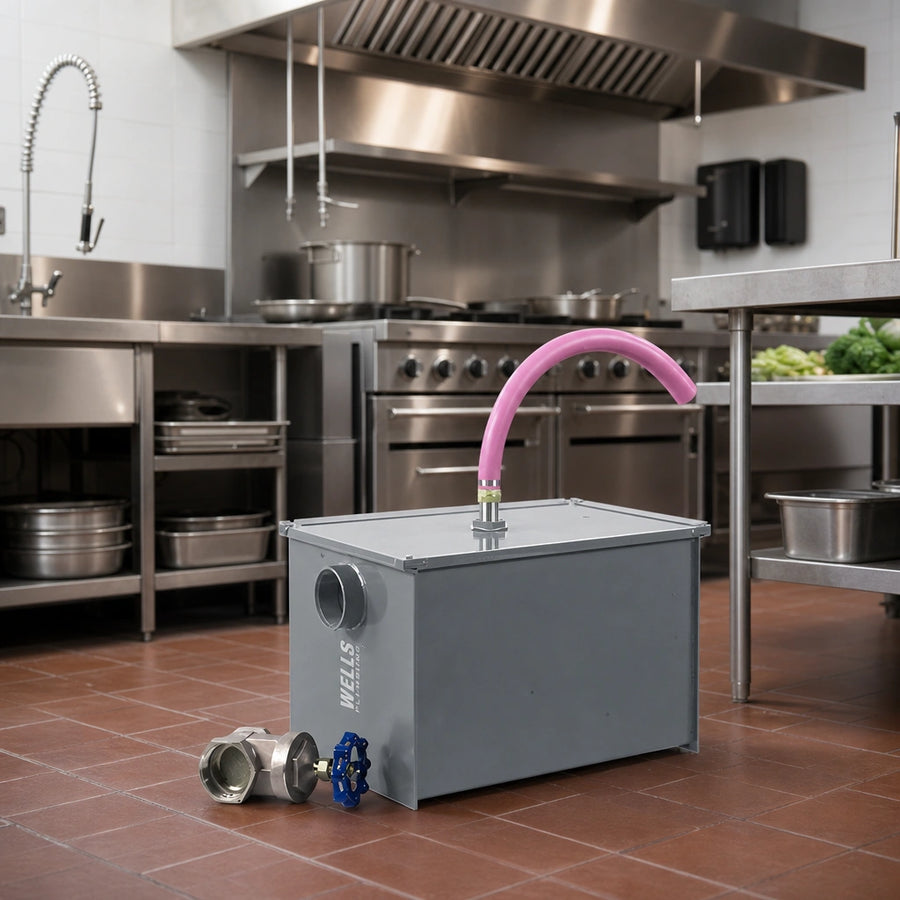

- Café, bar & small restaurant kitchens
Routine draw-off frequency depends on menu, volume, and local regulations. Always dispose of grease in accordance with municipal ordinances.
