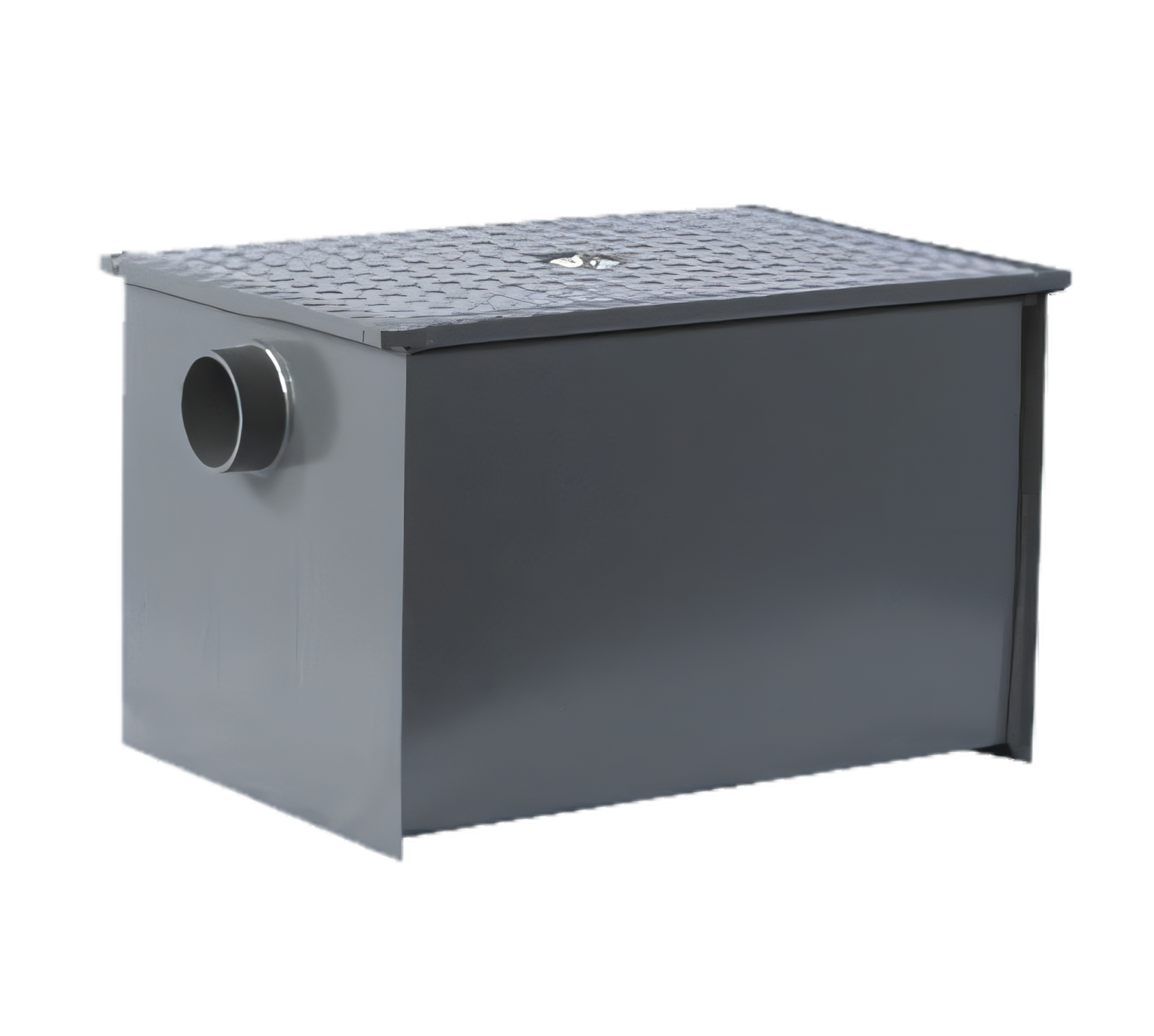

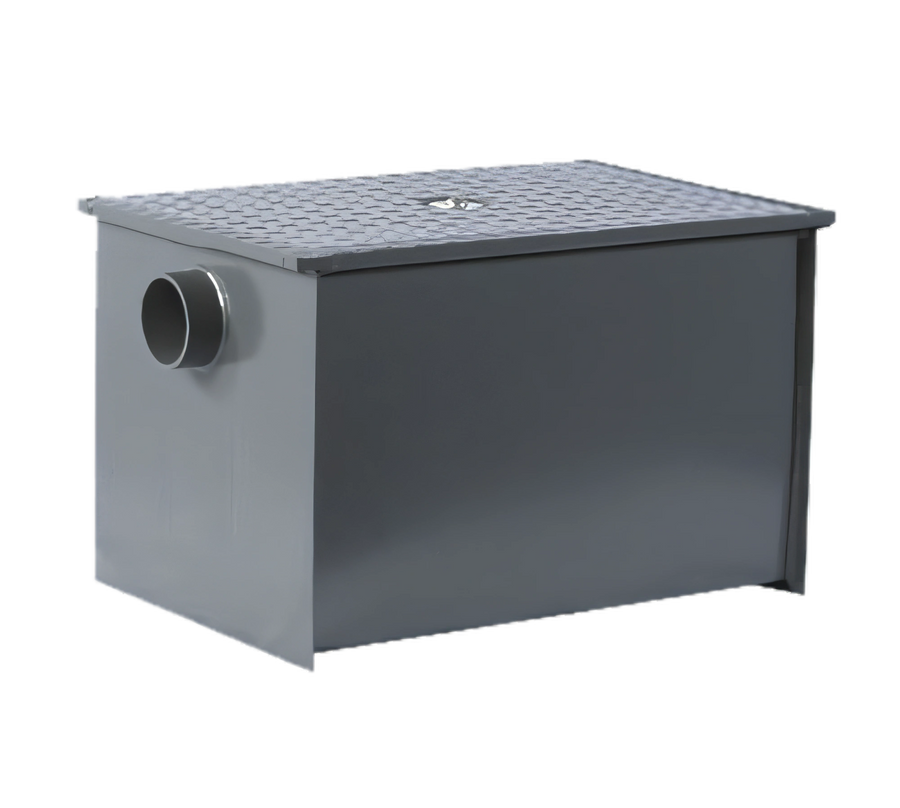

Dormont WD-10 Epoxy-Coated Steel Grease Interceptor, 10 GPM, 20 lb Capacity, 2-Inch No-Hub Connections

Recessed or Floor Mounted; Standard No-Hub Connections

A durable, PDI-certified grease interceptor with a 10 GPM flow rate, 20 lb grease capacity, and service-friendly design for commercial dish room applications.

  • 10 GPM flow rate with 20 lb grease retention capacity for commercial kitchen drainage.
  • Epoxy-coated steel construction helps resist corrosion in demanding dish room environments.
  • Gasketed solid steel cover with hex head center bolt(s) provides a secure, serviceable seal.
  • Removable baffle assembly, deep seal trap, and cleanout simplify maintenance.
  • Standard 2-inch no-hub inlet and outlet connections; threaded connections are available by adding "THD" to the part number.
  • Designed for recessed or floor-mounted installation flexibility.

Product Weight:

61.0 lb

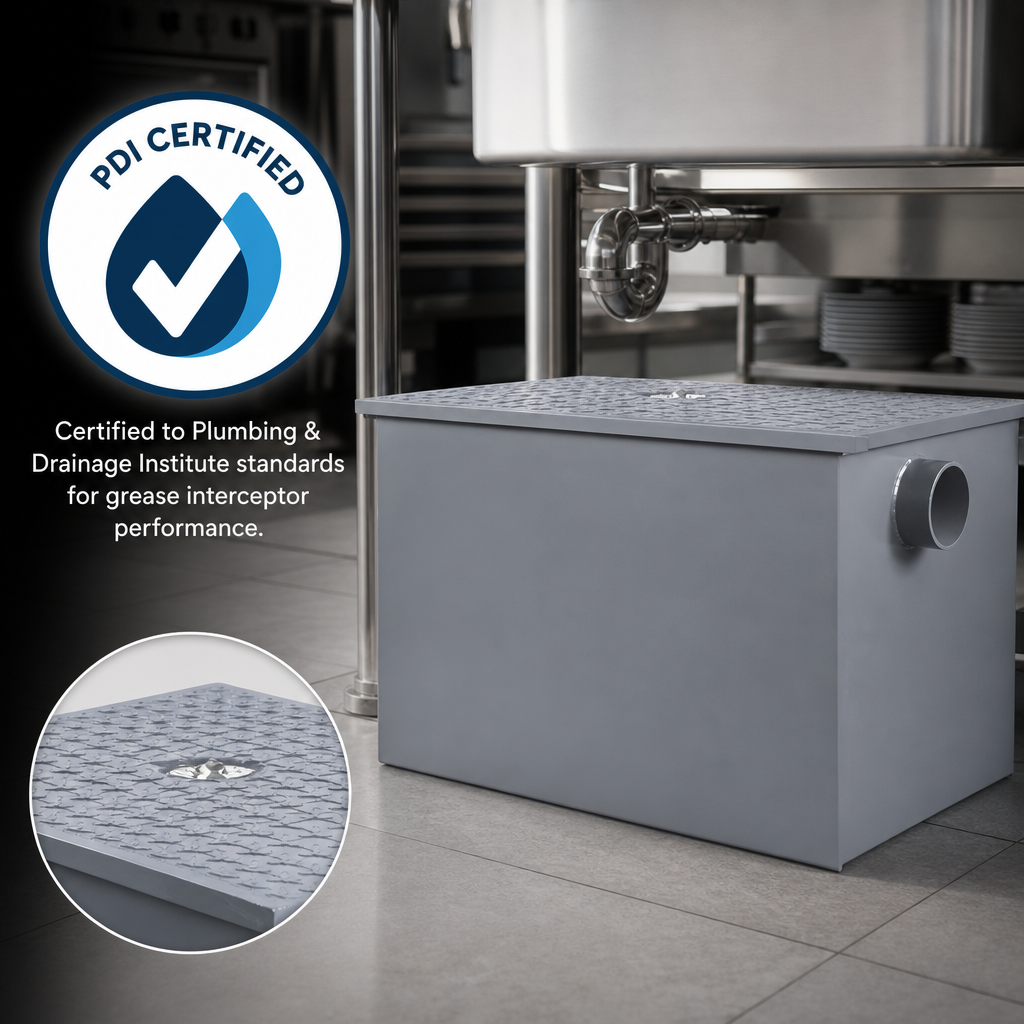

PDI Certified

Certified to Plumbing & Drainage Institute standards for grease interceptor performance.

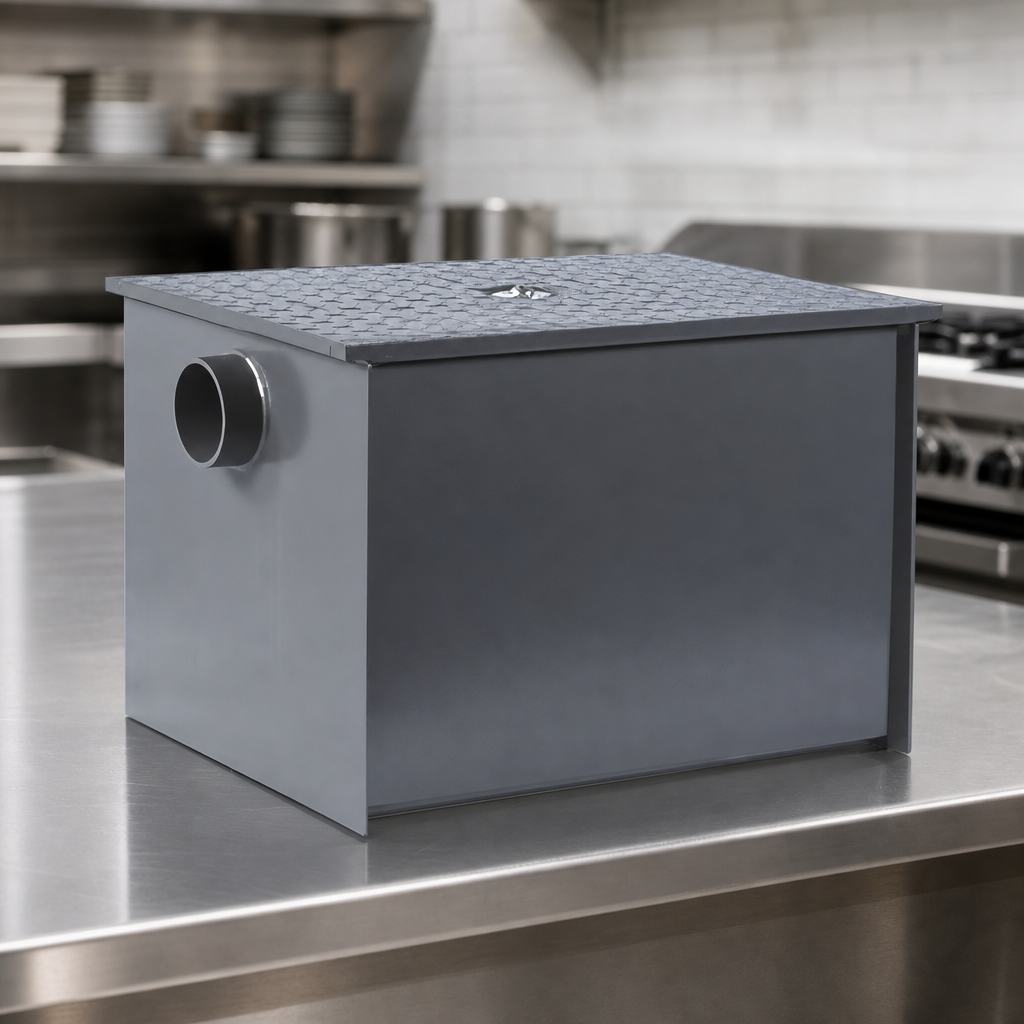

Epoxy-Coated Steel Body

11-gauge cold rolled steel construction with an oven-cured, acid-resistant baked gray epoxy coating inside and out.

Gasketed Solid Steel Cover

Solid steel cover includes a gasket and hex head center bolt(s) to help maintain a tight seal.

Removable Baffle Assembly

One-piece removable baffle assembly supports easier cleaning and routine service.

Deep Seal Trap with Cleanout

Integral deep seal trap with cleanout plug helps improve maintenance access.

External Cast Iron Flow Control

Standard external cast iron flow control fitting is supplied on WD Series interceptors.

No-Hub Standard, Threaded Optional

Standard no-hub inlet/outlet connections; threaded inlet and outlet are available by adding "THD" to the end of the part number at no additional charge.

Flexible Installation

Can be installed recessed or on the floor to suit different kitchen layouts.

Type Grease Interceptor
Style Recessed or Floor Mounted
Installation Type Floor Model
Material Steel
Finish Epoxy Coated
Capacity 20 lb.
Flow Rate 10 GPM
Connection Size 2 Inches
Connection Type No Hub
Draw-Off Without
Shipping Weight 61 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The WD-10 is rated at 10 GPM and has a 20 lb grease capacity.
It uses 2-inch inlet and outlet connections.
Yes. Add "THD" to the end of the part number for threaded inlet and outlet, with no additional charge.
Yes. The WD-10 includes a gasketted solid steel cover secured with hex head center bolt(s), plus a removable baffle assembly.
Yes. The WD Series is PDI certified.
