Dormont Manufacturing

Dormont ReliaGuard Single SwivelGuard Standard Snap Commercial Gas Connector Kit, 3/4 Inch ID x 48 Inch, Gray PVC Coated Stainless Steel

SKU: RG75S48
GTIN: 662447167120
$171.82
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont ReliaGuard Single SwivelGuard Standard Snap Commercial Gas Connector Kit, 3/4 Inch ID x 48 Inch, Gray PVC Coated Stainless Steel

Moveable-Grade Kit with 360° Rotational Ends and Thermal Shutoff Quick-Disconnect

Designed for moveable commercial equipment, this 48-inch gas connector kit combines 360° swivel protection, a thermal-shutoff quick disconnect, and a restraining cable for safer, longer-lasting installation.

  • 48-inch, 3/4-inch inside diameter gas connector kit for moveable commercial equipment.
  • Single SwivelGuard fittings provide 360° rotation to reduce stress on the connector.
  • Standard Snap quick-disconnect automatically shuts off gas above 350°F.
  • 304 stainless steel corrugated tubing with stainless braid and gray PVC coating resists wear and corrosion.
  • Includes restraining cable and hardware to help prevent strain transfer when equipment moves.
  • Limited 5-year warranty for the original appliance connection.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

6.27 lb

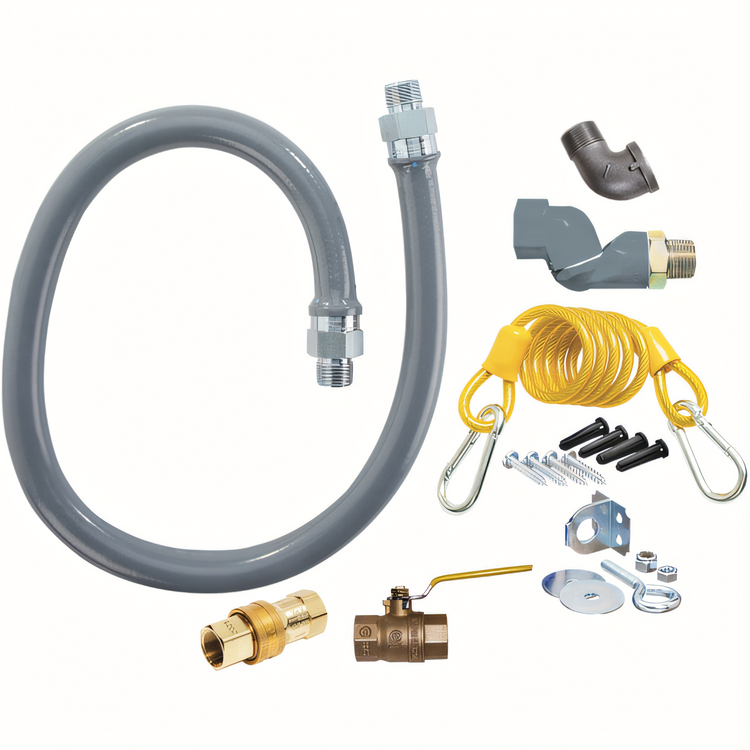

Complete Kit Assembly

Includes the gas hose, single SwivelGuard, Standard Snap quick-disconnect, restraining device, 90° street elbow, and full-port valve.

360° Rotational End Fittings

Rotational ends help reduce stress at both hose ends and improve equipment positioning near the wall.

304 Stainless Steel Corrugated Tube

Heavy-duty corrugated stainless steel tubing provides flexibility for moveable commercial equipment.

Stainless Steel Braid

Tight-weave braid helps protect the tubing and reduce stretch as equipment is moved.

Gray PVC Protective Coating

Flame-resistant gray PVC coating adds an extra layer of protection and withstands temperatures up to 350°F.

Thermal Shutoff Quick Disconnect

Automatically shuts off gas when internal temperatures exceed 350°F (177°C).

Restraining Cable and Hardware

Helps prevent transmission of strain to the connector when the appliance is moved.

Moveable-Grade Design

Engineered for caster-mounted commercial cooking equipment; intended for indoor use with a maximum operating pressure of 1/2 psi.

Type Gas Connector Kit
Style Single SwivelGuard
Length 48 Inches
Inside Diameter 3/4 Inch
Material 304 Stainless Steel
Finish Gray PVC
BTU 167,000 BTU/hr
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 6.27 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited 5-year warranty.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

The kit includes the gas hose assembly, single SwivelGuard, Standard Snap quick-disconnect, restraining device, 90° street elbow, and full-port valve.
This model has a 3/4-inch inside diameter and is 48 inches long.
The Standard Snap quick-disconnect automatically shuts off gas when internal temperature exceeds 350°F (177°C).
Yes. It is designed for moveable commercial equipment, including caster-mounted appliances that need a restraining device.
It uses annealed corrugated 304 stainless steel tubing with stainless steel braid and a gray PVC outer coating.
Yes. Dormont states a limited 5-year warranty for the original appliance to which the connector is connected.
