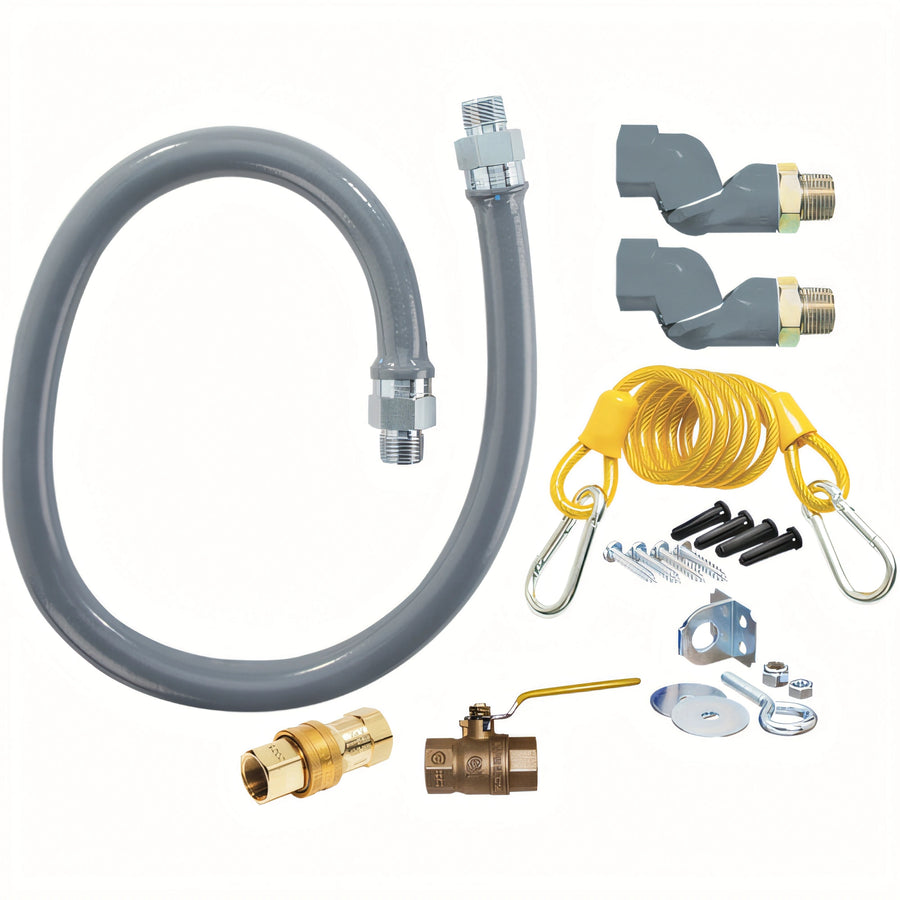

Dormont ReliaGuard Double SwivelGuard Commercial Gas Connector Kit, 3/4 Inch ID x 36 Inch

PVC-coated stainless steel kit with Standard Snap quick disconnect and restraining cable

Built for caster-mounted commercial equipment, this ReliaGuard kit combines 360° swivel flexibility, thermal shut-off protection, and a restraining cable to help protect gas connections and maximize kitchen clearance.

  • 3/4" inside diameter x 36" long commercial gas connector kit for moveable equipment
  • Double SwivelGuard end fittings provide 360° rotational movement at both ends to reduce stress
  • Standard Snap quick disconnect shuts off gas automatically when internal temperature exceeds 350°F (177°C)
  • Annealed corrugated 304 stainless steel tubing with stainless steel braid adds flexibility and durability
  • Gray PVC coating helps protect the connector and resists flame exposure up to 350°F (177°C)
  • Includes restraining cable, mounting hardware, and full-port valve
  • Backed by a 5-year limited warranty

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

6.55 lb

Double SwivelGuard End Fittings

360° rotational fittings at both ends help reduce connector stress and let equipment sit closer to the wall.

Standard Snap Quick Disconnect

Quick-disconnect assembly automatically shuts off gas when internal temperature exceeds 350°F (177°C).

304 Stainless Steel Tubing

Annealed corrugated tubing provides flexibility for moveable commercial cooking equipment.

Stainless Steel Braid and PVC Coating

Tight-weave stainless steel braid adds strength, while the gray PVC coating helps protect the hose and withstand heat up to 350°F (177°C).

Restraining Cable Included

PVC-coated steel multi-strand cable with mounting hardware helps prevent strain transfer to the connector.

Full-Port Valve Included

Full-port brass valve is included as part of the kit.

Type Gas Connector Kit
Style Double SwivelGuard
Inside Diameter 3/4 Inch
Length 36 Inches
Material 304 Stainless Steel
Finish PVC Coated
Color Gray
BTU 193,000 BTU/hr
Selling Unit Each
Units Per Case 1
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 6.55 Pounds

Warranty & Protection

5-year limited warranty

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It has a 3/4" inside diameter and is 36" long.
Yes. The kit includes a PVC-coated steel restraining cable with mounting hardware.
The Standard Snap quick disconnect automatically shuts off gas when internal temperature exceeds 350°F (177°C).
It uses annealed corrugated 304 stainless steel tubing, stainless steel braid, and a gray PVC coating.
The 36" 3/4" model is rated at 193,000 BTU/hr for natural gas at a 0.5" W.C. pressure drop.
Dormont guarantees the commercial gas connector for 5 years on the original appliance to which it is connected.
