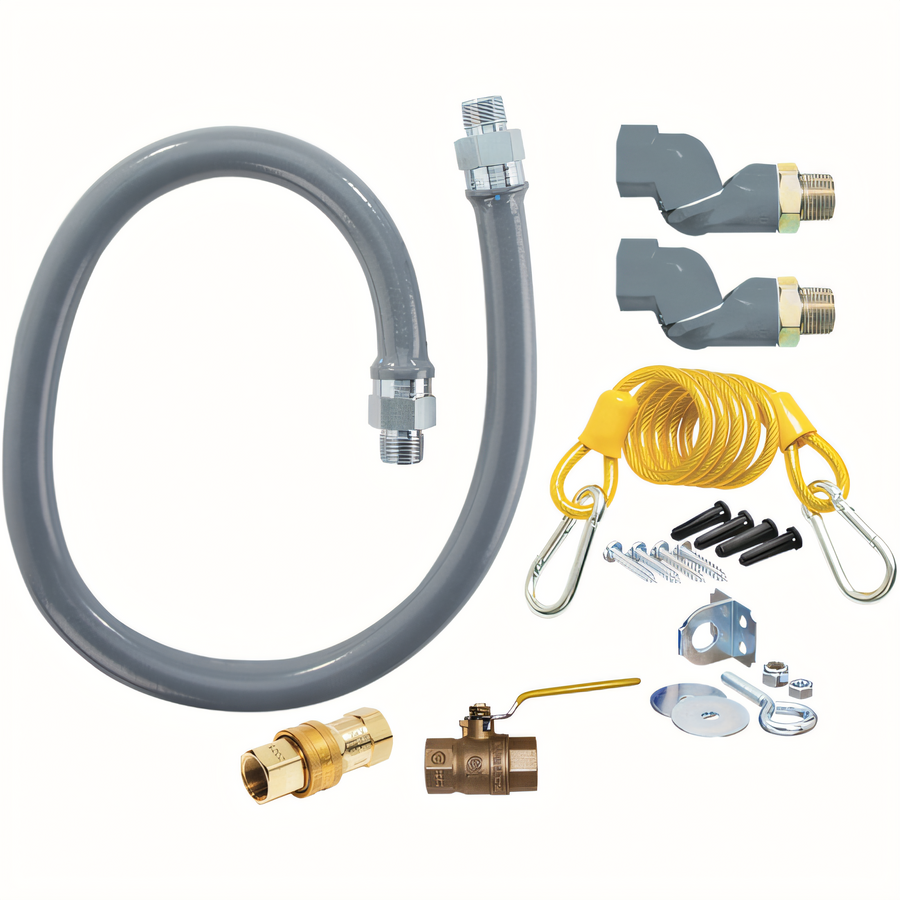

Dormont ReliaGuard 36-Inch 1/2-Inch ID Double SwivelGuard Gas Connector Kit with Standard Snap Quick Disconnect

Gray PVC-coated stainless steel hose with restraining cable, hardware, and full-port valve

Built for moveable commercial equipment, this ReliaGuard gas connector kit combines 360° swivel protection, quick disconnect convenience, and a restraining device for safer, more flexible installation.

  • 36-inch, 1/2-inch I.D. gas connector kit for caster-mounted commercial equipment
  • 304 stainless steel corrugated tubing with stainless steel braid for durability and corrosion resistance
  • Gray PVC coating helps protect the hose and resists flame up to 350°F
  • Double SwivelGuard fittings and Standard Snap quick disconnect reduce stress and improve equipment movement
  • Includes coiled restraining cable with mounting hardware and a full-port brass valve
  • Limited 5-year warranty for the original appliance connection

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

5.06 lb

304 Stainless Steel Tube

Annealed, corrugated 304 stainless steel tubing provides flexibility and durability for commercial kitchen use.

Stainless Steel Braid

Multi-strand stainless steel wire braid helps protect the connector as equipment is moved.

Gray PVC Coating

The outer coating is flame-resistant and melts at 350°F, helping protect the braid and tube.

360° SwivelGuard End Fittings

Rotational end fittings reduce stress at both ends of the hose and allow the appliance to sit closer to the wall.

Standard Snap Quick Disconnect

Quick-disconnect fitting includes a thermal shut-off that automatically stops gas flow when internal temperatures exceed 350°F.

Restraining Device Included

Comes with a PVC-coated steel multi-strand restraining cable and mounting hardware to help prevent strain transfer to the connector.

Full-Port Brass Valve

Includes a full-port brass valve as part of the kit assembly.

Moveable Equipment Application

Designed for use with moveable, caster-mounted commercial cooking equipment; indoor use only and max operating pressure is 1/2 psi.

Type Gas Connector Kit
Style Double SwivelGuard
Gas Connection Size 1/2 Inch
Length 36 Inches
Material Stainless Steel
Finish Gray PVC Coated
BTU 69,000 BTU/hr
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited 5-year warranty

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It is a 1/2-inch inside diameter connector with a 36-inch length.
The kit includes the ReliaGuard gas hose, Double SwivelGuard fittings, a Standard Snap quick disconnect, a restraining device with hardware, and a full-port valve.
Yes. The Standard Snap quick disconnect automatically shuts off gas when internal temperatures exceed 350°F.
It is designed for moveable, caster-mounted commercial cooking equipment.
Yes. The documentation states that a restraining device is required for all moveable gas equipment.
Dormont guarantees this commercial gas connector for 5 years for the original appliance to which it is connected.
