ReliaGuard 1 Inch ID x 60 Inch Single SwivelGuard Commercial Gas Connector Kit

SKU: RG100S60
GTIN: 662447000434
$288.25
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

ReliaGuard 1 Inch ID x 60 Inch Single SwivelGuard Commercial Gas Connector Kit

Gray PVC-Coated Stainless Steel, Quick Disconnect and Restraining Device Included

Designed for moveable commercial cooking equipment, this 60-inch gas connector kit combines 360-degree rotational protection, thermal shut-off quick disconnect performance, and a restraining cable to help reduce hose stress and improve safety.

  • 1 inch inside diameter and 60 inch length for commercial gas appliance connections.
  • Single SwivelGuard fittings provide 360-degree rotation to help reduce stress at both hose ends.
  • Standard Snap quick disconnect adds thermal shut-off protection above 350 degrees Fahrenheit.
  • 304 stainless steel construction with stainless steel braid and gray PVC coating for flexibility and durability.
  • Includes a restraining device and hardware for moveable or caster-mounted equipment.

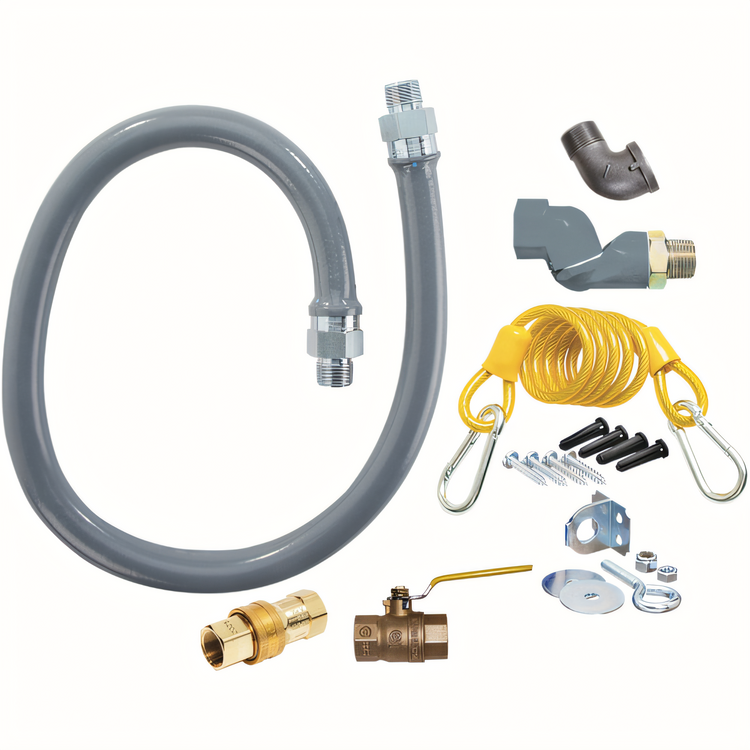

  • Single kit assembly includes the hose, quick disconnect, SwivelGuard, 90 degree street elbow, and full port valve.

Overall Dimensions:

5.0"W x 2.88"D x 64.0"H

Product Weight:

10.58 lb

304 Stainless Steel Corrugated Tube

Heavy-duty corrugated tubing provides flexibility and corrosion resistance for moveable commercial equipment.

Stainless Steel Braid

A tight-weave stainless steel braid helps protect the hose and reduce stretching as equipment is moved.

Gray PVC Coating

Flame-resistant outer coating is designed to melt at 350 degrees Fahrenheit and will not hold a flame.

360 Degree SwivelGuard Rotation

Rotational end fittings reduce stress on both ends of the connector and can help position equipment closer to the wall.

Standard Snap Quick Disconnect

Quick-disconnect assembly with a thermal shut-off design that stops gas flow when internal temperatures exceed 350 degrees Fahrenheit.

Restraining Device Included

PVC-coated steel multi-strand cable and mounting hardware help prevent strain from being transmitted to the connector.

Full Port Valve Included

Single SwivelGuard kits include a full port brass valve for a complete moveable equipment connection solution.

Type Gas Connector Kit
Style Single SwivelGuard
Inside Diameter 1 Inch
Length 60 Inches
Material 304 Stainless Steel
Finish PVC Coated
Color Gray
BTU 274,000 BTU/hr
Shipping Width 5 Inches
Shipping Depth 3 Inches
Shipping Height 64 Inches
Shipping Weight 10.58 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited 5-year warranty

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

This model has a 1 inch inside diameter and a 60 inch length.
The kit includes the ReliaGuard hose, a single SwivelGuard, a Standard Snap quick disconnect, a restraining device with hardware, a 90 degree street elbow, and a full port valve.
SwivelGuard provides 360 degree rotational movement at the fittings to help reduce stress on the connector and improve appliance placement.
Yes. The Standard Snap quick disconnect is designed to shut off gas when internal temperatures exceed 350 degrees Fahrenheit.
No. The documentation states it is for indoor use only.
