Dormont Manufacturing

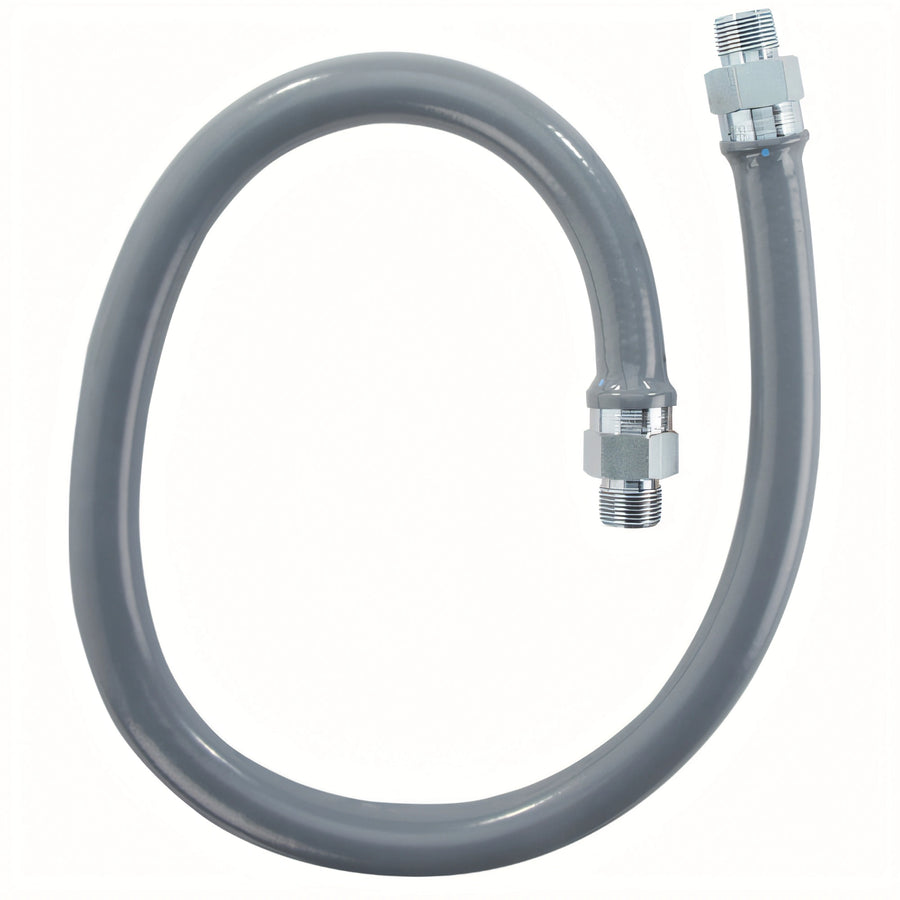

Dormont ReliaGuard 1 Inch I.D. x 60 Inch Moveable-Grade Braided Gas Connector with Quick Disconnect and Restraining Cable

SKU: RG100BP60
GTIN: 662447166987
$122.08
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont ReliaGuard 1 Inch I.D. x 60 Inch Moveable-Grade Braided Gas Connector with Quick Disconnect and Restraining Cable

304 Stainless Steel, Gray PVC Coated, 360° Rotational End Fittings

Built for moveable commercial equipment, this 60-inch ReliaGuard connector combines 304 stainless steel construction, a flame-resistant gray PVC coating, and 360° rotational fittings for flexible, low-stress gas connections.

  • Designed for moveable and caster-mounted commercial gas equipment.
  • 1 inch inside diameter with 60 inch length.
  • 304 stainless steel corrugated tubing with multi-strand stainless steel braid.
  • Gray PVC coating is flame-resistant and melts at 350°F (177°C).
  • 360° rotational end fittings help reduce stress at both hose ends.
  • Includes a quick disconnect and coiled restraining cable with hardware.

Overall Dimensions:

5.0"W x 1.88"D x 64.0"H

Product Weight:

4.86 lb

Moveable-Grade Design

Engineered for commercial gas equipment that is moved regularly for cleaning, service, or repair.

360° Rotational End Fittings

Rotating fittings help reduce strain and wear at both ends of the connector.

304 Stainless Steel Tubing

Annealed corrugated stainless steel tubing provides flexibility and durability.

Stainless Steel Braid

Multi-strand stainless steel wire braid helps protect the connector as equipment moves.

Gray PVC Coating

Flame-resistant outer coating melts at 350°F (177°C) and will not hold a flame.

Quick Disconnect Included

Includes a quick-disconnect fitting for easier equipment connection and removal.

Coiled Restraining Cable with Hardware

Included restraining cable helps prevent strain from being transmitted to the connector.

Limited 5-Year Warranty

Guaranteed for 5 years from original installation.

Type Gas Connector
Style Braided
Gas Connection Size 1 Inch
Length 60 Inches
Material 304 Stainless Steel
Finish Gray PVC Coated
BTU 397,000 BTU/hr
Maximum Operating Pressure 0.5 PSI
Shipping Width 5 Inches
Shipping Depth 2 Inches
Shipping Height 64 Inches
Shipping Weight 4.86 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited 5-year warranty.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It is designed for moveable and caster-mounted commercial gas equipment that is regularly moved for cleaning or repair.
Yes. The product includes a coiled restraining cable with hardware, and the documentation states a restraining device is required for moveable gas equipment.
It uses annealed corrugated 304 stainless steel tubing with a multi-strand stainless steel braid and a gray PVC coating.
The documentation lists a maximum operating pressure of 1/2 psi.
It carries a limited 5-year warranty from original installation.
