Dormont Manufacturing GI-75-K Watts Grease Interceptors Grease Traps
Description

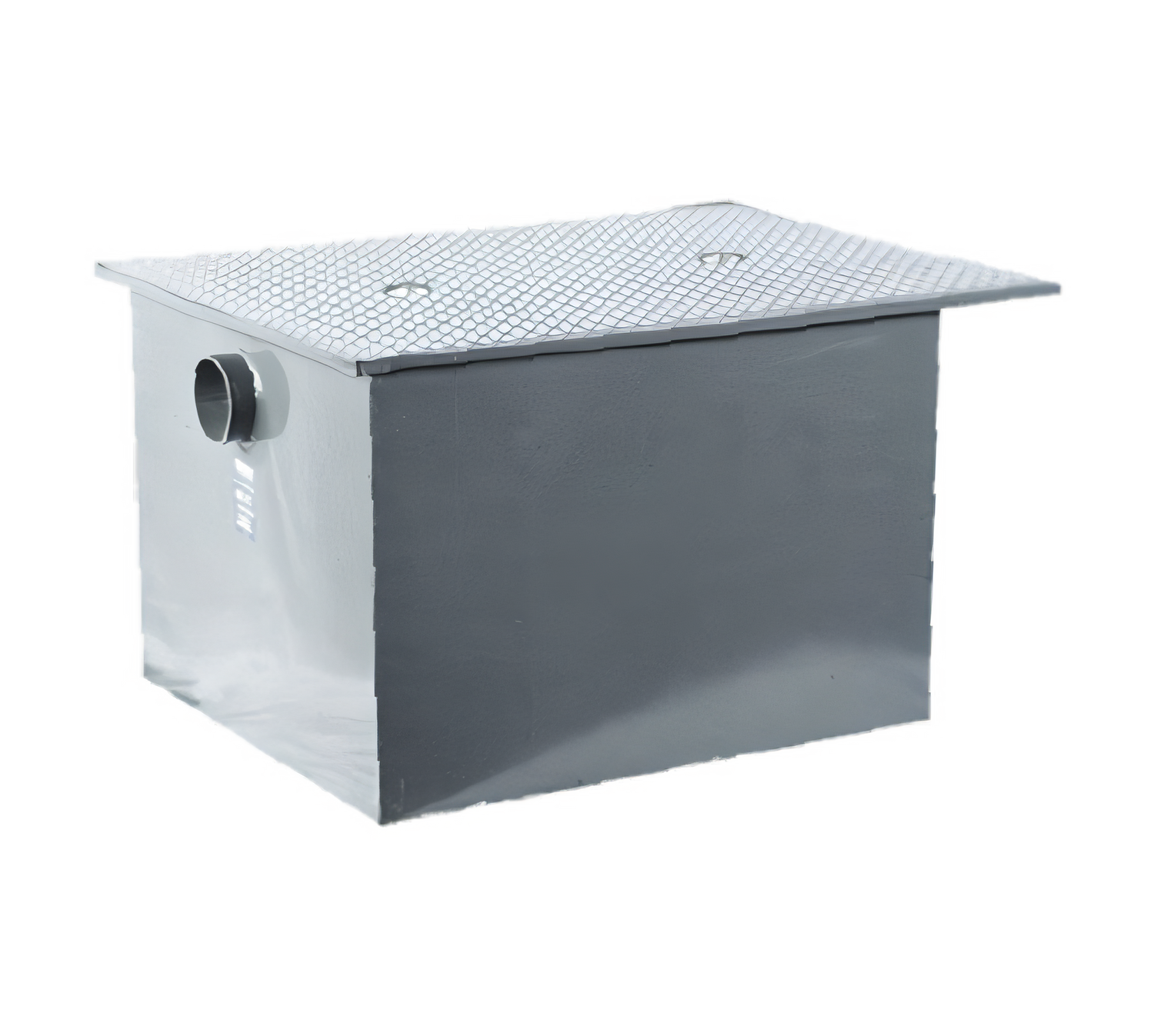

Watts GI-75-K Grease Interceptor – 75 GPM / 150 lb Capacity
Epoxy-Coated Steel - 4" No-Hub ConnectionsProtect your drainage lines and stay code-compliant with the Watts GI-75-K large-capacity grease interceptor. Purpose-built for medium-volume commercial kitchens, this rugged unit traps up to 150 lb of fats, oils and grease (FOG) while maintaining a consistent 75 GPM flow rate.
Key Features

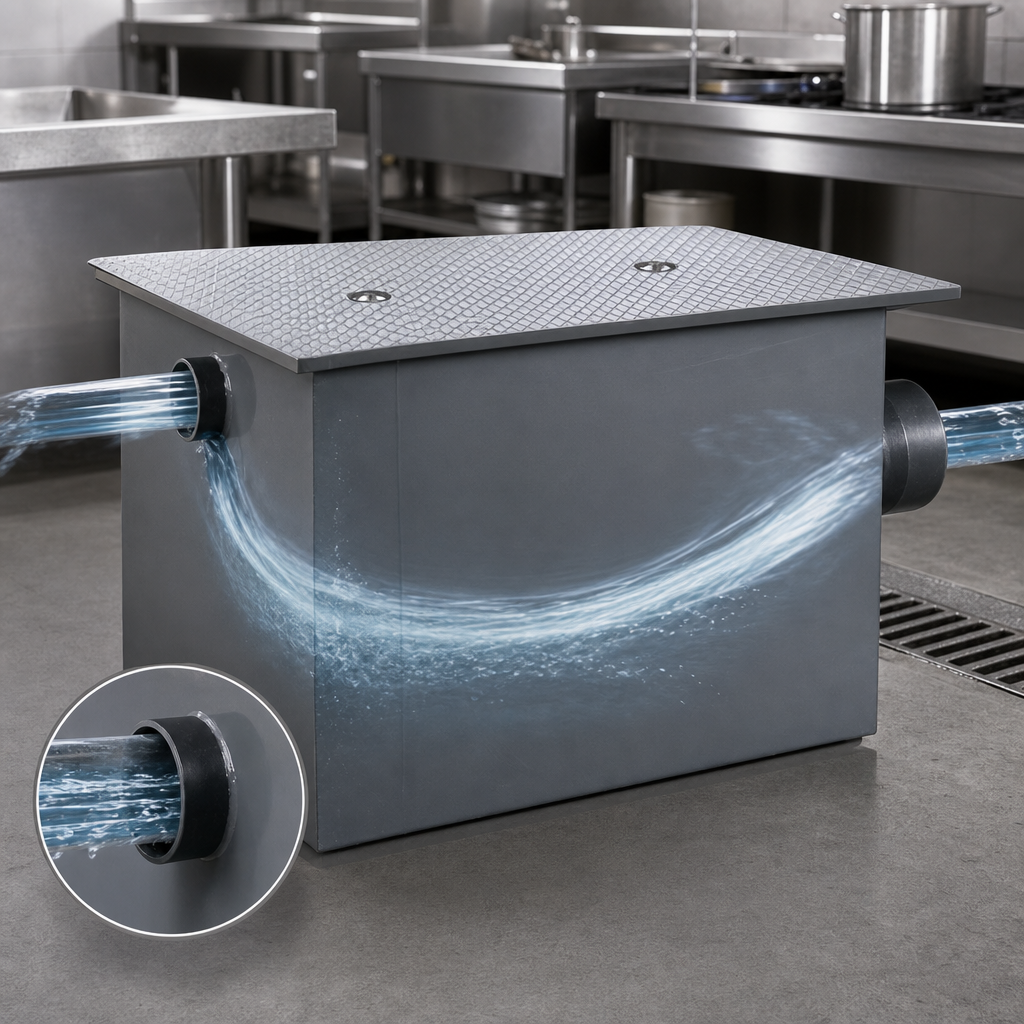

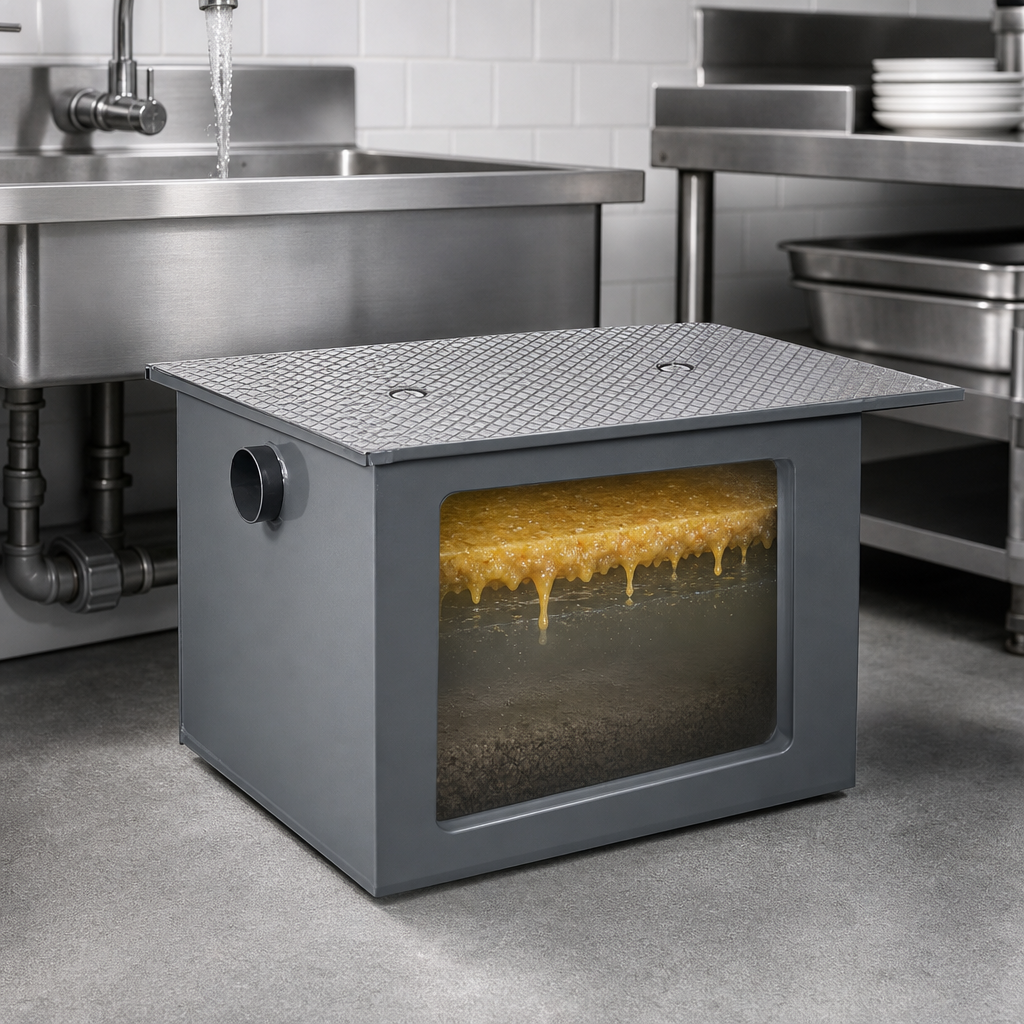

- 75 GPM flow rating with 150 lb grease storage.
- Heavy-gauge, epoxy-coated steel body resists corrosion and kitchen chemicals.
- Skid-proof, gasketed cover secured by hex-head center bolt(s) for a watertight, tamper-resistant seal.
- Integral stainless-steel flow-control plate ensures optimal separation efficiency.
- Removable internal baffle and double-wall deep-seal trap simplify pump-out and cleaning.
- 4" no-hub inlet & outlet connections for quick tie-in to standard DWV piping.
- Suitable for recessed or floor-mounted installation; rated for foot-traffic loading.
Ideal For
- Full-service restaurants & cafés
- Hotel, hospital & school kitchens
- Cafeterias and food courts
- Commercial commissaries & catering facilities
Technical Specifications
| Model | GI-75-K |
|---|---|
| Flow rate | 75 GPM |
| Grease capacity | 150 lb |
| Inlet / outlet size | 4" (no-hub) |
| Overall length (D) | 39-3/4" (1010 mm) |
| Overall width (E) | 30-3/4" (781 mm) |
| Overall height (F) | 23" (584 mm) |
| Cover type | Gasketed, skid-proof, bolted |
| Internal trap | Double-wall deep-seal |
| Flow control | Integral stainless-steel plate |
| Material / finish | Epoxy-coated steel |
| Installation | Floor mounted or recessed |
Looking for a different size or optional accessories (extension collars, sediment bucket, heavy-duty traffic cover)? Contact us for the full Watts GI-K range.
