Dormont Manufacturing  |  Watts Grease Interceptors  |  SKU: GI-400-K

Dormont Manufacturing GI-400-K Watts Grease Interceptors Grease Traps

$10,992.46
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Commercial Dishwashers Dish Room Equipment Grease Traps Grease Traps Restaurant Equipment Sanitizers & Cleaning

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

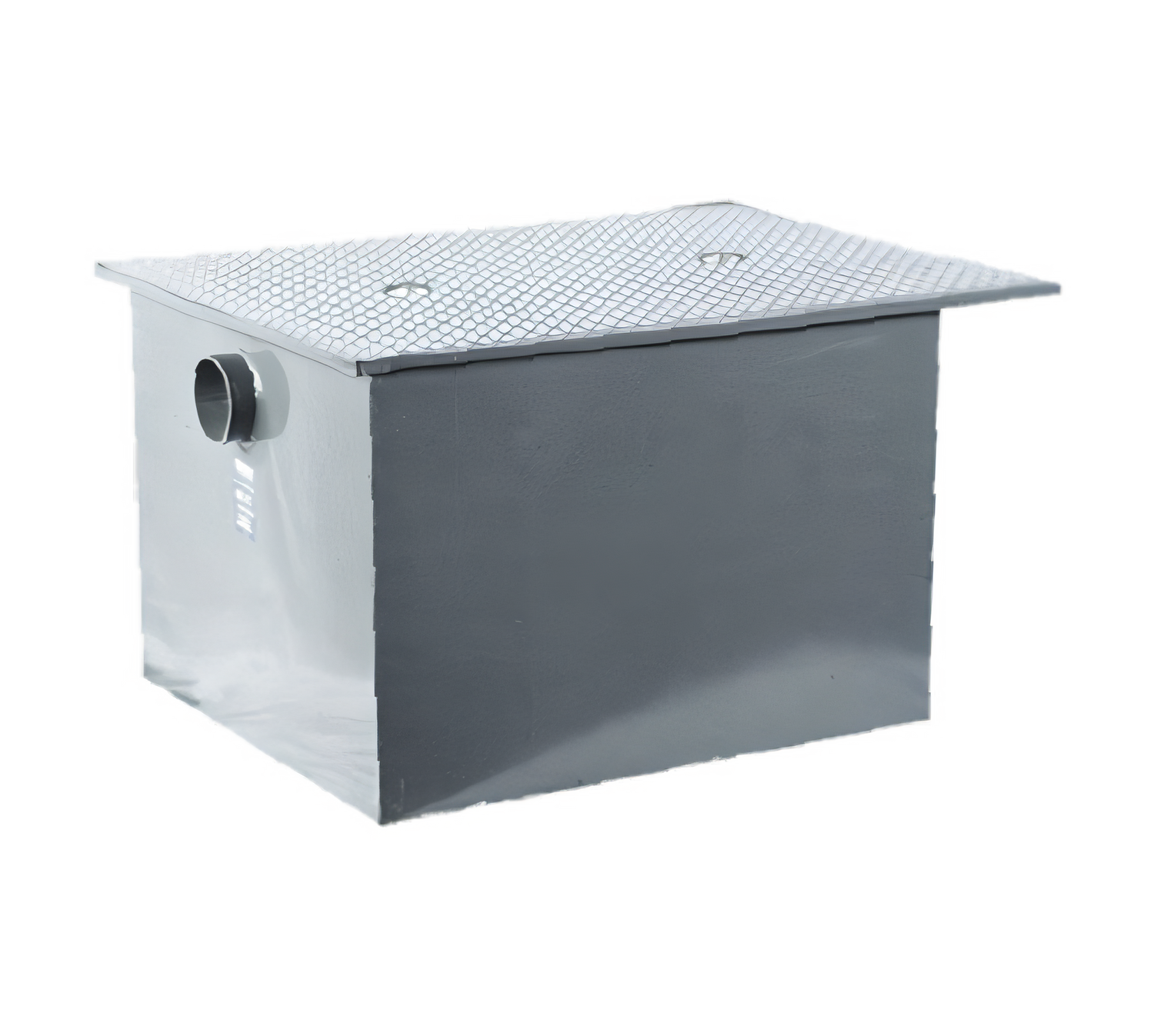

Watts GI-400-K Grease Interceptor – 400 GPM, 800 lb Capacity

High-capacity epoxy-coated steel interceptor for demanding commercial kitchens

Built for food-service operations that move serious volume, the Watts GI-400-K keeps fats, oils & grease out of your drain lines with a massive 400 GPM flow rate and 800 lb storage capacity. Its rugged, epoxy-coated steel tank drops directly into recessed or floor-mounted installations and arrives ready to plumb with 6" no-hub connections and a factory-installed stainless-steel flow-control plate.

  • Handles up to 400 gallons per minute while capturing 800 lb of grease
  • 6" no-hub inlet & outlet mate to standard cast-iron soil pipe
  • Integral stainless-steel flow-control plate delivers laminar, code-compliant influent
  • Gasketed, skid-proof cover secured by hex-head center bolts—safe to walk on when closed
  • Double-wall deep-seal trap and removable baffle streamline pump-out and cleaning
  • Heavy-duty, epoxy-coated carbon-steel body resists corrosion inside and out
  • Engineered and tested to meet ASME A112.14.3 performance requirements

Technical Specifications

Model GI-400-K
Flow rate 400 GPM (1,514 L/min)
Grease capacity 800 lb (363 kg)
Inlet / outlet size 6" (152 mm) no-hub
Overall length 83" (2,108 mm)
Overall width 55" (1,397 mm)
Overall height 52" (1,321 mm)
Base to center-line 42" (1,067 mm)
Top to center-line 10" (254 mm)
Cover Gasketed, skid-proof epoxy-coated steel with hex-head bolts
Trap configuration Double-wall deep-seal
Flow control Integral stainless-steel plate
Construction Epoxy-coated carbon steel

Factory Options (suffix codes)

  • -B • Sediment bucket
  • -E • Extension sleeve for deeper recess installs
  • -FC • Floor flange & clamp waterproofing kit
  • -HD • 10,000 lb traffic-rated cover
  • -O • Custom inlet / outlet sizing
  • -SS • Stainless-steel construction
  • -THD • Threaded connections
  • -US • Buy American compliant

Need a different size? Watts GI-K series interceptors are available from 75 – 500 GPM. Contact us for expert sizing assistance.

Features & Specs

Manufacturer

Dormont Manufacturing

Brand_name

Watts Grease Interceptors

Height

52.0in

Width

83.0in

Depth

55.0in

Shipping Weight

800.0lbs

Draw-off

without

Flow Rate

400 GPM

Grease Capacity

500 - 1000 lb

Specifications

Watts Grease Interceptor, 400 gallons per minute flow rate, 800 lb grease capacity, 6" inlet & outlet, no hub connections, skid-proof cover with gasket, hex head center bolt(s), removable baffle, double wall deep seal trap, integral stainless steel flow control
