Dormont Manufacturing GI-300-K Watts Grease Interceptors Grease Traps
Description

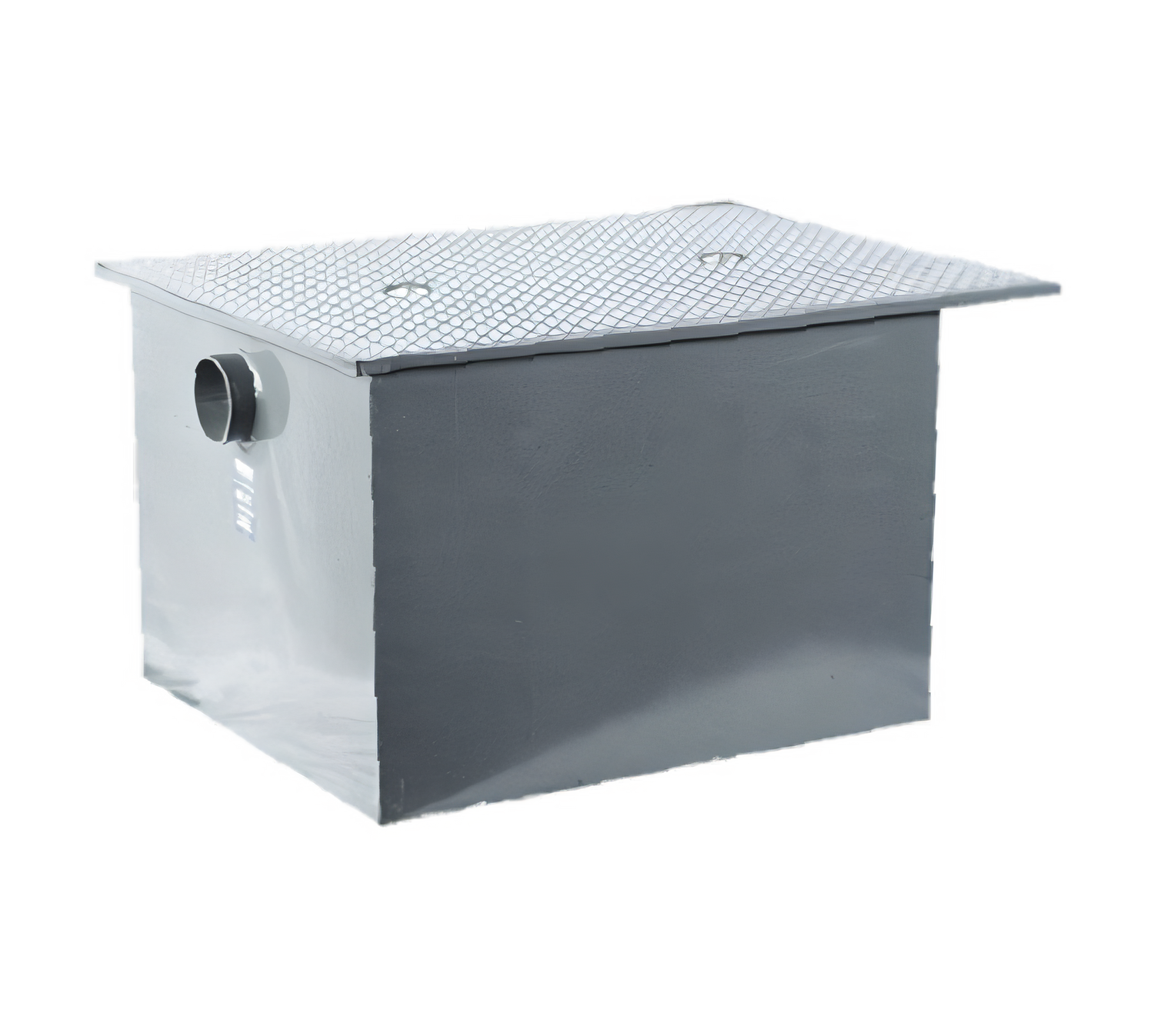

Watts GI-300-K Large-Capacity Grease Interceptor – 300 GPM
600 lb grease capacity | 6″ no-hub inlet & outletKeep high-volume commercial kitchens running smoothly and in full compliance with the Watts GI-300-K Grease Interceptor. Engineered for a massive 300 gallons-per-minute flow, this heavy-duty unit traps up to 600 lb of fats, oils and grease (FOG) before they ever reach your wastewater lines.
Key Features & Benefits

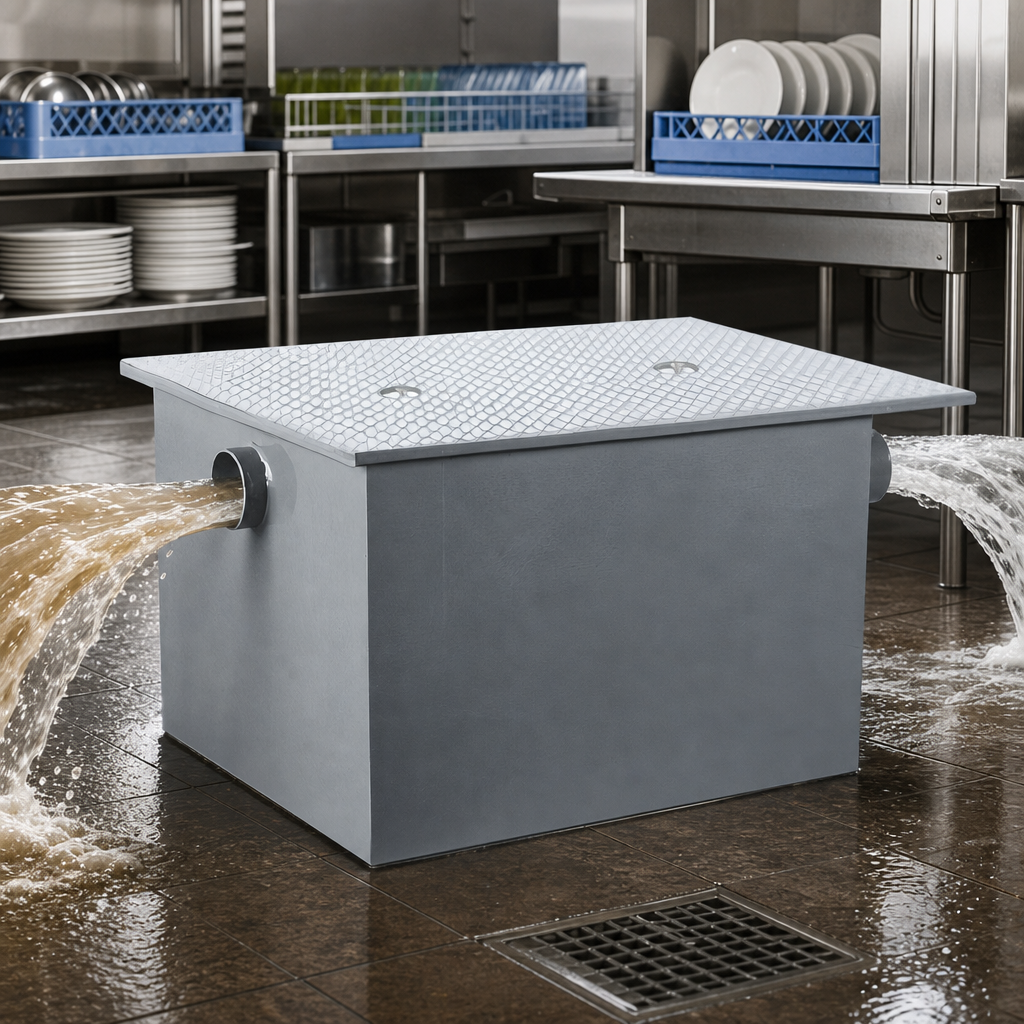

- 300 GPM flow rate handles the discharge of multiple fixtures simultaneously.

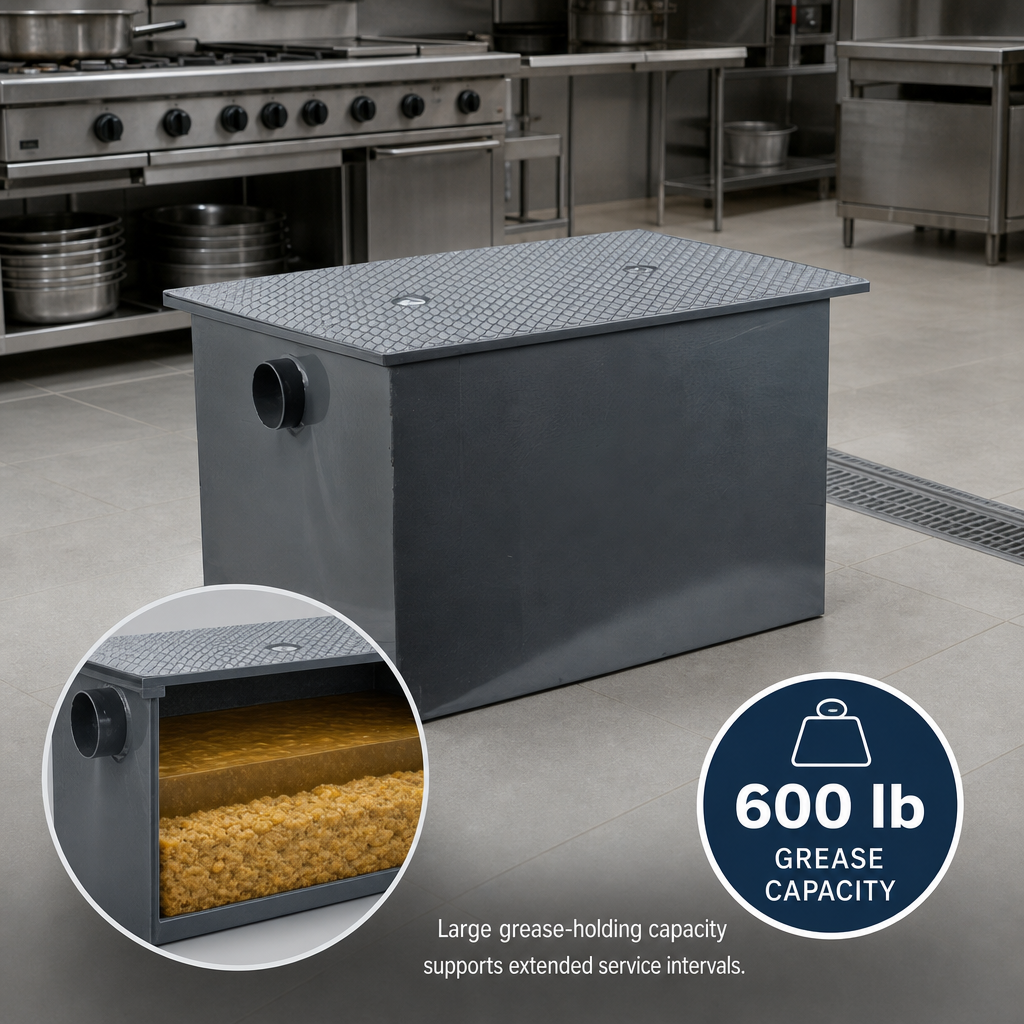

- 600 lb grease storage capacity minimizes pump-out frequency and service interruptions.
- 6″ no-hub inlet & outlet connect directly to standard cast-iron or PVC drainage systems.
- Integral stainless-steel flow-control plate optimizes separation efficiency.
- Gasketed, skid-proof cover secured with hex-head center bolts keeps odors in and staff safe.
- Double-wall deep-seal trap blocks sewer gases—even under continuous use.
- Removable internal baffle allows fast, thorough clean-outs.
- Epoxy-coated steel tank resists corrosion for a long service life.
- Designed for recessed or floor-mounted installation to match job-site requirements.
Technical Specifications
| Model | GI-300-K |
|---|---|
| Flow rate | 300 GPM (18.9 L/s) |
| Grease capacity | 600 lb (272 kg) |
| Inlet / outlet size | 6″ (152 mm) no-hub |
| Tank material | Epoxy-coated carbon steel |
| Cover | Gasketed skid-proof steel cover, secured with hex-head center bolts |
| Internal components | Stainless-steel flow-control plate, removable steel baffle, double-wall deep-seal trap |
| Overall dimensions (L × W × H) | 76″ × 48″ × 48″ (1930 mm × 1219 mm × 1219 mm) |
| Connection type | No-hub (standard) |
| Mounting style | Recessed or floor mounted |
Ideal Applications
- Full-service & quick-service restaurants
- Hotel, hospital & university kitchens
- High-volume commissaries & food courts
- Food-processing and manufacturing facilities
Need a sediment bucket, extension or traffic-rated cover? Ask about factory-installed options for the GI-K Series.
