Dormont Manufacturing GI-250-K Watts Grease Interceptors Grease Traps
Description

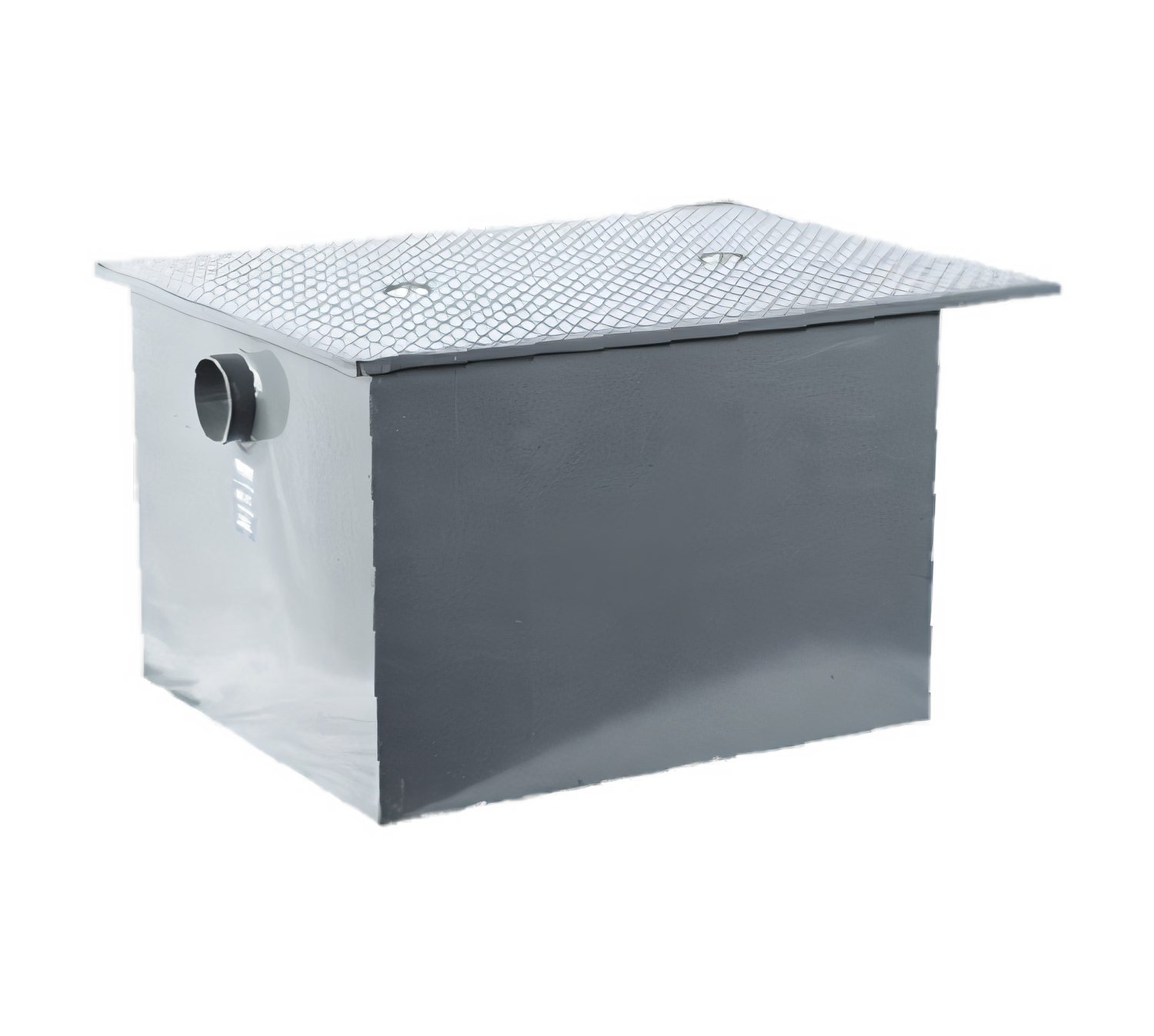

Watts GI-250-K Large-Capacity Grease Interceptor – 250 GPM
500 lb grease storage • 4 in. no-hub connectionsEngineered for high-volume commercial kitchens, the Watts GI-250-K captures up to 500 lb of fats, oils & grease (FOG) at a continuous 250 GPM flow rate. Its epoxy-coated steel body and gasketed skid-proof cover are built to perform for years in floor-set or recessed applications, protecting plumbing lines and helping facilities stay code compliant.
Key Features & Benefits

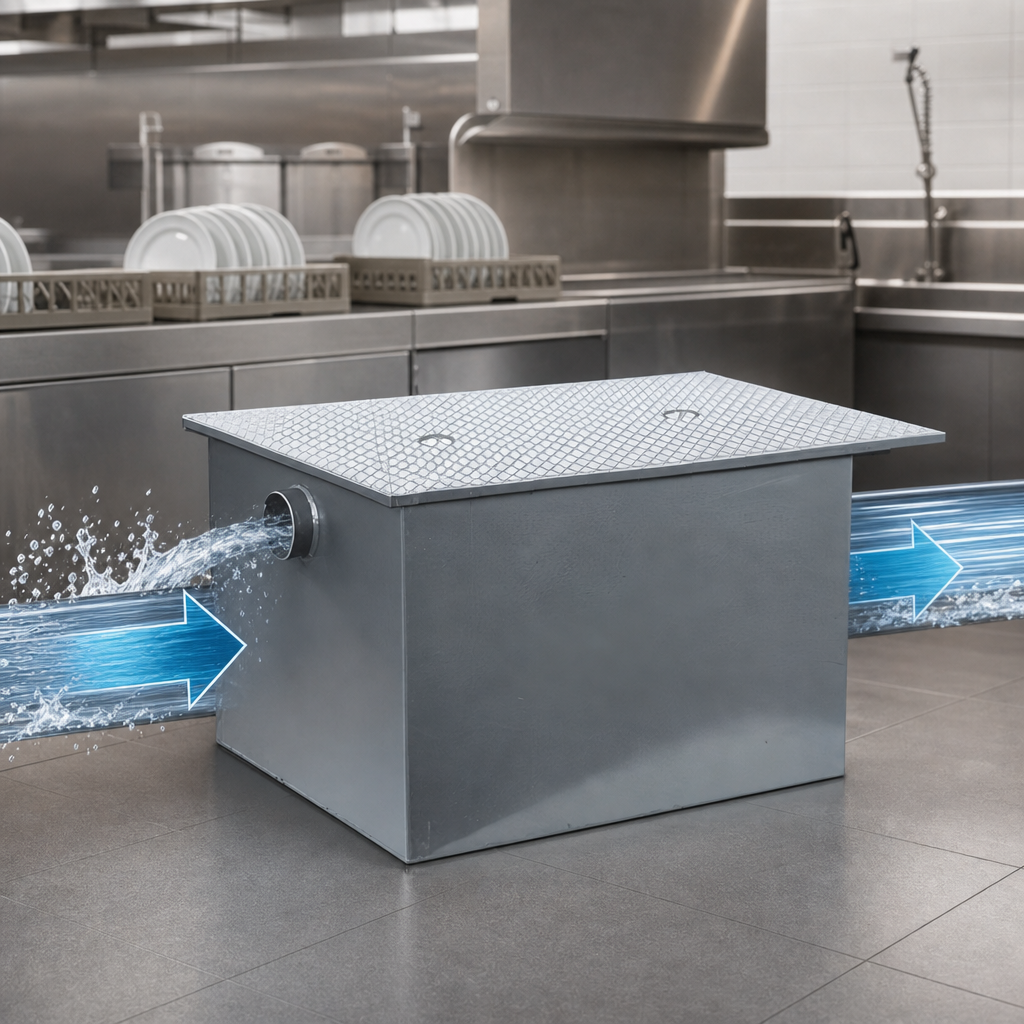

- High flow performance – rated 250 GPM to service busy dish rooms, combi-ovens and multiple sink banks.

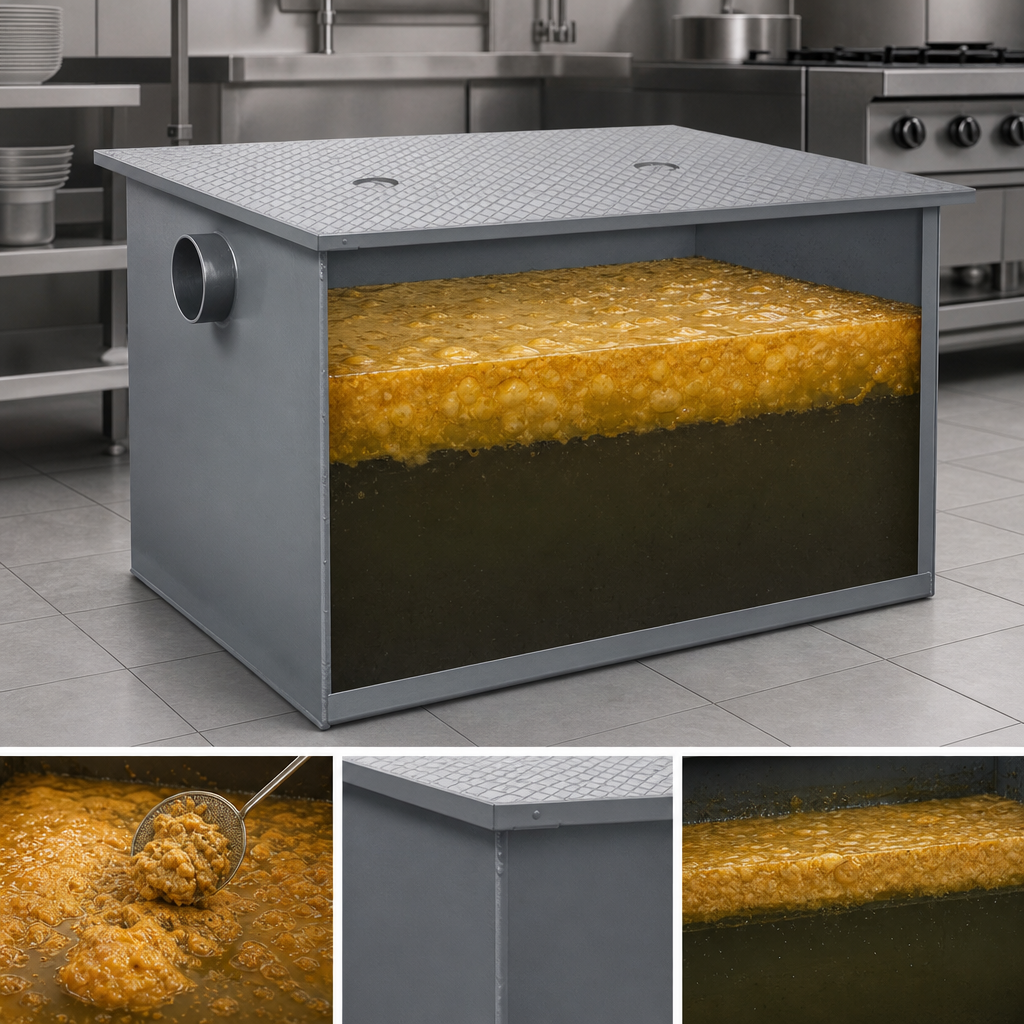

- Large 500 lb grease capacity minimizes pump-out frequency and service costs.
- Epoxy-coated steel construction resists corrosion and simplifies wash-down.
- Gasketed, skid-proof cover with hex-head center bolts ensures a tight, secure seal while remaining easy to remove for maintenance.
- Removable internal baffle for quick access and thorough cleaning.
- Double-wall deep-seal trap maintains a water barrier that prevents sewer gas escape.
- Integral 304 SS flow-control plate delivers proper velocity and separation efficiency without external orifices to clog or lose.
- 4" no-hub inlet & outlet for straightforward tie-in to standard cast-iron or PVC drainage lines.
- Ships ready to set – no field fabrication or coating required.
Technical Specifications
| Catalog Number | GI-250-K |
|---|---|
| Flow Rate | 250 GPM | 946 L / min |
| Grease Capacity | 500 lb | 227 kg |
| Inlet / Outlet Size | 4 in. (102 mm) no-hub |
| Overall Dimensions (L × W × H) | 52 in. × 34 in. × 46 in. (1321 × 864 × 1168 mm) * |
| Cover | Gasketed, skid-proof epoxy-coated steel w/ hex-head center bolts |
| Internal Components | Removable baffle, double-wall deep-seal trap, integral stainless-steel flow-control plate |
| Mounting | Floor mounted or recessed in slab |
| Material Finish | Factory-applied industrial epoxy (interior & exterior) |
* Dimensions are nominal and subject to manufacturing tolerances.
Factory Options (sold separately)
- -B Sediment bucket for high-solids waste streams
- -E Extension for flush-with-floor installation depths
- -FC Flange & clamping device for waterproof membrane tie-in
- -HD Heavy-duty traffic-rated cover (10,000 lb)
- -O Alternate inlet / outlet sizes
- -SS 100% stainless-steel body
- -THD Threaded connections
- -US Buy American compliant build
