Dormont Manufacturing GI-200-K Watts Grease Interceptors Grease Traps
Description

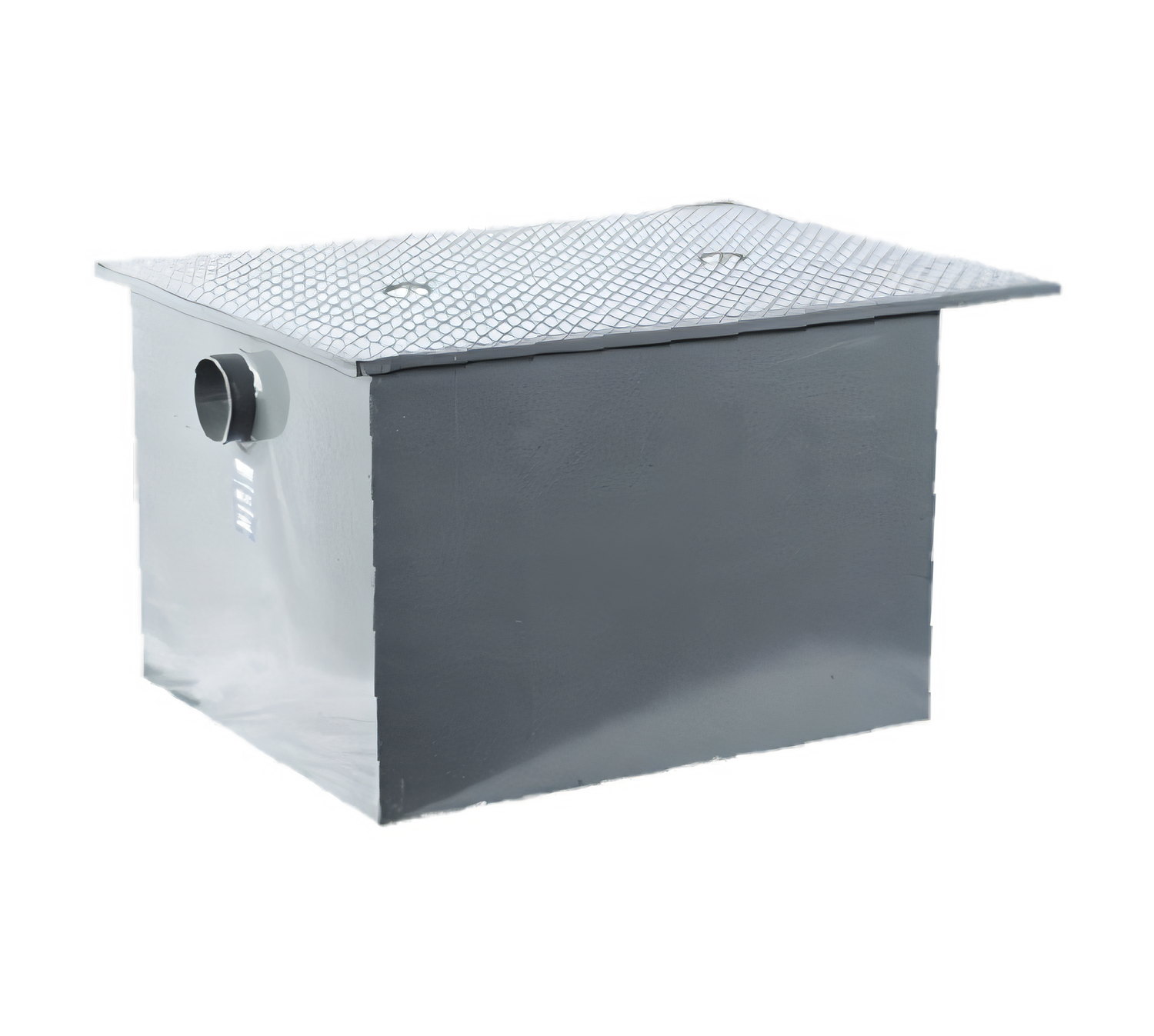

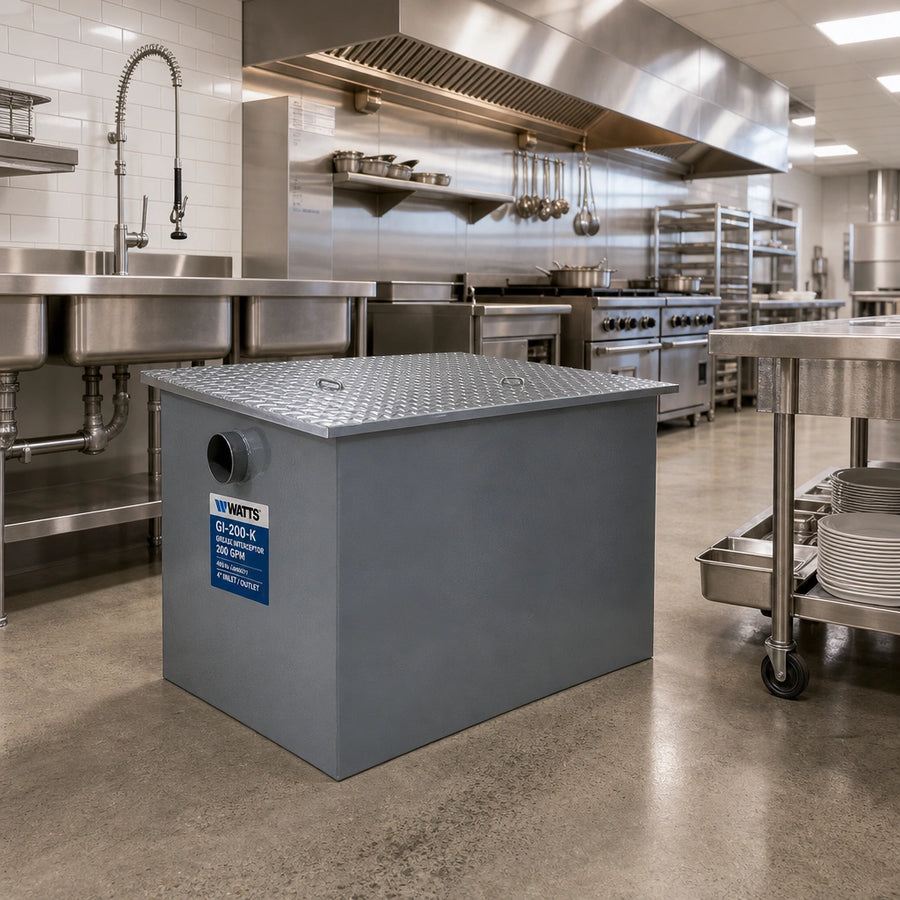

Watts GI-200-K Large-Capacity Grease Interceptor
200 GPM • 400 lb Grease Capacity • 4″ No-HubEngineered for high-volume commercial kitchens, the Watts GI-200-K grease interceptor captures fats, oils, and grease before they enter your drainage system—protecting piping, municipal sewers, and the environment. Its rugged, epoxy-coated steel tank, integral stainless-steel flow-control plate, and 400-lb holding capacity make it the ideal choice for restaurants, hotels, hospitals, and food-processing facilities that can’t afford downtime.
Key Features & Benefits

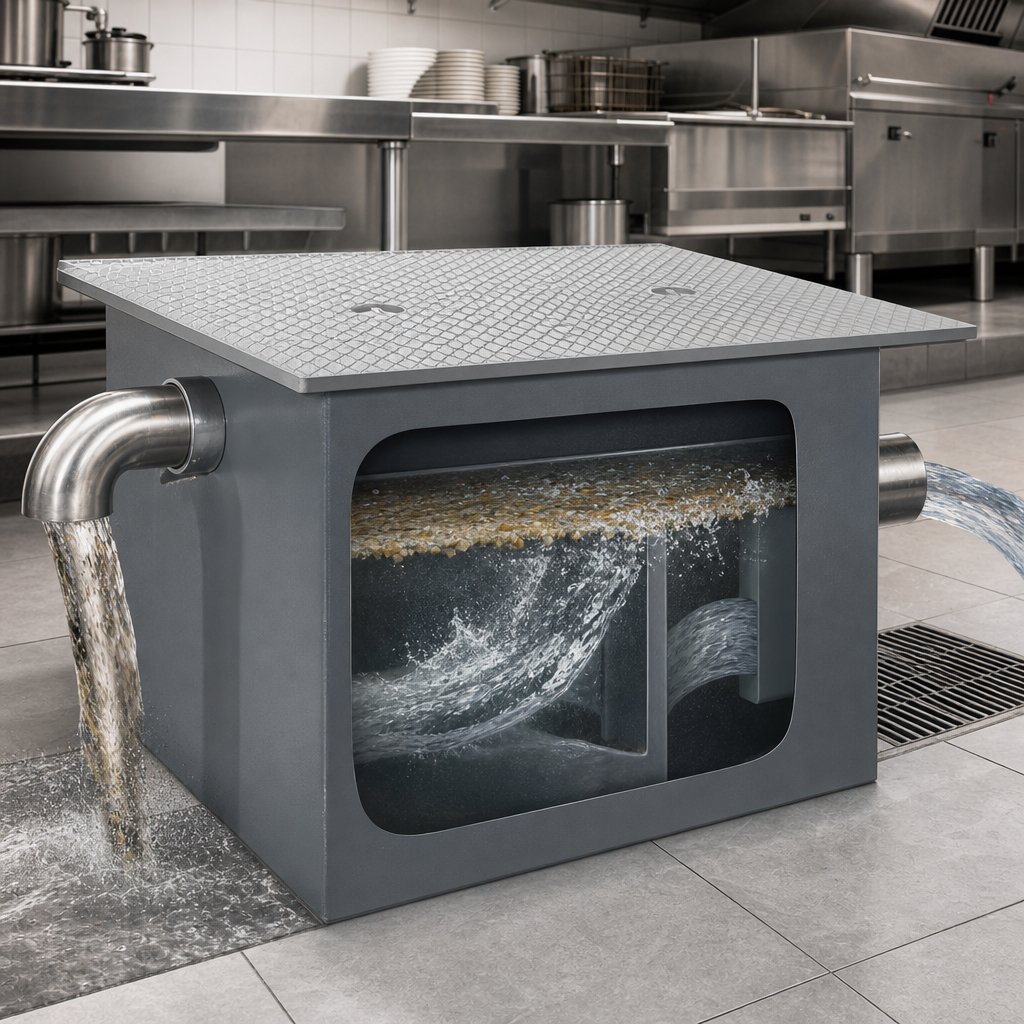

- 200 GPM rated flow handles peak discharges from multiple fixtures.

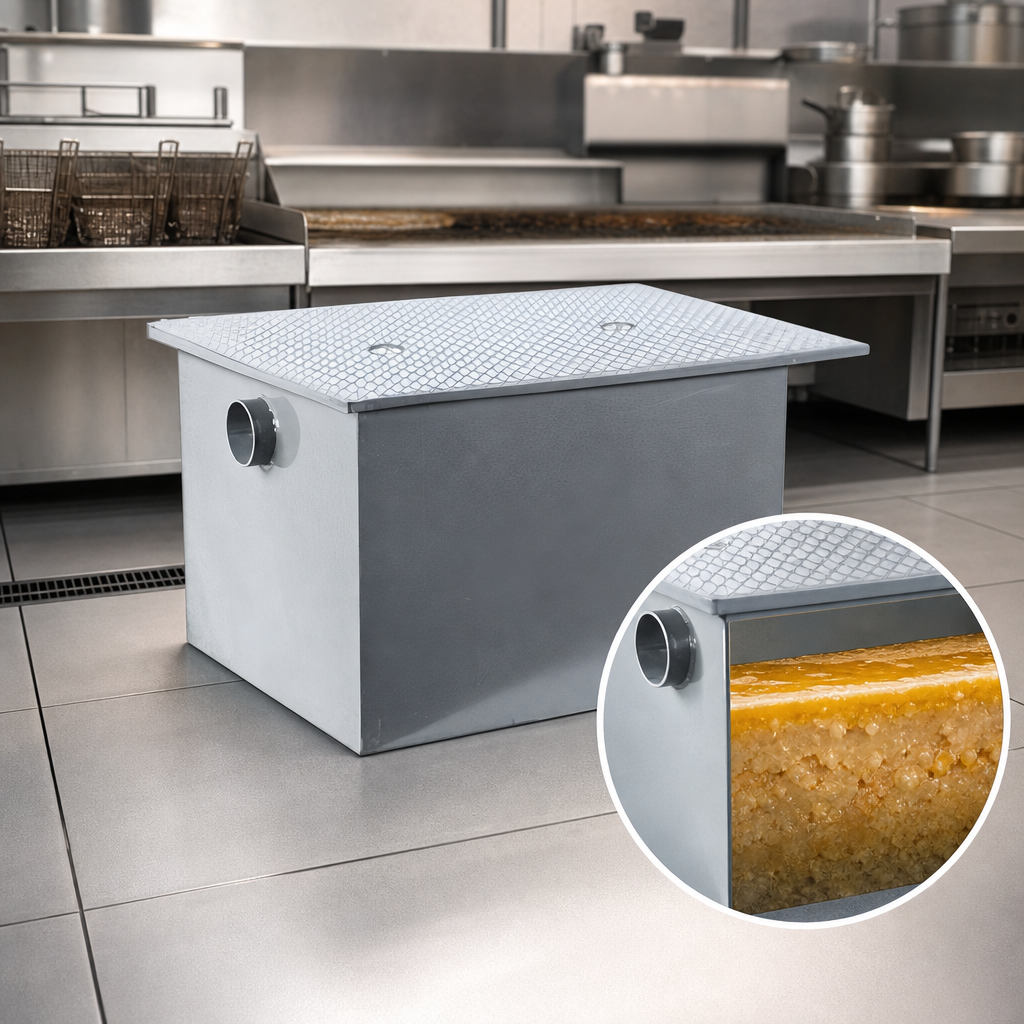

- 400 lb grease capacity extends pump-out intervals and reduces maintenance costs.
- Epoxy-coated steel tank resists corrosion and abrasion in demanding installations.
- Skid-proof, gasketed cover with hex-head center bolts provides a positive, leak-free seal.
- Integral stainless-steel flow-control plate maintains design flow for optimal separation efficiency.
- Double-wall deep-seal trap prevents grease and odor carry-over into the outlet line.
- Removable internal baffle speeds inspection and clean-out.
- 4″ no-hub inlet & outlet connect quickly to standard DWV piping—no special adapters required.
Technical Specifications
| Model | GI-200-K |
|---|---|
| Flow Rate | 200 GPM (12.6 L/s) |
| Grease Capacity | 400 lb (181 kg) |
| Inlet / Outlet Size | 4″ (102 mm) no-hub |
| Overall Length (D) | 52″ (1321 mm) |
| Overall Width (E) | 34″ (864 mm) |
| Overall Height (F) | 43″ (1092 mm) |
| Base to Inlet/Outlet Center (A) | 36-1/2″ (927 mm) |
| Top to Trap Center (B) | 6-1/2″ (165 mm) |
| Cover Type | Gasketed, skid-proof steel, secured with hex-head center bolts |
| Internal Components | Removable baffle & integral stainless-steel flow-control plate |
| Connections | No-hub (standard) |
| Construction | Epoxy-coated carbon steel |
Factory Options (quoted separately)
- -B Sediment bucket
- -E Riser extension for recessed installs
- -FC Flange & clamp device
- -HD 10,000 lb traffic-rated cover
- -O Alternate inlet/outlet sizes
- -SS Stainless-steel tank construction
- -THD Threaded connections
- -US Buy-American compliant
Always size grease interceptors based on local code and fixture load calculations. Service frequency will vary with usage; inspect periodically and pump out when 25 % of the rated capacity is reached.
