Dormont Manufacturing GI-150-K Watts Grease Interceptors Grease Traps
Description

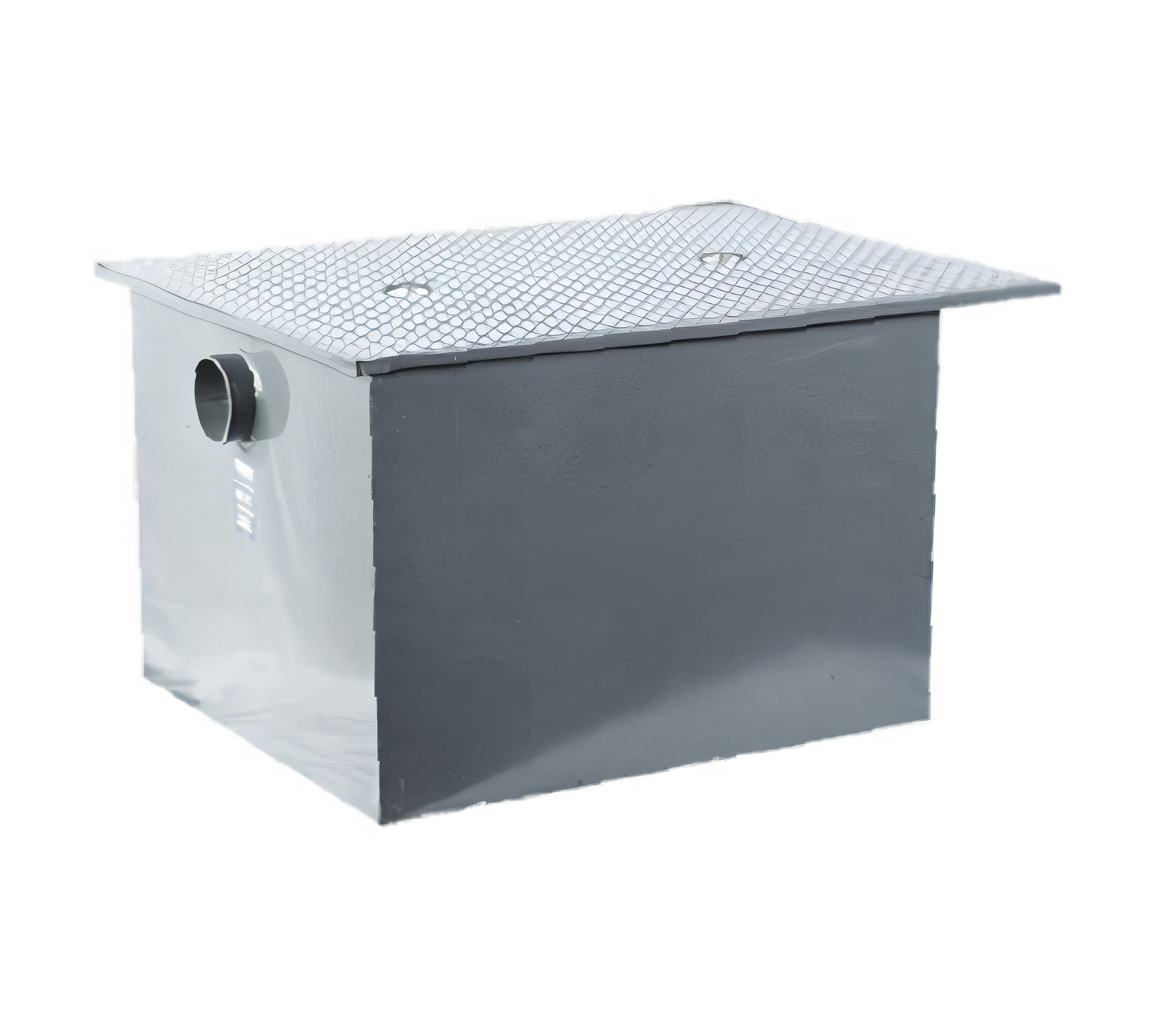

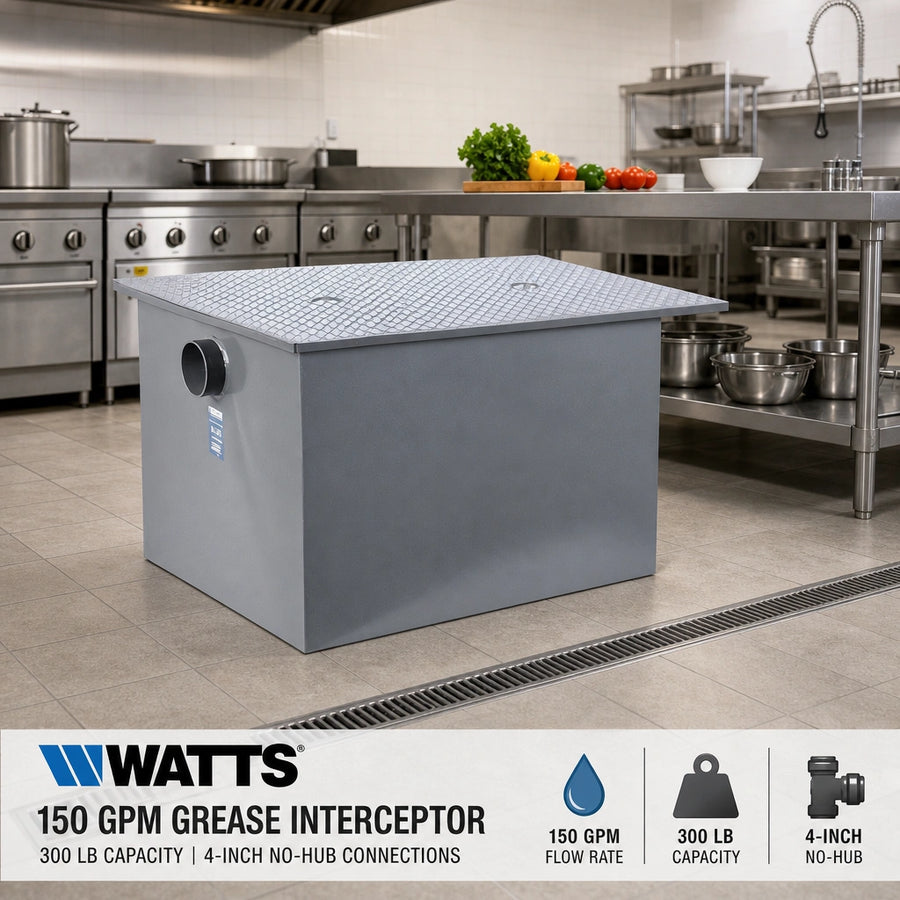

Watts GI-150-K Grease Interceptor – 150 GPM / 300 lb
Large-capacity recessed or floor-mounted steel interceptorProtect your drainage system and stay code-compliant in high-volume commercial kitchens. The Watts GI-150-K captures up to 300 lb of fats, oils & grease (FOG) at a tested flow rate of 150 gallons per minute—all inside a rugged, epoxy-coated steel tank engineered for easy cleaning and long service life.
Key Features

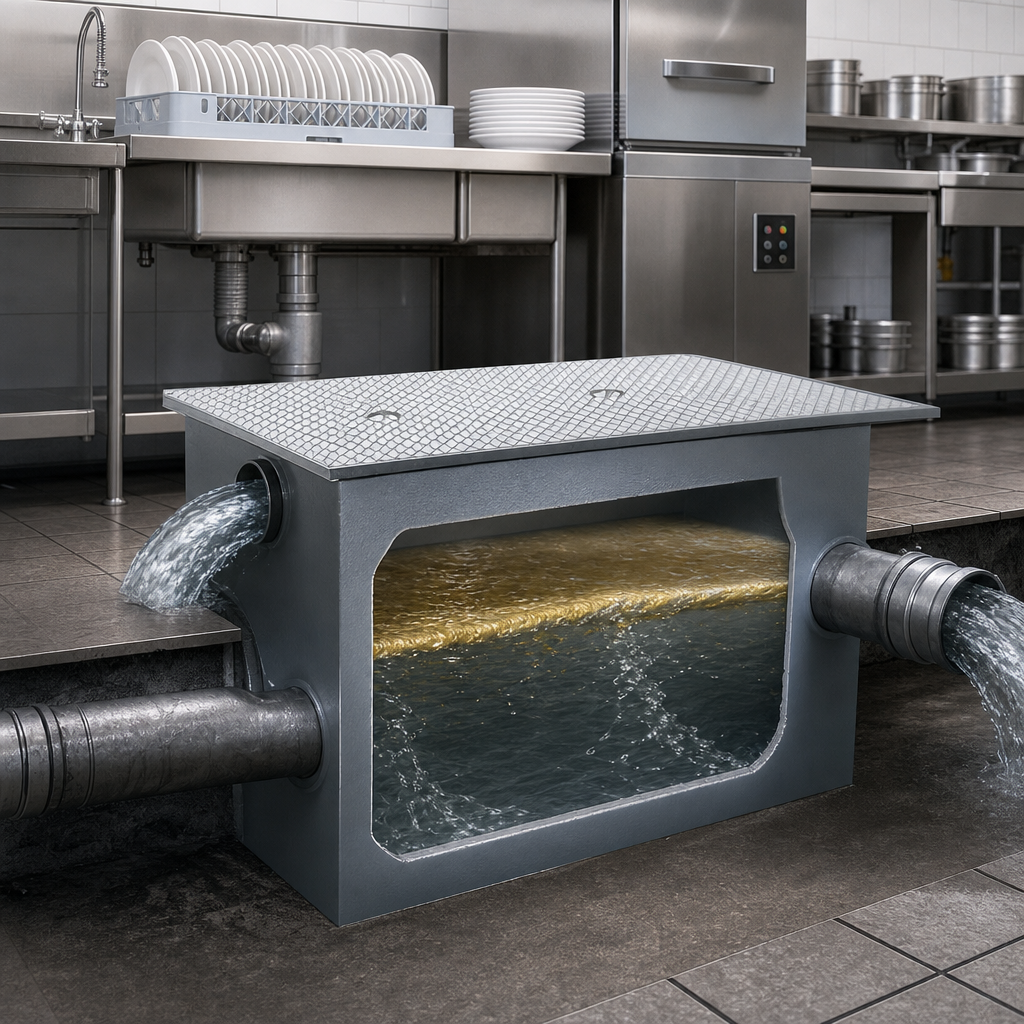

- Rated for 150 GPM continuous flow

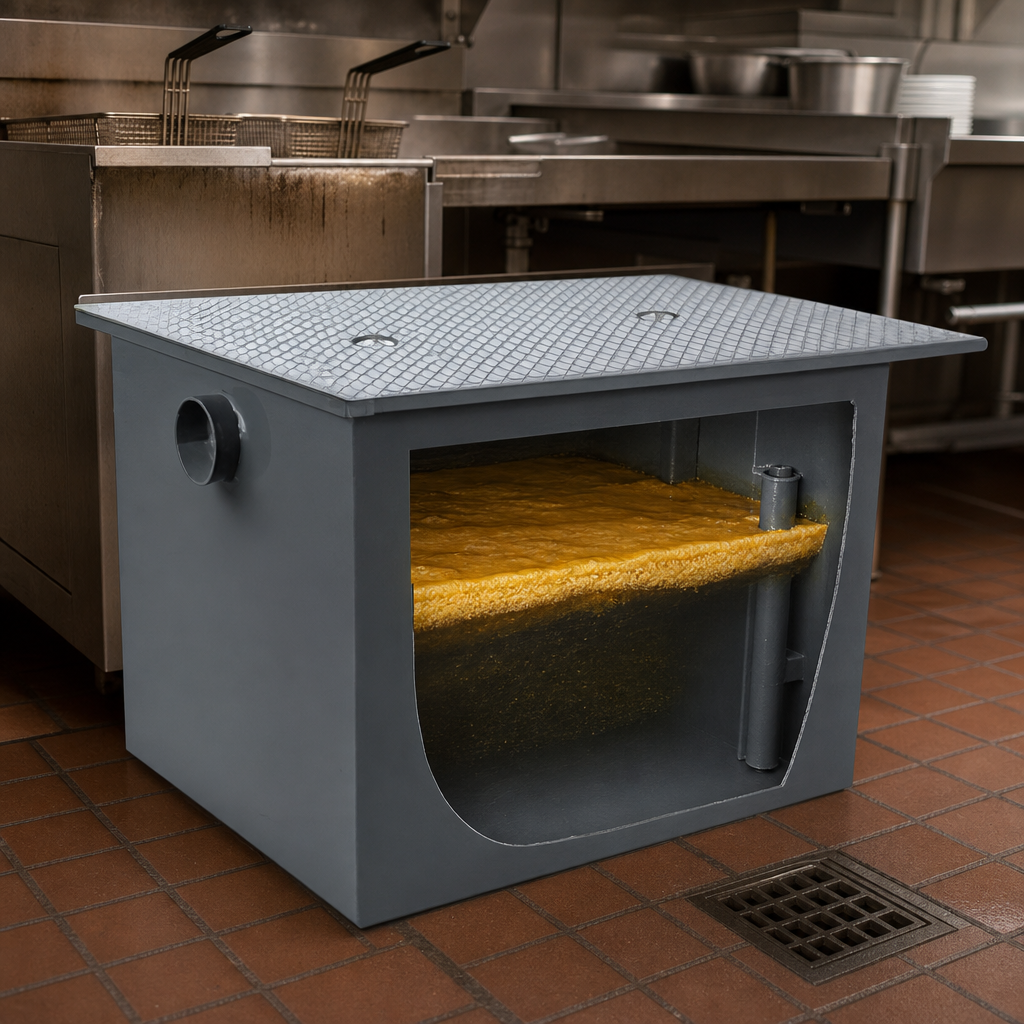

- 300 lb internal grease storage capacity
- Epoxy-coated steel tank resists corrosion & chemicals
- Skid-proof, gasketed cover secured with hex-head center bolts
- Integral stainless-steel flow control plate—no external air intake required
- Removable baffle for quick pump-out and full-access cleaning
- Double-wall deep-seal trap minimizes odors and prevents by-pass
- 4 in. no-hub inlet & outlet for straightforward pipe connection
- Versatile recessed or floor-mount installation
Specifications
| Model | GI-150-K |
|---|---|
| Flow rate | 150 GPM (567 L/min) |
| Grease capacity | 300 lb (136 kg) |
| Inlet / Outlet size | 4 in. (102 mm) – no-hub |
| Overall length (D) | 39 3⁄4 in. (1 010 mm) |
| Overall width (E) | 30 3⁄4 in. (781 mm) |
| Overall height (F) | 43 in. (1 092 mm) |
| Base to inlet center (A) | 38 1⁄2 in. (978 mm) |
| Top to outlet center (B) | 4 1⁄2 in. (114 mm) |
| Cover type | Epoxy-coated steel, skid-proof, gasketed |
| Internal components | Removable baffle & stainless-steel flow-control plate |
| Connection type | No-hub (standard) |
Installation & Available Options
- Suitable for recessed (in-floor) or on-floor placement
- Optional accessories (sold separately):
- Sediment bucket
- Extension collar for slab depth variations
- Flange & clamp device for water-proofing
- Heavy-duty 10,000 lb traffic cover
- Threaded connections or alternate pipe sizes
Dimensions are subject to manufacturing tolerances. Always verify local plumbing codes for proper sizing and installation requirements.
