Dormont Manufacturing  |  Watts Grease Interceptors  |  SKU: GI-100-K

Dormont Manufacturing GI-100-K Watts Grease Interceptors Grease Traps

$3,466.56
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet
Related Searches
Commercial Dishwashers Dish Room Equipment Grease Traps Grease Traps Restaurant Equipment Sanitizers & Cleaning

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

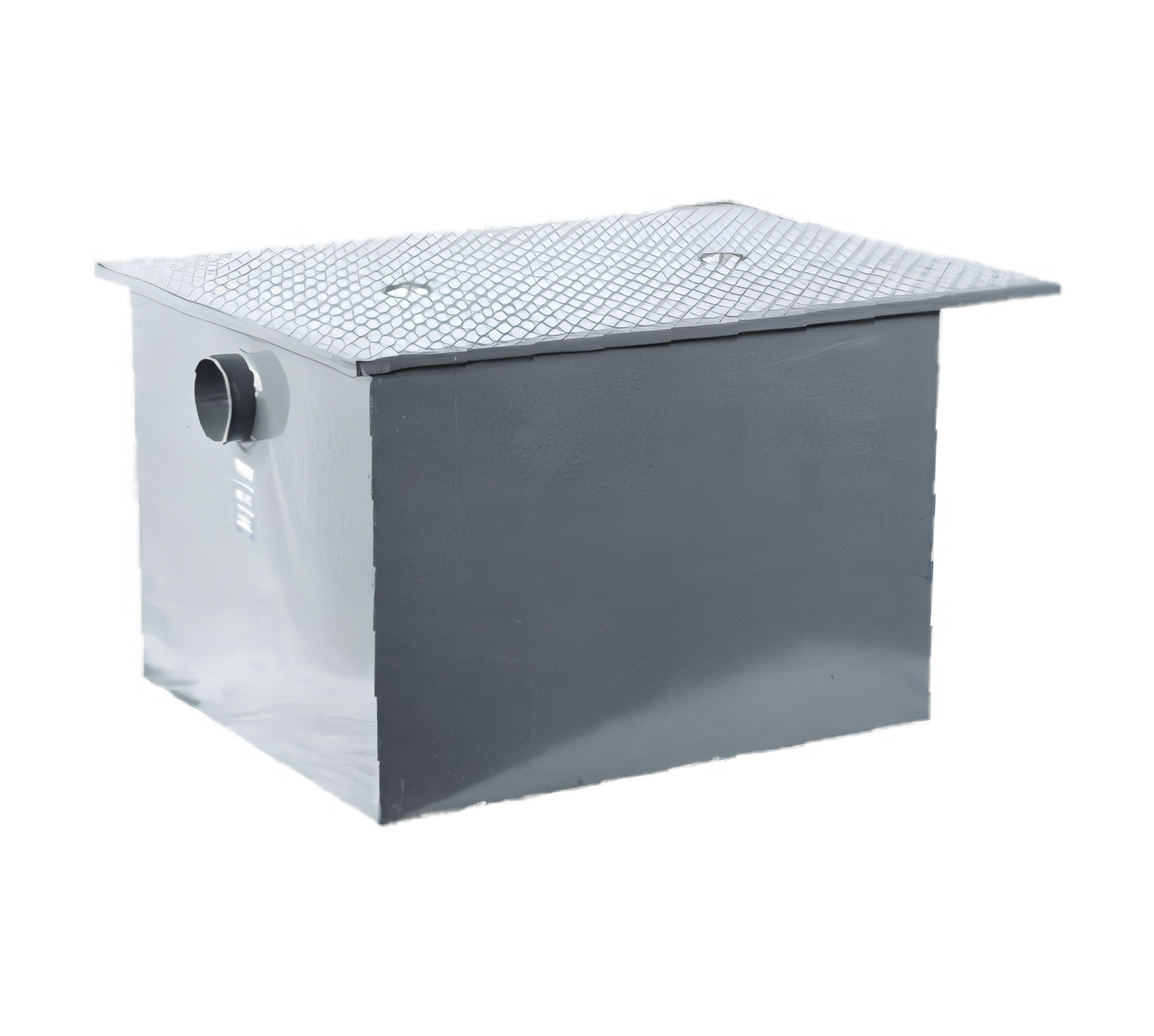

Watts GI-100-K Grease Interceptor

100 GPM flow • 200 lb grease capacity • 4" no-hub connections

Engineered for busy commercial kitchens, the Watts GI-100-K keeps fats, oils, and grease out of your plumbing while meeting the strictest local codes. Its rugged, epoxy-coated steel body withstands heavy daily use, and the built-in stainless-steel flow control plate delivers accurate, maintenance-free performance at up to 100 gallons per minute.

Why choose the GI-100-K

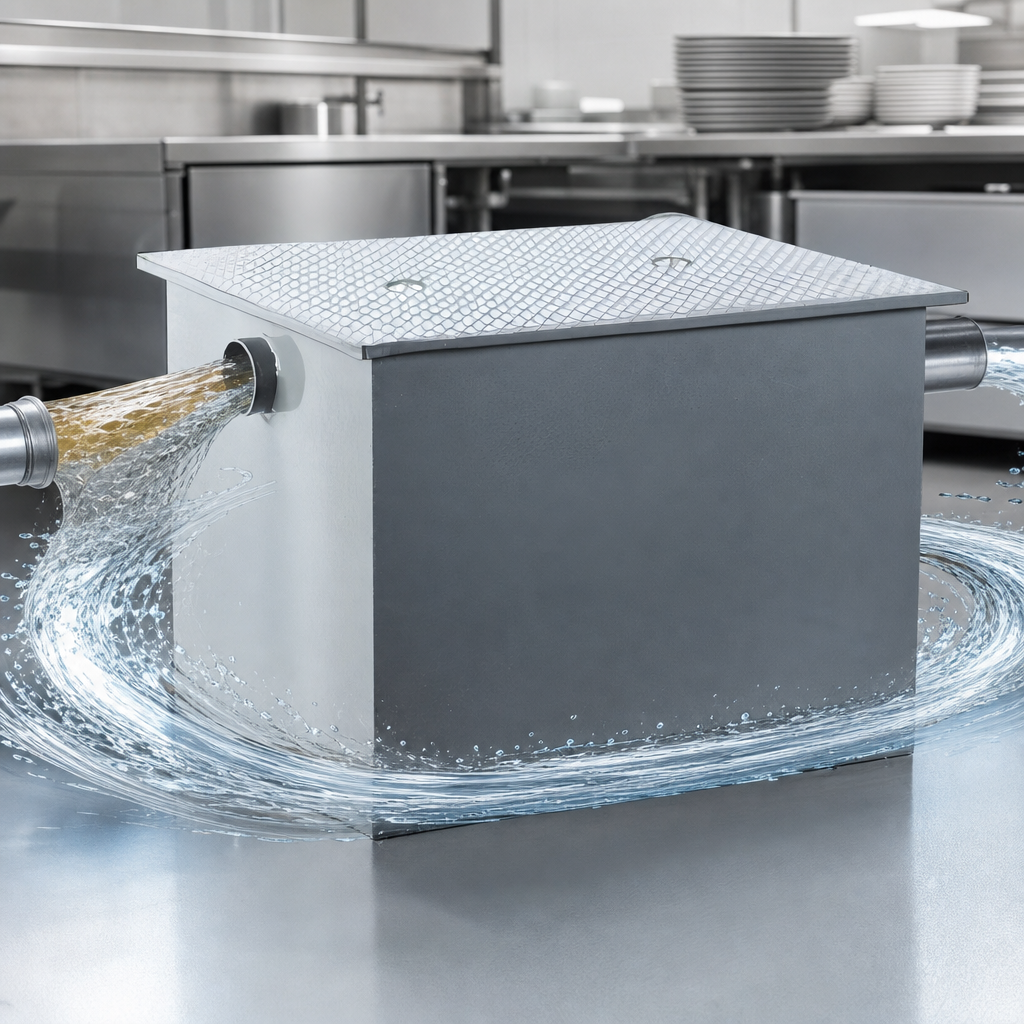

  • 100 GPM certified flow rate handles high-volume discharge lines

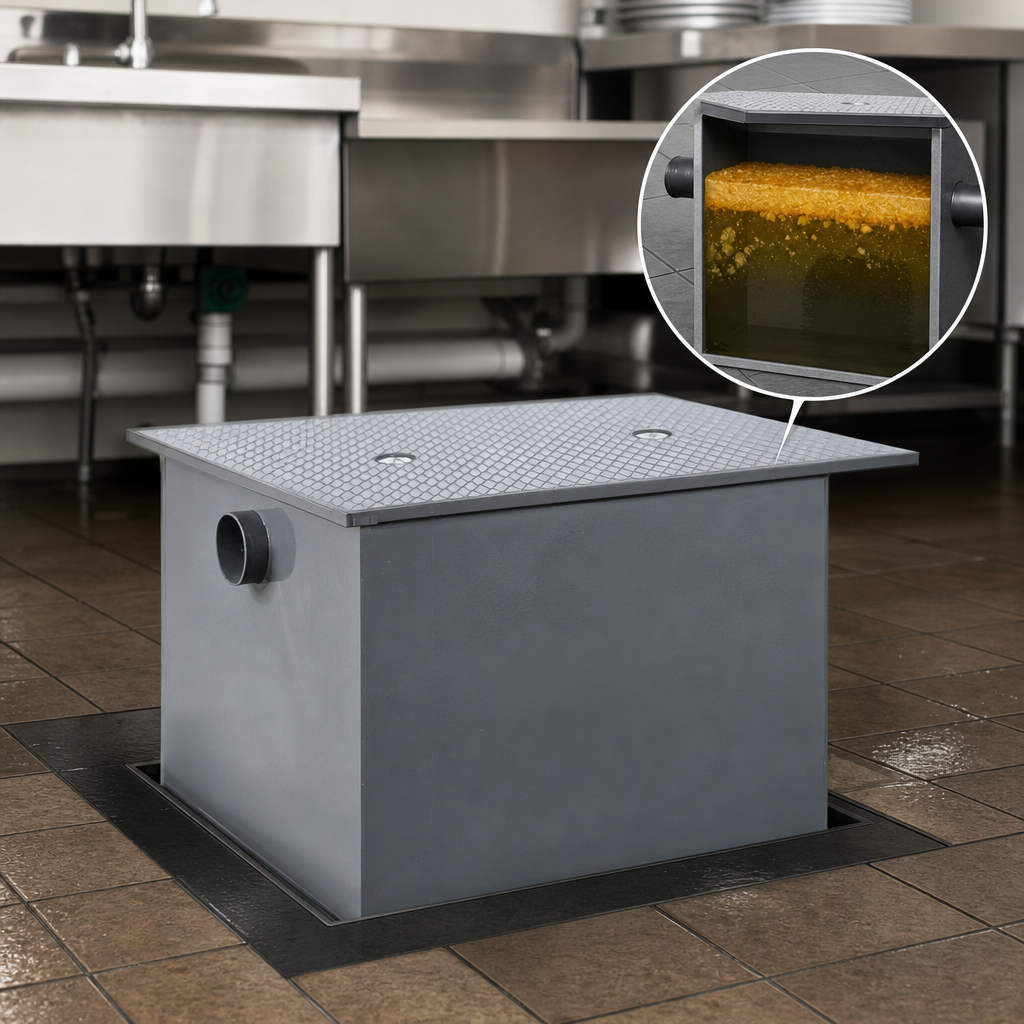

  • 200 lb grease holding capacity extends pump-out intervals
  • 4" inlet & outlet with no-hub connections for fast, leak-free installs
  • Skid-proof, gasketed cover secured by hex-head center bolts—no loose parts to misplace
  • Removable baffle and double-wall deep-seal trap for maximum separation efficiency
  • Integral stainless-steel flow-control plate—no external restrictor to install or maintain
  • Recessed or floor-mount design fits below work surfaces or flush in slab
  • Durable, shop-applied epoxy coating protects steel from corrosion inside and out

Ideal for

  • Full-service restaurants & cafeterias
  • Hotel, resort & casino kitchens
  • Hospitals, schools & institutional facilities
  • Supermarket food-prep areas

Technical Specifications

Model GI-100-K
Flow rate 100 GPM (6.3 L/s)
Grease capacity 200 lb (90 kg)
Inlet / outlet size 4" (102 mm) no-hub
Interceptor dimensions (L × W × H) 39 ¾" × 30 ¾" × 33"
Base-to-inlet centerline 28 ½"
Base-to-outlet centerline 28 ½"
Cover type Gasketed, skid-proof, hex-bolt secured
Baffle Removable, epoxy-coated steel
Trap Double-wall deep-seal
Finish Factory-applied epoxy (interior & exterior)
Compliance UPC / IPC, ASME A112.14.3 (Performance Type D)

Flow control plate is factory-installed inside the interceptor—no separate restrictor valve is supplied or required.

Important: Verify local code requirements prior to installation. Interceptor sizing and pump-out frequency may vary by jurisdiction and application.

Features & Specs

Manufacturer

Dormont Manufacturing

Brand_name

Watts Grease Interceptors

Height

33.0in

Width

39.75in

Depth

30.75in

Shipping Weight

200.0lbs

Flow Rate

100 GPM

Grease Capacity

150 - 499 lb

Draw-off

without

Specifications

Watts Grease Interceptor, 100 gallons per minute flow rate, 200 lb grease capacity, 4" inlet & outlet, no hub connections, skid-proof cover with gasket, hex head center bolt(s), removable baffle, double wall deep seal trap, integral stainless steel flow control
