Dormont FPMD75FFKITQ

Dormont FPMD75FFKITQ Gas Flow & Pressure Measurement System, Bluetooth, 3/4-Inch NPT Female, NG/LP

$372.08
/each
Ships in 4–7 business days
Measurement functions
Gas flow rate, gas flow capacity, and gas pressure
Gas calibration
Natural Gas (NG) and Propane (LPG)
Gas flow rate, NG
10 to 375 CFH
Gas flow rate, LPG
6 to 200 CFH
Gas flow capacity, NG
10,000 to 375,000 BTU/hr
Gas flow capacity, LPG
15,000 to 500,000 BTU/hr

Questions before you buy?

Talk to an equipment specialist — usually within 1 hour, 9am–6pm EST.

(888) 307-5030 Call Get custom quote

Specifications

Measurement functions Gas flow rate, gas flow capacity, and gas pressure
Gas calibration Natural Gas (NG) and Propane (LPG)
Gas flow rate, NG 10 to 375 CFH
Gas flow rate, LPG 6 to 200 CFH
Gas flow capacity, NG 10,000 to 375,000 BTU/hr
Gas flow capacity, LPG 15,000 to 500,000 BTU/hr
Gas pressure drop, NG 0.60 in. w.c. at 375,000 BTU/hr
Gas pressure drop, LPG 0.45 in. w.c. at 500,000 BTU/hr
Operating gas pressure 0 to 5 psi (0 to 344 mbar)
Connections 3/4-inch female NPT inlet and outlet
Wireless communication Bluetooth Low Energy
Mobile operating systems Android and iOS
Housing material Cast aluminum with black powder coat
End connection material Extruded aluminum with black anodized finish
Operating temperature with AC-DC power 32°F to 104°F (0°C to 40°C)
Operating temperature with battery pack 0°F to 130°F (-17.8°C to 54°C)
Operating humidity 20% to 80% non-condensing
Operating altitude -1,640 to 6,561 ft (-500 to 2,000 m)
Supply rating 6 to 12 VDC, 2 W
AC-DC power supply input 100–240 VAC, 50–60 Hz, 0.3 A
AC-DC power supply output 12 VDC, 1 A, 12 W
Battery pack Four AA alkaline-zinc/manganese dioxide batteries, 1.5 V each
Battery operation Approximately 230 hours of continuous operation
Included kit components SnapFast Quick Disconnect, shoulder nipples, AC-DC power supply, battery pack power supply with clip, four AA batteries, and hard case

Description

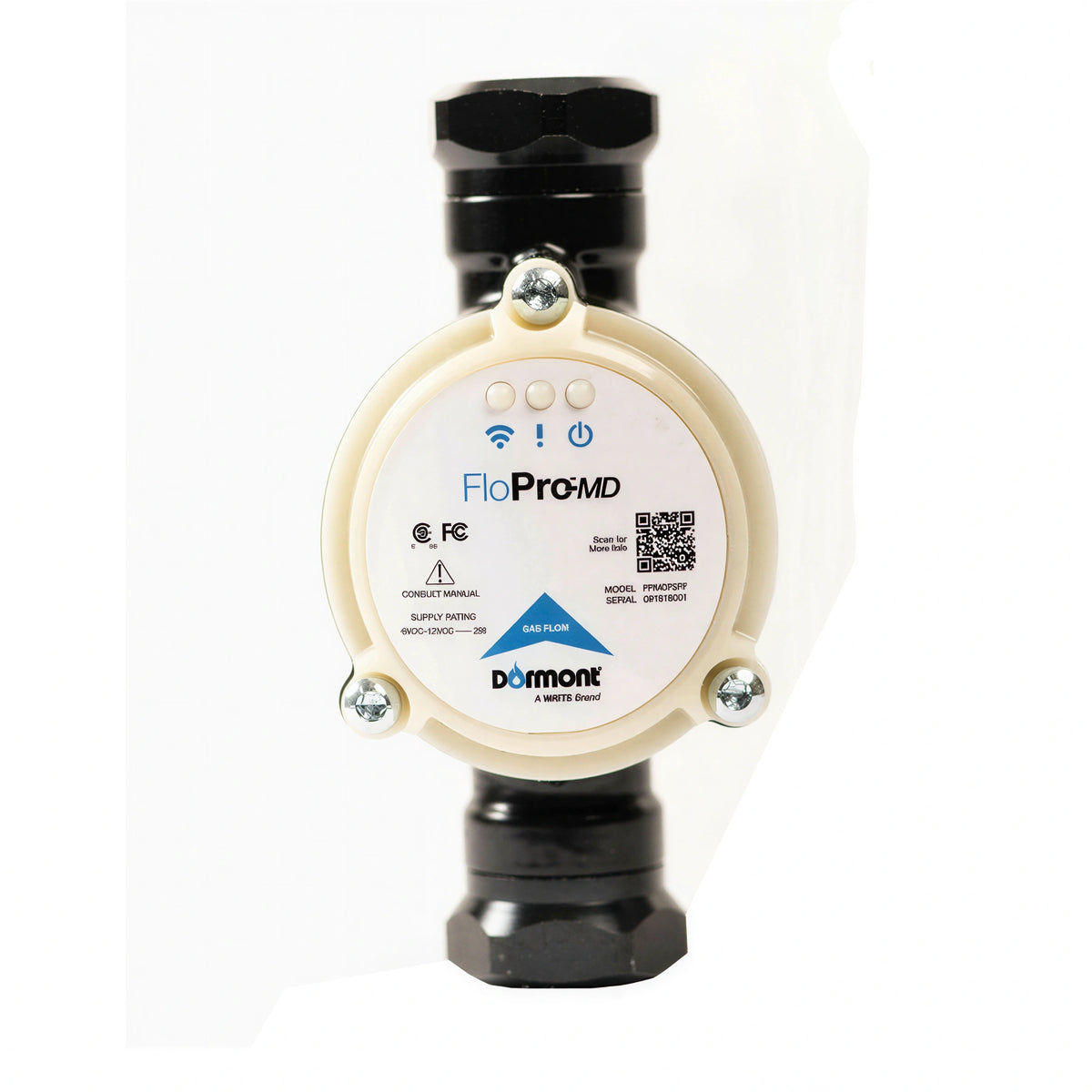

The Dormont FloPro™-MD gas flow and pressure measurement system supports equipment start-up, commissioning, service diagnostics, and routine maintenance for natural gas and propane applications.

It measures gas flow rate, gas flow capacity, and gas pressure, while Bluetooth Low Energy connectivity supports viewing and logging data through the FloPro-MD app on compatible Android and iOS devices.

  • 3/4-inch female NPT connections
  • SnapFast Quick Disconnect with shoulder nipples
  • AC-DC and battery pack power supplies included
  • Four AA batteries and a hard case included

Product Weight:

10.0 lb

Gas measurement

Measures gas flow rate, gas flow capacity, and gas pressure.

Bluetooth connectivity

Bluetooth Low Energy connectivity supports the FloPro-MD app on Android and iOS devices.

Data logging

Supports viewing and logging real-time and recorded pressure, flow, and BTU/hr data through a connected smart device.

SnapFast Quick Disconnect

The exact kit configuration includes a SnapFast Quick Disconnect and shoulder nipples.

Power options

Includes an AC-DC power supply, a battery pack power supply with clip, and four AA batteries.

Status indication

Annunciator LEDs communicate device status.

Aluminum construction

The system uses aluminum construction with a black finish.

Female NPT connections

Provides standard 3/4-inch female NPT connections.

Documentation

PDF Cutsheet PDF Download PDF Sell sheet PDF Download

Frequently Asked Questions

It supports Natural Gas (NG) and Propane/LPG applications at specified flow rates.
It measures gas flow rate in CFH, gas flow capacity in BTU/hr, and gas pressure in inches water column.
It uses Bluetooth Low Energy connectivity with the FloPro-MD app for Android and iOS devices.
It has 3/4-inch female NPT inlet and outlet connections and includes a SnapFast Quick Disconnect with shoulder nipples.
The kit includes an AC-DC power supply, a battery pack power supply with clip, and four AA batteries.
The Natural Gas flow range is 10 to 375 CFH.
The Propane flow range is 6 to 200 CFH.
