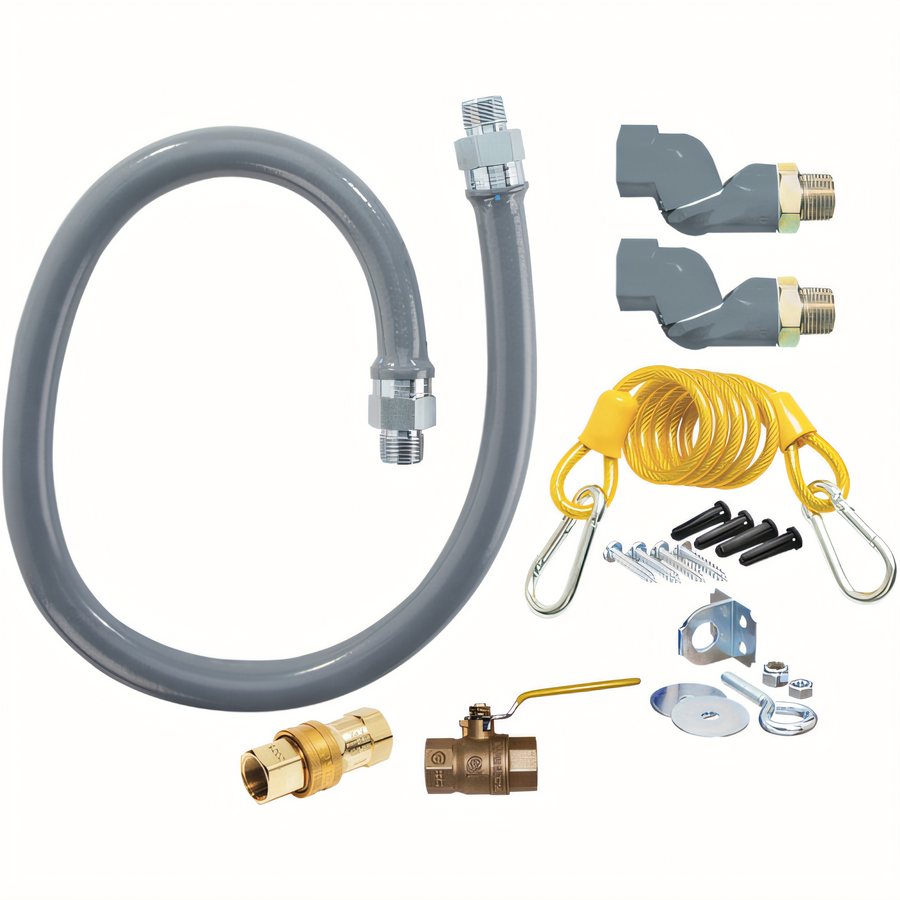

Dormont ReliaGuard 3/4-Inch ID x 48-Inch Double SwivelGuard Foodservice Gas Connector Kit

SKU: CANRG752S48
GTIN: 662447167847
$209.11
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont ReliaGuard 3/4-Inch ID x 48-Inch Double SwivelGuard Foodservice Gas Connector Kit

Canadian version with Standard Snap quick disconnect, restraining cable, and full-port valve

This moveable-grade gas connector kit combines 360° swivel protection, a thermal-shutoff quick disconnect, and a restraining device to help protect commercial cooking equipment in demanding kitchens.

  • 3/4-inch inside diameter and 48-inch length for moveable commercial gas equipment.
  • Double SwivelGuard fittings provide 360° rotational movement at both ends to reduce hose stress.
  • Standard Snap quick disconnect automatically shuts off gas when internal temperature exceeds 350°F.
  • 304 stainless steel tubing with stainless steel braid is protected by a gray PVC coating.
  • Includes a PVC-coated restraining cable and mounting hardware to help prevent strain transfer.
  • Rated at 160,000 BTU/hr natural gas flow capacity at a 0.5-inch W.C. pressure drop.
  • Backed by a limited 5-year warranty for Canada.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

6.95 lb

Double SwivelGuard Rotational End Fittings

360° rotational fittings at both ends help reduce stress on the connector and allow appliances to be positioned closer to the wall.

Standard Snap Quick Disconnect

Quick-disconnect assembly with a thermal shutoff that stops gas flow when internal temperatures exceed 350°F (177°C).

304 Stainless Steel Corrugated Tube

Heavy-duty corrugated tubing designed for flexibility and durability on moveable commercial gas equipment.

Stainless Steel Braid with Gray PVC Coating

Multi-strand stainless steel wire braid is covered with a gray PVC jacket that resists flame and protects the hose.

Restraining Cable and Hardware

PVC-coated steel multi-strand restraining device helps prevent transmission of strain to the connector.

Full-Port Brass Valve

The kit assembly includes a full-port brass valve for gas control.

Moveable Equipment Application

Engineered for caster-mounted or otherwise mobile commercial cooking equipment.

Natural Gas Flow Capacity

Rated for 160,000 BTU/hr at 0.5-inch W.C. pressure drop for the 3/4-inch I.D., 48-inch model.

Type Gas Connector Kit
Style Double SwivelGuard
Quick Disconnect Type Standard Snap
Inside Diameter 3/4 Inch
Length 48 Inches
Material 304 Stainless Steel
BTU 160,000 BTU/hr
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited 5-year warranty.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It has a 3/4-inch inside diameter and is 48 inches long.
Yes. It includes a Standard Snap quick-disconnect assembly.
Yes. The kit includes a PVC-coated restraining cable with mounting hardware.
SwivelGuard provides 360° rotational movement at both ends to reduce stress on the connector and improve installation flexibility.
The product is covered by a limited 5-year warranty for Canada.
The 3/4-inch I.D., 48-inch model is rated at 160,000 BTU/hr natural gas flow capacity at a 0.5-inch W.C. pressure drop.
