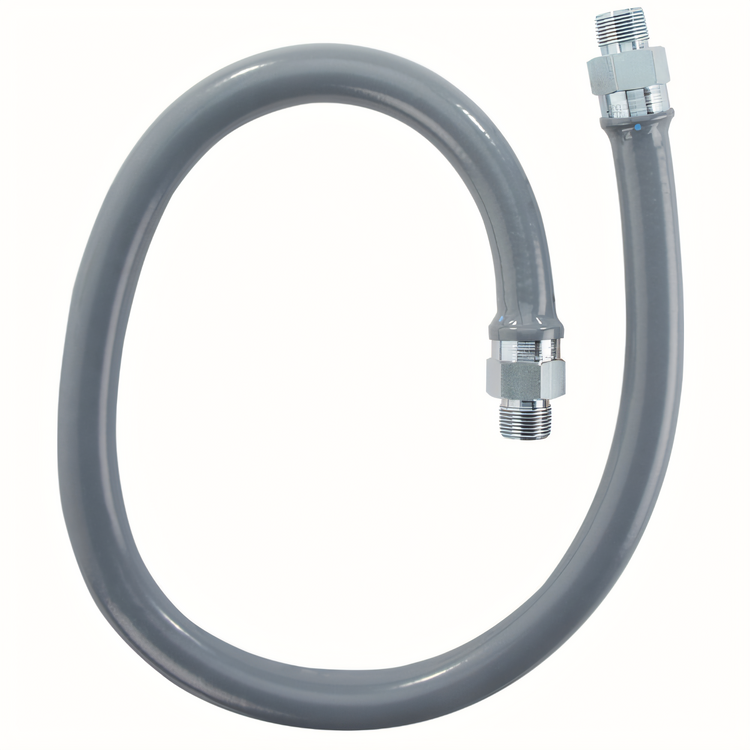

Dormont ReliaGuard 1-Inch ID x 36-Inch Commercial Gas Connector Hose with Standard Snap Quick Disconnect and Restraining Cable

Moveable-Grade, Gray PVC-Coated 304 Stainless Steel

Built for moveable commercial cooking equipment, this 1-inch x 36-inch ReliaGuard connector combines flexible stainless steel construction, PVC protection, and stress-reducing rotation technology.

  • 1-Inch ID x 36-Inch connector for moveable and caster-mounted commercial gas equipment
  • Corrugated 304 stainless steel tube with tight-weave stainless steel braid
  • Gray PVC coating is flame-resistant and helps protect the connector
  • 360° rotational end fittings help reduce stress at both hose ends
  • Includes standard snap quick disconnect plus coiled restraining cable with hardware
  • Limited 5-year warranty for Canada

Overall Dimensions:

5.0"W x 1.88"D x 40.0"H

Product Weight:

3.43 lb

Moveable-Grade Design

Built for commercial gas equipment that is moved regularly for cleaning, service, or repositioning.

1-Inch ID x 36-Inch Length

Sized for the specific connector configuration listed for this model.

304 Stainless Steel Tubing

Corrugated, annealed tubing provides flexibility, durability, and corrosion resistance.

Stainless Steel Braid

Multi-strand braid helps keep corrugations from stretching as equipment moves.

Gray PVC Coating

Flame-resistant coating helps protect the connector and will not hold a flame.

360° Rotational End Fittings

Rotating end fittings reduce stress at both ends of the hose.

Standard Snap Quick Disconnect

Included quick disconnect fitting helps simplify connection and disconnection during service.

Coiled Restraining Cable with Hardware

Included restraining cable helps prevent strain transfer to the connector on moveable equipment.

Type Gas Connector Hose
Style Moveable-Grade
Length 36 Inches
Gas Connection Size 1 Inch
Material 304 Stainless Steel
Finish PVC-Coated
Color Gray
BTU 512,000 BTU/hr
Gas Type Natural Gas
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited 5-year warranty.

Documents

PDF Cutsheet PDF Download PDF Brochure PDF Download

Frequently Asked Questions

It is 1 inch inside diameter and 36 inches long.
It uses corrugated 304 stainless steel tubing with a stainless steel braid and a gray PVC coating.
Yes. The documentation states that a restraining device is required for caster-mounted moveable gas equipment.
For natural gas, the 1-inch x 36-inch model is rated up to 512,000 BTU/hr at a 0.5 inch W.C. pressure drop.
No. It is for indoor use only and should not be used in temperatures below 32°F (0°C).
It carries a limited 5-year warranty from original installation for Canada.
