Dormont Blue Hose 48-Inch 3/4-Inch I.D. Stainless Steel Moveable Gas Connector Kit with Excess Flow Valve

SKU: CAN1675KITS48EFV
GTIN: 662447301067
$462.43
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 48-Inch 3/4-Inch I.D. Stainless Steel Moveable Gas Connector Kit with Excess Flow Valve

Canadian model with quick disconnect, Swivel Max 360, and restraining cable

Built for safer appliance hookups, this 48-inch connector kit combines excess flow protection, a quick disconnect, and a 360° swivel device in one durable stainless steel assembly.

  • 48-inch gas connector kit with 3/4-inch inside diameter for moveable appliance connections.
  • Excess flow valve helps limit gas flow if the connector is disconnected or ruptured.
  • 304 stainless steel corrugated tube is covered with a tight-weave stainless steel braid and antimicrobial PVC coating.

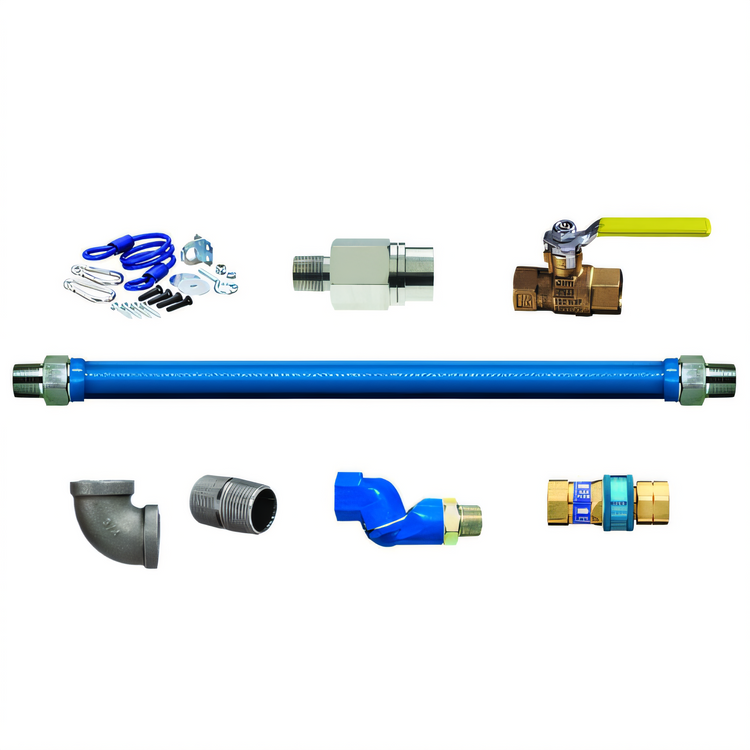

  • Includes a SnapFast push-to-connect quick disconnect, Swivel Max 360 rotational device, full-port shutoff valve, street elbows, nipple, and coiled restraining cable with hardware.
  • Rated for up to 167,000 BTU/hr flow capacity and reliable performance up to 350°F.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

7.86 lb

Excess Flow Valve Safety Technology

Helps protect against hazardous gas leaks by limiting flow if the connector is disconnected or ruptured.

304 Stainless Steel Corrugated Tube

Durable corrugated construction with a tight-weave stainless steel braid for added strength.

Antimicrobial PVC Coating

Protective exterior coating helps support durability and easier cleaning.

Bidirectional Installation

Designed for installation in either direction with a consistent trip rate.

360° Multi-Plane Rotation

Swivel Max device provides flexible positioning during installation and appliance movement.

High Flow Capacity

Supports up to 167,000 BTU/hr flow capacity.

High-Temperature Performance

Reliable performance up to 350°F.

Type Gas Connector Kit
Style Moveable
Length 48 Inches
Inside Diameter 3/4 Inch
Material Stainless Steel
Finish Antimicrobial PVC Coating
BTU 167,000 BTU/hr
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 7.86 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Lifetime limited warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 3/4-inch inside diameter and is 48 inches long.
It helps limit gas flow if the connector is disconnected or ruptured, reducing leak risk.
The kit includes an excess flow valve, SnapFast push-to-connect quick disconnect, Swivel Max 360 rotational device, full-port shutoff valve, street elbows, a nipple, and a coiled restraining cable with hardware.
The kit is rated for up to 167,000 BTU/hr flow capacity.
Yes, it carries a lifetime limited warranty.
