Dormont Blue Hose 3/4-Inch ID x 36-Inch Moveable Gas Connector Kit with Excess Flow Valve and Restraining Device

SKU: CAN1675KITS36EFV
GTIN: 662447301036
$454.04
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 3/4-Inch ID x 36-Inch Moveable Gas Connector Kit with Excess Flow Valve and Restraining Device

304 stainless steel corrugated tube, antimicrobial PVC coating, 203,000 BTU/hr flow capacity

This all-in-one gas connector kit adds excess-flow safety and the connection hardware needed for a secure commercial kitchen installation.

  • Integrated excess flow valve helps limit gas flow if the connector is disconnected or ruptured.

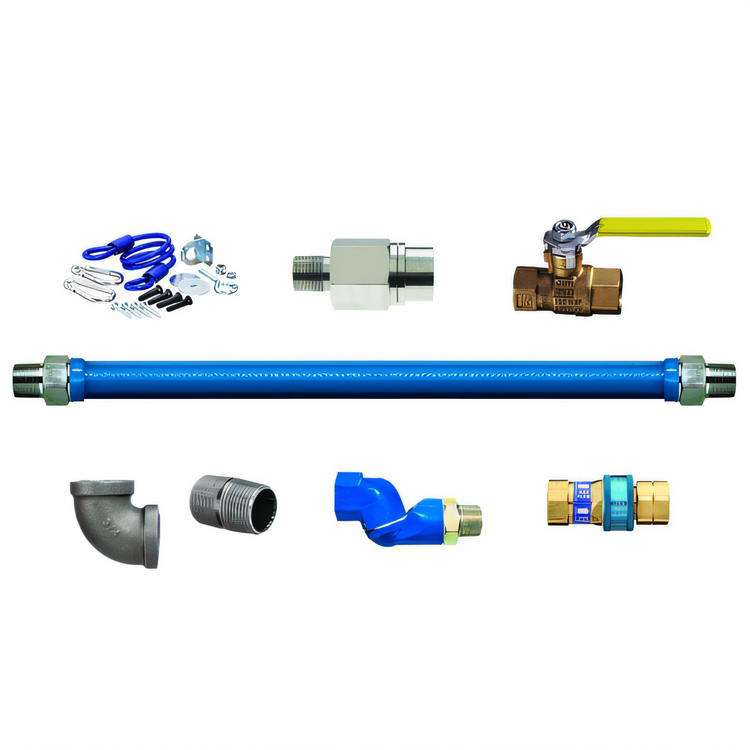

  • Includes a full port shutoff valve, SnapFast push-to-connect quick disconnect, Swivel Max 360 rotational device, elbows, nipple, and restraining cable with hardware.
  • 304 stainless steel corrugated tube with tight-weave stainless steel braid for durable gas connection service.
  • Antimicrobial PVC coating adds an extra protective layer to the hose assembly.
  • Bidirectional installation with a consistent trip rate for flexible setup.
  • Rated for reliable performance up to 350°F with 203,000 BTU/hr flow capacity.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

7.17 lb

Excess Flow Valve Safety Technology

Automatically limits gas flow if the connector is disconnected or ruptured to help reduce the risk of hazardous leaks.

Bidirectional Installation

Can be installed in either direction with a consistent trip rate.

304 Stainless Steel Corrugated Tube

Durable corrugated stainless steel construction with a tight-weave stainless steel braid.

Antimicrobial PVC Coating

Protective outer coating helps add durability to the hose assembly.

Complete Connection Kit

Includes an excess flow valve, full port shutoff valve, SnapFast quick disconnect, Swivel Max 360 device, street elbows, nipple, and restraining cable with hardware.

High Flow Capacity

Designed for 203,000 BTU/hr flow capacity.

Lifetime Limited Warranty

Backed by a lifetime limited warranty.

Type Gas Connector Kit
Style Moveable
Material 304 Stainless Steel
Finish Antimicrobial PVC Coating
Inside Diameter 3/4 Inch
Length 36 Inches
BTU 203,000 BTU/hr
Selling Unit Each
Units Per Case 1

Warranty & Protection

Lifetime limited warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Each box includes an excess flow valve, full port shutoff valve, F x F elbows and pipe nipples, restraining device, Blue Hose gas connector, SnapFast quick disconnect, Swivel Max, and 90° street elbows.
It instantly limits gas flow if the connector is disconnected or ruptured, helping reduce the risk of gas leaks.
Yes. The excess flow valve supports bidirectional installation with a consistent trip rate.
The hose uses a 304 stainless steel corrugated tube covered with a tight-weave stainless steel braid and an antimicrobial PVC coating.
The kit is rated for 203,000 BTU/hr flow capacity.
It comes with a lifetime limited warranty.
