Dormont Manufacturing

Dormont Blue Hose 48-Inch Moveable Gas Connector Kit with Excess Flow Valve, 3/4-Inch I.D.

SKU: CAN1675KIT48EFV
GTIN: 662447301050
$389.12
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose 48-Inch Moveable Gas Connector Kit with Excess Flow Valve, 3/4-Inch I.D.

304 Stainless Steel Construction, Antimicrobial PVC Coating, Includes Quick Disconnect and Restraining Cable

Give commercial gas equipment a safer, more flexible connection with a 48-inch stainless steel Blue Hose kit that helps limit gas flow fast if a line is disconnected or ruptured.

  • Excess Flow Valve safety technology helps limit gas flow if the connector is disconnected or ruptured.
  • 48-inch moveable gas connector kit with 3/4-inch inside diameter for flexible equipment placement.
  • 304 stainless steel corrugated tube with tight-weave stainless steel braid and antimicrobial PVC coating.
  • Includes full port shutoff valve, SnapFast push-to-connect quick disconnect, street elbows, nipples, and a coiled restraining cable with hardware.
  • Rated for up to 180,000 BTU/hr flow capacity.
  • Reliable performance up to 350°F and backed by a lifetime limited warranty.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

7.71 lb

Excess Flow Valve Safety Technology

Helps instantly limit gas flow if the connector is disconnected or ruptured to reduce leak risk.

Bidirectional Installation

Can be installed in either direction with a consistent trip rate.

304 Stainless Steel Corrugated Tube

Durable stainless steel corrugated construction with a tight-weave stainless steel braid.

Antimicrobial PVC Coating

Protective outer coating designed to add an antimicrobial surface.

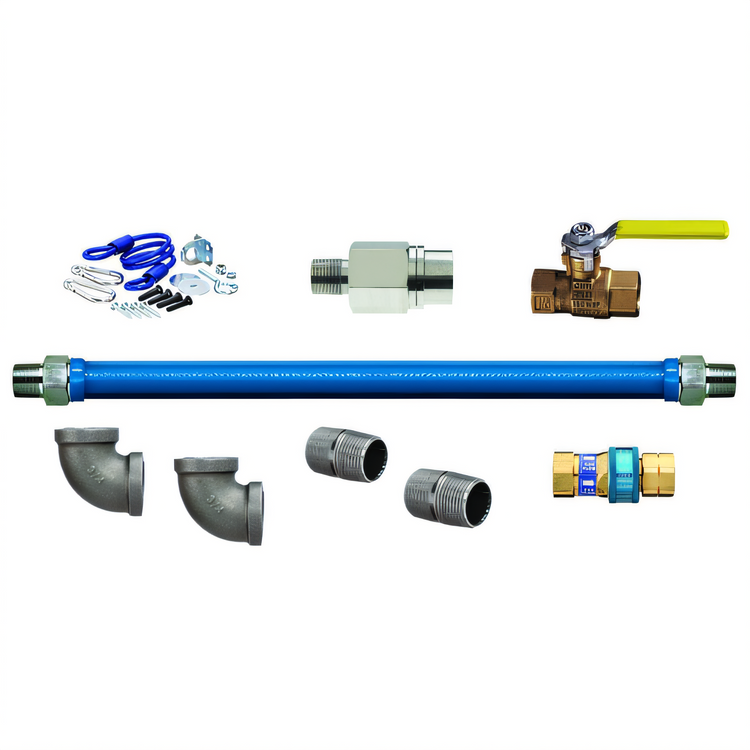

Complete Kit Components

Includes excess flow valve, full port shutoff valve, SnapFast quick disconnect, street elbows, nipples, and a coiled restraining cable with hardware.

High Flow Capacity

Rated for 180,000 BTU/hr flow capacity.

High Temperature Performance

Reliable performance up to 350°F.

Lifetime Limited Warranty

Backed by a lifetime limited warranty.

Type Gas Connector Kit
Style Moveable
Material 304 Stainless Steel
Finish Antimicrobial PVC Coating
Inside Diameter 3/4 Inches
Length 48 Inches
BTU 180,000 BTU/hr
Selling Unit Each
Units Per Case 1
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 7.71 Pounds

Warranty & Protection

Lifetime limited warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It limits gas flow if the connector is disconnected or ruptured, helping reduce the risk of a hazardous gas leak.
Each kit includes an excess flow valve, full port shutoff valve, SnapFast push-to-connect quick disconnect, street elbows, nipples, and a coiled restraining cable with hardware.
The hose uses a 304 stainless steel corrugated tube covered with a tight-weave stainless steel braid and antimicrobial PVC coating.
This model is 48 inches long, has a 3/4-inch inside diameter, and is rated for up to 180,000 BTU/hr.
Yes, the product is backed by a lifetime limited warranty.
