Dormont Blue Hose 3/4 Inch I.D. x 36 Inch Moveable Gas Connector Kit with Excess Flow Valve

304 Stainless Steel, Antimicrobial PVC Coating, with Restraining Device

Built for safer commercial kitchen hookups, this Blue Hose kit combines excess flow protection, a quick disconnect, and a restraining cable in a durable stainless steel assembly.

  • 3/4 inch I.D. and 36-inch length for moveable gas appliance connections.
  • Excess Flow Valve helps limit gas flow if the connector is disconnected or ruptured.
  • 304 stainless steel corrugated tube with tight-weave stainless steel braid and antimicrobial PVC coating.
  • Includes quick disconnect, full port valve, elbows, nipples, and a coiled restraining cable with hardware.
  • Rated for 218,000 BTU/hr flow capacity and performance up to 350°F.
  • Backed by a lifetime limited warranty.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

7.02 lb

Excess Flow Valve Safety Technology

Instantly limits gas flow if the connector is disconnected or ruptured to help reduce leak risk.

Bidirectional Installation

Designed for installation in either direction with a consistent trip rate.

304 Stainless Steel Construction

Uses a 304 stainless steel corrugated tube covered with a tight-weave stainless steel braid.

Antimicrobial PVC Coating

Adds a protective outer coating to the hose assembly.

Included Components

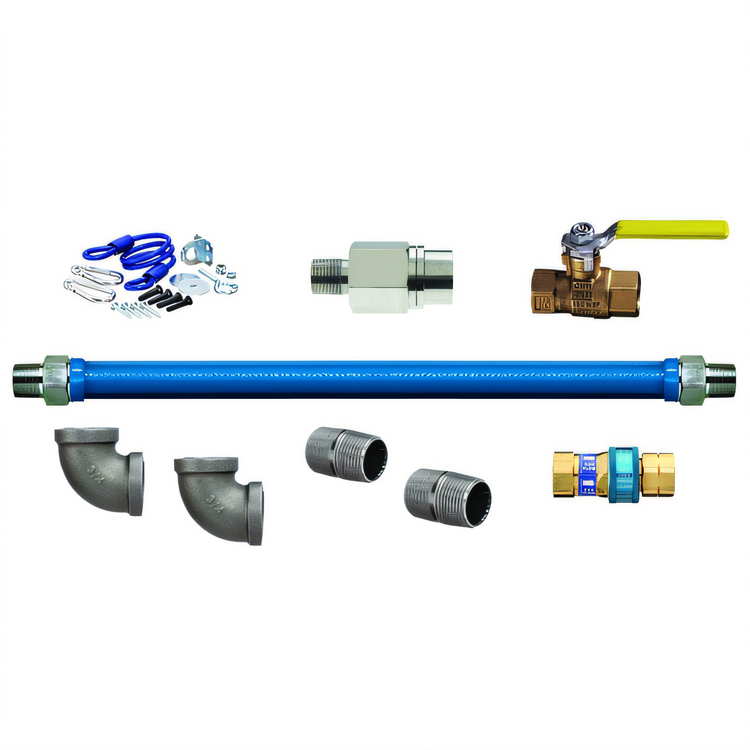

Includes an excess flow valve, SnapFast push-to-connect quick disconnect, full port valve, two street elbows, two nipples, and a coiled restraining cable with hardware.

High Flow Capacity

Provides 218,000 BTU/hr flow capacity.

Heat Resistance

Reliable performance up to 350°F.

Lifetime Limited Warranty

Covered by a lifetime limited warranty.

Type Gas Connector Kit
Style Moveable
Gas Connection Size 3/4 Inch
Length 36 Inches
Material 304 Stainless Steel
Finish Antimicrobial PVC Coating
BTU 218,000 BTU/hr
Temperature Range Up to 350° F
Selling Unit Each
Units Per Case 1

Warranty & Protection

Lifetime limited warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes an Excess Flow Valve that limits gas flow if the connector is disconnected or ruptured.
Yes. The EFV is designed for bidirectional installation with a consistent trip rate.
The kit includes an excess flow valve, SnapFast push-to-connect quick disconnect, full port valve, two street elbows, two nipples, and a coiled restraining cable with hardware.
It uses a 304 stainless steel corrugated tube with a tight-weave stainless steel braid and antimicrobial PVC coating.
The kit is rated for 218,000 BTU/hr flow capacity and reliable performance up to 350°F.
