Dormont Blue Hose Moveable Gas Connector Kit with Excess Flow Valve, 3/4 Inch I.D. x 36 Inch Length

SKU: CAN1675KIT2S36EFV
GTIN: 662447301043
$527.34
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose Moveable Gas Connector Kit with Excess Flow Valve, 3/4 Inch I.D. x 36 Inch Length

Stainless steel braid, antimicrobial PVC coating, quick disconnect, and restraining cable included.

Help reduce gas leak risk with an EFV-equipped connector kit built from durable stainless steel and supplied with a complete quick-disconnect and restraining setup.

  • Moveable gas connector kit for commercial gas equipment hookups.
  • Excess flow valve helps limit gas flow if the connector is disconnected or ruptured.
  • 3/4 inch inside diameter and 36 inch length suit a range of connection layouts.
  • 304 stainless steel corrugated tube with tight-weave stainless steel braid.
  • Antimicrobial PVC coating adds an extra protective layer.
  • Includes SnapFast quick disconnect, full port shutoff valve, Swivel Max 360 devices, and restraining cable with hardware.
  • Rated for 193,000 BTU/hr flow capacity and performance up to 350°F.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

7.92 lb

Excess Flow Valve Safety Technology

Limits gas flow if the connector is disconnected or ruptured to help reduce leak risk.

Bidirectional Installation

Designed for installation in either direction with a consistent trip rate.

304 Stainless Steel Construction

Uses a corrugated 304 stainless steel tube covered with a tight-weave stainless steel braid for durability.

Antimicrobial PVC Coating

Adds a protective outer coating to the hose assembly.

Complete Kit Assembly

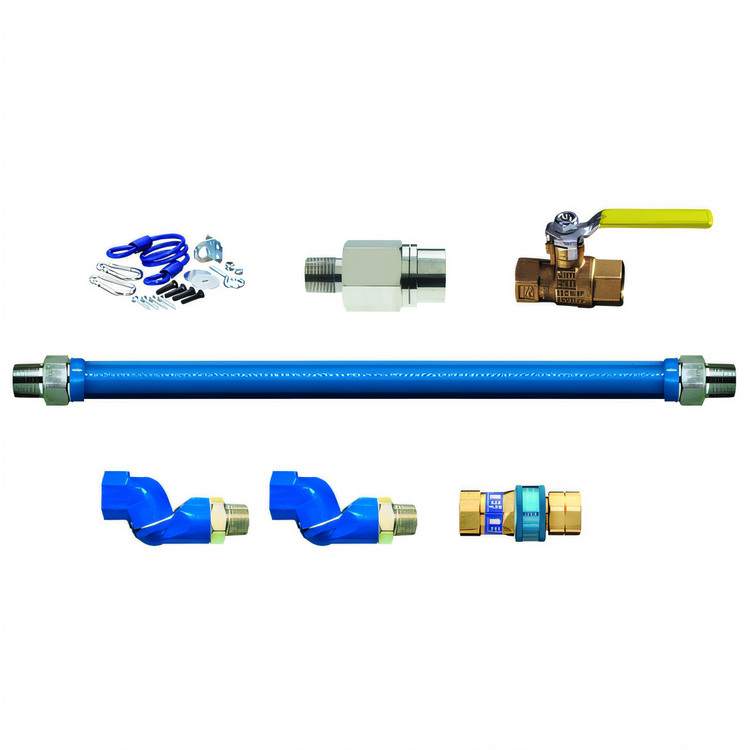

Includes an excess flow valve, SnapFast push-to-connect quick disconnect, two Swivel Max 360 multi-plane rotational devices, a full port shutoff valve, and a coiled restraining cable with hardware.

High Temperature Performance

Reliable performance up to 350°F.

High Flow Capacity

Rated for 193,000 BTU/hr flow capacity.

Type Gas Connector Kit
Style Moveable
Inside Diameter 3/4 Inch
Length 36 Inches
Material Stainless Steel
Finish Antimicrobial PVC Coating
BTU 193,000 BTU/hr
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 7.92 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

Lifetime limited warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It helps limit gas flow if the connector is disconnected or ruptured, reducing leak risk.
Yes. The cutsheet states that the EFV supports bidirectional installation with a consistent trip rate.
The kit includes an excess flow valve, SnapFast push-to-connect quick disconnect, two Swivel Max 360 rotational devices, a full port shutoff valve, and a coiled restraining cable with hardware.
The product is rated for reliable performance up to 350°F.
The kit has a 193,000 BTU/hr flow capacity.
