Dormont Manufacturing

Dormont Blue Hose 3/4 Inch I.D. x 36 Inch Food Truck Gas Connector Kit with Full Port Valve and Elbows

SKU: CAN1675BPV36BXFT
GTIN: 662447001363
$218.03
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose New Arrivals Restaurant Equipment Restaurant Equipment Parts

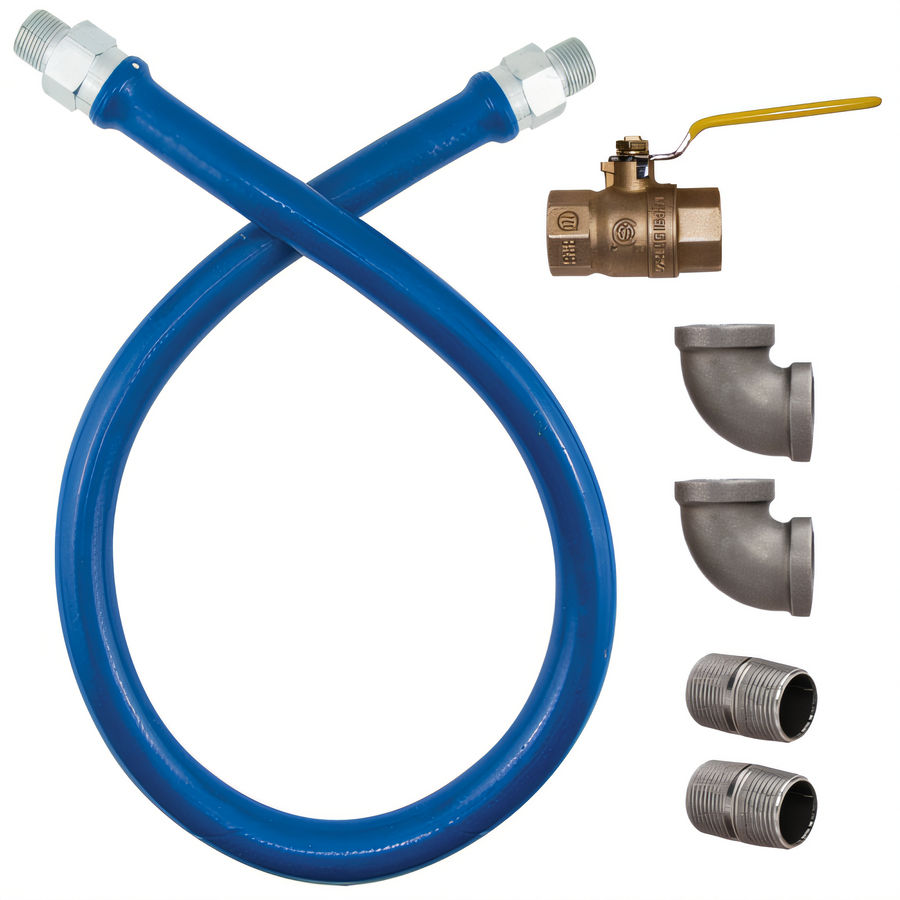

Dormont Blue Hose 3/4 Inch I.D. x 36 Inch Food Truck Gas Connector Kit with Full Port Valve and Elbows

304 Stainless Steel, Antimicrobial PVC-Coated, Designed for Moveable Equipment

Built for food trucks and other moveable gas equipment, this high-flow connector kit combines durable stainless steel construction, a protective antimicrobial coating, and code-focused components in one complete package.

  • 3/4" I.D. x 36" food truck gas connector kit for moveable and caster-mounted equipment.
  • Annealed 304 stainless steel tubing with multi-strand stainless steel braid for durability and flexibility.
  • Blue antimicrobial, UV PVC coating helps protect the hose and will not hold a flame.
  • Includes (2) 3/4" 90-degree elbows, (2) shoulder nipples, and a full port valve.
  • Rated for 256,000 BTU/hr natural gas flow at a 0.5" pressure drop.
  • Fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.
  • Covered by a limited lifetime warranty for the original appliance connection.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

3.65 lb

304 Stainless Steel Tubing

Annealed corrugated tubing is built from 304 stainless steel for commercial gas connector use.

Stainless Steel Braid

Multi-strand stainless steel wire braid adds strength and flexibility.

Blue Antimicrobial PVC Coating

UV-resistant coating helps protect the hose, will not hold a flame, and melts at 350°F.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce strain on the connector.

Complete Kit Components

Includes (2) 3/4" 90-degree elbows, (2) shoulder nipples, and a full port valve.

High Flow Capacity

Rated for 256,000 BTU/hr natural gas flow at a 0.5" pressure drop.

Food Truck Code Compliance

Fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.

Operating Range

Designed to operate from -10°F to 350°F with a maximum operating pressure of 1/2 psi.

Type Gas Connector Kit
Style Food Truck Grade
Gas Type Natural Gas
Gas Connection Size 3/4 Inch
Length 36 Inches
Material 304 Stainless Steel
Color Blue
BTU 256,000 BTU/hr
Selling Unit Each
Units Per Case 1
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 3.65 Pounds

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It includes (2) 3/4" 90-degree elbows, (2) shoulder nipples, and a full port valve.
It uses annealed 304 stainless steel tubing with a multi-strand stainless steel braid and a blue antimicrobial PVC coating.
This 36" 3/4" I.D. model is rated for 256,000 BTU/hr natural gas flow at a 0.5" pressure drop.
Yes. It fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.
The hose is rated from -10°F to 350°F, and the PVC coating melts at 350°F.
Yes. The documentation states that connectors used on caster-mounted equipment shall be installed with a restraining device to prevent strain on the connector.
