Dormont Blue Hose Moveable-Grade Food Truck Gas Connector Kit, 3/4-Inch I.D. x 24-Inch, Braided Stainless Steel, Blue PVC-Coated

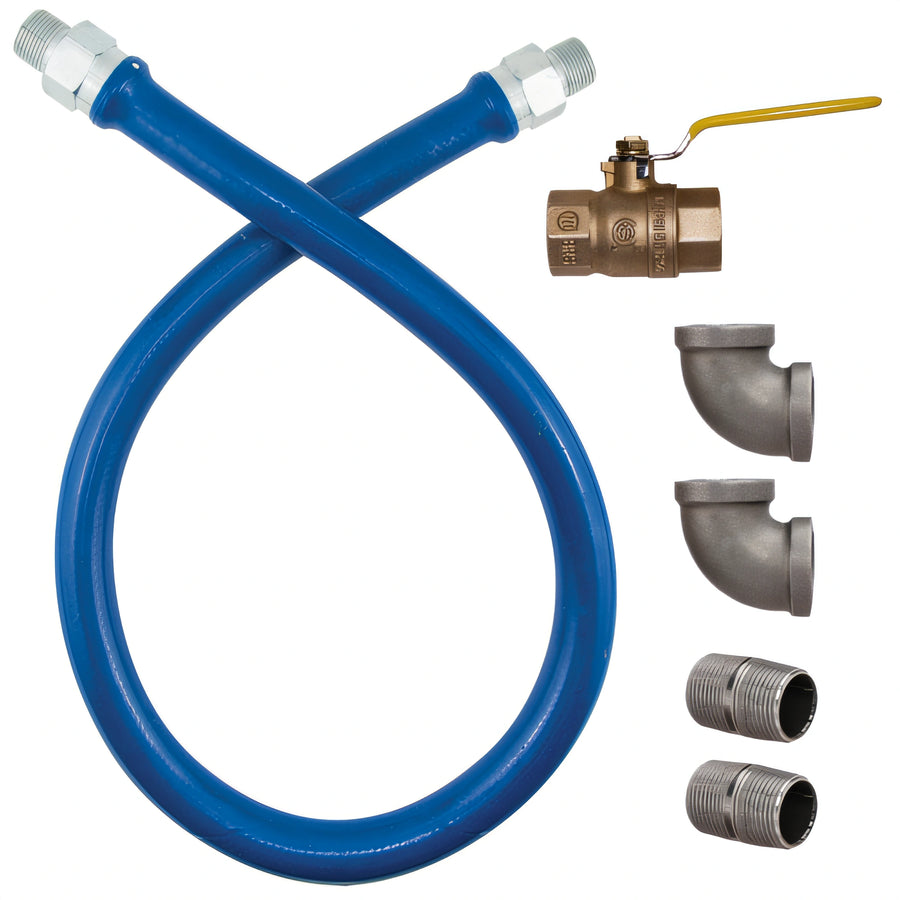

Includes two 90° elbows, two shoulder nipples, and a full port valve

Built for food trucks and other moveable gas equipment, this 24-inch connector combines a braided 304 stainless steel core with a blue antimicrobial PVC coating for durable, flexible service.

  • Designed for food trucks and other moveable or caster-mounted gas equipment.
  • 24-inch length with 3/4-inch inside diameter for compact appliance hookups.
  • Annealed 304 stainless steel tubing with stainless steel wire braiding.
  • Blue antimicrobial UV PVC coating adds protection and resists flame.
  • Stress Guard 360° rotation helps reduce strain at both hose ends.
  • Includes two 90° elbows, two shoulder nipples, and a full port valve.
  • Rated for -10°F to 350°F operating temperatures and 1/2 psi max operating pressure.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

3.51 lb

Moveable-Grade Design

Built for equipment that is mounted on casters or moved regularly for cleaning and repair.

Braided Stainless Steel Tubing

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braiding for flexibility and durability.

Blue Antimicrobial UV PVC Coating

Protective blue coating helps resist UV exposure and will not hold a flame; it melts at 350°F.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce stress on the connector during movement.

Complete Kit Hardware

Includes two 3/4-inch 90° elbows, two shoulder nipples, and a full port valve.

Carbon Steel End Fittings

End fittings are carbon steel with a zinc trivalent chromate finish.

Operating Range

Designed to operate from -10°F to 350°F with a maximum operating pressure of 1/2 psi.

Type Gas Connector Kit
Style Food Truck
Inside Diameter 3/4 Inch
Length 24 Inches
Material 304 Stainless Steel
Color Blue
Finish PVC Coated
BTU 291,000 BTU/hr
Temperature Range -10°F to 350°F
Pressure Rating 1/2 PSI
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is designed for food trucks and other moveable or caster-mounted gas equipment that is regularly moved for cleaning and repair.
The kit includes two 3/4-inch 90° elbows, two shoulder nipples, and a full port valve.
The connector is rated for operating temperatures from -10°F to 350°F.
For natural gas, the 24-inch 3/4-inch I.D. configuration is rated at 291,000 BTU/hr.
This product includes a limited lifetime warranty and is guaranteed for the life of the original appliance to which it is connected.
