Dormont Manufacturing

Dormont Blue Hose Food Truck Grade Gas Connector Kit, 1/2" I.D. x 36" Long, Blue PVC-Coated Stainless Steel

SKU: CAN1650BPV36BXFT
GTIN: 662447001110
$170.40
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Dormont Manufacturing Gas Hose General Restaurant Equipment Parts New Arrivals Parts & Accessories Restaurant Equipment Restaurant Equipment Parts

Dormont Blue Hose Food Truck Grade Gas Connector Kit, 1/2" I.D. x 36" Long, Blue PVC-Coated Stainless Steel

Includes full-port valve and elbows; 120,000 BTU/hr natural gas flow capacity

Built for food trucks and other moveable equipment, this stainless steel gas connector kit combines high-flow performance with a blue antimicrobial PVC coating and strain-reducing rotating fittings.

  • 36-inch long, 1/2-inch inside diameter food truck grade gas connector kit
  • 304 stainless steel corrugated tubing with stainless steel braid for durability
  • Blue antimicrobial, UV PVC coating resists flame and melts at 350°F

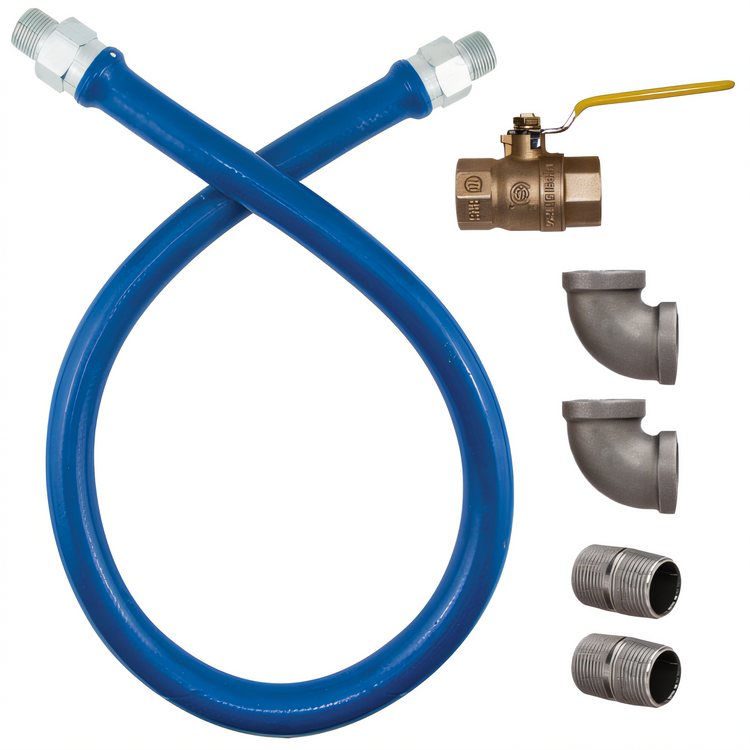

  • Includes (2) 1/2-inch 90° elbows, (2) shoulder nipples, and a full-port valve
  • Rated for 120,000 BTU/hr natural gas flow capacity at a 0.5-inch W.C. pressure drop
  • Stress Guard rotation technology helps reduce strain at both ends of the hose
  • Fulfills IFC 2018 and IFC 2021 food truck gas appliance connection requirements

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

3.63 lb

304 Stainless Steel Tubing

Annealed 304 stainless steel corrugated tube is built for commercial moveable-grade gas service.

Stainless Steel Braid

Multi-strand stainless steel wire braiding adds strength and abrasion resistance.

Blue Antimicrobial PVC Coating

Blue antimicrobial and UV PVC coating will not hold a flame and melts at 350°F (177°C).

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce stress on the connector during movement.

Included Kit Components

Includes (2) 1/2-inch 90° elbows, (2) shoulder nipples, and a full-port valve.

High-Flow Capacity

Rated at 120,000 BTU/hr natural gas flow capacity based on a 0.5-inch W.C. pressure drop.

Code Compliance

Fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections; also noted as meeting ANSI Z21.69/CSA 6.16 and NFPA 54 requirements.

Limited Lifetime Warranty

Guaranteed for the life of the original appliance to which it is connected.

Type Gas Connector Kit
Style Food Truck Grade
Material 304 Stainless Steel
Color Blue
Finish PVC Coated
Length 36 Inches
Inside Diameter 1/2 Inch
BTU 120,000 BTU/hr
Temperature Range -10°F to 350°F (-23°C to 177°C)
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 3.63 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is 36 inches long with a 1/2-inch inside diameter.
The kit includes (2) 1/2-inch 90° elbows, (2) shoulder nipples, and a full-port valve.
It is rated for 120,000 BTU/hr natural gas flow capacity at a 0.5-inch W.C. pressure drop.
Yes. It is a food truck grade, moveable-grade gas connector designed for equipment that is moved regularly or mounted on casters.
It carries a limited lifetime warranty and is guaranteed for the life of the original appliance to which it is connected.
