Dormont Blue Hose 24-Inch Food Truck Gas Connector Kit, 1/2-Inch I.D., Moveable-Grade

Braided 304 Stainless Steel with Blue Antimicrobial UV PVC Coating

This moveable-grade food truck gas connector kit combines flexible 304 stainless steel construction, Stress Guard rotation, and a blue antimicrobial coating for dependable mobile equipment hookups.

  • Designed for food trucks and other moveable or caster-mounted gas equipment that is regularly repositioned.
  • Annealed 304 stainless steel tubing with multi-strand stainless steel braid delivers flexibility and durability.
  • Blue antimicrobial UV PVC coating helps protect the hose and will not hold a flame; it melts at 350°F.
  • Stress Guard 360° rotational end fittings reduce strain at both ends of the connector.

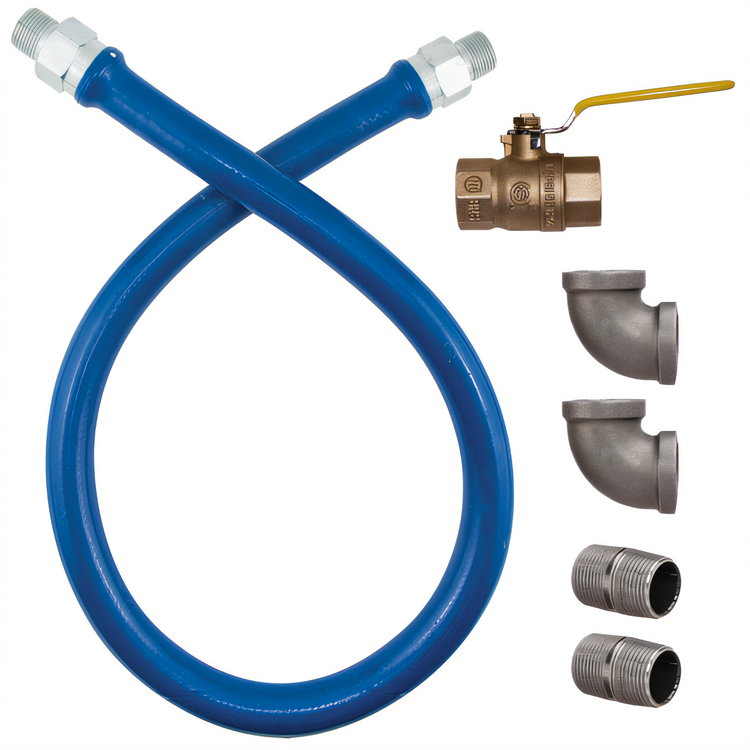

  • Includes two 1/2" 90° elbows, two shoulder nipples, and a full-port valve for a complete kit.
  • Rated for 150,000 BTU/hr at 24" length with an operating temperature range of -10°F to 350°F.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

3.26 lb

Moveable-Grade Design

Built for gas appliances mounted on casters or equipment that is moved regularly for cleaning and service.

304 Stainless Steel Tubing

Annealed stainless steel tubing provides the strength and flexibility needed for mobile applications.

Stainless Steel Wire Braiding

Multi-strand stainless steel braid reinforces the hose for added durability.

Blue Antimicrobial UV PVC Coating

Protective blue coating is antimicrobial, UV resistant, melts at 350°F, and will not hold a flame.

Stress Guard Rotational End Fittings

360° rotation at both ends helps reduce twisting and stress on the connector.

Complete Food Truck Kit Hardware

Includes (2) 1/2" 90° elbows, (2) shoulder nipples, and a full-port valve.

Code-Related Compliance

Documentation states the product fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections and meets NSF/ANSI 169 and ANSI Z21.69/CSA 6.16.

Performance Ratings

Rated for -10°F to 350°F operating temperatures and up to 1/2 psi maximum operating pressure.

Type Food Truck Gas Connector Kit
Style Moveable-Grade
Inside Diameter 1/2 Inch
Length 24 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial UV PVC
Color Blue
BTU 150,000 BTU/hr
Temperature Range -10°F to 350°F
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited lifetime warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The kit includes (2) 1/2" 90° elbows, (2) shoulder nipples, and a full-port valve.
It is designed for moveable equipment, including food trucks and other caster-mounted gas appliances that are moved regularly for cleaning or repair.
The connector is rated for operating temperatures from -10°F to 350°F and a maximum operating pressure of 1/2 psi.
This model has a 1/2" inside diameter and is 24" long.
The documentation states that it fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections and meets NSF/ANSI 169 and ANSI Z21.69/CSA 6.16.
