Dormont Blue Hose 1 Inch I.D. Food Truck Gas Connector Kit, 60 Inch

304 Stainless Steel, Antimicrobial Blue PVC Coating, 397,000 BTU/hr

Built for food trucks and other moveable equipment, this high-capacity stainless-steel gas connector kit combines durable construction with strain-reducing rotational fittings.

  • Food truck grade gas connector kit designed for moveable and caster-mounted equipment
  • 1 inch inside diameter with a 60 inch length and 397,000 BTU/hr natural gas flow capacity
  • 304 stainless steel corrugated tubing with multi-strand stainless steel braid
  • Blue antimicrobial, UV PVC coating helps protect the hose and will not hold a flame
  • Stress Guard 360° rotational end fittings reduce strain at both ends of the hose

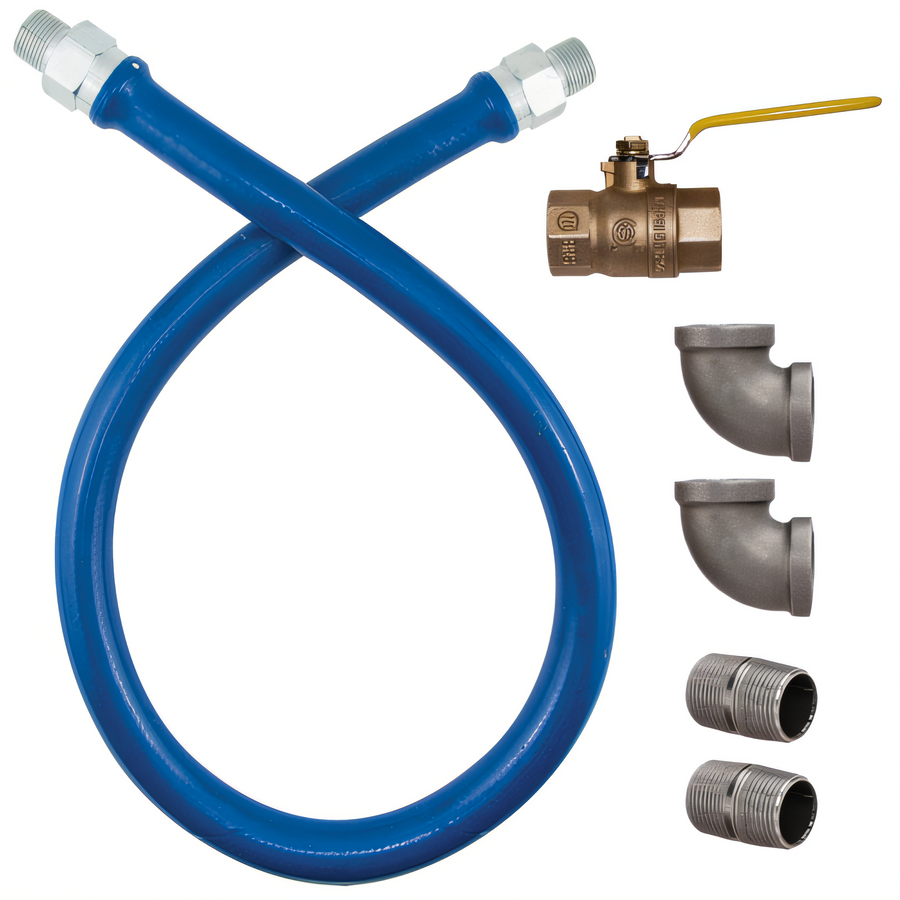

  • Includes two 1 inch 90° elbows, two shoulder nipples, and a full-port valve
  • Fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

8.47 lb

Moveable-Grade Design

Built for moveable equipment and caster-mounted equipment that is regularly moved for cleaning or repair.

304 Stainless Steel Corrugated Tubing

Annealed 304 stainless steel tubing provides durable, flexible gas service.

Stainless Steel Braid

Multi-strand stainless steel wire braid adds strength and protection to the connector.

Blue Antimicrobial PVC Coating

Blue antimicrobial and UV PVC coating helps protect the hose; it melts at 350°F and will not hold a flame.

Stress Guard Rotational End Fittings

360° rotation at both ends helps reduce stress on the hose connection points.

Complete Food Truck Kit

Includes (2) 1 inch 90° elbows, (2) shoulder nipples, and a full-port valve.

High Flow Natural Gas Rating

Rated for 397,000 BTU/hr natural gas flow at a 0.5 inch W.C. pressure drop and meets IFC 2018/2021 food truck connection requirements.

Type Gas Connector Kit
Style Food Truck Grade
Material 304 Stainless Steel
Finish PVC Coated
Color Blue
Length 60 Inches
Inside Diameter 1 Inch
BTU 397,000 BTU/hr
Gas Type Natural Gas
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 8.47 Pounds
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is designed for moveable equipment and caster-mounted equipment, including food trucks and similar appliances that are moved regularly.
The kit includes (2) 1 inch 90° elbows, (2) shoulder nipples, and a full-port valve.
It is rated at 397,000 BTU/hr for natural gas at a 0.5 inch W.C. pressure drop.
The blue PVC coating is rated from -10°F to 350°F and will not hold a flame.
Yes. It fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.
Yes. The documentation states that a restraining device is required to prevent strain from being transmitted to the connector.
