Dormont Blue Hose Food Truck Gas Connector Kit, 1-Inch ID x 24-Inch, Moveable-Grade

Braided 304 Stainless Steel with Blue Antimicrobial UV PVC Coating

Built for food trucks and other moveable equipment, this gas connector kit combines flexible stainless construction, Stress Guard rotation fittings, and a flame-resistant blue coating.

  • Designed for moveable and caster-mounted gas equipment used on food trucks
  • 1-inch inside diameter and 24-inch length for high-flow applications
  • Annealed 304 stainless steel tubing with multi-strand stainless steel braid
  • Blue antimicrobial UV PVC coating resists flame and melts at 350°F
  • Stress Guard 360° rotational end fittings help reduce hose strain

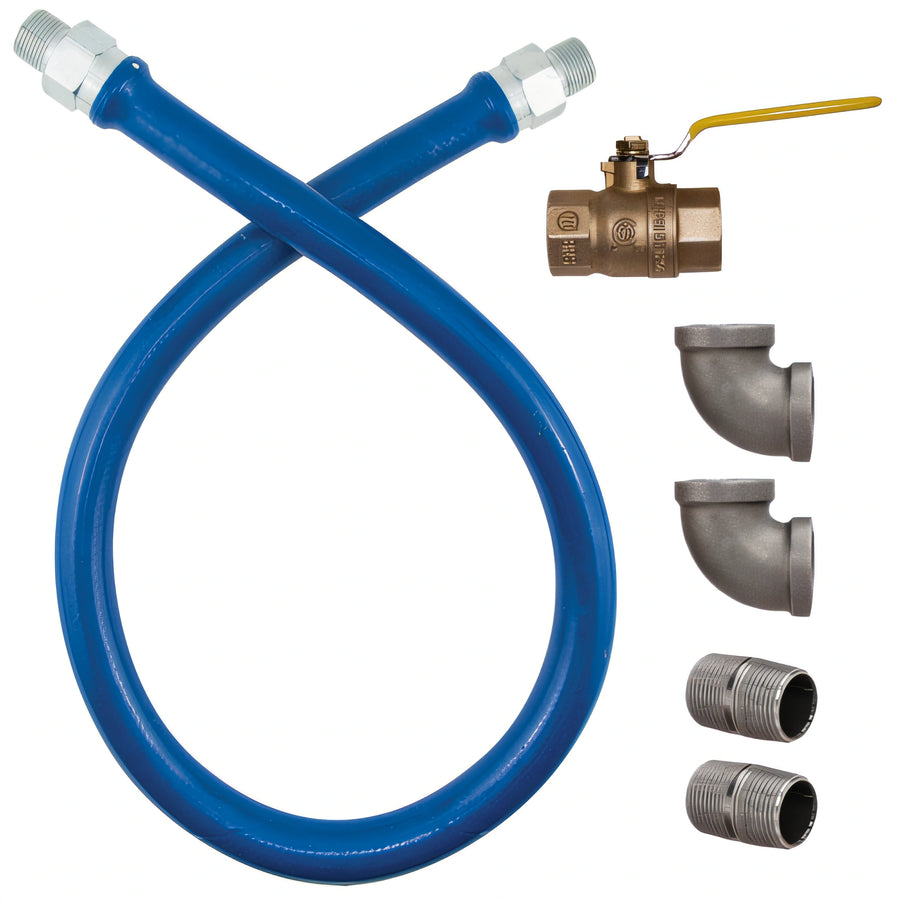

  • Includes two 1-inch 90° elbows, two shoulder nipples, and a full port valve
  • Limited lifetime warranty for the life of the original appliance

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

6.36 lb

Moveable-Grade Design

Built for equipment that is moved regularly for cleaning and repair, including food trucks and other caster-mounted appliances.

Blue Antimicrobial UV PVC Coating

Protective blue coating helps resist UV exposure, is antimicrobial, and will not hold a flame; it melts at 350°F.

Stress Guard Rotation Technology

360° rotational end fittings at both ends help reduce strain on the connector during movement.

304 Stainless Steel Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durability and flexibility.

Carbon Steel End Fittings

End fittings are carbon steel with zinc trivalent chromate finish.

Complete Kit Hardware

Includes (2) 1-inch 90° elbows, (2) shoulder nipples, and a full port valve.

High Flow and Temperature Ratings

The 1-inch by 24-inch configuration is rated for 582,000 BTU/hr and operates from -10°F to 350°F; maximum operating pressure is 1/2 psi.

Caster-Mounted Installation Guidance

When used on caster-mounted equipment, a restraining device is required to prevent strain on the connector.

Food Truck Code Compliance

Fulfills IFC 2018 and IFC 2021 requirements for food truck gas appliance connections.

Type Gas Connector Kit
Style Moveable-Grade
Inside Diameter 1 Inch
Length 24 Inches
Material 304 Stainless Steel
Color Blue
Finish Blue Antimicrobial UV PVC Coated
Temperature Range -10°F to 350°F
BTU 582,000 BTU/hr
Selling Unit Each
Units Per Case 1
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 6.36 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is designed for moveable equipment and caster-mounted equipment, including food trucks.
The kit includes (2) 1-inch 90° elbows, (2) shoulder nipples, and a full port valve.
The operating temperature range is -10°F to 350°F (-23°C to 177°C).
The 1-inch by 24-inch configuration is rated for 582,000 BTU/hr at a 0.5-inch WC pressure drop.
Yes. The documentation states that connectors used on caster-mounted equipment must be installed with a restraining device to prevent strain on the connector.
