Dormont Manufacturing
Dormont 72-Inch 1/2-Inch ID Swirl Hose Assembly with Brass Fittings
SKU: 73-3134-72
$126.80
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?

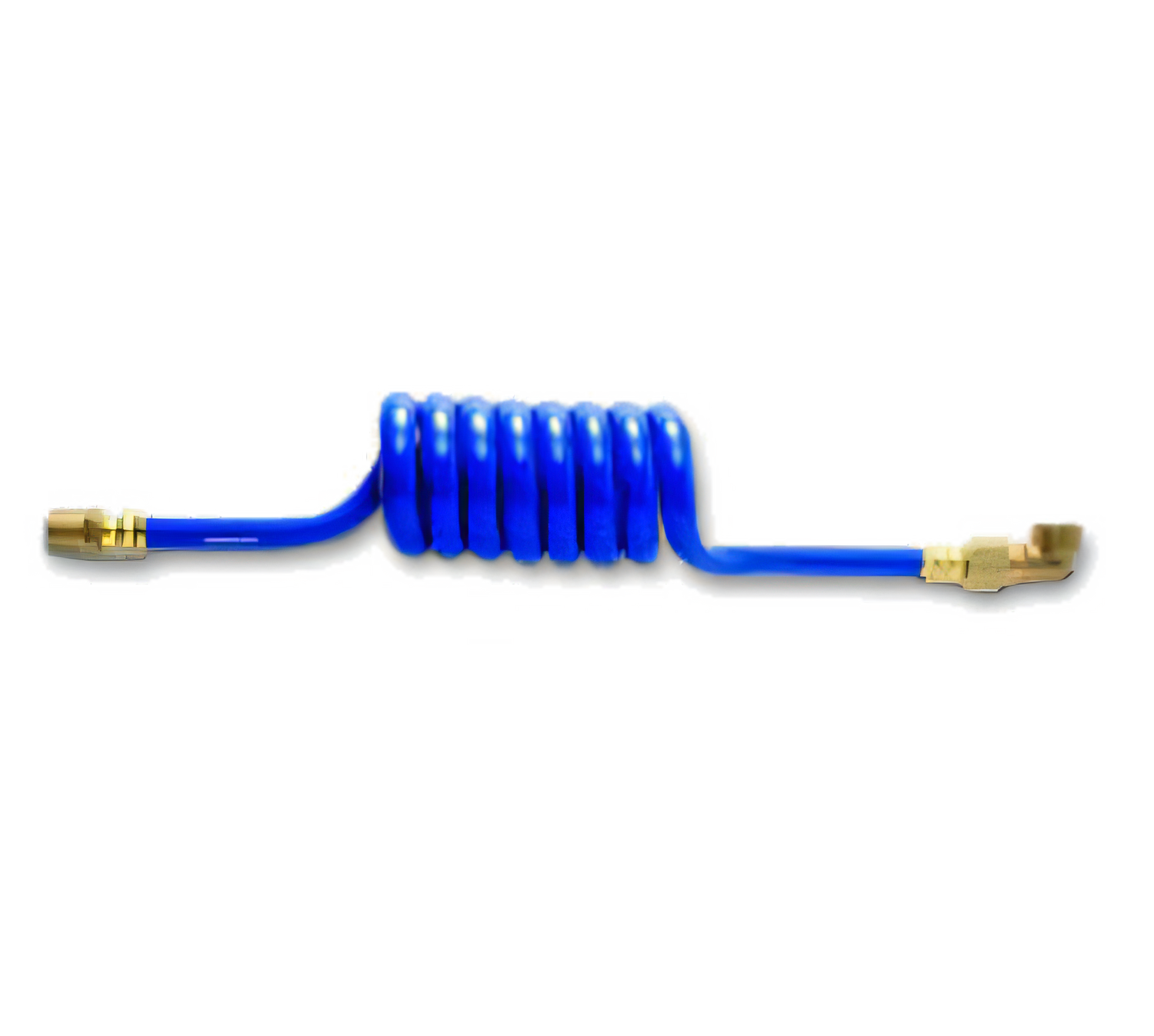

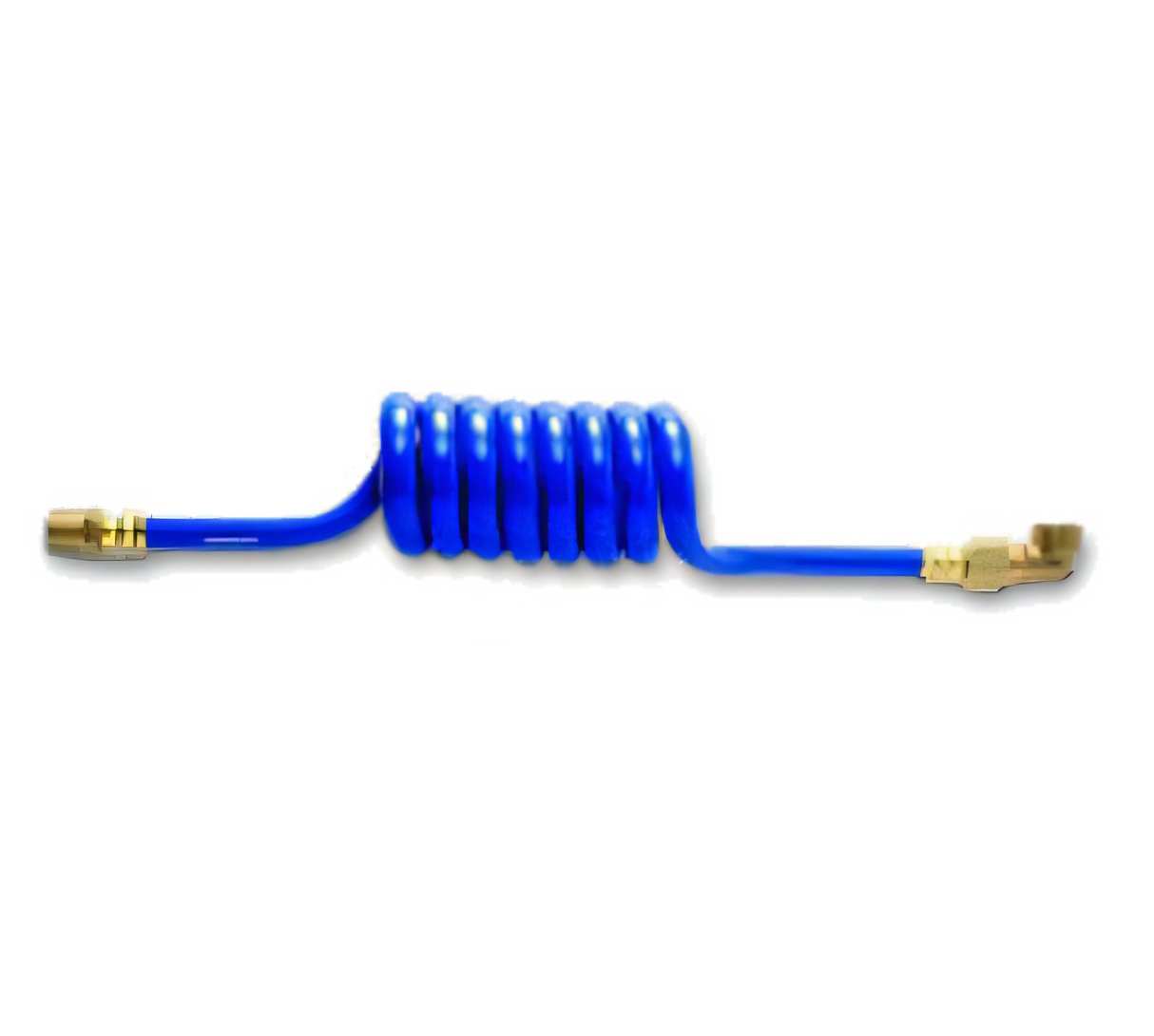

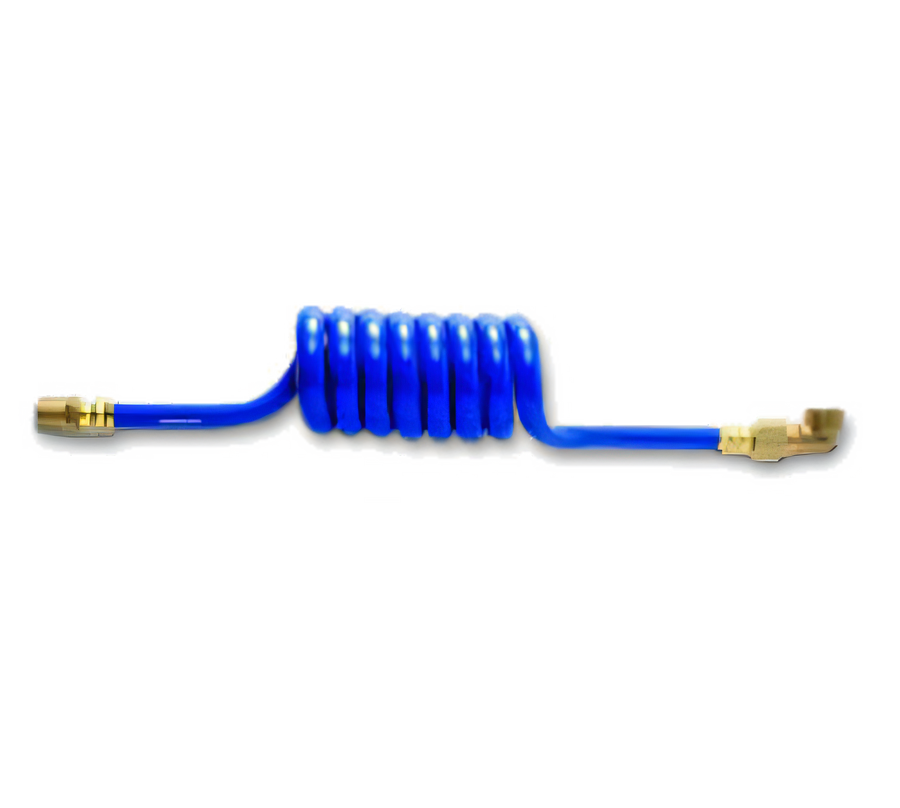

Dormont 72-Inch 1/2-Inch ID Swirl Hose Assembly with Brass Fittings
Fixed Male NPT x Swivel Female NPS, Lead-Free, for Water-Fed Equipment
A flexible lead-free hose assembly that simplifies water-fed equipment hookups while resisting kinks and cracks.
- 72-inch hose with a 1/2-inch inside diameter for water supply connections.
- Flexible Surethane construction helps resist kinking and cracking.
- Lead-free design is certified to NSF/ANSI 372.
- Rated for up to 100 psig operating pressure and 160°F operating temperature.
- Includes brass fittings and a male x male elbow for reliable installation.
- Suitable for coffee makers, ice machines, steamers, combi-ovens, and drain lines.
Product Weight:
1.73 lbFlexible Surethane Tubing
Durable retractable tubing helps the hose move easily while resisting kinks and cracks.
Lead-Free Construction
The wetted surface contains less than 0.25% lead by weight.
NSF/ANSI 372 Certified
Certified for lead-content compliance in potable water applications.
High Pressure Rating
Maximum operating pressure is 100 psig.
High Temperature Rating
Maximum operating temperature is 160°F.
Brass Male x Male Elbow
The 73 series includes a 1/2-inch male NPT x 1/2-inch male NPT brass elbow.
Application Versatility
Designed for coffee makers, ice machines, steamers, combi-ovens, and drain lines.
Type
Swirl Hose Assembly
Style
Spiral
Material
Polyurethane
Fittings Material
Brass
Inner Diameter
1/2 Inch
Length
72 Inches
Connection Type
Fixed Male NPT x Swivel Female NPS
Maximum Operating Pressure
100 psig
Maximum Operating Temperature
160 °F
Selling Unit
Each
Units Per Case
1
Frequently Asked Questions
It is intended for water-fed appliances and equipment such as coffee makers, ice machines, steamers, combi-ovens, and drain lines.
The hose is 72 inches long with a 1/2-inch inside diameter.
The maximum operating pressure is 100 psig.
The maximum operating temperature is 160°F.
It uses a fixed male NPT x swivel female NPS connection and includes a brass male x male elbow.
Yes. The wetted surface contains less than 0.25% lead by weight and it is certified to NSF/ANSI 372.
