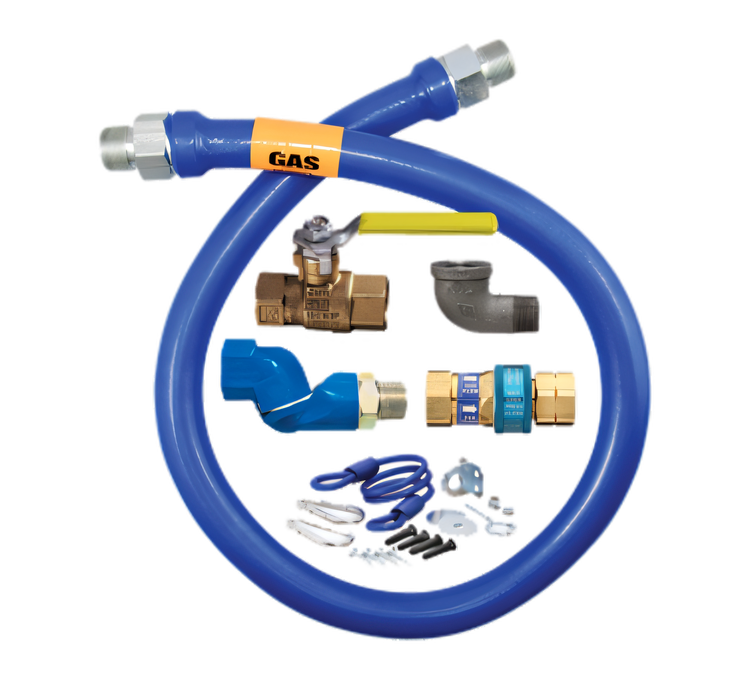

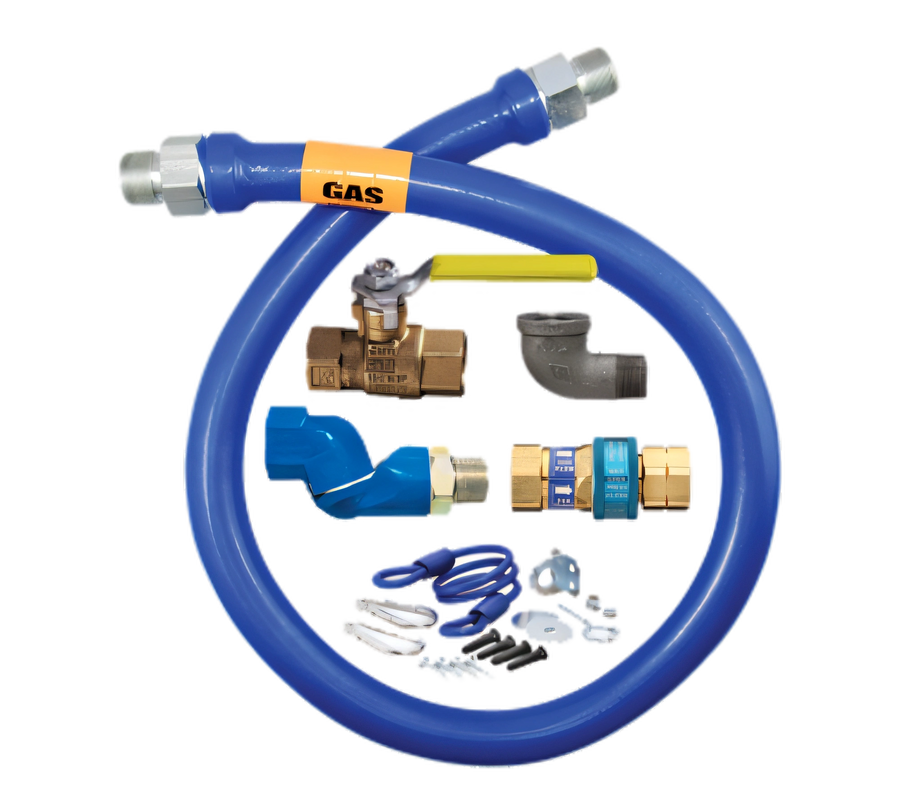

Dormont Blue Hose 3/4" I.D. x 72" Deluxe Moveable Gas Connector Kit with SnapFast QD, Swivel MAX, Valve, Elbow & Restraining Cable

Blue antimicrobial PVC-coated stainless steel; 130,000 BTU/hr minimum flow capacity

A complete 72-inch connector kit for moveable commercial gas appliances, built with a 360° swivel, one-handed quick disconnect, and an included restraining device for safer, easier installation.

  • 3/4" inside diameter and 72" length for moveable commercial gas equipment connections.
  • Stainless steel tubing and braid with a blue antimicrobial PVC coating.
  • Includes SnapFast one-handed quick disconnect and Swivel MAX 360° rotation fitting.
  • Comes with a full port valve, elbow, and coiled restraining cable with hardware.
  • Rated for 130,000 BTU/hr minimum flow capacity.
  • Backed by a limited lifetime warranty.

Product Weight:

7.2 lb

Swivel MAX 360° Rotation

Multi-plane fitting allows full rotational movement to reduce stress on the connector and improve appliance positioning.

SnapFast Quick-Disconnect

One-handed quick-disconnect fitting includes thermal shut-off that automatically stops gas flow when internal temperature exceeds 350°F (177°C).

Stainless Steel Hose Construction

Annealed 304 stainless steel tubing with multi-strand stainless steel wire braid for durable commercial use.

Blue Antimicrobial PVC Coating

Protective blue coating helps resist flame and is designed for antimicrobial protection.

Included Restraining Device

PVC-coated steel multi-strand restraining cable with mounting hardware is included for moveable gas equipment installations.

Complete Kit Components

Kit includes a full port brass valve and one elbow along with the hose assembly components.

High Flow Capacity

Provides a 130,000 BTU/hr minimum flow capacity at the specified natural gas pressure drop.

Limited Lifetime Warranty

Covered by a limited lifetime warranty for the life of the original appliance.

Type Moveable Gas Connector Kit
Style Deluxe Kit
Inside Diameter 3/4 Inch
Length 72 Inches
Material 304 Stainless Steel
Finish Blue Antimicrobial PVC Coating
BTU 130,000 BTU/hr
Country of Origin USA
Shipping Weight 7.2 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

The kit includes the Dormont Blue Hose, Swivel MAX fitting, SnapFast quick-disconnect, full port valve, elbow, and a coiled restraining cable with hardware.
It has a 3/4" inside diameter and is 72" long.
The kit has a 130,000 BTU/hr minimum flow capacity for natural gas at the specified pressure drop.
Yes. The SnapFast quick-disconnect automatically shuts off gas when internal temperature exceeds 350°F (177°C).
It is for indoor use only, not for temperatures below 32°F (0°C), and the maximum operating pressure is 1/2 psi.
