Dormont Blue Hose Moveable Gas Connector Kit with Excess Flow Valve, 3/4 Inch ID x 36 Inch

Stainless Steel Braid with Blue Antimicrobial PVC Jacket

This EFV-equipped Blue Hose kit helps protect against gas leaks while giving installers a complete, flexible connector setup.

  • 3/4 inch inside diameter and 36 inch length for moveable gas appliance connections.
  • Excess flow valve helps limit gas flow if the connector is disconnected or ruptured.
  • Stainless steel braid with blue antimicrobial PVC coating adds durability and visibility.

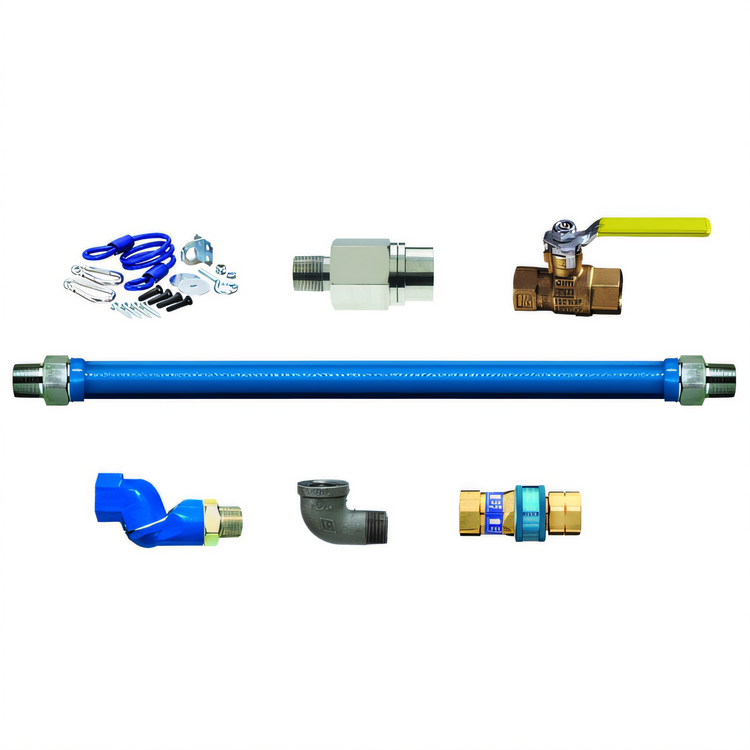

  • Includes full port shutoff valve, SnapFast quick disconnect, Swivel MAX 360, 90° elbows, and coiled restraining cable with hardware.
  • Bidirectional EFV installation offers flexible setup with a consistent trip rate.
  • Rated for 203,000 BTU/hr minimum flow capacity and reliable performance up to 350°F.

Overall Dimensions:

10.38"W x 2.88"D x 26.63"H

Product Weight:

7.02 lb

Excess Flow Valve Safety Protection

Automatically limits gas flow if the connector is disconnected or ruptured to help reduce leak risk.

Complete Connection Kit

Includes a full port shutoff valve, SnapFast quick disconnect, Swivel MAX 360 rotational device, 90° elbows, and a coiled restraining cable with hardware.

Stainless Steel Braid With Blue PVC Jacket

The hose is covered with stainless steel braid and coated with blue antimicrobial PVC for added durability and visibility.

Bidirectional Installation

The excess flow valve can be installed in either direction with a consistent trip rate.

Heat-Resistant Performance

Reliable performance up to 350°F.

High Flow Capacity

Provides a minimum flow capacity of 203,000 BTU/hr.

Type Gas Connector Kit
Style Moveable
Gas Connection Size 3/4 Inch Inside Diameter
Length 36 Inches
Material Stainless Steel
Color Blue
Finish Blue Antimicrobial PVC
BTU 203,000 BTU/hr
Shipping Width 11 Inches
Shipping Depth 3 Inches
Shipping Height 27 Inches
Shipping Weight 7.02 lb.
Selling Unit Each
Units Per Case 1

Warranty & Protection

Limited lifetime warranty

Documents

PDF Cutsheet PDF Download PDF Restraining cable instructions PDF Download

Frequently Asked Questions

It is 3/4 inch inside diameter and 36 inches long.
It includes an excess flow valve that limits gas flow if the connector is disconnected or ruptured.
The kit includes an excess flow valve, full port shutoff valve, SnapFast quick disconnect, Swivel MAX 360, 90° elbows, and a coiled restraining cable with hardware.
Yes. The document states the valve supports bidirectional installation with a consistent trip rate.
The kit has a minimum flow capacity of 203,000 BTU/hr.
It includes a limited lifetime warranty.
